6mm Tile Backer Board – Electric Underfloor Heating Insulation
Couldn't load pickup availability
Payment details
6mm Tile Backer Board – Insulation for Electric Underfloor Heating
Description

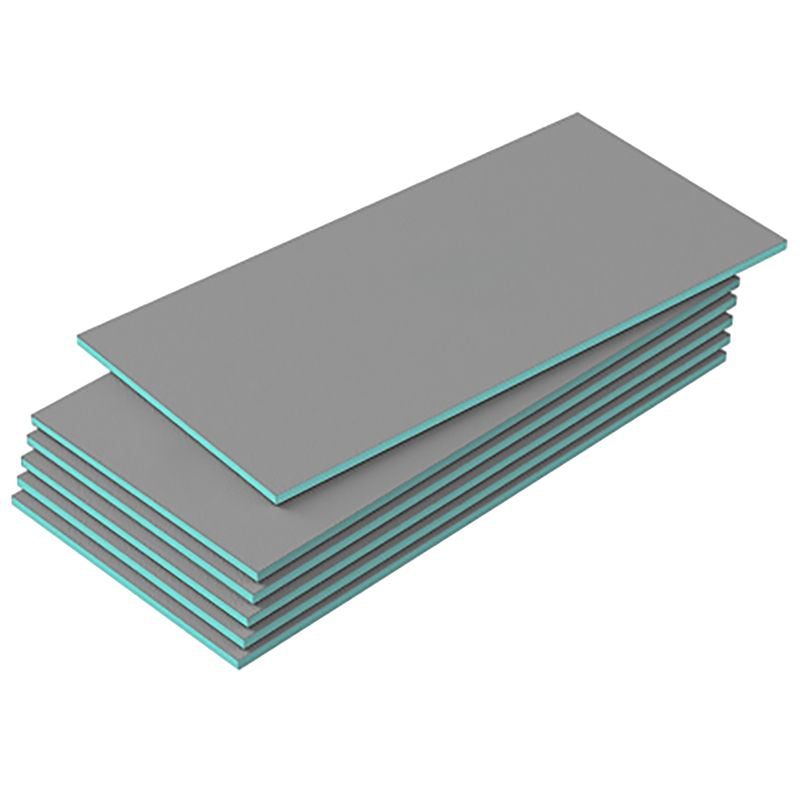

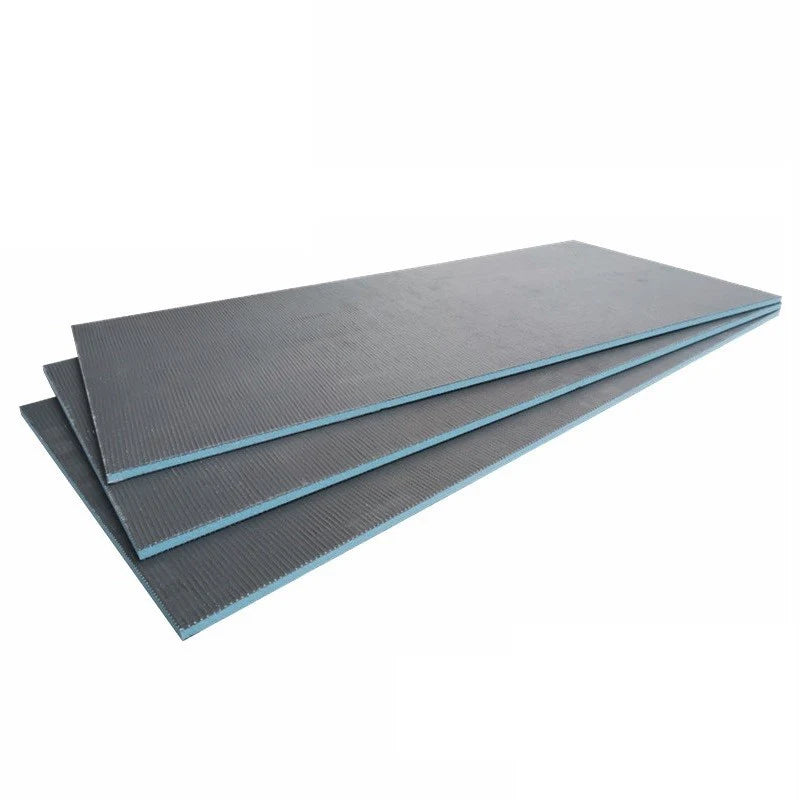

The 6mm Tile Backer Board is a strong, lightweight insulated tile backer board specially developed for use with undertile heating systems. It offers excellent thermal insulation performance while providing a durable, stable base for tile and stone floor finishes.
Constructed from an extruded polystyrene core covered on both sides by a glass fibre mesh embedded in a cementitious coating, this board delivers exceptional compressive strength, moisture resistance, and stability. It is designed to prevent downward heat loss and speed up heat-up times, reducing running costs of underfloor heating systems.
What’s Included
- Single insulation backer board, size 1200mm x 600mm
- Each board covers 0.72 m²
- Minimum order: 10 boards
- Installation recommendations included
Key Features
- 6mm thickness, suitable for low build-up insulation needs
- High compressive strength and lightweight construction
- Glass fibre mesh reinforced cementitious coating for durability
- Exceptional thermal insulation reducing heat loss under tiles
- High resistance to moisture and deformation under heavy loads
- Improves efficiency and responsiveness of underfloor heating
- Easy to cut and shape on site for precise installation
- Ideal for use on timber or concrete/screed subfloors
Benefits
- Protects and improves thermal insulation beneath tile floors
- Speeds up heat output times reducing energy consumption
- Prevents deformation under foot traffic or heavy tiles
- Durable and stable base for long-lasting floor finish quality
- Suitable for domestic, commercial, and refurbishment projects
Technical Specifications
| Panel Size | 1200mm x 600mm |
|---|---|
| Board Coverage | 0.72 m² |
| Board Thickness | 6mm |
| Material | Extruded Polystyrene Core, Glass Fibre Mesh Reinforced Cementitious Coating |
| Thermal Conductivity | 0.027 W/m·K |
| Density | > 30 kg/m³ |
| Compressive Strength | 30 tonnes/m² (~300 kPa) |
| Weight | Approximately 1.5 - 2 kg per board |
| Water Absorption | < 0.1 vol % |
| Installation | Mechanical fixing recommended on timber; adhesive bonding on concrete |
This high strength 6mm Tile Backer Board provides an ideal thermal insulation layer under tiled floors with underfloor heating, combining strength, thermal efficiency, and ease of installation.
- Type Underfloor Heating Insulation
- Vendor AIZO - Quality Heating
