6mm Ecomax Lite Insulation for Foil Heaters under Wood and Laminate

£27.00 inc. VAT

Thickness 3.0m² Pack (6 Boards) 5.0m² Pack (10 Boards) 18.0m² Pack (36 Boards)

Payment details

6mm Ecomax Lite Insulation – Pack

Description

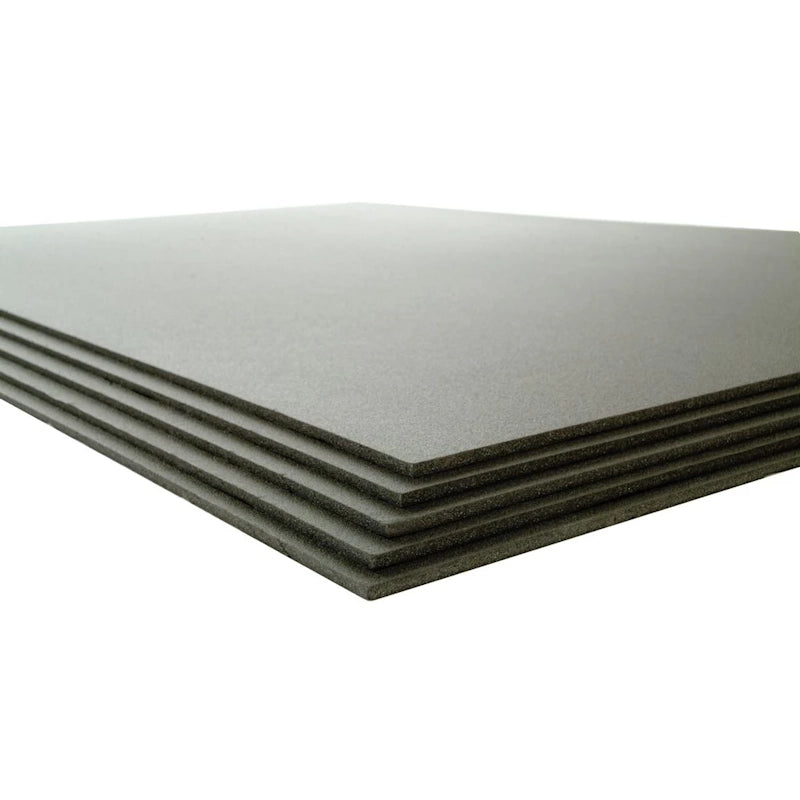

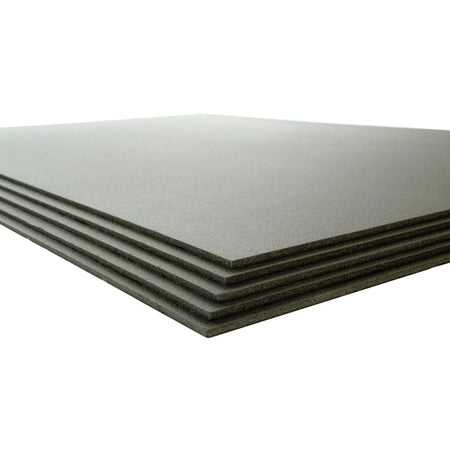

The 6mm Ecomax Lite Insulation is a thin, closed-cell foamed polystyrene insulation panel manufactured from fully recycled material. It is specifically designed for use under electric and water-based underfloor heating systems beneath wood, laminate, and engineered floors. The 6mm thickness offers a low build height, making it ideal for retrofit and new construction where conserving floor-to-ceiling height is critical.

Ecomax Lite’s fine closed-cell structure provides excellent thermal insulation properties, effectively reflecting heat upward to reduce heat loss and improve system efficiency. Additionally, it offers sound insulation, increased floor comfort, and resistance to moisture, mould, and most alkalis.

What’s Included

Insulation boards sized approximately 1000mm x 500mm (0.5 m² coverage per board)
Available pack sizes:
- 3.0 m² Pack (6 boards)
- 5.0 m² Pack (10 boards)
- 18.0 m² Pack (36 boards)
Installation guidelines

Key Features

6mm thickness for minimal floor height impact
Constructed from closed cell foamed polystyrene providing excellent thermal insulation
Made from 100% recycled material, free from freon and halogens
Water repellent, resistant to cement, plaster, and most alkalis
Sound insulating properties that reduce floor noise
Lightweight and easy to cut and handle on-site

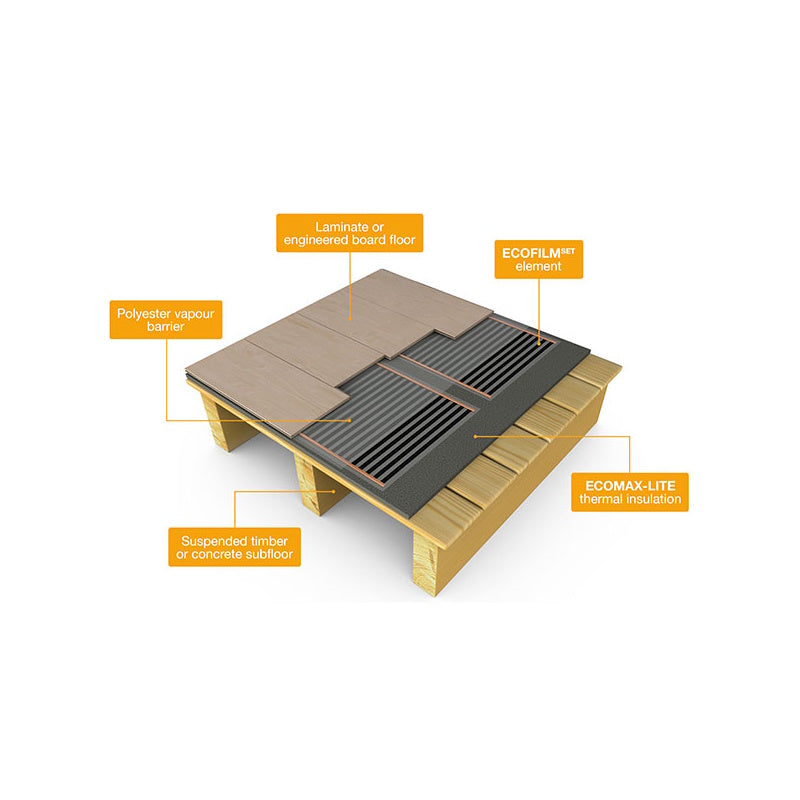

Compatible with all electric and water-based underfloor heating systems beneath timber and laminate floors

Benefits

Improves underfloor heating efficiency by reflecting heat upwards
Prevents heat loss through the subfloor reducing energy consumption
Provides a protective, moisture-resistant layer under flooring
Enhances comfort by also reducing floor noise
Simple and quick to install, perfect for project time savings

Technical Specifications

Material	Closed cell foamed polystyrene
Dimensions per Board	Approximately 1000mm x 500mm
Thickness	6mm
Coverage per Board	0.5 m²
Density	40 Kg/m³
Thermal Conductivity (λ)	0.035 W/m·K
Pack Sizes	3.0 m² (6 boards), 5.0 m² (10 boards), 18.0 m² (36 boards)
Water Resistance	High
Sound Insulation	Effective
Color	Grey

The 6mm Ecomax Lite Insulation pack is an ideal low-profile insulation solution, boosting the efficiency of your underfloor heating system while minimizing floor height increase and enhancing overall comfort and noise reduction.
