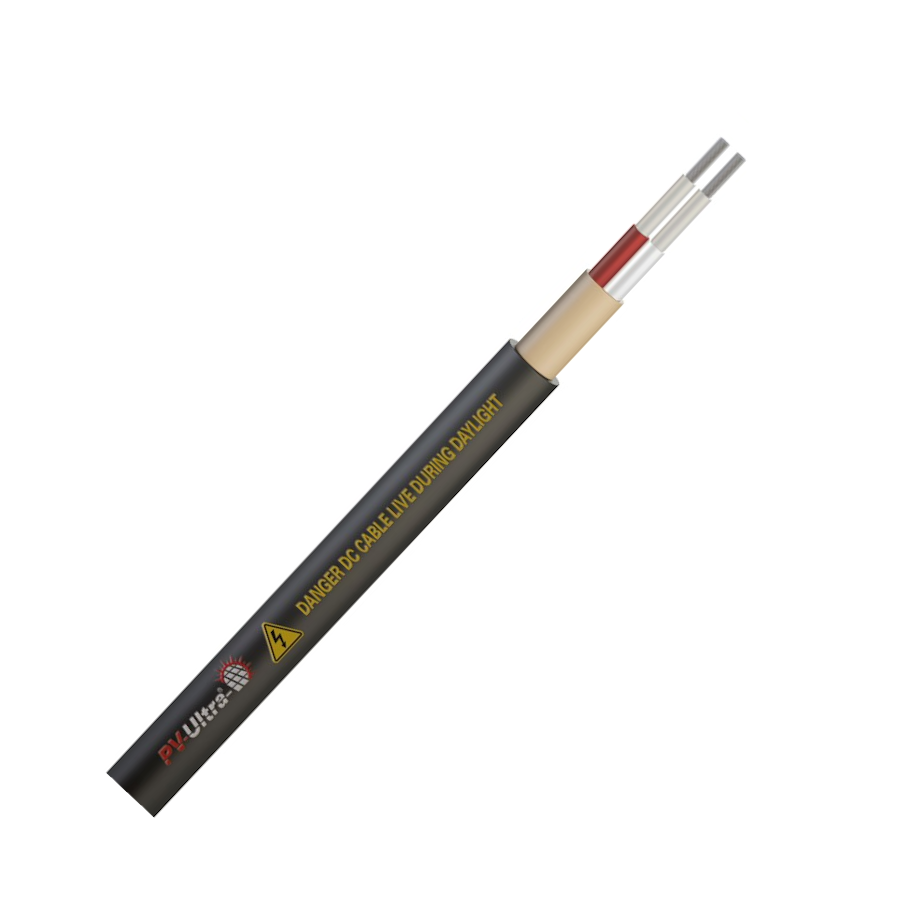

4mm2 Two Core DC Cable 25m - Red and Black, SolarTek PV Ultra Tuff Sheath Solar Cable
Exc. VAT
Inc. VAT
Regular price
£175.00
(Inc. VAT)
inc. VAT
FREE Express Delivery (1-3 days) in UK Mainland on most orders
Excluding: Solar Panels (£59 delivery), Batteries (£49 delivery), Small Items (£4.95 delivery)
Next Working Day Delivery options if ordered before 12.00 pm — Contact Us
Same-day Delivery options — Contact Us
Click & Collect available — Contact Us
Custom quote available on request
*See checkout or shipping policy for full details
Payment options
4mm2 Two Core DC Cable 25m - Red and Black
Key Features:
- Conductor Cross-Section: 4 mm² per core — ideal for efficient current transmission with low voltage drop.
- Two Core Design (Red and Black) — facilitates easy identification of positive and negative DC connections.
- Maximum Voltage: 1500 V DC (Max 1800 V DC) — suitable for solar PV systems and other high-voltage DC applications.
- Rated Current: Up to 52 A — supports a wide range of DC power requirements.
- Operating Temperature Range: -40°C to +90°C — reliable performance in extreme weather conditions.
- Double Insulated, Electron Beam Cross-Linked XLPE Sheath — providing excellent resistance to UV, ozone, abrasion, and chemical exposure.
- Flexible Tinned Copper Conductors — ensures ease of installation and enhanced durability.
- Colour Coding: Red and Black cores for clear polarity distinction.
Why Buy This Cable?
This 4mm² two core DC cable is built to meet the high standards of solar photovoltaic systems and other direct current applications. It complies with EN 50618 (H1Z2Z2-K) standard, offering safety features like low smoke and zero halogen emissions in case of fire. Its robust double insulation and flexible construct make it perfect for long-lasting, safe, and efficient installations in residential, commercial, and renewable energy projects.
Technical Specifications:
| Part Number | DC-PV-ULTRA2C4.0-25 |
| Cable Length | 25 metres |
| Number of Cores | 2 (Red and Black) |
| Conductor Cross-Section | 4 mm² per core |
| Maximum Voltage | 1500 V DC (Max 1800 V DC) |
| Rated Current | Up to 52 A |
| Operating Temperature | -40°C to +90°C |
| Sheath Material | Electron Beam Cross-Linked XLPE (LSZH) |
| Conductor Material | Tinned copper |
| Colour | Red and Black |
- Type Solar Cable
- Vendor Doncaster Cables
- SKU PV-ULTRA2C4.0
