20mm ThermRite™ PRO – PREMIUM OUTPUT 200 Micron Foil – Dual Purpose Foiled Panel – EPS 400 – Accepts Tile or Wood Floors Directly
Description

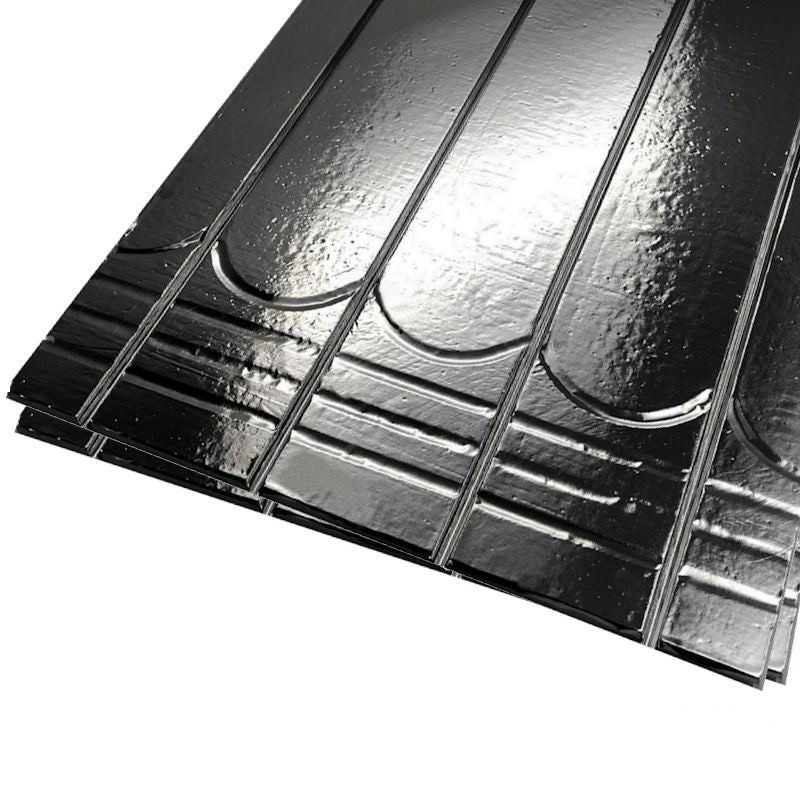

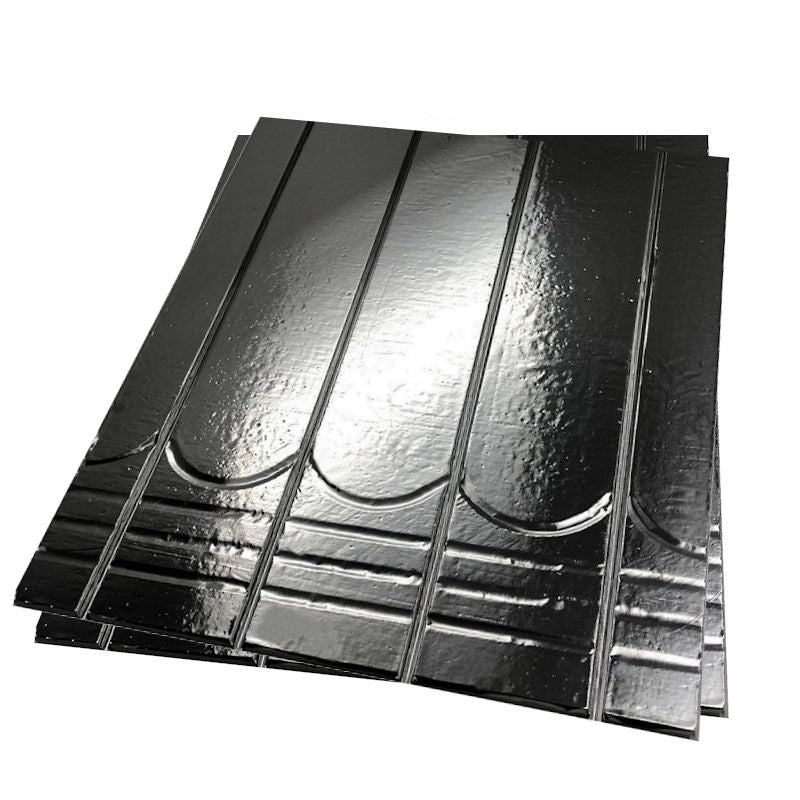

The 20mm ThermRite™ PRO Premium Output Dual Purpose Foiled Panel combines a high-performance EPS 400 insulation core with a premium 200 micron foil facing and a durable cementitious surface layer. Engineered for warm water underfloor heating systems with 16mm pipes at 150mm, this panel delivers outstanding thermal efficiency and mechanical strength while allowing direct tile or wood floor installation without screed.
This advanced dual-purpose panel optimizes heat transfer and reduces floor build-up while supporting heavy floor coverings and foot traffic in both residential and commercial applications.
What’s Included
- 20mm thick dual purpose panel incorporating EPS 400 foam insulation core
- 200 micron reflective foil facing bonded beneath a cementitious surface
- Pre-routed grooves designed for 16mm pipe at 150mm centres
- Installation instructions and technical guidance
Key Features
- 20mm total thickness
- EPS 400 insulation core with compressive strength approx. 400 kPa
- 200 micron (0.2mm) high output foil to maximize upward heat reflection
- Cementitious surface enables direct installation of tile or engineered wood floors without screed
- Pre-cut pipe grooves sized for 16mm pipe spaced at 150mm centres
- Lightweight, dimensionally stable, and easy to handle panels
- Compatible with various floor finishes: tile, stone, engineered wood, laminate, vinyl
Benefits
- Minimizes floor build-up, ideal for renovations and space-conscious builds
- Enhances heat efficiency and reduces running costs through superior insulation and reflective foil
- Supports high foot traffic and durable floors with strong EPS core
- Speeds installation by eliminating the need for screed or additional leveling
Technical Specifications
| Panel Thickness | 20mm, EPS 400 core |
|---|---|
| Panel Dimensions | 1200mm x 600mm |
| EPS Core Compressive Strength | 400 kPa |
| Foil Thickness | 200 micron (0.2mm) |
| Thermal Conductivity EPS Core | 0.038 W/m·K ± 0.002 |
| Pipe Groove Size | 16mm diameter pipe |
| Pipe Spacing (Pipe Centres) | 150mm |
| Weight Per Panel | Approx. 13 kg |
| Suitable Floor Finishes | Tile, stone, engineered wood, laminate, vinyl (direct application) |
| Fire Classification | Euroclass E |
The 20mm ThermRite™ PRO Premium Output Foiled Panel is the ideal high-efficiency, low-build insulation solution for underfloor heating systems requiring high output and rapid installation with direct floor finish application.
