20L Concentrate Heat Pump Fluid | HZK-0C-0000020 | Frost & Corrosion Protection

Description

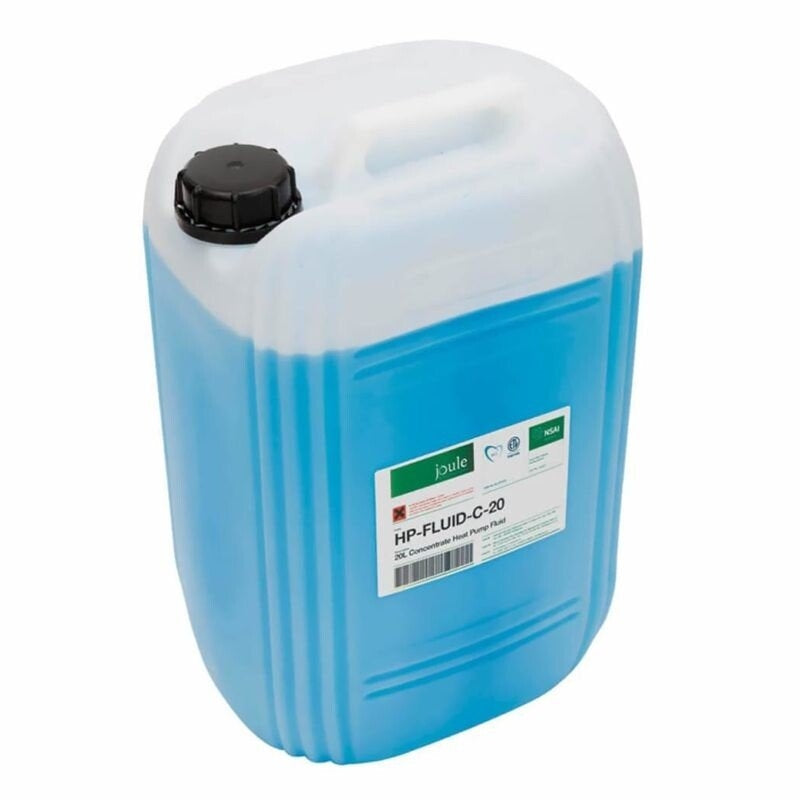

This 20L Concentrate Heat Pump Fluid is a glycol-based heat transfer fluid formulated specifically for air source and ground source heat pumps, as well as underfloor heating systems. Supplied as a concentrate, it protects against freezing, corrosion, limescale, and bacterial contamination once diluted to the correct concentration for the installation.

The formulation is an aqueous solution of monopropylene glycol with inhibitors, stabilisers, and biocides, giving frost protection down to approximately -4°C to -14°C depending on dilution strength. It is non-toxic and compatible with the metals and materials commonly found in heat pump and underfloor heating pipework, making it a straightforward addition to most system installations and top-ups.

20L

Concentrate Volume

-4°C to -14°C

Frost Protection Range

10-30%

Dilution Range

Non-Toxic

Formulation

pH 7.5

Approx. Value

SG 1.0

Approx. Specific Gravity

Must Be Diluted Before Use

This product is a concentrate and must be diluted with mains or softened water before use. It is not supplied ready-to-use. Dilute to between 10% and 30% depending on the frost protection required for the installation.

Clean the System Before Adding Fluid

For best results, clean existing systems of sludge, limescale, and deposits before adding this fluid. Introducing fresh inhibited fluid into a dirty system reduces the effectiveness of the corrosion and scale protection.

Adjustable Frost Protection

Dilution from 10% to 30% gives frost protection from approximately -4°C up to -14°C, allowing the concentration to be matched to the site's exposure.

Corrosion and Scale Inhibitors

Contains inhibitors that protect the metals in heat pump and underfloor heating systems from corrosion, limescale, and bacterial contamination.

Non-Toxic Formulation

Formulated to be non-toxic and compatible with all commonly used materials in heat pump and underfloor heating installations.

pH Stable for Long-Term Protection

Maintains chemical stability at approximately pH 7.5, helping sustain corrosion protection over the working life of the fluid.

Suitable for Air and Ground Source Systems

Formulated for use in air source and ground source heat pumps, as well as underfloor heating systems sharing the same primary circuit.

Concentrate Format for Flexible Dilution

Supplied as a 20-litre concentrate rather than pre-mixed, giving installers control over the exact dilution ratio for the site's frost protection needs.

Product Details

Formulation

Aqueous solution of monopropylene glycol with inhibitors, stabilisers, and biocides

Appearance

Blue liquid

Odour

Slight

Container Size

20 litres

Specific Gravity

Approx. 1.0

pH Value

Approx. 7.5

Dilution & Frost Protection

Minimum In-Use Concentration

10%

Maximum In-Use Concentration

30%

Frost Protection at 10%

Approx. -4°C

Frost Protection at 20%

Approx. -9°C

Frost Protection at 30%

Approx. -14°C

Application

Suitable For

Air source heat pumps, ground source heat pumps, underfloor heating systems

Concentration Check

Use a refractometer to verify in-system concentration

Pre-Fill Preparation

Clean existing systems of sludge, limescale, and deposits before adding

Can this fluid be used straight from the container?

No. This is a concentrate and must be diluted with mains or softened water to between 10% and 30% before use, depending on the frost protection required.

How much frost protection does this fluid give?

Frost protection depends on dilution: approximately -4°C at 10% dilution, -9°C at 20%, and up to -14°C at 30% dilution.

How do I check the fluid concentration is correct once installed?

Use a refractometer to check the fluid concentration in the system, confirming it matches the intended dilution ratio for the required frost protection level.

Do I need to prepare the system before adding this fluid?

Yes. It's recommended to clean existing systems of sludge, limescale, and deposits using a suitable cleaner before adding this fluid, so the corrosion and scale inhibitors can work effectively from a clean starting point.

Is this fluid suitable for underfloor heating as well as heat pumps?

Yes. It is formulated for use in air source and ground source heat pumps, as well as underfloor heating systems that share the same primary circuit.
