EHC 14.4kW Slimjim Electric Flow Boiler & 150L Indirect Cylinder
Couldn't load pickup availability
Payment details
EHC 14.4kW SlimJim Electric Flow Boiler & 150L Indirect Pre-Plumbed Cylinder

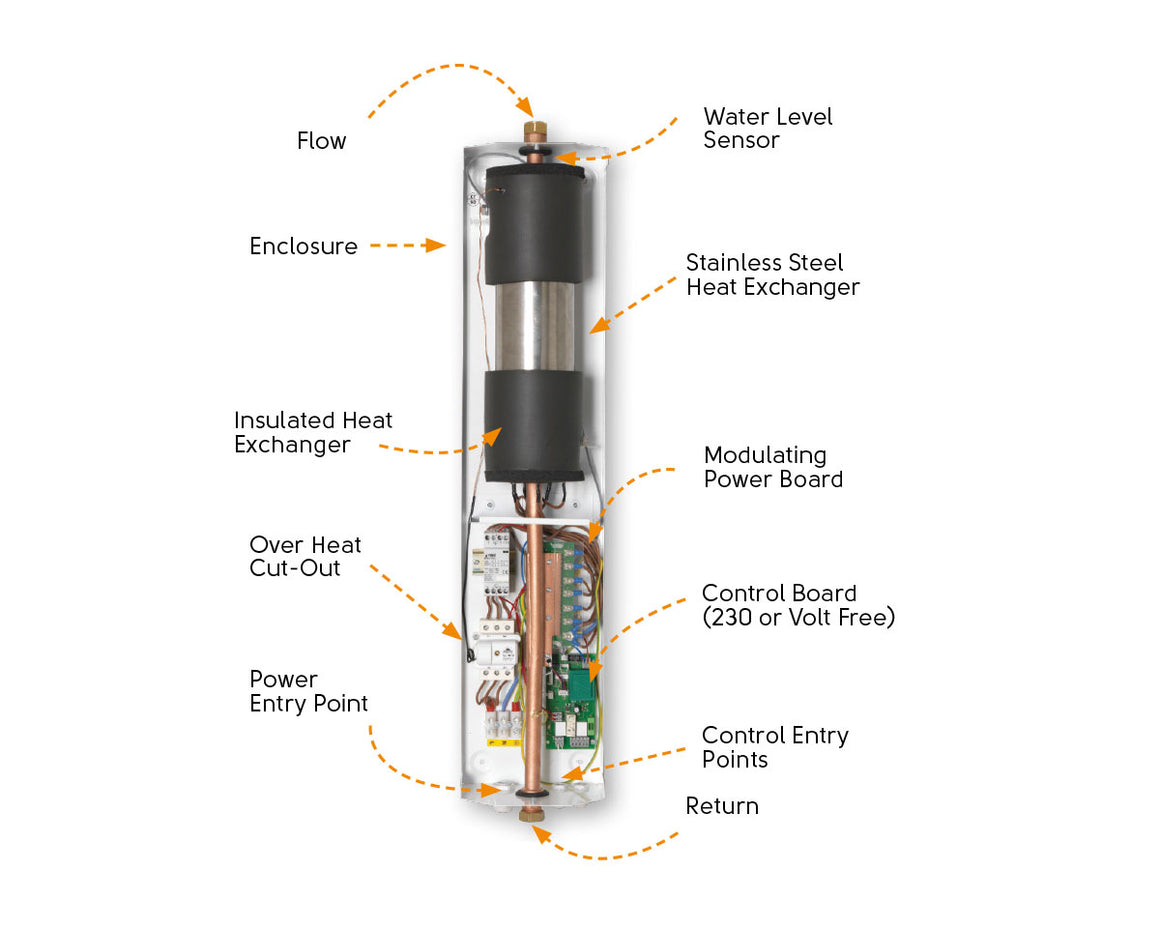

The EHC 14.4kW SlimJim is a highly efficient and space-saving electric heating solution combining a powerful 14.4kW electric flow boiler with a 150-litre stainless steel indirect unvented cylinder. Designed for modern homes, this pre-plumbed and pre-wired package offers quick installation, reliable heating and hot water performance, and advanced safety features.
Key Benefits & Features
- High output performance: 14.4kW electric flow boiler ideal for wet central heating systems, suitable for radiators and underfloor heating.

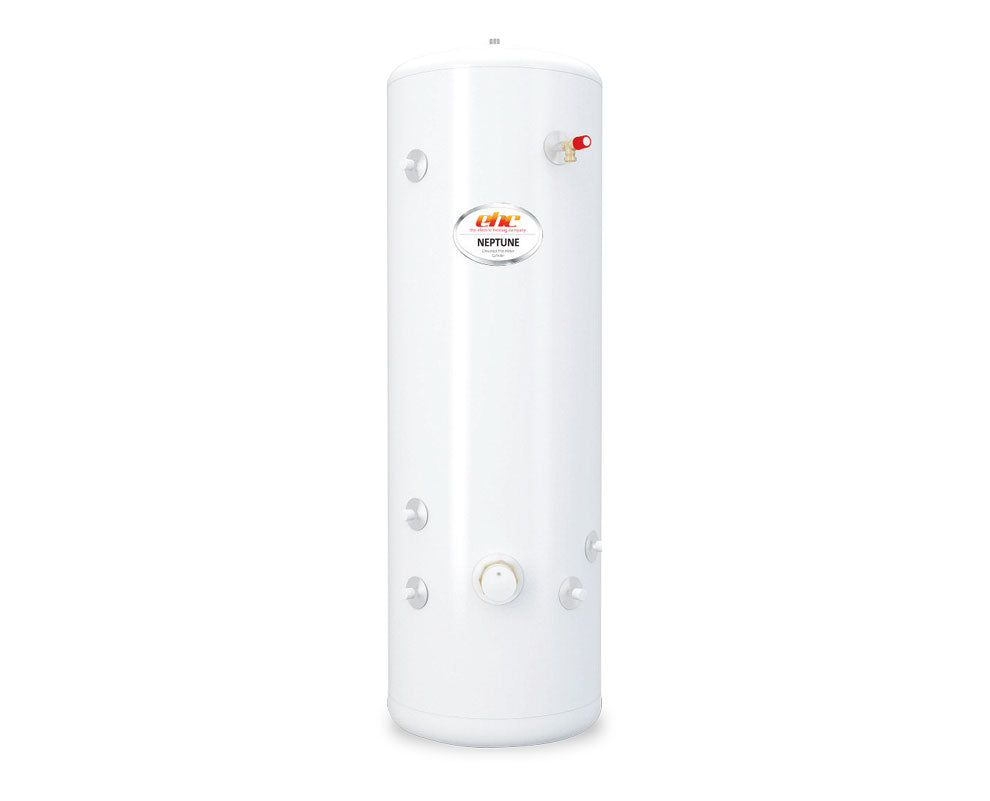

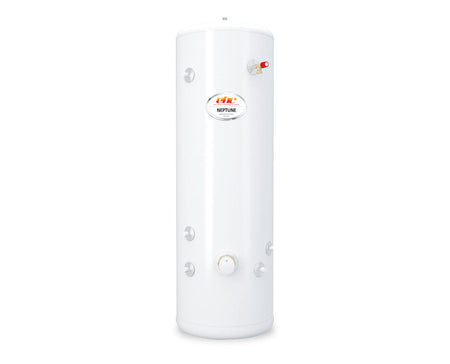

- Generous hot water storage: 150-litre stainless steel indirect unvented cylinder with 3kW electric immersion heater backup.

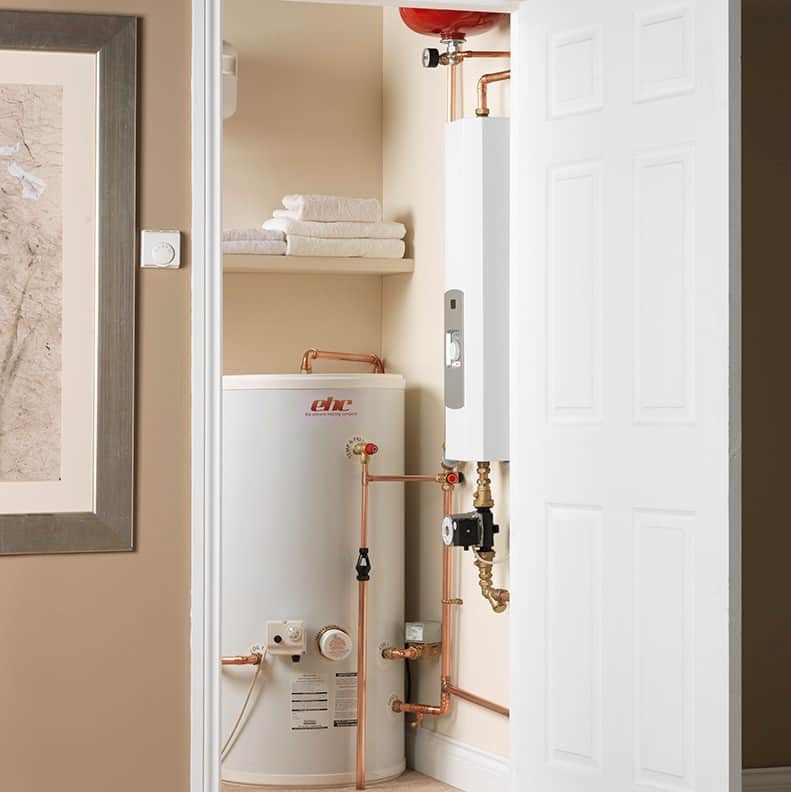

- Ready-to-install package: Pre-plumbed and pre-wired cylinder including 24/7 programmer, wired room thermostat, expansion vessel, auto air vent, high-quality circulating pump, wiring centre, temperature & pressure relief valve, and zone valves, reducing installation time significantly.
- Energy efficient and eco-friendly: 100% efficient boiler with no emissions or flue requirements, lowering running costs and carbon footprint.

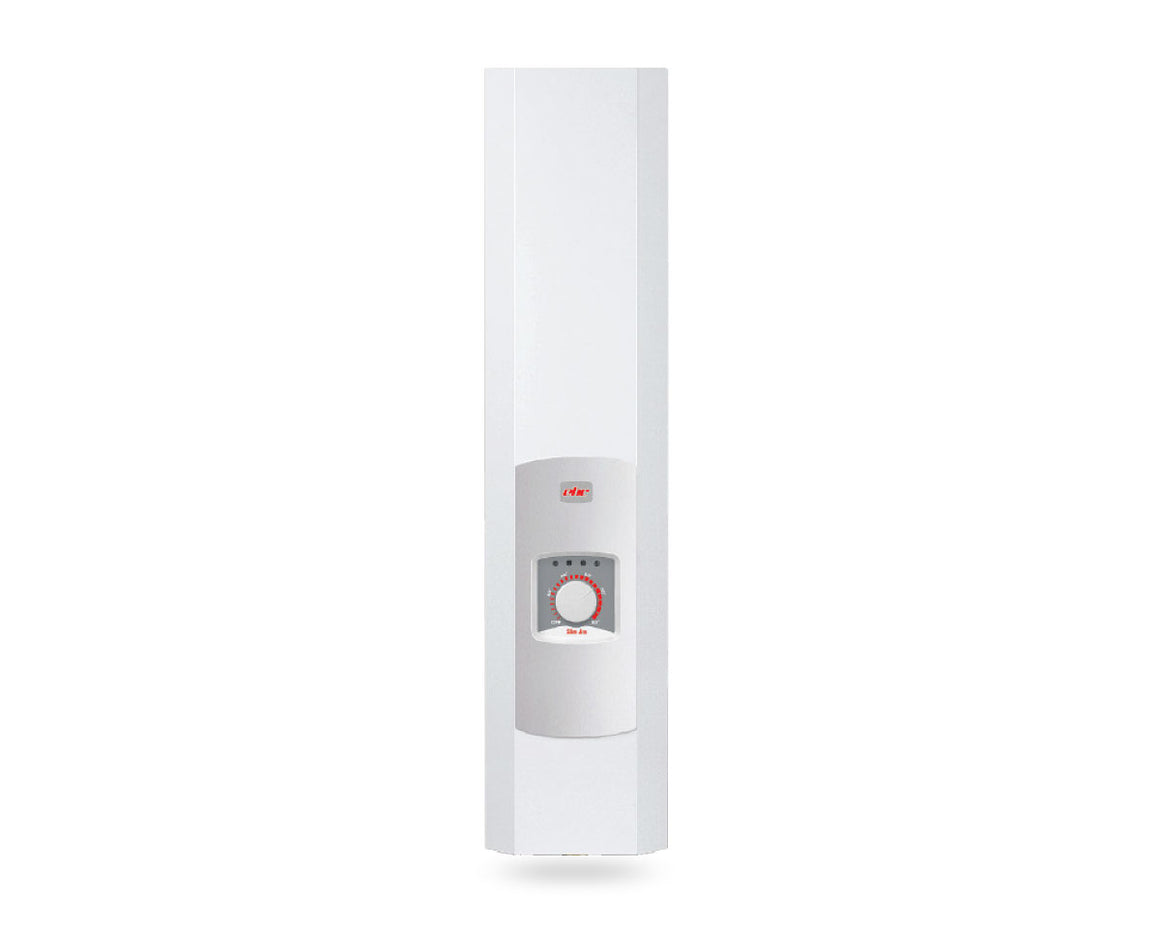

- Compact, space-saving design: Wall-mounted boiler (approx. 912 × 203 × 172 mm) combined with a slim cylinder ideal for cupboards or plant rooms.
- Virtually silent operation: Quiet running for enhanced home comfort.
- Advanced safety features: Includes run-dry sensor, high current thermal cut-out, electronic fault diagnostics, and reliable thermostat controls for safety and peace of mind.
- Low maintenance: No mandatory annual servicing required, simplifying upkeep.
- Durability and warranty: 5 years parts and labour warranty on boiler and 25 years warranty on stainless steel cylinder.
- Sustainable materials: Cylinder made from 100% recycled stainless steel, fully recyclable.
Technical Specifications
| Model Number | EHCSJ15/150PPC |
| EAN | 5060302890506 |
| Boiler Power Output | 14.4 kW (Single-phase, 230-240 V, 50 Hz) |
| Cylinder Capacity | 150 Litres, Stainless Steel Indirect Unvented |
| Immersion Heater Power | 3 kW (Backup) |
| Boiler Dimensions (HxWxD) | Approx. 912 mm × 203 mm × 172 mm |
| Cylinder Dimensions (HxWxD) | 912 mm × 203 mm × 172 mm |
| Weight | Approx. 46 kg (including cylinder) |
| Operating Temperature Range | 30°C to 80°C |
| Operating Pressure | 0.5 to 3.0 bar |
| Protection Rating | IP22 (Boiler) |
| Energy Efficiency | 100% |
| Warranty | 5 years parts & labour (boiler) 25 years stainless steel cylinder |
This energy-efficient and compact heating package is the ideal choice for modern homes seeking a reliable and eco-friendly electric heating and hot water system with simplified installation and long-term peace of mind.
