EHC 12kW Slimjim Electric Flow Boiler & 150L Indirect Cylinder
Regular price
£2,130.00
Inc. VAT
£1,775.00 Exc. VAT
£1,775.00 Exc. VAT
FREE Express Delivery (1-3 days) in UK Mainland on most orders
Excluding: Solar Panels (£59 delivery), Batteries (£49 delivery), Small Items (£4.95 delivery)
Contact Us to check for Next Working Day Delivery or Same-day Delivery options
Contact Us for Click & Collect options
Custom quote available on request
*See checkout or shipping policy for full details
Payment options

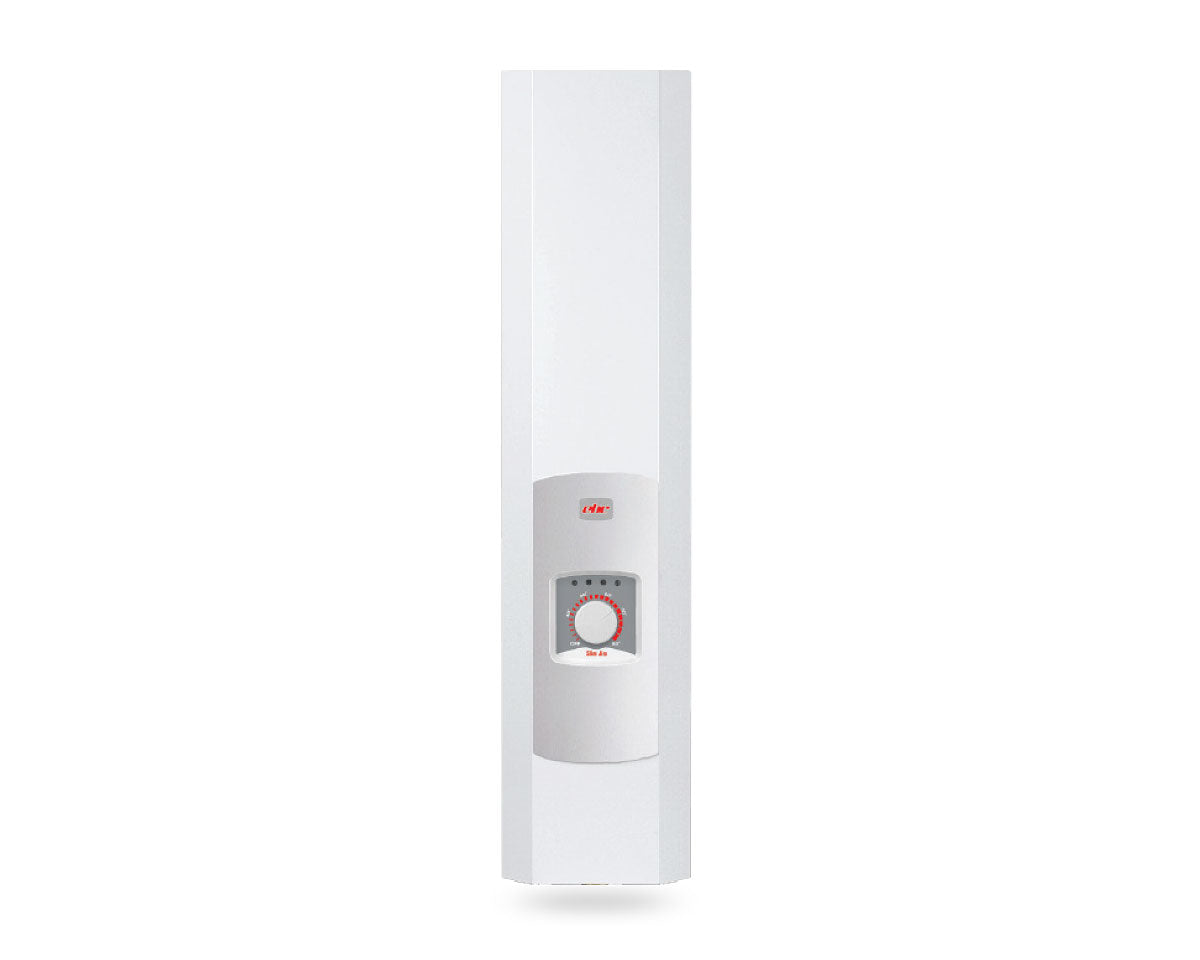

EHC 12kW SlimJim Electric Flow Boiler & 150L Indirect Pre-Plumbed Cylinder

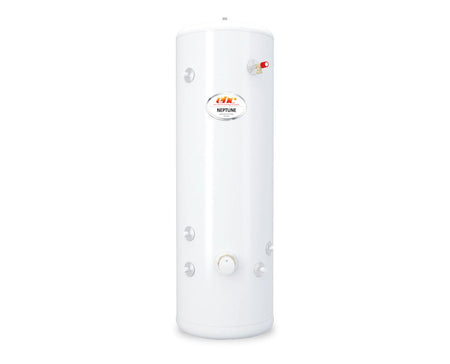

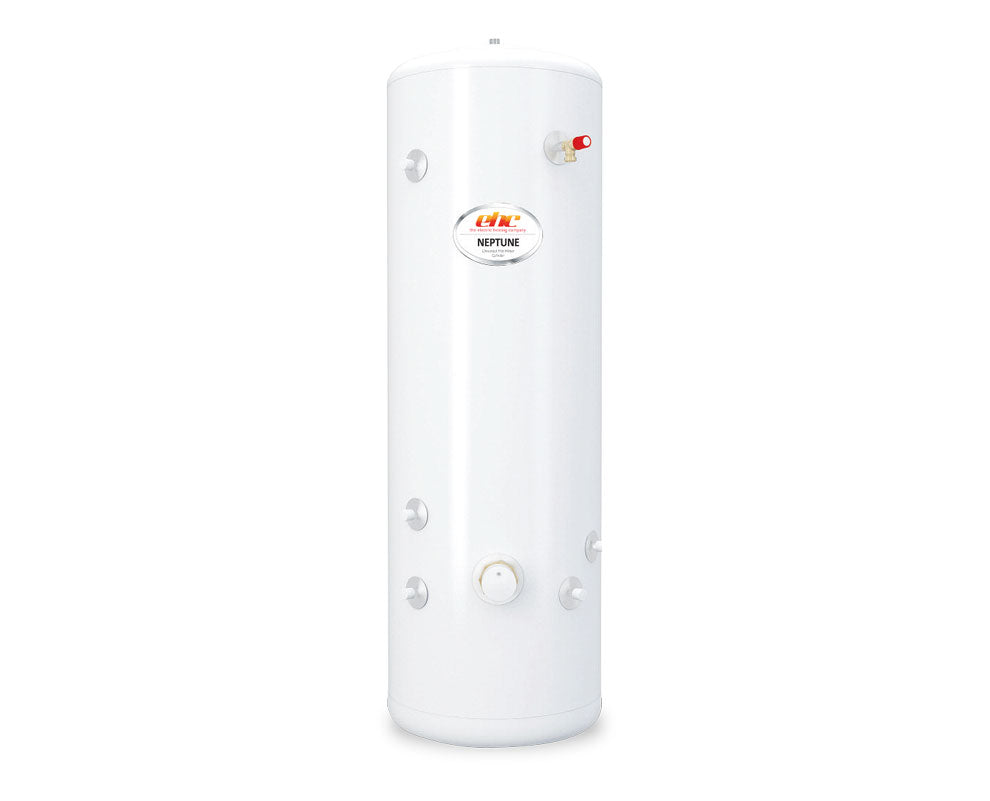

The EHC 12kW SlimJim is a compact, highly efficient electric heating solution combining a 12kW electric flow boiler with a 150-litre stainless steel indirect unvented cylinder. This fully pre-plumbed and pre-wired package is designed for modern homes with limited space, providing reliable central heating and hot water with advanced safety features and simple, quiet operation.
Key Benefits & Features
- 100% energy efficient boiler: Minimises running costs and environmental impact with fully modulating electric flow boiler technology.

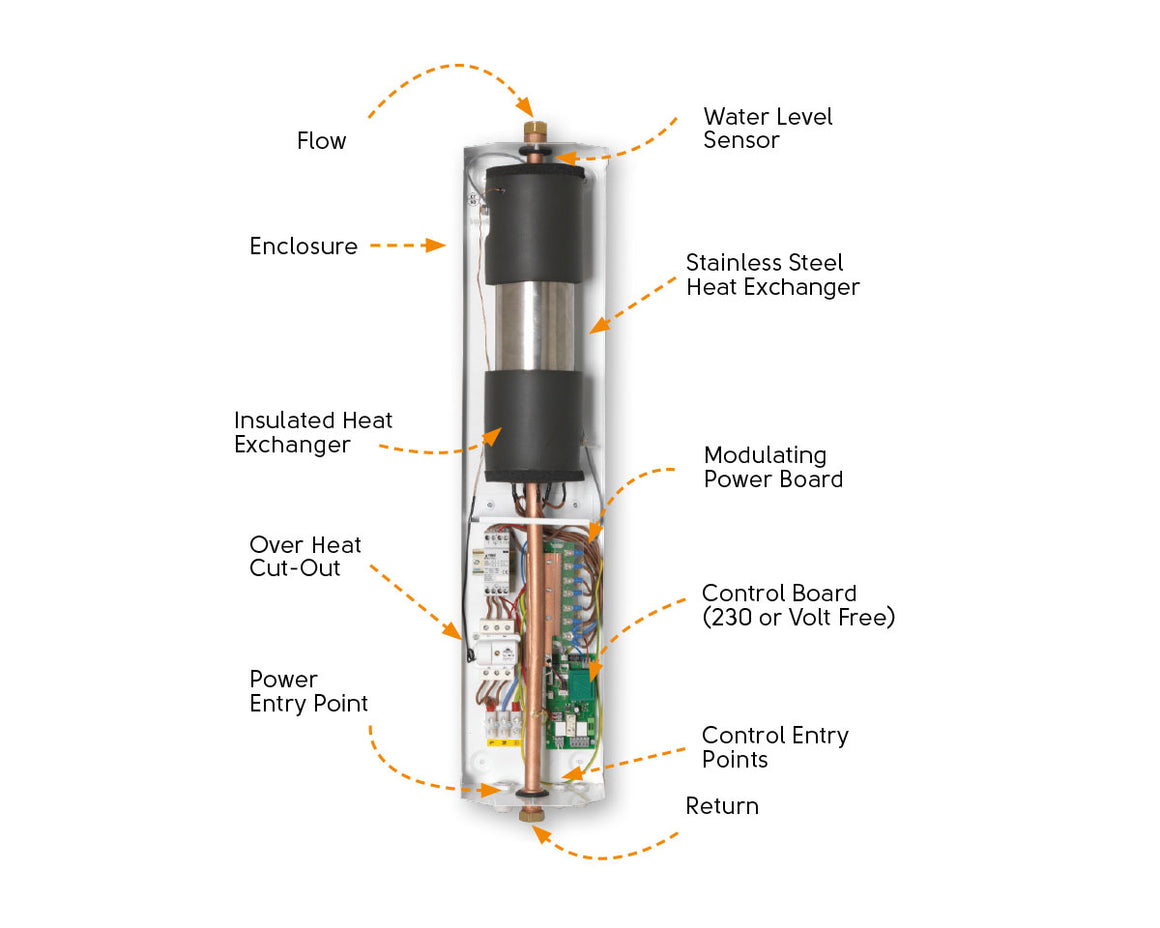

- Complete ready-to-install package: Includes 12kW SlimJim electric flow boiler, 150L stainless steel indirect unvented cylinder with 3kW immersion heater backup, pre-wired controls, automatic bypass, wiring centre, combination valve, temperature and pressure relief valve, auto air vent, 8L expansion vessel, and high-quality circulating pump.

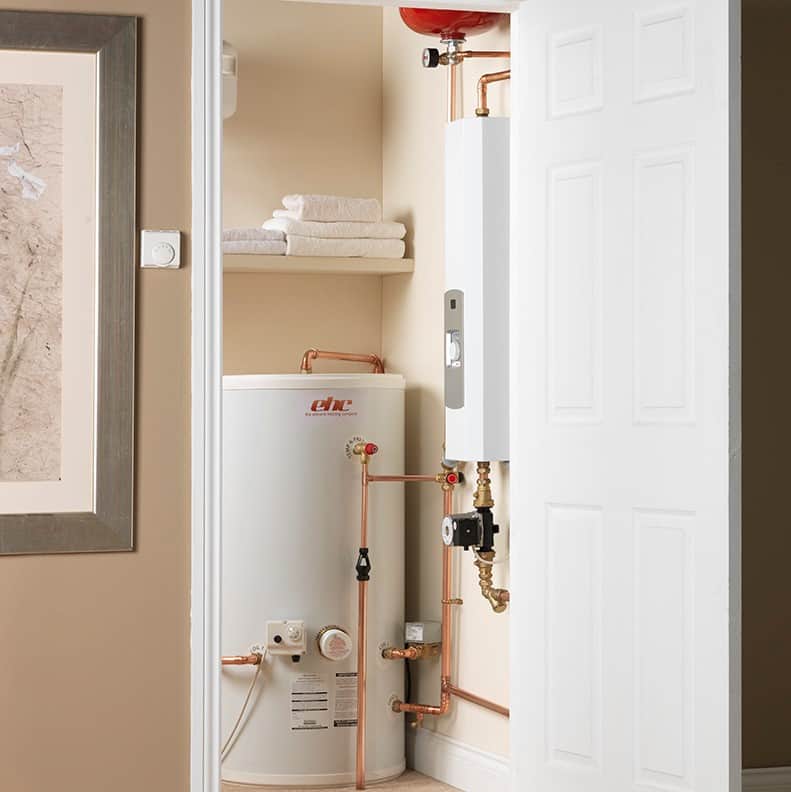

- Space-saving design: Wall-mounted boiler (~812 mm × 203 mm × 172 mm) combined with tall, narrow cylinder (912 mm × 203 mm × 172 mm) ideal for cupboards, plant rooms or limited spaces.
- Advanced safety features: Run dry sensor, overheat protection, electronic fault diagnostics, thermal cut-outs, reliable thermostat controls, and in-built fault finding for safe and dependable operation.
- Virtually silent operation: Ensures a quiet home environment without disruption.
- Reduced installation time: Pre-plumbed and pre-wired components simplify and speed up installation, eliminating unnecessary pipework.
- Low maintenance: No mandatory annual servicing required, reducing upkeep and running costs.
- Long-lasting warranty: 5 years parts and labour warranty on the boiler and 25 years on the stainless steel cylinder for peace of mind.
Technical Specifications
| Model Number | EHCSJ12/150IND |
| EAN | 5060302890452 |
| Boiler Power Output | 12 kW (Single-phase, 230-240 V, 50 Hz) |
| Cylinder Capacity | 150 Litres, Stainless Steel Indirect Unvented |
| Immersion Heater Power | 3 kW (Backup) |
| Boiler Dimensions (HxWxD) | Approx. 812 mm × 203 mm × 172 mm |
| Cylinder Dimensions (HxWxD) | 912 mm × 203 mm × 172 mm |
| Weight | Approx. 46 kg (including cylinder) |
| Operating Temperature Range | 30°C to 80°C |
| Operating Pressure | 0.5 to 3.0 bar |
| Protection Rating | IP22 (Boiler) |
| Energy Efficiency | 100% |
| Warranty |
5 years parts and labour (boiler) 25 years stainless steel cylinder |
This efficient and compact electric heating package is an excellent choice for modern homes requiring a reliable, quiet, and eco-friendly central heating and hot water system with a straightforward installation process and comprehensive safety features.
- Type Boiler Packages
- Vendor EHC
- SKU EHCSJ12/150IND
