EHC 10kW Slimjim Electric Flow Boiler & 180L Pre-Plumbed Cylinder
Couldn't load pickup availability
Payment options
EHC 10kW SlimJim Electric Flow Boiler & 180L Indirect Pre-Plumbed Cylinder
The EHC 10kW SlimJim is a highly efficient, compact electric heating system combining a 10kW electric flow boiler with a 180-litre stainless steel indirect unvented cylinder in a fully pre-plumbed package. Engineered for modern homes with limited space, it provides reliable central heating and hot water with advanced safety and control features designed for ease of installation and quiet operation.
Key Benefits & Features

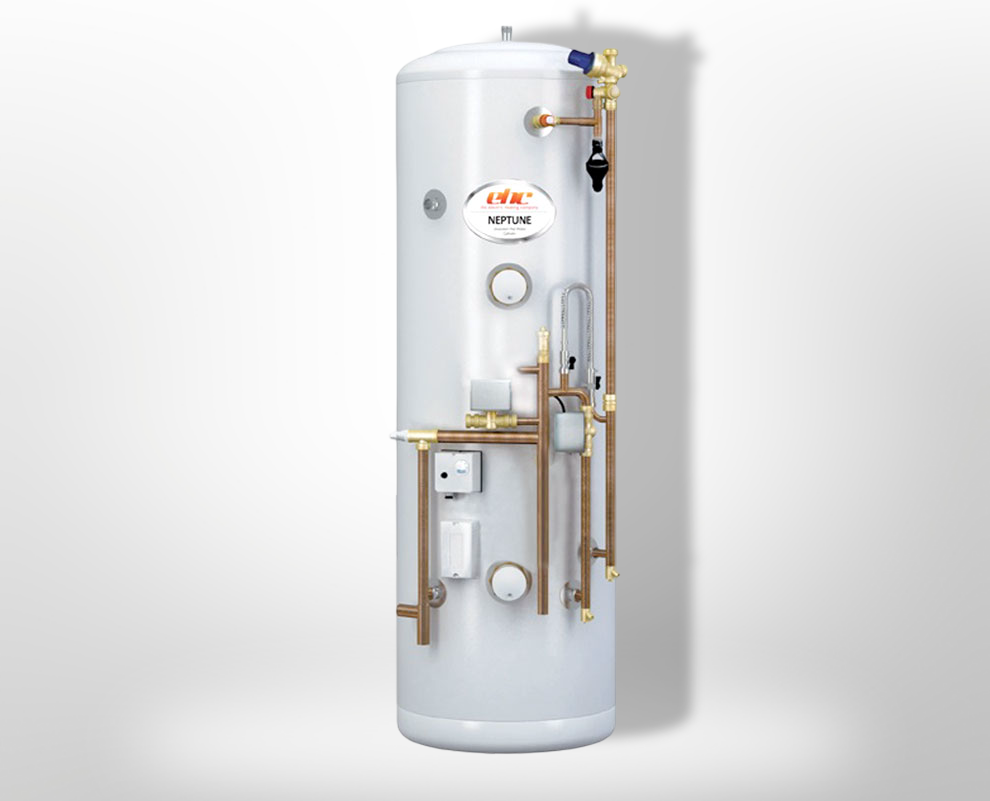

- Complete pre-plumbed package: Includes 10kW SlimJim electric flow boiler, 180L indirect stainless steel unvented cylinder, twin channel programmer, room thermostat, 2×2 port zone valves, dual cylinder thermostat, wiring centre, temperature & pressure relief valve, auto air vent, 8-litre expansion vessel and high-quality circulating pump.
- Energy efficient and economical: 100% efficient boiler minimises energy waste, reducing running costs and environmental impact.

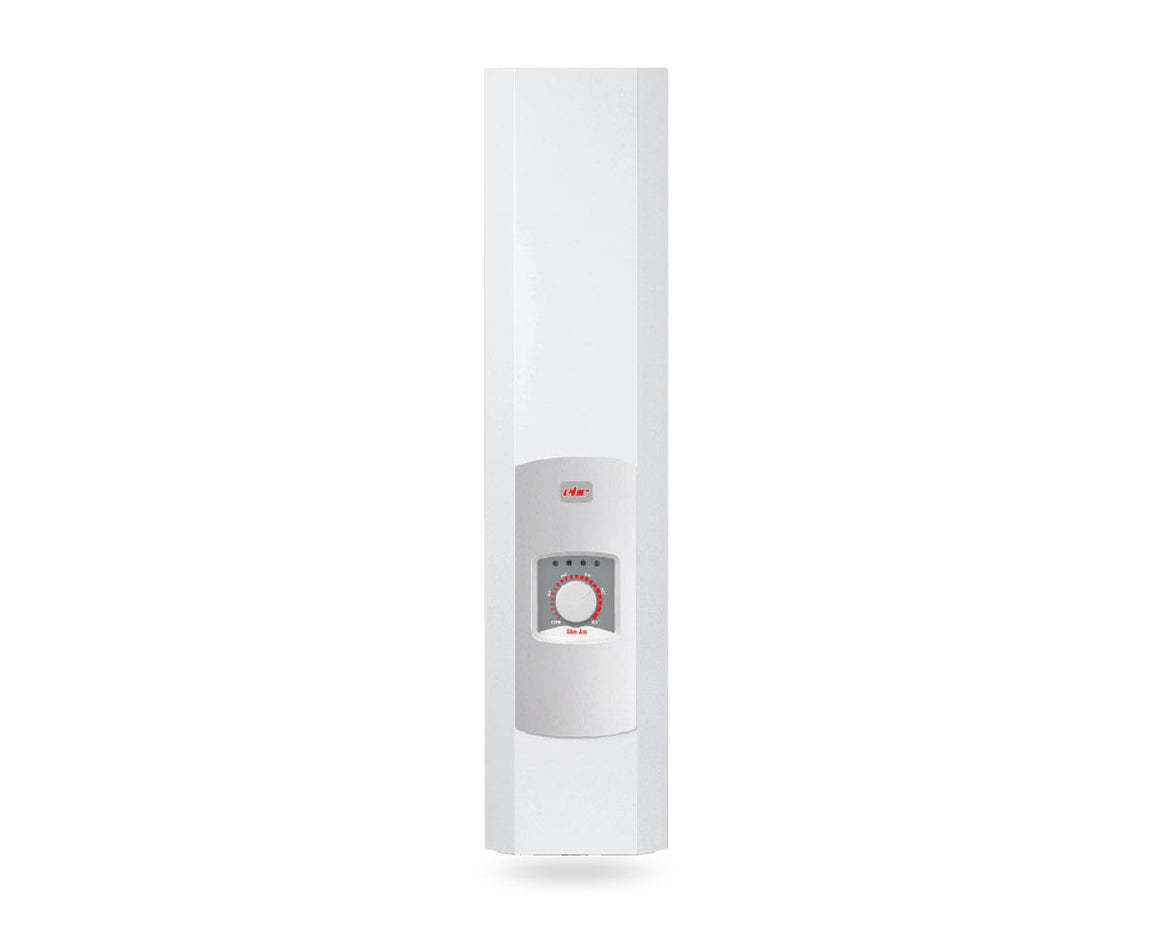

- Space-saving design: Wall-mounted boiler (approx. 803 mm × 203 mm × 172 mm) paired with a tall, narrow 180L cylinder (912 mm × 203 mm × 172 mm) ideal for cupboards or plant rooms.

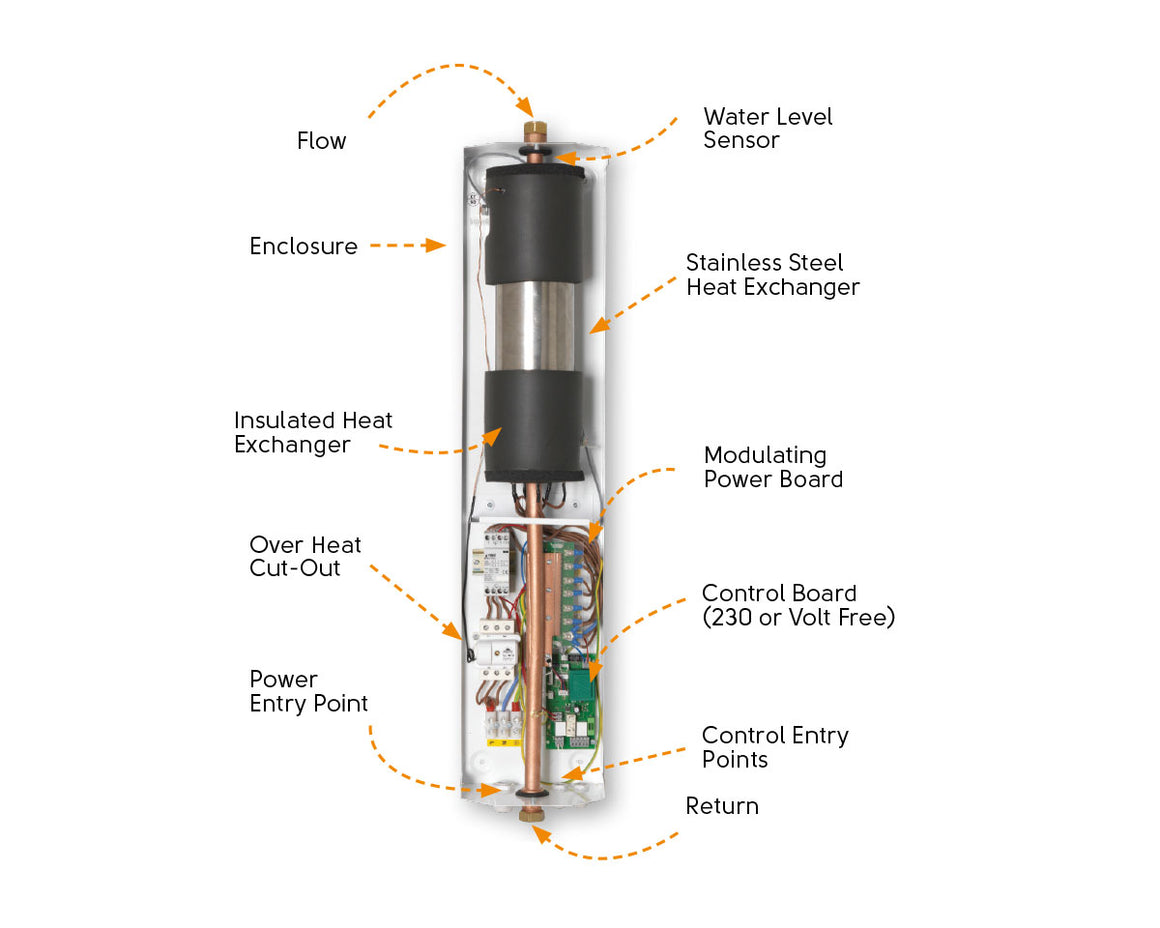

- Advanced safety and diagnostics: Includes run-dry water level sensor, overheat protection, electronic fault diagnostics, thermal cut-outs and a current safety cut-out for reliable and safe operation.
- Quiet and user-friendly: Virtually silent operation with an easy-to-use front control panel featuring temperature dial and fault indicators.
- Low maintenance: No mandatory annual servicing required, simplifying upkeep.
- Long-lasting warranty: Boiler covered by a 5-year parts and labour warranty for peace of mind.
Technical Specifications
| Model Number | EHCSJ10/180 |
| EAN | 5906564029912 |
| Boiler Power Output | 10 kW (Single-phase, 230-240 V, 50 Hz) |
| Cylinder Capacity | 180 Litres, Stainless Steel Indirect Unvented |
| Boiler Dimensions (HxWxD) | Approx. 803 mm × 203 mm × 172 mm |
| Cylinder Dimensions (HxWxD) | 912 mm × 203 mm × 172 mm |
| Weight | Approx. 66 kg (including cylinder) |
| Operating Temperature Range | 30°C to 80°C |
| Operating Pressure | 0.5 to 3.0 bar |
| Protection Rating | IP22 (Boiler) |
- Type Boiler Packages
- Vendor EHC
- SKU EHCSJ10/180PPC
