EHC 10kW Slimjim Electric Flow Boiler & 180L Indirect Cylinder
Couldn't load pickup availability
Payment details
EHC 10kW SlimJim Electric Flow Boiler & 180L Direct Cylinder Package
The EHC 10kW SlimJim combines a highly efficient 10kW electric flow boiler with a 180-litre stainless steel direct unvented cylinder in a pre-plumbed package designed for modern homes. This compact, quiet system delivers reliable central heating and domestic hot water, simplifying installation while maximising performance and safety.
Key Benefits & Features
- 100% efficient boiler: Fully modulating electric flow boiler minimises running costs with zero emissions and no flue required.
- Complete heating and hot water solution: Includes the 10kW SlimJim electric flow boiler and 180L stainless steel direct cylinder with twin 3kW immersion heaters for domestic hot water.
- Pre-plumbed, pre-wired package: Comes with all necessary controls including 24/7 programmer, room thermostat, DHW programmer, wiring centre, lockshield valves, high efficiency circulating pump, expansion vessel, auto air vent, temperature & pressure relief valve, combination valve, tundish, and magnetic filter, saving installation time.
- Space-saving design: Compact unit ideal for cupboards or plant rooms with the boiler designed to maximise cupboard space.
- Silent operation: Virtually noise-free running ensures home comfort.

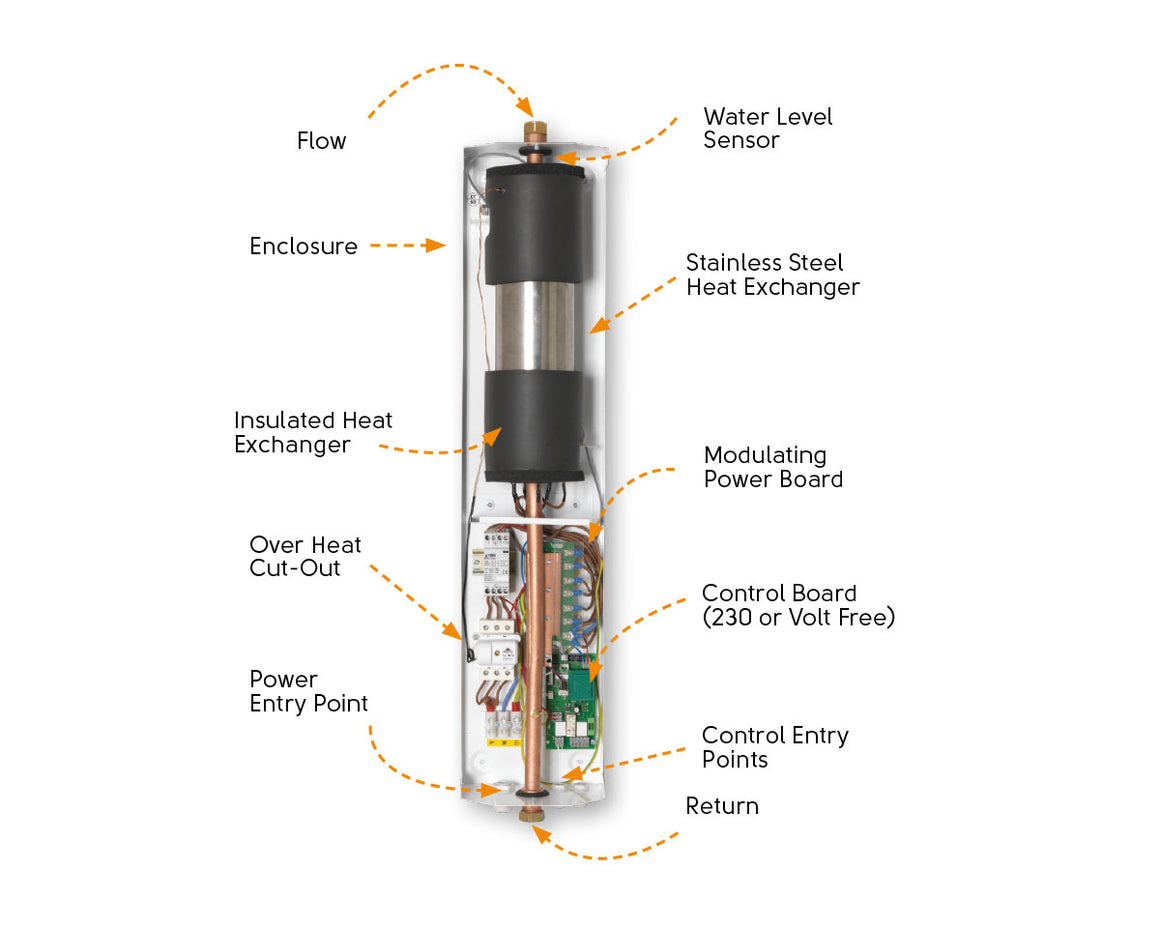

- Advanced safety features: Run-dry water level sensor, high current safety cut-out, overheat protection, electronic diagnostics, thermal cut-outs, and soft start reduce power surges.
- Compatible with all types of indirect cylinders and solar PV panels.
- Low maintenance: No mandatory annual servicing required.
- Trusted EHC brand: Renowned for quality and backed by warranty support.
Technical Specifications
| Model Number | EHCSJ10/180IND |
| EAN | 5060302890445 |
| Boiler Power Output | 10 kW (Single-phase, 230-240 V, 50 Hz) |
| Cylinder Capacity | 180 Litres, Stainless Steel Direct Unvented |
| Immersion Heaters | 2 × 3 kW |
| Boiler Dimensions (HxWxD) | Approx. 803 mm × 203 mm × 172 mm |
| Cylinder Dimensions (HxWxD) | Approx. 912 mm × 203 mm × 172 mm |
| Weight | Approx. 66 kg (including cylinder) |
| Operating Temperature Range | 30°C to 80°C |
| Operating Pressure | 0.5 to 3.0 bar |
| Energy Efficiency | 100% |
| Warranty | 2 years parts and labour (boiler package) |
The EHC 10kW SlimJim Electric Flow Boiler with 180L Direct Cylinder offers a compact, quiet, and highly efficient heating and hot water solution that's easy to install and maintain. This system is ideal for homes looking to replace or upgrade traditional boilers with an eco-friendly electric alternative delivering reliable comfort and comprehensive safety.
- Type Boiler Packages
- Vendor EHC
- SKU EHCSJ10/180IND
