Wiska SPRINT GLP20+ M20 Cable Gland & Locknut | Pack of 10

Description

The Wiska SPRINT GLP20+ is an M20 polyamide compression cable gland supplied with a locknut, sold in packs of 10. On an air conditioning install it seals the supply and interconnecting cables entering isolator enclosures, junction boxes and other weatherproof boxes, keeping water and dust out.

It has IP68 (5 bar, 30 minutes) and IP69 protection, an EPDM sealing gasket and a −40 °C to +100 °C temperature range. The cable range of 7.5 to 14 mm takes common round flexible cables, and the gland is available in white or black.

M20 x 1.5

Thread size

IP68 / IP69

Ingress protection

7.5 to 14 mm

Cable diameter

−40 to +100 °C

Temperature range

10 pack

Glands with locknuts

750 °C

Glow wire test

⚠ Electrical work: competent person only

Fixed wiring must be installed to BS 7671 by a competent person. Tighten the gland to the torque in the specification, and use glands only with the cable diameters they are rated for.

⚠ Round cable only

Compression glands seal on round cable. Flat twin and earth cable does not seal properly in a round gland, so use a suitable flat-cable entry or run it in conduit. Measure the cable's outer diameter against the 7.5 to 14 mm range before ordering.

ℹ Cut-out size

M20 glands fit a 20 mm thread hole. Check the entry size on your isolator or junction box before ordering.

Key features

💦

IP68 and IP69

IP68 (5 bar, 30 minutes) and IP69 protection against water and dust.

📏

Wide cable range

7.5 to 14 mm cable diameter range covers common round flexible cables.

🔩

Locknut included

Each gland is supplied with a locknut for secure panel or enclosure mounting.

🧪

Polyamide and EPDM

Polyamide body with an EPDM sealing gasket, tested to 750 °C glow wire.

🌡️

Wide temperature range

−40 °C to +100 °C suits outdoor and indoor enclosures.

⚪

White or black

Choose white (RAL 9001) or black (RAL 9005) to match the enclosure.

Technical specification

Product

Brand

Wiska

Range

SPRINT ESKV GLP20+

Pack

10 glands with locknuts

Material

Polyamide gland, EPDM sealing gasket

Standard

EN 62444

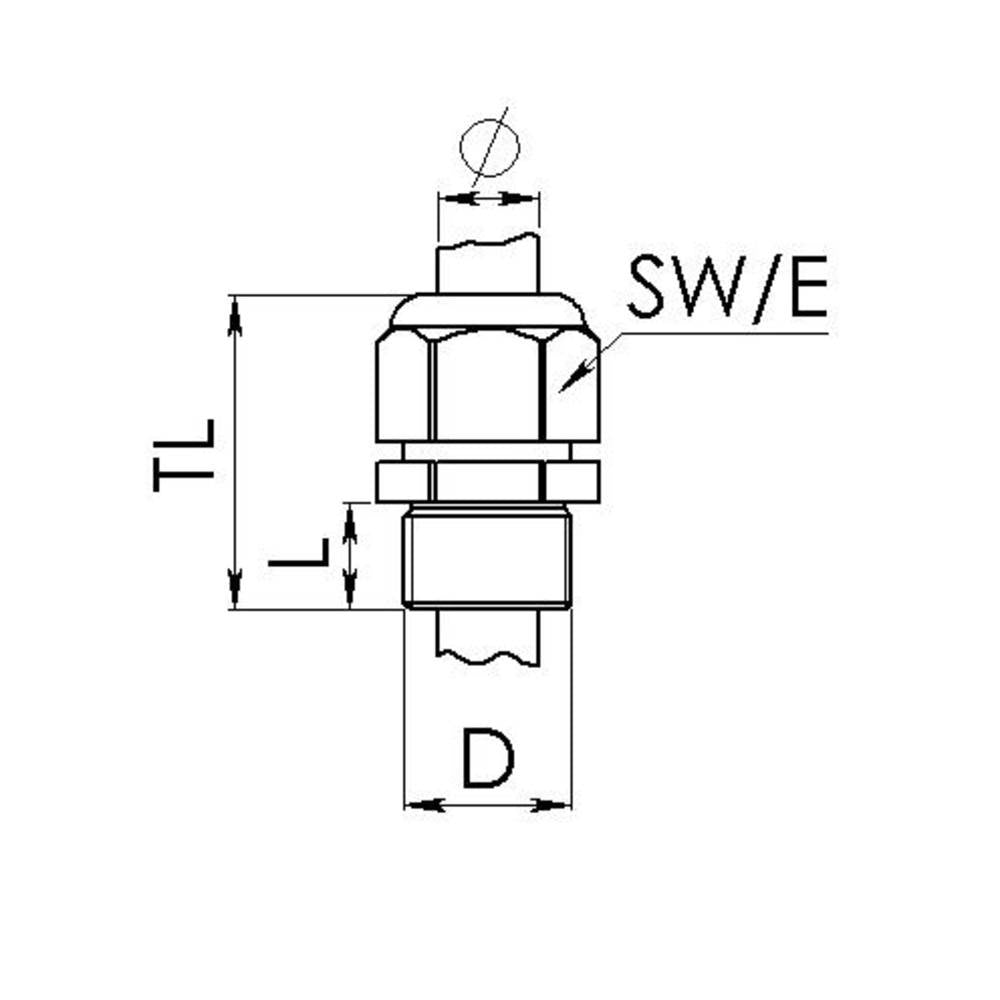

Dimensions and fitting

Thread

M20 x 1.5

Thread length

10 mm

Key width

24 mm

Collar diameter

27 mm

Total length

36 to 45 mm

Cable diameter

7.5 to 14 mm (IP68 at 5 bar); 6.2 to 14 mm (IP68 at 2 bar)

Tightening torque

Gland body 4 Nm, cap nut 3 Nm

Cable anchorage

Type A

Performance

Protection

IP68 (5 bar, 30 minutes), IP69

Temperature range

−40 °C to +100 °C

Glow wire test

750 °C

Available colours

Colour

Wiska part number

Thread

Cable diameter

Pack

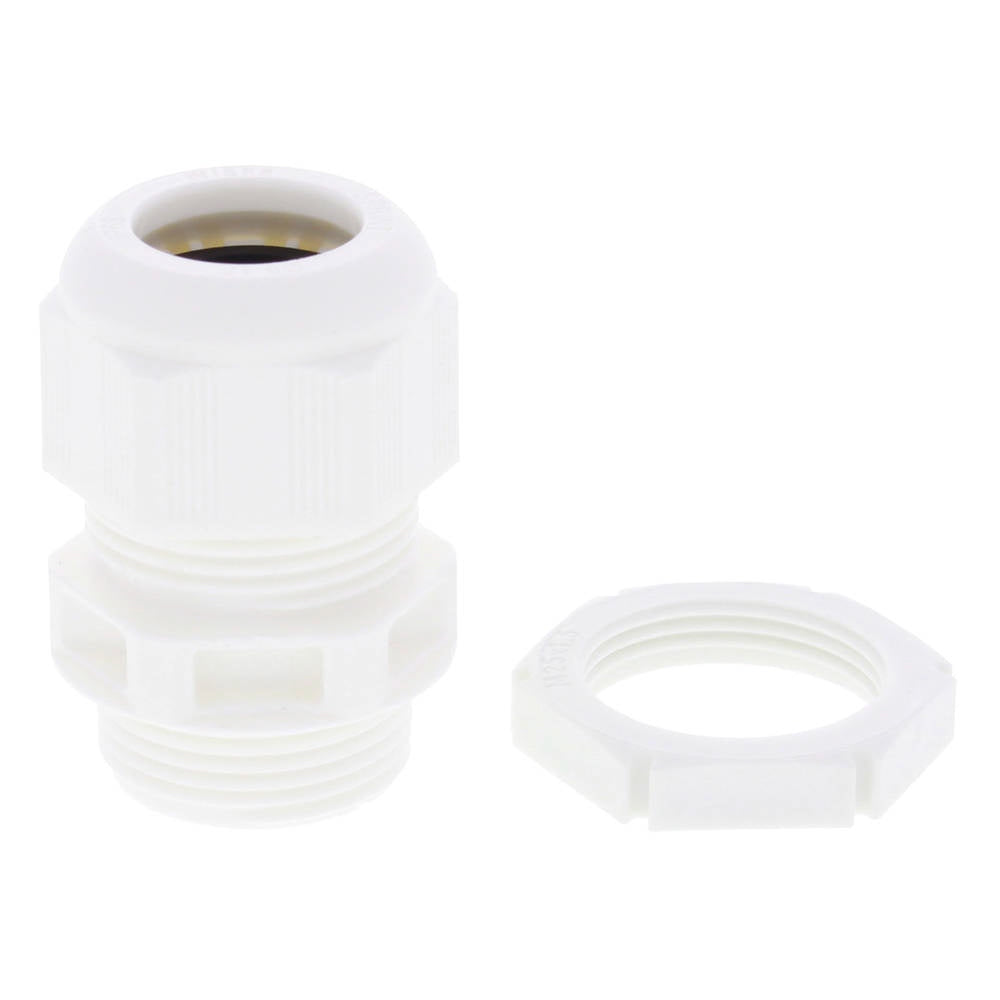

White (RAL 9001)

10100611

M20 x 1.5

7.5 to 14 mm (IP68 5 bar); 6.2 to 14 mm (IP68 2 bar)

10 glands with locknuts

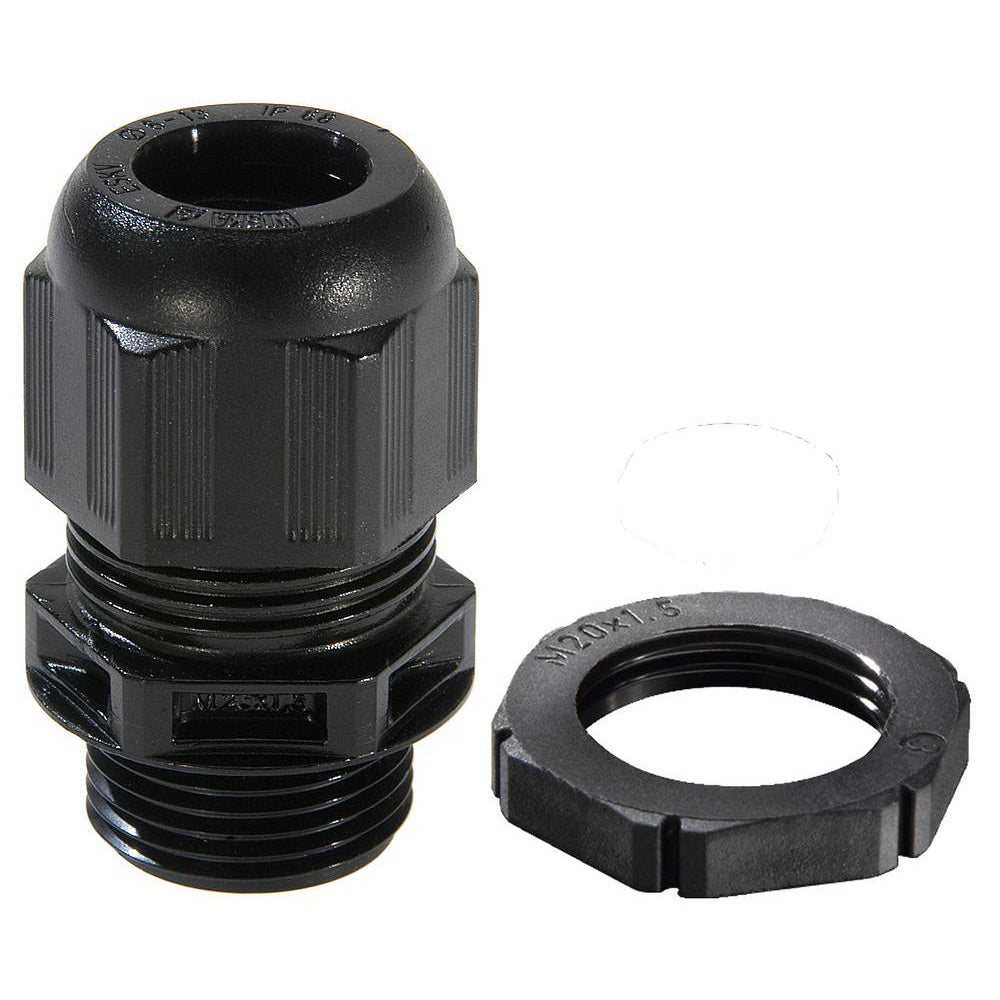

Black (RAL 9005)

10100612

M20 x 1.5

7.5 to 14 mm (IP68 5 bar); 6.2 to 14 mm (IP68 2 bar)

10 glands with locknuts

Frequently asked questions

What size hole does an M20 gland need?

M20 x 1.5 glands fit a 20 mm thread hole in the enclosure. Check the entry size on your isolator or junction box.

Which cables fit the 7.5 to 14 mm range?

Common round flexible cables such as 3 core and 4 core H07RN-F and SY or YY control cables in 1.5 mm² and 2.5 mm² are within this range. Measure the outer diameter of your cable to be sure.

Can I use it with flat twin and earth cable?

Not for a sealed entry. Compression glands seal on round cable, so run flat twin and earth in conduit or use a suitable flat-cable entry.

What does the locknut do?

The locknut secures the gland to the enclosure wall. Each gland in the pack includes one.

What torque should I use?

Wiska specifies 4 Nm for the gland body and 3 Nm for the cap nut.
