Viessmann Vitodens Classic 24kW BPKB Combi Boiler & Horizontal Flue
Regular price
£730.00
inc. VAT
FREE Express Delivery (1-3 days) in UK Mainland on most orders
Excluding: Solar Panels (£59 delivery), Batteries (£49 delivery), Small Items (£4.95 delivery)
Next Working Day Delivery options if ordered before 12.00 pm — Contact Us
Same-day Delivery options — Contact Us
Click & Collect available — Contact Us
Custom quote available on request
*See checkout or shipping policy for full details
Payment options

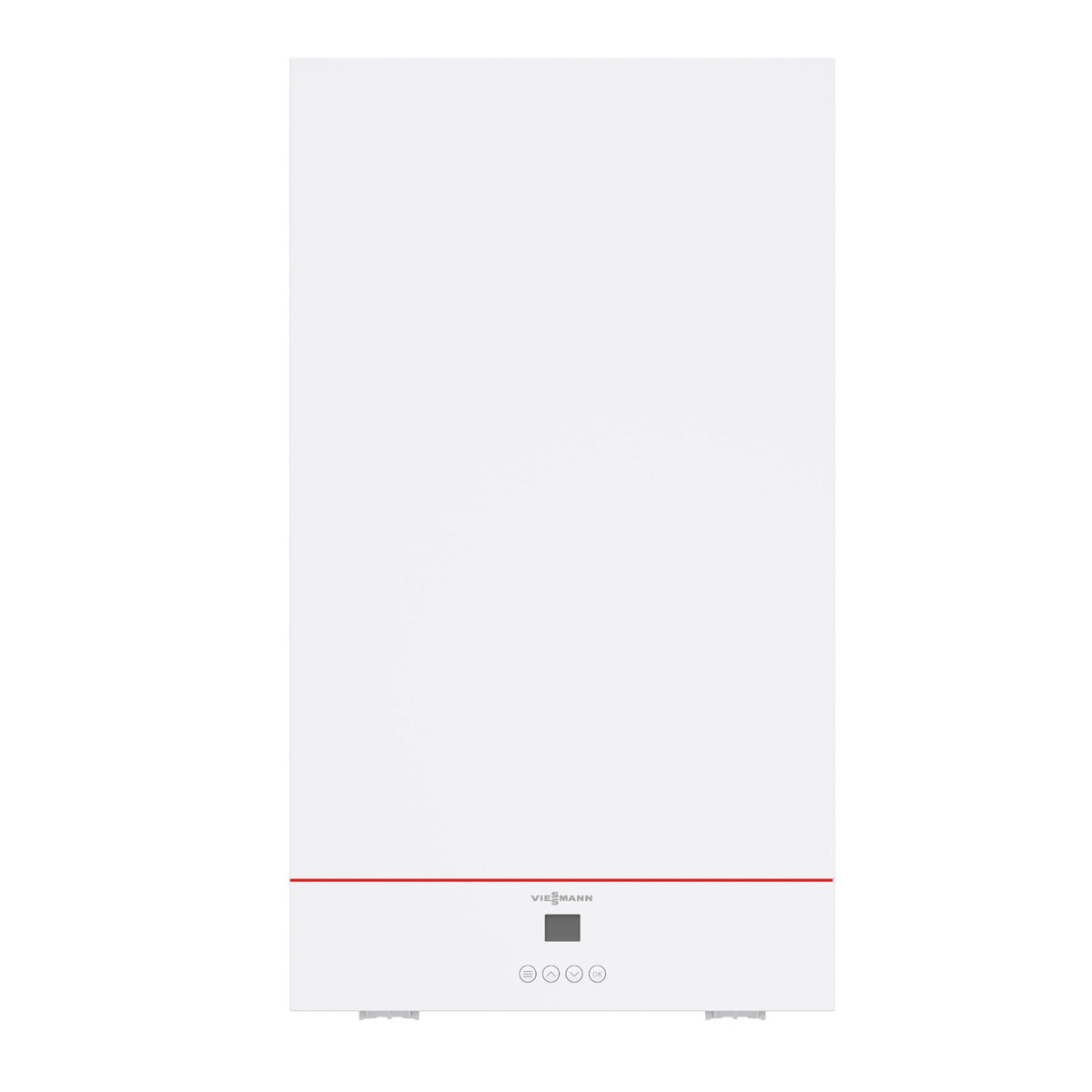

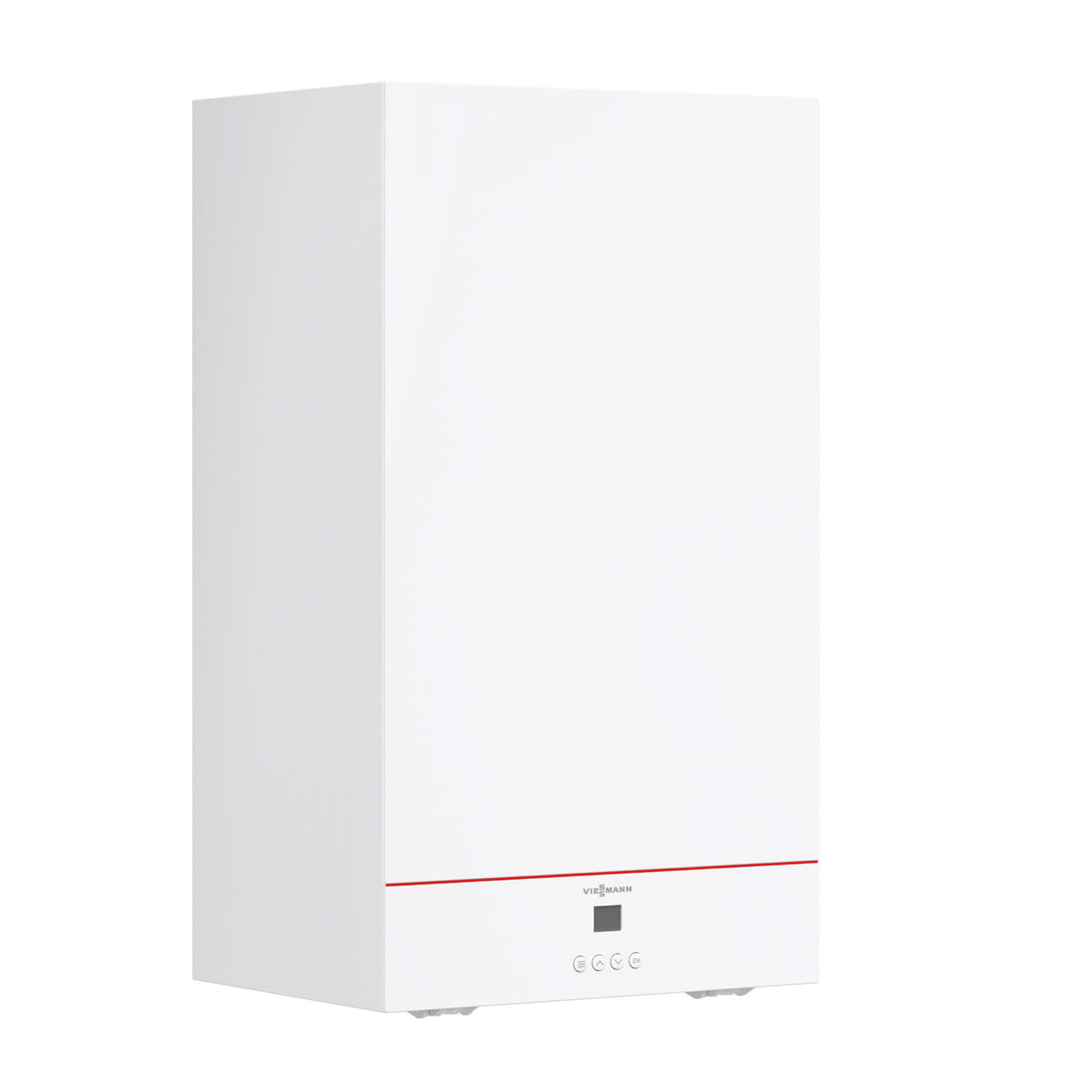

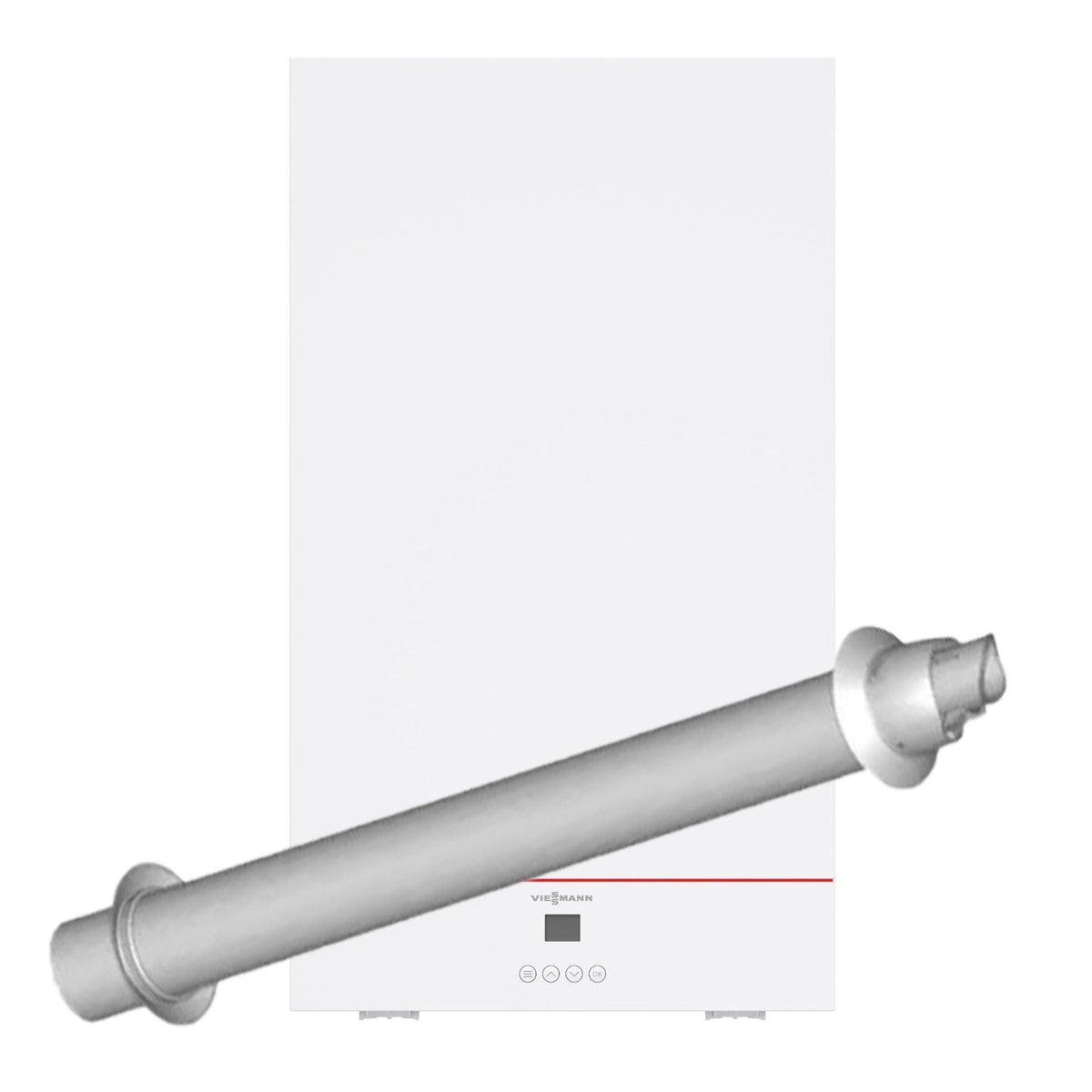

Viessmann Vitodens Classic 24kW BPKB Combi Boiler with Horizontal Flue

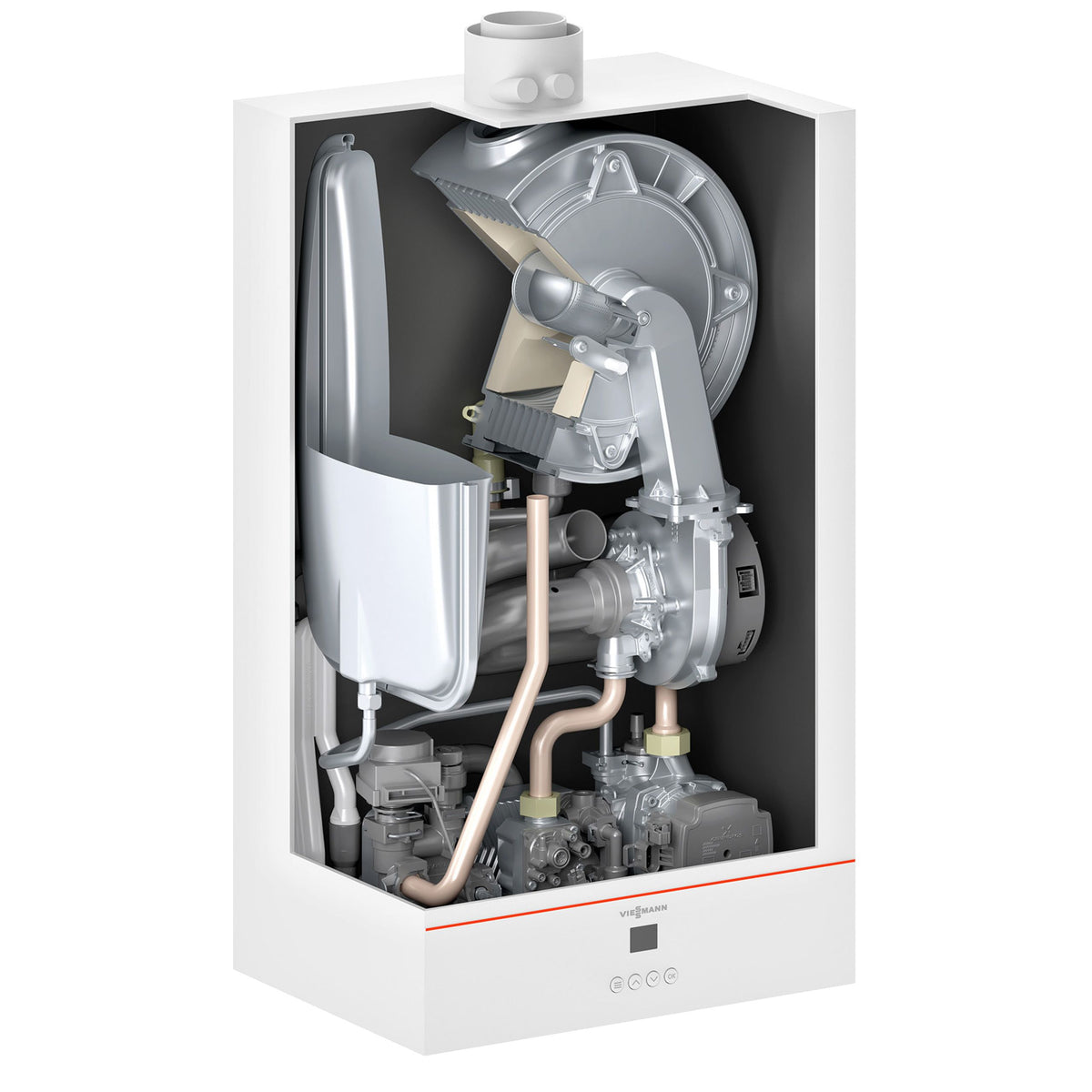

The Viessmann Vitodens Classic 24kW BPKB Combi Boiler with Horizontal Flue provides efficient heating and hot water for smaller homes, featuring horizontal flue kit for rear or side wall termination. This compact A-rated model includes premium Inox-Radial stainless steel heat exchanger, MatriX-Plus burner and 5-year warranty for reliable German-engineered performance.
Key Features
- Complete package includes boiler and horizontal flue kit 60/100mm
- Compact design fits 300mm deep kitchen cupboards
- Inox-Radial stainless steel heat exchanger for corrosion resistance
- MatriX-Plus modulating burner with 1:5 range (4.8-24 kW)
- LCD display with white backlight and intuitive 4-button controls
- Weather compensation ready and ViCare app connectivity
- Ultra-quiet operation under 50dB with low NOx emissions
- High-efficiency pump and built-in frost protection
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer Part Number (MPN) | 3210105 + 7946886 |
| Brand | Viessmann |
| Model | Vitodens Classic 24kW BPKB |
| Boiler Type | Gas Combi Boiler |
| Central Heating Output | 20 kW (68,242 BTU) |
| Domestic Hot Water Output | 24 kW |
| DHW Flow Rate | 10.0 L/min @ 35°C rise |
| ErP Rating | A Rated Heating & Hot Water (98% efficiency) |
| Dimensions (H x W x D) | 700mm x 400mm x 300mm |
| Weight | 34 kg |
| Flue Type Included | Horizontal Flue Kit 60/100mm |
| Warranty | 5 Years (when registered) |
Why Buy
The Viessmann Vitodens Classic 24kW BPKB offers premium German quality with lifetime stainless steel components and advanced modulation for superior efficiency. The horizontal flue configuration enables simple wall termination while compact dimensions suit tight installation spaces. Smart ViCare connectivity and quiet operation enhance user experience.
Suitable For
- Small homes or flats with 1-3 bedrooms and up to 8 radiators
- Installations requiring horizontal rear/side wall flue termination
- Properties demanding high-efficiency premium engineering
Order now for the Viessmann Vitodens Classic 24kW BPKB combi boiler with horizontal flue - complete premium installation package.
- Type Gas Combi Boilers
- Vendor Viessmann
- SKU 3210105-hkit
