40 kW DC OutputIP55 RatedIK10 Impact ProofOCPP 1.6J
The VEGA Chargers ALOHA Gravity DC 40 kW is a compact, robust fast EV charging built for locations where space is at a premium but performance cannot be compromised. Delivering up to 267 km of range in a single hour of charge, it is ideal for charging sessions of 23 to 90 minutes — perfect for hotels, restaurants, office car parks, shopping centres and corporate fleets. Its stainless steel and Arfinio® housing offers outstanding durability with a premium aesthetic, while the super-silent ≤ 55 dBA operation makes it fully suitable for public-facing environments.

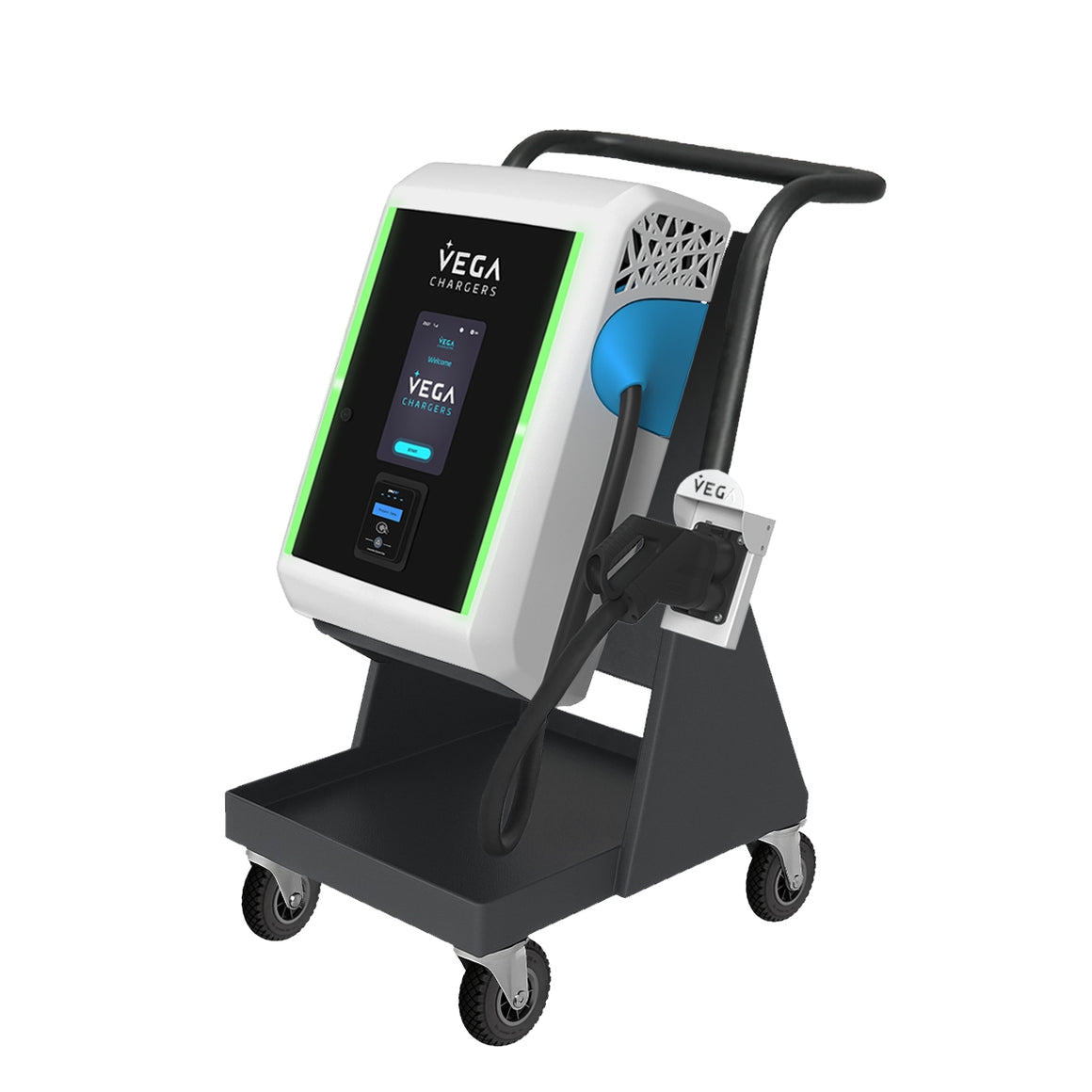

⚠ Trolley Note: Reference image only; final product trolley is fitted with braked wheels. Suitable for specific DC/DC applications upon consultation.
Key Features
Dynamic Load Management
Smartly balances available energy across all connected points, preventing grid overloads without manual intervention.
Smart Charging
Cloud-based energy management optimises charging schedules and energy costs in real time.
Autocharge
Authenticate without user intervention — plug in and charge automatically via ISO 15118 Plug & Charge.
Cashless Payment Terminal
Accept payments without prior registration via optional integrated contactless payment terminal.
Super Silent Operation
≤ 55 dBA at 1 m — whisper-quiet operation suitable for hotels, restaurants and offices.
Premium Housing
Stainless steel and Arfinio® (PUR V0) construction — sustainable, fire-retardant and fully customisable in colour.
Typical Applications
Hotels & Restaurants
Office Buildings & Workplaces
Malls & Supermarkets
Public & Private Car Parks
Corporate Fleets & Car Sharing
Service Vehicles & Public Transport
Technical Specifications
| AC INPUT |
| Supply Voltage |
400 Vac ± 10% (3P+N+PE) |
| Frequency |
50 / 60 Hz |
| Nominal Input Current |
65 A |
| Apparent Power |
45 kVA |
| Power Factor |
> 0.99 |
| Efficiency |
> 95% at nominal power |
| THDi |
< 5% |
| Standby Consumption |
< 13 W |
| Earthing System |
TT / TN-S |
| DC OUTPUT |
| Max. Output Power |
40 kW (@ V ≥ 400 Vdc) |
| Max. Output Current |
100 A |
| Output Voltage Range |
150 – 500 Vdc (Optional: 150 – 1000 Vdc) |
| Output Connectors (Single / S) |
CCS-2 (5 m cable) |
| Output Connectors (Dual / D) |
CHAdeMO + CCS-2 (5 m + 5 m cable) |
| Metering |
DC Official meter certified (optional) |
| MECHANICAL |
| Dimensions (H × W × D) |
767 mm × 485 mm × 275 mm |
| Weight (S / D) |
59 kg / 68 kg |
| Mechanical Impact Protection |
IK10 |
| Housing Material |
Stainless steel and PUR (V0) — customisable colour |
| Installation Method |

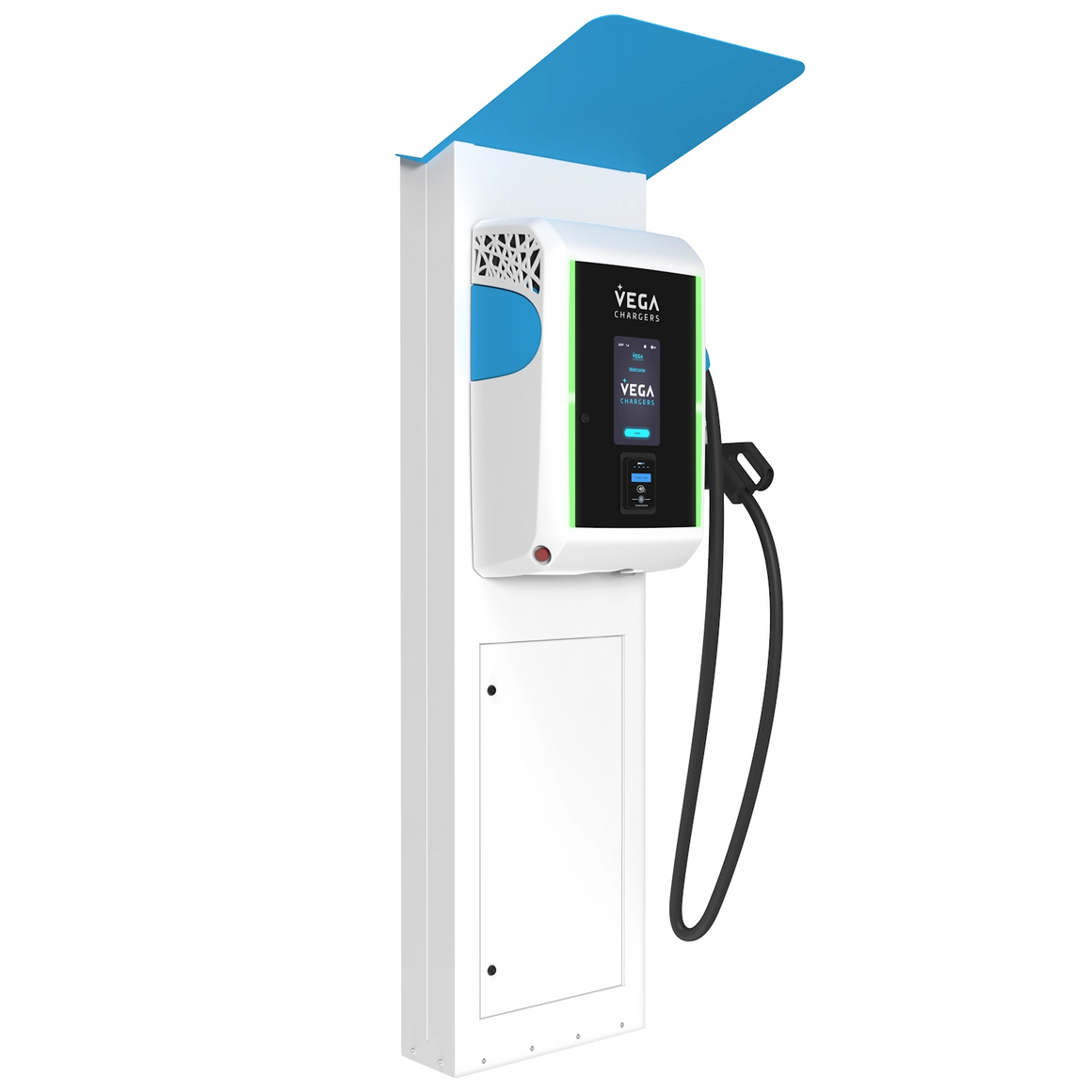

On wall or pedestal |
| ENVIRONMENT |
| Ingress Protection |
IP55 |
| Operating Temperature |
-10°C to +55°C (-30°C to +55°C with optional heater) |
| Storage Temperature |
-35°C to +70°C |
| Relative Humidity |
5% to 95% non-condensing |
| Cooling System |
Exhaust fan |
| Noise Level |
≤ 55 dBA (1 m, all directions) |
| Max. Altitude |
2000 m |
| GENERAL |
| User Interface |
10.1" TFT colour touchscreen |
| Communication Protocol |
OCPP 1.6J; Modbus TCP; Modbus RTU |
| Communication Interface |
4G; RS485; Ethernet |
| Access & ID |
RFID reader (MIFARE Classic / DESfire EV1, EV2; NFC Type 4); Autocharge; PIN code; White list |
| Payment Terminal |
Cashless payment terminal (optional) |
| Status Lights |
RGB LED per charging connector |
| STANDARDS & CERTIFICATIONS |
| IEC / DIN / ISO |
IEC 61851-1/21-2/23/24; IEC 62196-1/3; IEC 61000; DIN70121; ISO 15118-2/-3; CHAdeMO 1.2 |
| EU Directives |
LVD 2014/35/EU; EMC 2014/30/EU; RED 2014/53/EU |
| Mark |
CE |
ℹ Installation Note: This product requires installation by a qualified electrician. Ensure supply capacity, earthing system and protection devices comply with local wiring regulations and the technical specification above.
Frequently Asked Questions
Can the ALOHA Gravity charge two vehicles at once?
The single-output (S) model features one CCS-2 connector. The dual-output (D) model provides CHAdeMO + CCS-2, allowing two vehicles to be connected — though charging is sequential, not simultaneous. For simultaneous dual-vehicle charging, consider the ALOHA Lander range.
How quiet is the ALOHA Gravity in practice?
It operates at ≤ 55 dBA measured at 1 metre in all directions — comparable to a quiet library. This makes it ideal for hotels, restaurants and residential-adjacent car parks.
Can it be installed outdoors?
Yes. The IP55 ingress protection rating means it is fully protected against dust and water jets. It can operate from -10°C to +55°C as standard, and down to -30°C with the optional internal heater.
Does it support contactless payment?
An optional cashless payment terminal allows drivers to pay without any prior registration or app — simply tap a card or device to start charging.
What communication protocols does it support?
OCPP 1.6J for back-office integration, plus Modbus TCP and Modbus RTU for building management systems. Connectivity options include 4G, RS485 and Ethernet.
