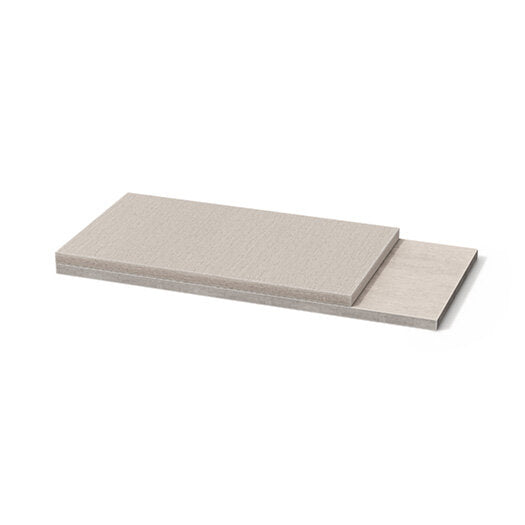

Thermosphere Heating Foil Cement Overlay Board 0.72m² (Pair of Boards)
Experience advanced underfloor heating performance with the Thermosphere Heating Foil Cement Overlay Board, supplied as a pair for 0.72m² coverage. This innovative foil heating solution is ideal for use beneath engineered timber, laminate, vinyl, and more, delivering efficient, even heat distribution with maximum protection and safety.
The boards feature a universal fast track dry levelling system designed to eliminate drying times and minimise installation effort. These cement-bounded panels are perfectly suited for final-phase construction, renovations, and integration with underfloor heating and cooling systems.
Key Features
- Advanced Heating Foil: Engineered for efficient heat exchange and safe operation, including continuous earth protection for total peace of mind in any room, including wet areas when installed to regulations.
- Dry Levelling: Non-flammable, high compressive strength panels suitable for heavy use and impervious to moisture, meaning reliable, warp-free performance.
- Fast Track Installation: Dry screed system eliminates wait times associated with traditional levelling compounds—ready to use straight away.
- Multi-Surface Compatibility: Suitable for timber, ceramic tiles, vinyl, LVT, cork, linoleum, and rubber coverings (levelling compound recommended for resilient flooring).
- Low TOG Rating: The extremely low TOG of 0.4 ensures perfect compatibility with all underfloor heating and cooling systems.
- Superior Moisture Resistance: Cement overlay boards are almost completely impervious to water, preventing expansion or warping.
- Acoustic Benefits: When combined with acoustic sublayers, delivers sound reduction for a quieter installation.
Technical Specifications
| Brand | Thermosphere |
|---|---|
| Product Type | Heating Foil Cement Overlay Board |
| Panel Dimensions | 600mm x 1200mm |
| Total Coverage | 0.72m² (Pair of Boards) |
| Thickness | 12mm (6mm base + 6mm top board) |
| Material | Cement, Silica (Quartz), Cellulose, Foil |
| Non-Flammable | Bfl-s1 Fire Class |
| Max. Temperature | 29°C (Regulated by thermostat) |
| TOG Value | 0.4 |
| Weight per Panel | Approx. 7.5kg |
| Compressive Strength | High – suitable for heavy use |
| Moisture Resistance | Impervious to moisture |
| Impact Sound Reduction | Up to 23dB ΔLw (with acoustic sublayer) |
| Compatible Floor Finishes | Timber, ceramic tile, sheet vinyl, LVT, cork, linoleum, rubber |
| EAN | 5056257302287 |
| MPN | WCVF-CBHO |
Applications
- Ideal for fast renovation projects, new builds, and upgrades.
- Compatible with all popular underfloor heating systems and control units.
- Safe for use in bathrooms, kitchens, living rooms, bedrooms, and commercial environments.
Why Choose Thermosphere Cement Overlay Board 0.72m² Boards?
- Optimised for British homes and spaces, ensuring best-in-class performance and compliance.
- Lifetime warranty upon system registration.
- Easy installation, robust protection, and long-lasting comfort you can trust.
- Type Underfloor Heating Insulation
- Vendor ThermoSphere
- SKU WCVF-CBHO
