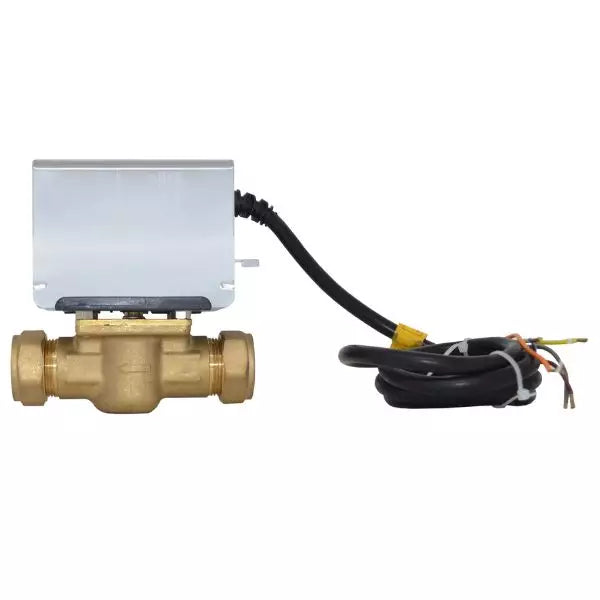

Strom 2 Port 28mm Zone Valve
The Strom 2 Port 28mm Zone Valve is a robust, high-capacity motorised valve designed for efficient control of water flow in domestic and commercial central heating systems. With a large 28mm bore, it is ideal for larger pipework and systems requiring precise zoning and reliable isolation. The valve features a spring return operation, easy-to-replace actuator head, and is fully interchangeable with leading brands for hassle-free maintenance and upgrades.
Key Features
- 2 port, 28mm compression connections – suitable for large heating circuits
- Spring return operation for automatic closure when de-energised
- Manual lever for system filling or draining
- Easy-to-replace actuator head for simple servicing
- Interchangeable with industry-standard zone valves
- Auxiliary switch for boiler or pump control
- Reliable, quiet performance
Technical Specifications
| Model | SSZV2822 |
|---|---|
| Connection Size | 28mm compression |
| Number of Ports | 2 |
| Power Supply | 230V AC, 50Hz |
| Max. Current Rating | 6 (2) A |
| Power Consumption | 6W |
| Max. Operating Temperature | 88°C |
| Min. Operating Temperature | 5°C |
| Max. Static Pressure | 10 bar |
| Manual Override | Yes (lever) |
| Actuator Head | Replaceable |
| Auxiliary Switch | Yes |
| EAN | 5060797570357 |
| Warranty | 1 year (subject to manufacturer’s T&Cs) |
Typical Applications
- Central heating zone control
- Hot water cylinder isolation
- Underfloor heating manifolds
- Large domestic or light commercial systems
Choose the Strom 2 Port 28mm Zone Valve for reliable, efficient, and easily serviceable control of your heating zones.
