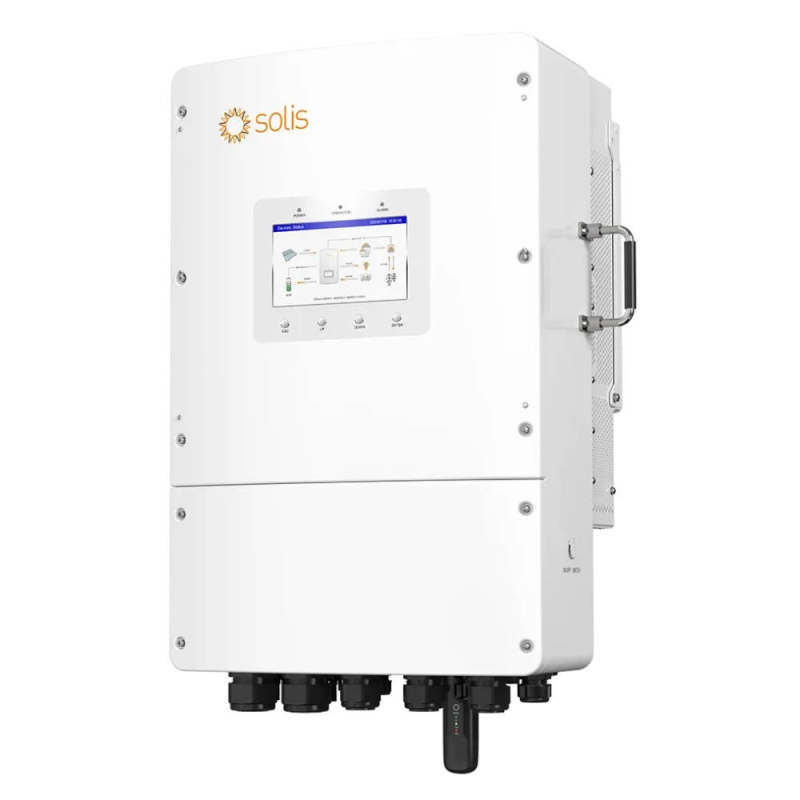

Solis S6 10kW Three Phase Low Voltage Hybrid Inverter S6-EH3P10K-NV-YD-L

Description

The Solis S6-EH3P10K-NV-YD-L is a 10kW three-phase, low-voltage (48V) hybrid inverter from the Solis S6 energy storage range, designed for large residential and light commercial solar-plus-battery systems. It pairs 2 MPPTs supporting up to 16kW of usable PV input with a high-current 48V battery interface (up to 220A charge/discharge), compatible with a wide range of lithium and lead-acid battery brands. Built-in features include dual backup ports, generator compatibility, sub-10ms backup switching, and support for unbalanced and half-wave loads on both grid and backup circuits.

10kW

Rated AC Output

16kW

Max PV Input

40–60V

Battery Voltage

220A

Max Charge/Discharge

97.6%

Max Efficiency

<10ms

Backup Switch Time

Qualified Installation Required

This is a mains-connected, three-phase hybrid inverter with high DC battery currents. Installation, wiring and commissioning must be carried out by a qualified, competent electrician in accordance with UK wiring regulations and G98/G99 grid connection requirements.

Low Voltage Battery Platform

This is the 48V (40–60V) low-voltage battery variant of the Solis S6 hybrid range — confirm battery compatibility before ordering, as Solis also offers high-voltage S6 inverters that are not interchangeable with 48V battery banks.

Model Naming Note

The part number SOL-S6-EH3P10K-NV-YD-L-UK corresponds to the manufacturer's S6-EH3P10K02-NV-YD-L model, where 'K02' denotes the 2-MPPT configuration; 'NV' indicates the normal (400V) grid voltage variant and 'YD' indicates the display-equipped version.

Dual Backup Ports

Two independent backup outputs allow critical and non-critical loads to be controlled separately, so essential circuits stay powered during an outage while non-essential loads can be shed automatically.

Generator Compatibility

A dedicated generator input extends backup duration during extended grid outages, recharging the battery or directly supporting loads when solar generation and stored energy aren't enough.

High-Current 48V Battery Interface

Supporting up to 220A of charge/discharge current at 40–60V, the inverter can move a full 10kW to and from the battery quickly, making the most of surplus solar generation before it's exported.

200% Overload for 10 Seconds

Off-grid surge handling of double the rated output for 10 seconds supports the inrush demands of motors, pumps and air conditioning compressors without tripping the inverter.

Unbalanced and Half-Wave Load Support

Both the grid and backup outputs can supply unbalanced three-phase and half-wave loads, giving installers flexibility where a property's circuits aren't evenly distributed across phases.

Sub-10ms Backup Switching

A backup switch time of under 10 milliseconds means most sensitive electronics and control equipment ride through a grid outage transition without interruption or reset.

Input DC (PV Side)
Max. Usable PV Input Power	16 kW
Max. Input Voltage	1000 V
Rated Voltage	550 V
Start-up Voltage	160 V
MPPT Voltage Range	200 – 850 V
Max. Input Current	40 A / 40 A
Max. Short Circuit Current	50 A / 50 A
MPPT Number / Max. Input Strings	2 / 4
Battery
Battery Type	Li-ion / Lead-acid
Battery Voltage Range	40 – 60 V
Max. Charge/Discharge Current	220 A
Communication	CAN / RS485
Output AC (Grid Side)
Rated Output Power	10 kW
Max. Apparent Output Power	10 kVA
Operation Phase	3/N/PE
Rated Grid Voltage	380V / 400V
Rated Grid Frequency	50 Hz / 60 Hz
Rated Grid Output Current	15.2 A / 14.4 A
Max. Output Current	15.2 A / 14.4 A
Power Factor	>0.99 (0.8 leading – 0.8 lagging)
THDi	<3%
Input AC (Grid Side)
Input Voltage Range	323 – 460 V
Max. Input Current	22.8 A / 21.7 A
Frequency Range	45–55 Hz / 55–65 Hz
Input Generator
Max. Input Power	10 kW
Max. Input Current	15.2 A
Rated Input Voltage	3/N/PE, 380V / 400V
Rated Input Frequency	50 Hz / 60 Hz
Output AC (Backup)
Rated Output Power	10 kW
Max. Apparent Output Power	2× rated power for 10s
Backup Switch Time	<10 ms
Rated Output Voltage	3/N/PE, 380V / 400V
Rated Frequency	50 Hz / 60 Hz
Rated Output Current	15.2 A / 14.4 A
Max. Continuous Output Current	15.2 A
Max. Continuous AC Passthrough Current	50 A
THDv (@ linear load)	<3%
Efficiency
Max. Efficiency	97.6%
EU Efficiency	97.0%
Protection
Anti-Islanding Protection	Yes
Output Over Current Protection	Yes
Short Circuit Protection	Yes
DC Reverse-Polarity Protection	Yes
Surge Protection	Yes
General Data
Dimensions (W×H×D)	430 × 660 × 295 mm
Weight	42 kg
Topology	Non-isolated
Operating Ambient Temperature	−40 to +60°C
Ingress Protection	IP66
Cooling Concept	Intelligent redundant fan-cooling
Max. Operating Altitude	4000 m
Safety/EMC Standard	IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-3
Features
DC Connection	MC4 quick connect (PV) & screw terminal (battery)
AC Connection	Screw terminal
Display	LCD + Bluetooth + APP
Communication	CAN, RS485, Ethernet; optional Wi-Fi, cellular, LAN

What battery voltage does the S6-EH3P10K-NV-YD-L require?

This is the low-voltage 48V variant of the Solis S6 hybrid range, operating across a battery voltage range of 40–60V. It is not compatible with Solis's high-voltage S6 battery systems.

How much PV input can this inverter handle?

It supports up to 16kW of usable PV input power across 2 MPPTs and up to 4 strings, with a maximum input voltage of 1000V and max input current of 40A per MPPT.

Can I run motors or air conditioning off-grid on this inverter?

Yes, it supports 200% overload for 10 seconds in off-grid mode, which helps handle the inrush current of motors, pumps and air conditioning compressors on startup.

Does it support generator backup?

Yes, a dedicated generator input rated to 10kW allows a backup generator to extend runtime or recharge the battery during extended outages.

How fast does the backup supply switch over during an outage?

The backup switch time is under 10 milliseconds, fast enough that most sensitive electronic loads continue running through the transition.

What is the difference between the two backup ports?

The dual backup ports allow critical and non-critical loads to be wired and controlled separately, so essential circuits keep running while less important loads can be automatically shed to conserve battery capacity.
