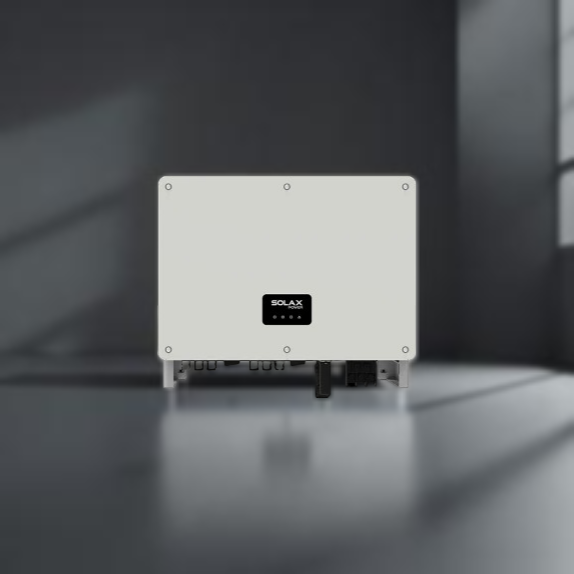

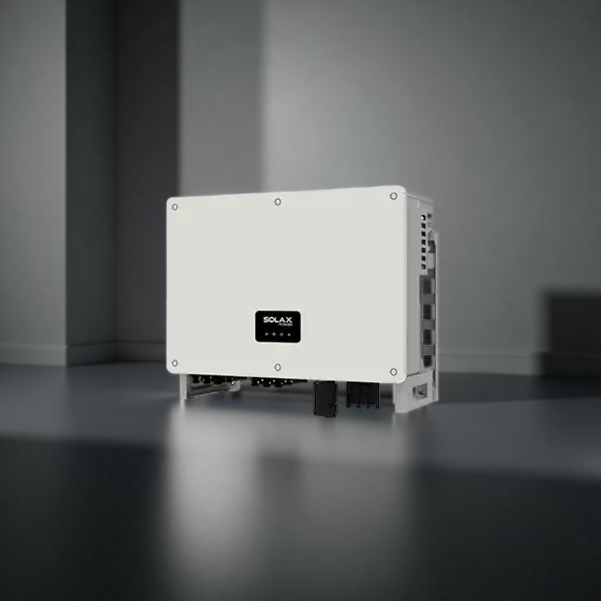

SolaX X3 Mega 60kW 3 Phase String Inverter

SolaX X3 Mega 60kW 3 Phase String Inverter

The SolaX X3 Mega 60kW is a high-capacity three-phase string inverter engineered for commercial, industrial, and utility-scale solar PV systems. With up to 98.4% maximum efficiency, six independent MPPTs, and robust safety features, it delivers exceptional energy yield, flexible system design, and long-term reliability for large installations.

Key Features

• Nominal output power: 60,000W (60kW)
• Maximum DC input power: 90,000W (supports 150% PV oversizing)
• Maximum efficiency: 98.4%
• Wide MPPT voltage range: 180–1000V (start-up voltage: 200V)
• Maximum DC input voltage: 1100V
• 6 independent MPPTs, 2 strings per tracker (12 strings total)
• Maximum input current per MPPT: 32A (short-circuit current: 46A)
• AC output current: up to 87A
• AC output apparent power: 66,000VA (110% overloading output)
• IP66 weatherproof protection for outdoor/indoor installation
• Type II SPD on both AC & DC sides for surge protection
• Arc-fault circuit interrupter (AFCI) for enhanced electrical safety (optional)
• Smart I-V curve diagnostics and string current monitoring
• Built-in export power control and remote setting/upgrading
• Night-time reactive power compensation and 24-hour operation monitoring
• Smart air cooling for efficient heat dissipation and longer fan life
• Aluminium AC cable connection available
• Fuse-free design for simplified maintenance
• Dimensions: 630 × 521 × 286 mm; Weight: 44.5 kg
• Warranty: 5 years standard

Technical Specifications

• Phases: 3 (Three-phase)
• Max. DC input power: 90,000W
• Max. DC input voltage: 1100V
• MPPT voltage range: 180–1000V
• Start-up voltage: 200V
• Number of MPPTs: 6
• Strings per MPPT: 2
• Max. input current per MPPT: 32A
• Max. short-circuit current per MPPT: 46A
• Rated AC output power: 60,000W
• Max. AC output apparent power: 66,000VA
• Rated AC output current: 87A
• Nominal AC voltage: 220/380V, 230/400V, 3/N/PE, 3/PE
• AC voltage range: 304–460V
• Nominal AC frequency: 50/60Hz (±5Hz)
• Power factor: 0.8 leading ~ 0.8 lagging
• THDi: <3%
• Night-time consumption: <2W
• Operating temperature: -30°C to +60°C (derating above 45°C)
• Max. altitude: 4000m (derating above 3000m)
• Relative humidity: 0–100%
• IP rating: IP66
• Dimensions (W × H × D): 630 × 521 × 286 mm
• Weight: 44.5 kg
• Cooling: Smart air cooling
• Communication: RS485, USB, WiFi/LAN/4G (optional), PLC (optional)
• Certifications: G99, VDE4105, EN50549, CEI 0-21, IEC 62109-1/2, AS 4777.2, and more

Applications

• Large commercial and industrial solar PV systems
• Utility-scale and ground-mount installations
• Projects requiring flexible string design, advanced safety, and remote monitoring
