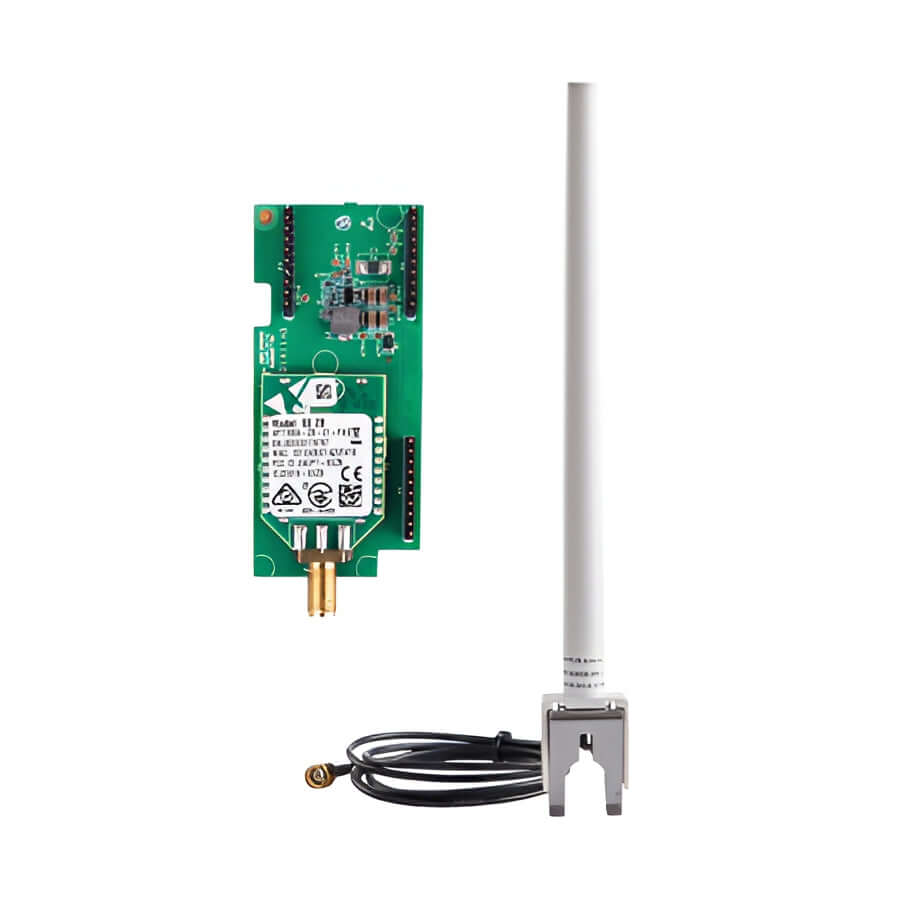

SolarEdge Zigbee Module for Home Energy Management - Set APP

The SolarEdge Zigbee Module for Home Energy Management (Set APP) (SE-ZBSLV-B-S1-RW) is a wireless ZigBee plug-in module that enables smart energy control and device networking for SolarEdge inverters with SetApp configuration.

Product Description

This compact module installs inside compatible SolarEdge inverters and functions as a Smart Energy network manager, connecting up to 10 wireless devices like smart plugs, energy meters, and EV chargers. It supports home energy management via the SolarEdge platform for load control and optimisation.

Key Features

• ZigBee wireless connectivity: Creates a Smart Energy mesh network.
• Supports up to 10 devices: Smart plugs, meters, heat pumps, EV chargers.
• External antenna: Wider range and outdoor resilience (IP65).
• SetApp compatible: For inverters with mobile app configuration.
• Easy plug-in installation: Fits inside inverter enclosure.
• Monitoring integration: Via SolarEdge platform with Ethernet/Wi-Fi.

Technical Specifications

• Transmit power: 11.8 dBm.
• Receiver sensitivity: -102 dBm.
• EIRP with antenna: 16.8 dBm.
• Frequency range: 2.4-2.5 GHz.
• Modulation: O-QPSK with DSSS coding.
• Outdoor range (LOS): 400 m.
• Indoor range: 50 m.
• Max emitted power: ≤20 dBm.

Physical Specifications

• Dimensions (L × W): 78 × 32 mm.
• Includes: Antenna, mounting bracket, RF cable.
• Protection rating: IP65.
• Operating temperature: -40°C to +85°C.

Applications

• Smart home energy management with SolarEdge inverters.
• Wireless control of loads for self-consumption optimisation.
• Integration with batteries, EV chargers, immersion heaters.
• Compatible with SetApp inverters (SEXXXX-XXXXXBXX4 series).
