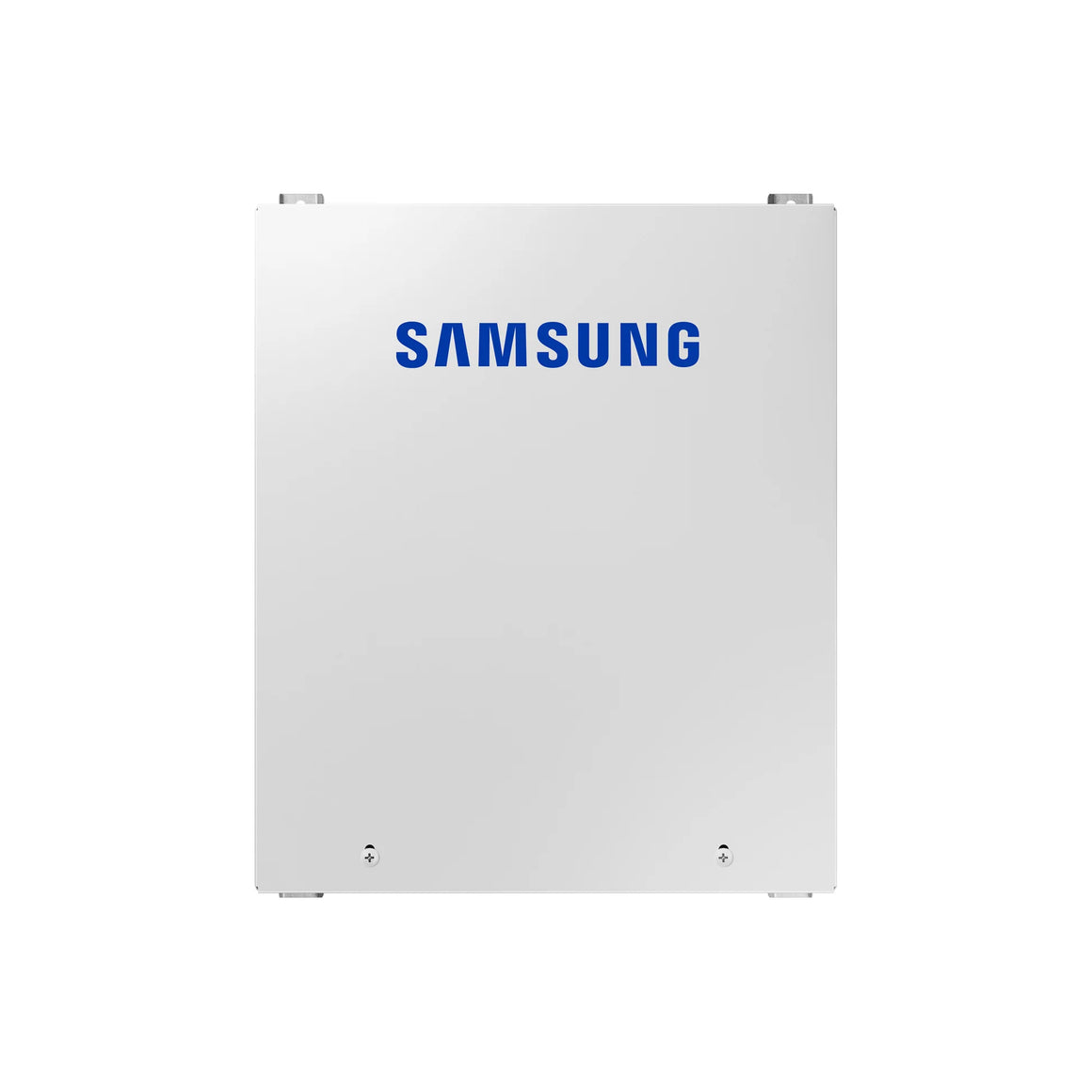

The Samsung Mono Control Centre (MIM-E03CN) is the official control kit for Samsung Gen 6 and Gen 7 monobloc EHS air source heat pumps used in heating-only installations, or paired with a non-Samsung hot water cylinder. It houses the main control PCB, provides the wired communication link to the outdoor unit, and includes the sensors needed to bring the system online.

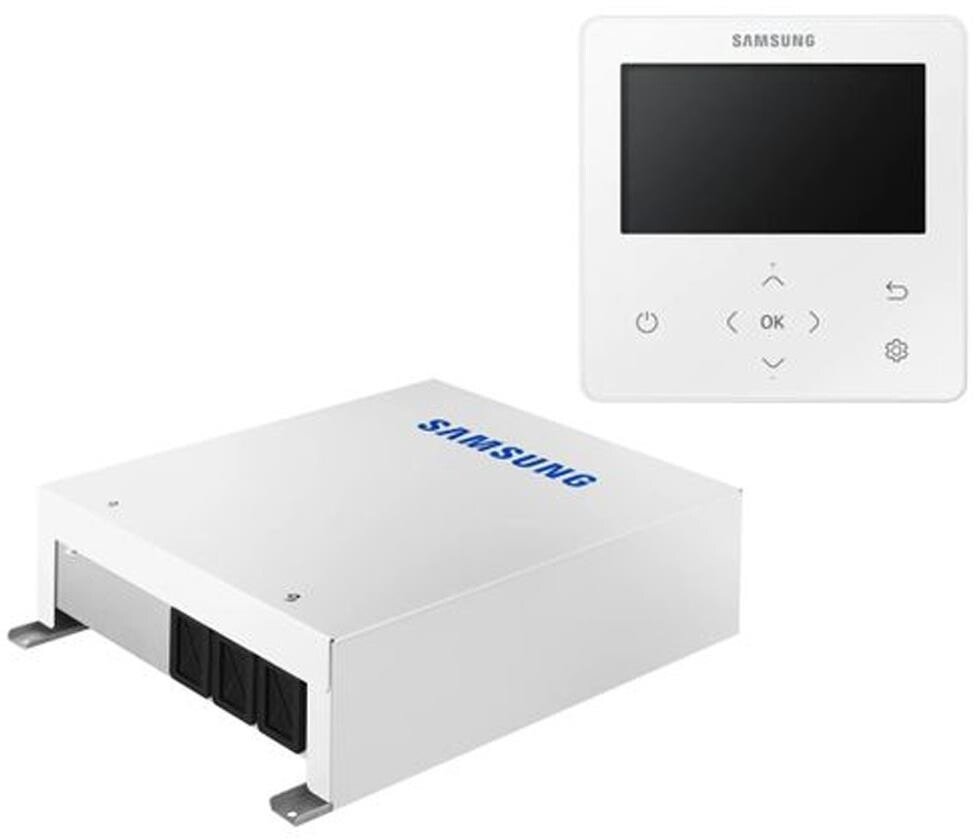

Every kit comes complete with a wired LCD remote controller (MWR-WW10N), a flow sensor, and a full set of temperature sensors for the DHW tank, mixing valve, and backup heater, so installers have everything required for a standard mono control installation in one box.
Gen 6 / 7
Compatible EHS Platform
MWR-WW10N
Wired Controller Included
30A / 30mA
ELCB Rating
220–240V
Single-Phase Supply
2
Max. Wired Controllers
KEYMARK
Certified Combinations
Please Note
This is a heating-only control kit. It does not support Smart Grid control and is designed for space heating operation, or heating plus a non-Samsung DHW cylinder wired in via the kit's own tank sensor and booster heater connections. If you need full DHW cylinder integration with a genuine Samsung tank, check the correct control kit for your outdoor unit before ordering.
Good to Know
The kit ships complete with: main control PCB in its mounting box, wired LCD remote controller (MWR-WW10N), a flow sensor, DHW tank temperature sensor (15m, yellow), mixing valve temperature sensor (15m, blue), backup heater temperature sensor (15m, black), and a PV/peak-power control cable. No separate remote controller purchase is needed.

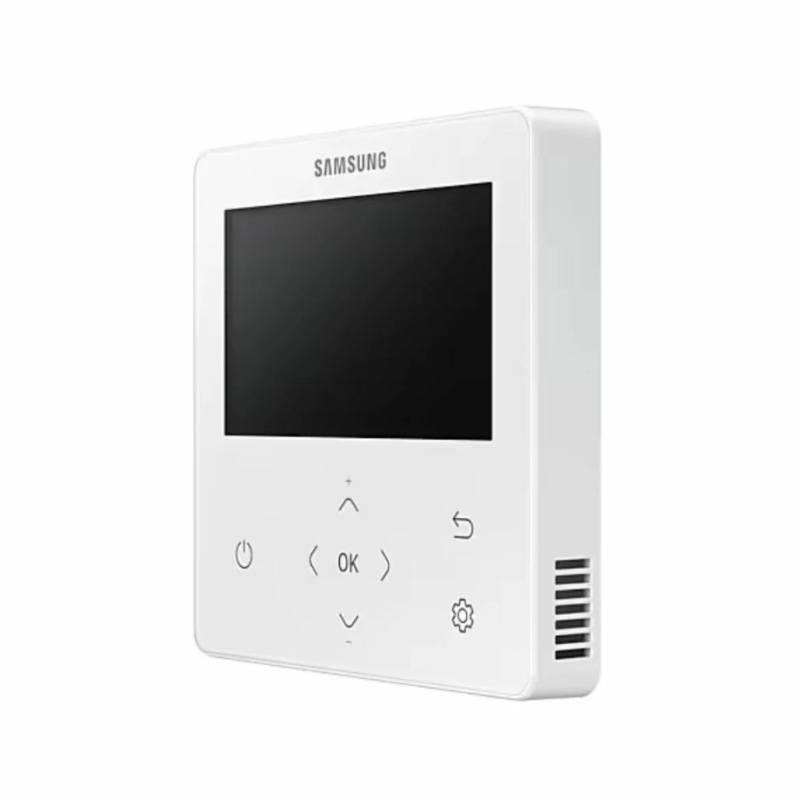

Wired LCD Touch Controller
Includes the MWR-WW10N colour touchscreen controller for on-wall monitoring and setpoint control — no separate purchase required.
Integrated Flow Sensor
A dedicated flow sensor is supplied to protect the compressor and confirm correct system water flow at start-up.
Two-Zone Ready
Supports connection of a second wired remote controller (Master/Slave) for basic two-zone monitoring.
Full Sensor Set Included
Comes with DHW tank, mixing valve, and backup heater temperature sensors, each supplied on 15m runs for flexible routing.
Backup Heater & Boiler Support
Wiring terminals are provided for a backup electric heater or a back-up boiler, giving resilience against low ambient conditions.
KEYMARK-Certified Combinations
Listed as part of KEYMARK-certified outdoor/indoor unit combinations for UK and EU heat pump compliance schemes.
Technical Specifications
Product Details
Brand
Samsung
Model / SKU
MIM-E03CN (Mono Control Kit)
Compatible Platform
Samsung EHS Gen 6 / Gen 7 monobloc (HT Quiet)
Application
Heating-only, or heating with non-Samsung DHW cylinder
Smart Grid Support
Not supported on this model
What's in the Box

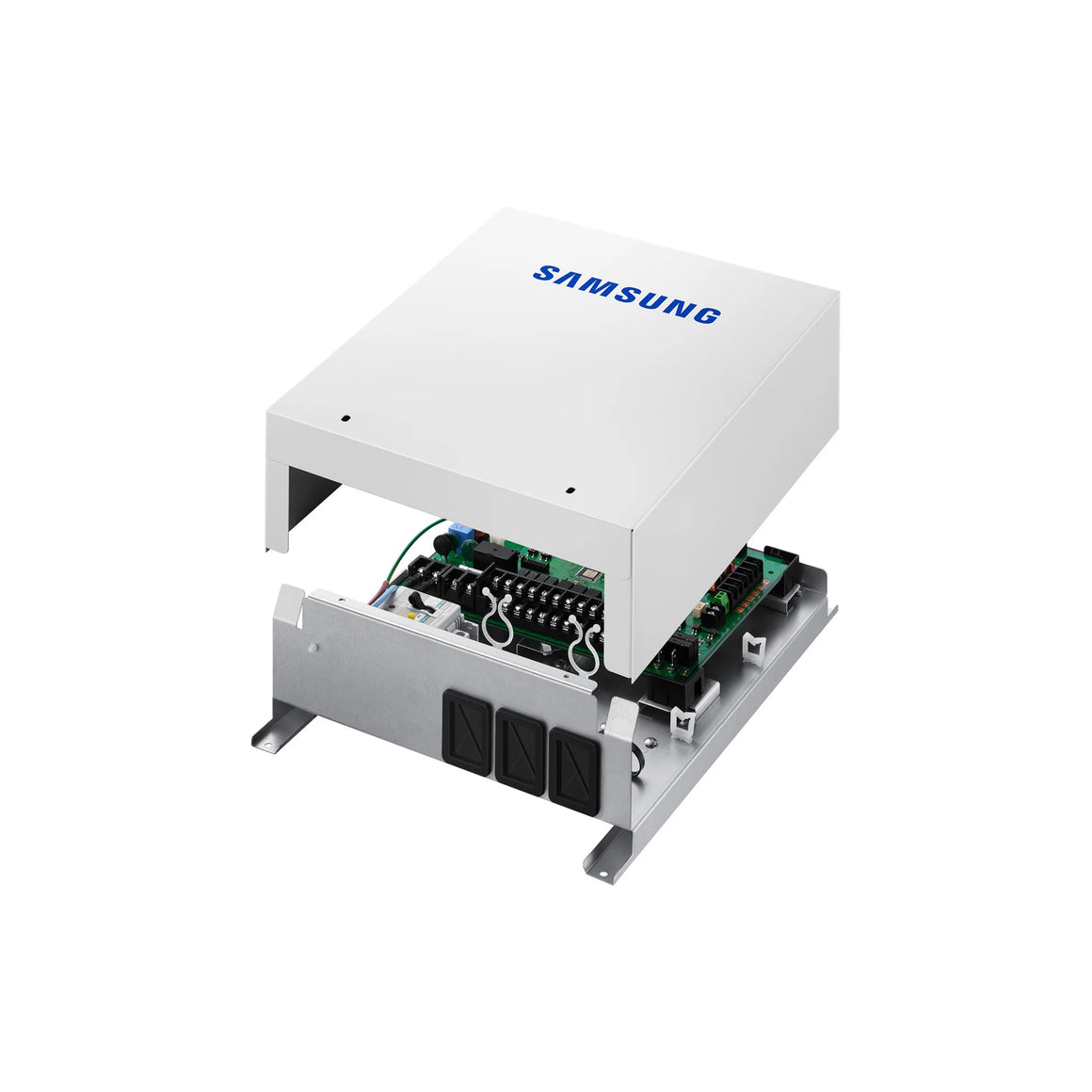

Main Control Board
Mounting box with control PCB assembly
Wired Remote Controller
MWR-WW10N, colour LCD touch display
Flow Sensor
1 × supplied, 1.5m cable
DHW Tank Sensor
1 × supplied, 15m cable, yellow
Mixing Valve Sensor
1 × supplied, 15m cable, blue
Backup Heater Sensor
1 × supplied, 15m cable, black
PV / Peak Power Cable
1 × supplied, 2m, red
Electrical
Power Supply
220–240V, 50Hz, single phase
ELCB Rated Current
30A
ELCB Leakage Current
30mA
Communication
2-core cable to outdoor unit (F1/F2)
Wired Controller Link
F3/F4 terminals, supports Master + Slave (2 units max)
Backup Heater
Maximum Backup Heater Load
3kW (single phase, 220–240V)
Cable Size (run <10m)
4.0mm² / 3-core
Cable Size (run 10–?m)
6.0mm² / 3-core
Additional Pump Support
Inverter (PWM) Pump
1 × max., 100W input
AC Pump
1 × max., 100W input
Sensor Reference
Control Kit Thermistor Resistance
10kΩ @ 25°C
DHW / Solar Thermistor Resistance
200kΩ @ 25°C
Important Safety Information
Installation, wiring, and grounding must be carried out by a licensed electrician in compliance with national wiring regulations. The kit is fitted with an integral Earth Leakage Circuit Breaker (30A, 30mA leakage trip). Always isolate the power supply before making or altering any electrical connections.
Frequently Asked Questions
Does the MIM-E03CN include the wired remote controller?
Yes. The kit is supplied complete with the MWR-WW10N wired LCD touch controller, so no separate controller purchase is required for a standard single-zone installation.
Can this control kit run a Samsung DHW cylinder?
The MIM-E03CN is designed for heating-only systems, or heating combined with a non-Samsung hot water cylinder wired into its DHW tank sensor and booster heater terminals. For full integration with a genuine Samsung DHW cylinder and its factory switch box, confirm the correct control kit for your specific outdoor unit before ordering.
Does it support Smart Grid or PV control?
The kit includes a PV / peak-power control cable for basic photovoltaic input, but Smart Grid control is not supported on the MIM-E03CN Mono Control Kit.
Can I add a second wired controller for a two-zone setup?
Yes. Up to two wired remote controllers can be connected to the F3/F4 terminals on the control kit, with one set as Master and the other as Slave.
What backup heater can this control kit run?
The kit supports connection of a backup electric heater up to 3kW (single phase, 220–240V) via a relay or magnetic contactor, or alternatively a back-up boiler.
Which outdoor and indoor unit combinations is this kit certified for?
The MIM-E03CN appears in Samsung's KEYMARK-certified combination list alongside specific AE050RXYD and AE080RXYD outdoor units paired with AE200RNWM or AE260RNWM indoor units for space-heating-only certification. Confirm your exact outdoor unit model when ordering.
