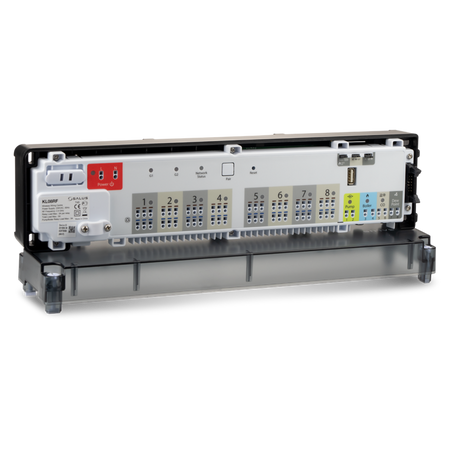

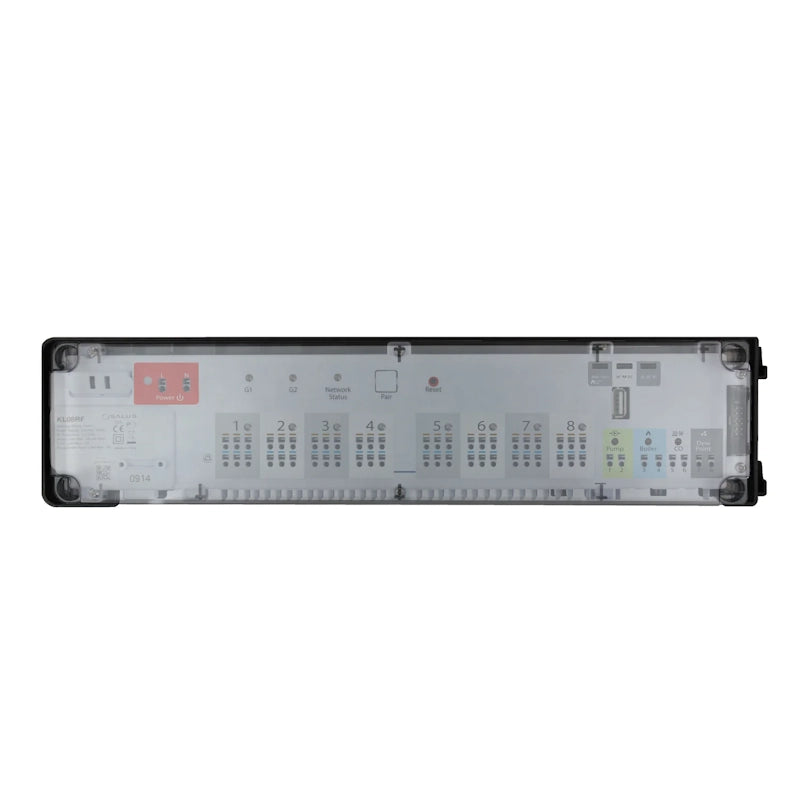

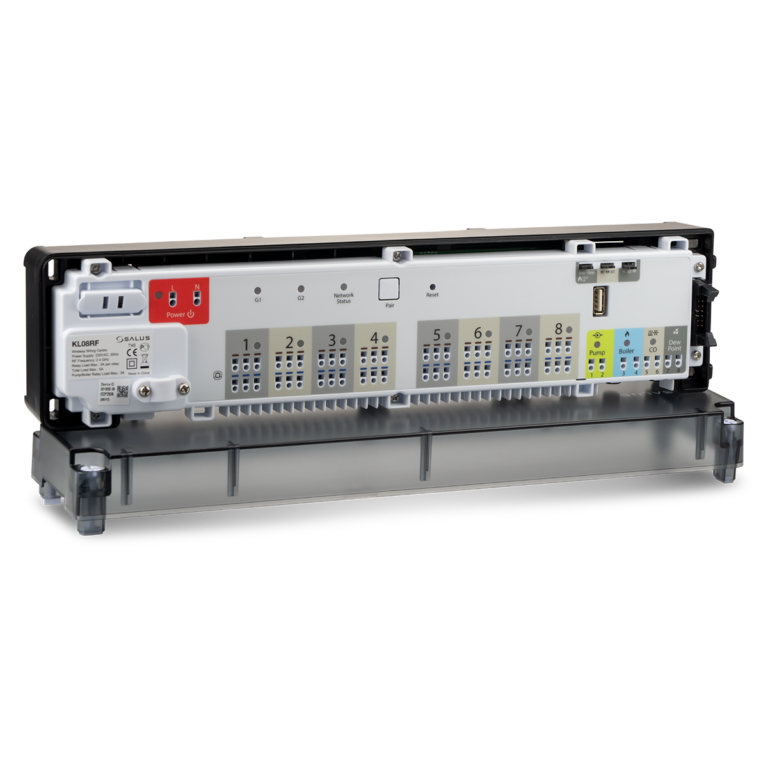

Salus KL08RF 8 Zone Wireless Wiring Centre

Salus KL08RF 8 Zone Wireless Wiring Centre

The Salus KL08RF is a wireless 8-zone wiring centre designed to provide precise and flexible control of underfloor heating systems. It supports up to 8 heating zones, with connections for up to 3 actuators per zone (totaling 24 actuators). This unit includes outputs for pump and boiler control, along with inputs for a dew point sensor and a changeover terminal to switch between heating and cooling modes. Featuring ZigBee 2.4 GHz wireless technology, the KL08RF can be integrated into the Salus Smart Home ecosystem for remote control via the Salus Smart Home app when paired with the UGE600 Internet Gateway. For offline use, it works with the CO10RF coordinating unit, offering a reliable standalone solution.

Technical Information

• Product Type: Wireless 8 Zone Wiring Centre
• ZigBee Wireless Frequency: 2.4 GHz
• Control Zones: 8 zones
• Actuators per Zone: Up to 3 (total up to 24 actuators)
• Power Supply: 230V AC
• Pump and Boiler Control: Volt free outputs for pump and boiler switching
• Inputs: Dew point sensor input (humidistat), Changeover (C/O) terminal for heating/cooling mode switching
• Actuator Compatibility: Works with Normally Open (NO) and Normally Closed (NC) actuators
• External Connections: Optional external antenna, serial connector for KL04RF extension
• Dimensions (W x H x D): Approximately 353 mm × 85 mm × 65 mm
• Installation: Wall mounted
• Additional Features: LED status indicators, thermostat grouping, push-in cable connections with strain relief, external clock contact, booster output for night setback
• Warranty: 5 years

Suitable For

• Controlling multi-zone underfloor heating systems with up to 24 actuators
• Homes and small commercial properties requiring wireless connectivity
• Integration with Salus iT600RF wireless thermostats and components
• Applications requiring both heating and cooling control with automatic mode switching
• Users seeking app-enabled smart home control or standalone wireless operation

Key Features

• Supports 8 zones with up to 3 actuators per zone
• Compatible with both NC and NO actuators for flexible installation
• ZigBee 2.4 GHz wireless communication for stable and secure smart home integration
• Remote control and monitoring via Salus Smart Home app when connected through UGE600 gateway
• Offline operation possible with included CO10RF coordinator for areas without internet
• Integrated pump and boiler control outputs for seamless system management
• Support for dew point sensor to prevent condensation
• Changeover terminal enables easy switching between heating and cooling modes
• Expandable ZigBee network with ability to link multiple KL08RF units
• Push-in cable terminals with strain relief for secure, professional wiring

Package Contents

• Salus KL08RF 8 Zone Wireless Wiring Centre
• CO10RF Coordinator unit (for offline mode)
• Installation and wiring manual
