Profix 15mm Underfloor Heating Pipe Retention Panel

Profix

£95.00 inc. VAT

Options

Profix Panel - Standard - 10 Pack Profix Panel - with 3mm Bonded Insulation - 10 Pack Profix Panel - with 6mm Bonded Insulation - 10 Pack Profix Panel - with 10mm Bonded Insulation - 10 Pack

Payment details

Profix Underfloor Heating Pipe Retention Panel – 15mm Depth – Pack of 10

Description

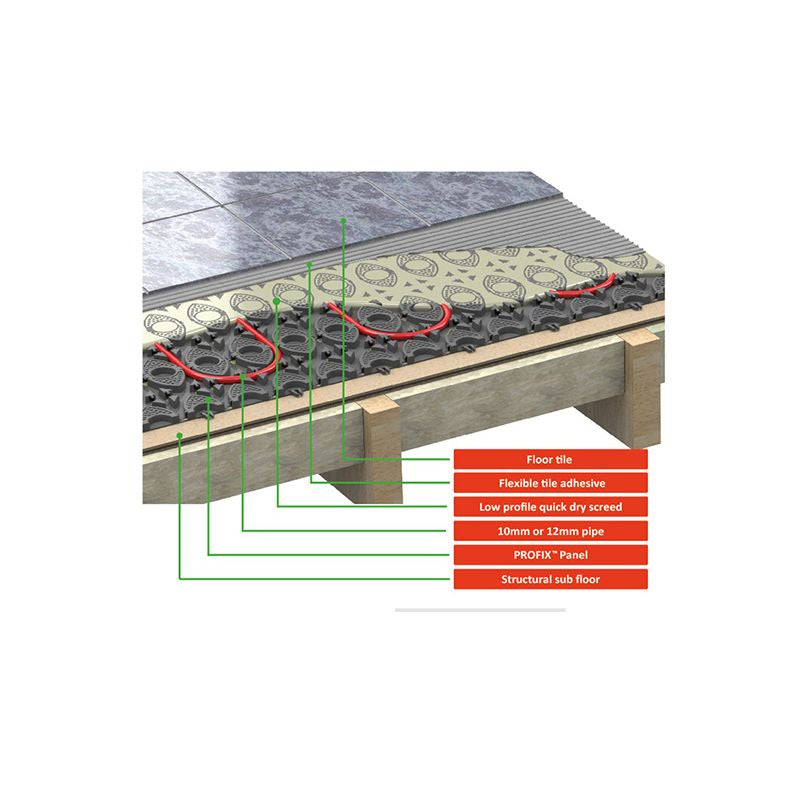

The Profix™ Panel is a revolutionary underfloor heating pipe retention and installation system designed for fast, efficient fitting with minimal build height. With a very low profile of only 15mm depth, these panels securely hold 12mm underfloor heating pipes at 150mm centres and allow direct installation of floor finishes such as tiles and wood over a thin self-levelling layer.

Made from 100% recycled plastic with a self-adhesive backing, the Profix panel offers quick fixing on both suspended timber and solid floors. The system encapsulates the heating pipe fully in the self-levelling compound, allowing superior heat transfer through the screed to the floor surface, generating high heat output that surpasses traditional grooved insulation boards.

What’s Included

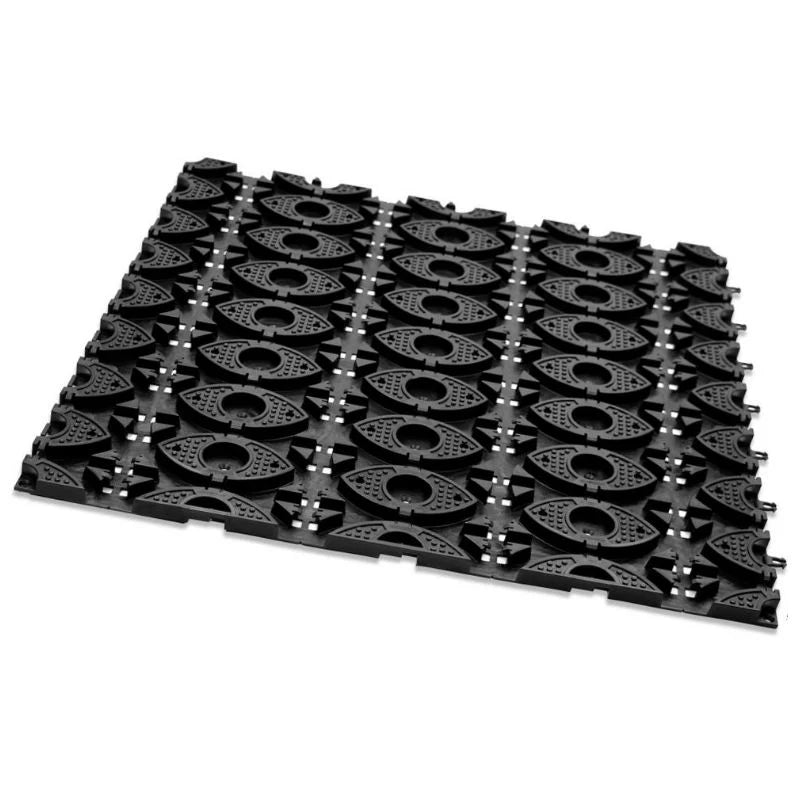

10 x Profix panels, each measuring 600mm x 600mm x 15mm
Total pack coverage: 3.6 m²
Optional pre-bonded insulation layers (3mm, 6mm, 10mm, 20mm & 25mm) available separately or bonded to panels
Installation instructions included

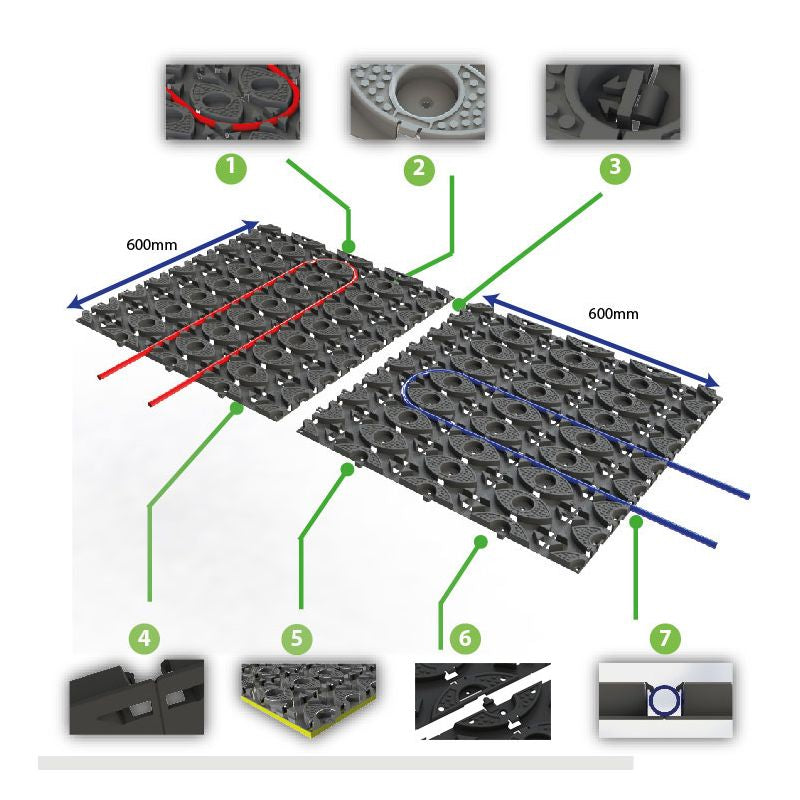

Key Features

Low profile system at 15mm total panel depth
Self-adhesive backing for rapid installation on timber or solid subfloors
Multiple pipe retention clips firmly secure 12mm pipes at 150mm centres
Purpose-built design allowing the pipe to be fully encapsulated by the levelling compound for maximum heat transfer
Snap-fit edges enable panels to be securely joined for neat layout
V-shaped notches facilitate easy measuring and cutting alignment on site
Fast installation reduces labour time and overall project costs
Suitable for tiled, engineered wood, or carpeted floor finishes over a thin self-levelling layer or directly where appropriate

Benefits

High heat output due to full pipe encapsulation instead of just surface contact
Minimal floor build-up for renovation and space-sensitive projects
Reliable, secure pipe fixing to prevent movement during screeding and installation
Quick and easy installation with self-adhesive backing and interlocking panels
Environmentally friendly, made from 100% recycled plastic
Compatible with optional Profix insulation boards for enhanced thermal performance

Technical Specifications

Panel Dimensions	600mm x 600mm
Panel Depth	15mm
Pipe Size Compatibility	12mm multilayer pipe
Pipe Centres	150mm
Pack Quantity	10 panels
Pack Coverage	3.6 m²
Material	100% recycled self-adhesive plastic panel
Suitable Floor Types	Tile, engineered wood, carpet (with self-levelling compound)

The Profix Panel Pack of 10 offers a cost-effective, fast-fit solution for underfloor heating installations with high heat output, minimal floor height increase, and compatibility with multiple floor finishes, ideal for both new builds and renovations.
