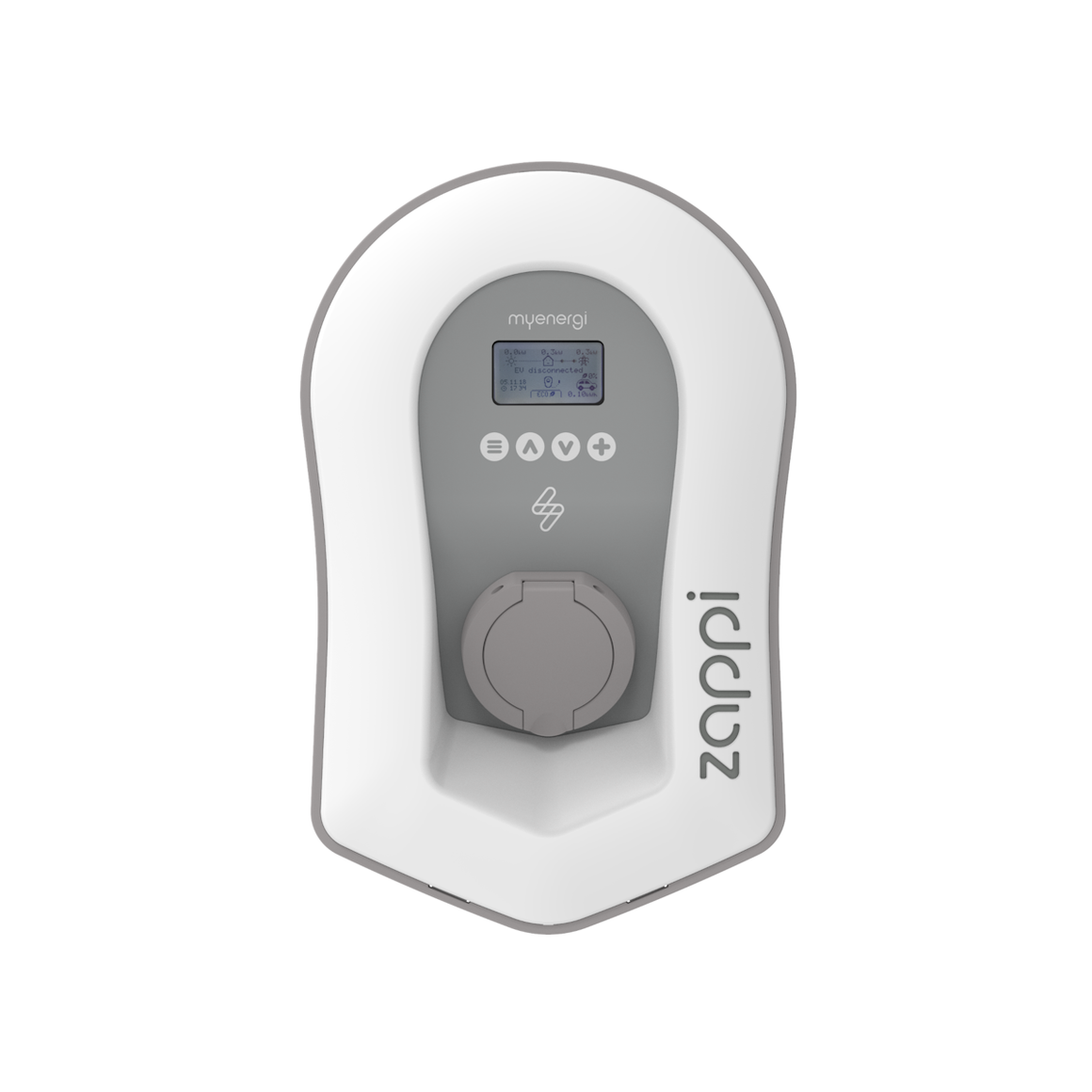

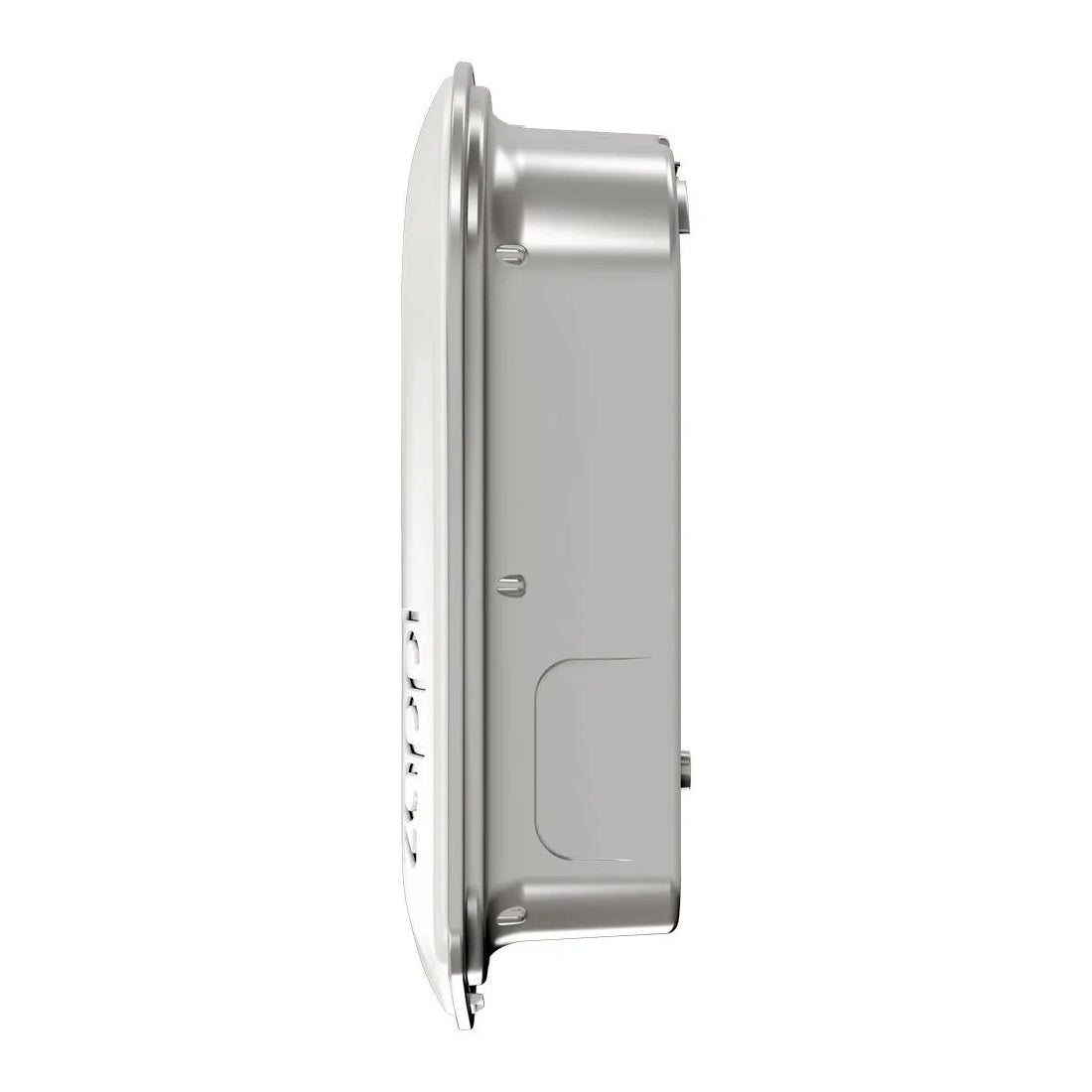

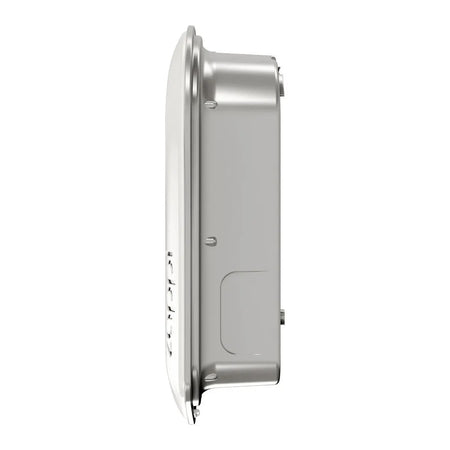

MyEnergi Zappi 2.1 Multiphase Untethered EV Charger - 7kW/22kW White

myenergi ZAPPI-2H22UW-G 7kW / 22kW Multiphase EV Charger – Type 2 Socket, Untethered, White is an eco-smart EV charge point that can operate as a standard fast charger or intelligently use surplus solar and wind energy. This V2.1 model is the white, untethered variant with a Type 2 socket, suitable for both single-phase (up to 7kW) and three-phase (up to 22kW) installations.

ZAPPI-2H22UW-G Key Features

• 7kW / 22kW multiphase output – up to 7kW on 230V single phase or 22kW on 400V three phase, 32A max, ideal for domestic and light-commercial supplies.
• Type 2 untethered socket – universal Type 2 outlet so users can plug in their own cable, ideal for multi‑user sites and easy cable replacement.
• Eco‑smart charging modes – FAST, ECO and ECO+ modes let you choose between normal charging, grid + solar mix or surplus‑only charging from PV/wind.
• Solar and wind ready – integrates with CT clamps and myenergi accessories to maximise self‑consumption of on‑site generation.
• Dynamic load balancing – actively manages current draw to protect the property’s main fuse and prevent overloads.
• Built‑in PEN fault protection – PME protection eliminates the need for a separate earth rod in most UK installations.
• Integrated 6mA DC protection – DC leakage detection (RDC‑DD in line with EN 62955), allowing use with upstream Type A RCDs.
• Smart connectivity – built‑in Wi‑Fi and Ethernet for app control, live data, scheduling and firmware updates.
• OCPP 1.6J compatible – latest versions support OCPP for connection to charge‑point management and fleet platforms.
• Rugged IP65 / IK10 enclosure – weather‑resistant, impact‑resistant case for indoor or outdoor wall or pedestal mounting.

Why Choose myenergi ZAPPI-2H22UW-G?

• Solar‑optimised charging – ECO and ECO+ modes automatically track surplus PV/wind and divert it to the EV, reducing grid imports and bills.
• Flexible single / three‑phase – suited to standard 7kW domestic connections and higher‑power 22kW three‑phase supplies for faster charging.
• Installer‑friendly – integrated PEN protection, DC protection and dynamic load management simplify design and compliance with BS 7671.
• Untethered convenience – Type 2 socket provides compatibility with all Type 2 EV cables and keeps the installation visually clean.
• Smart‑tariff and app control – timers, off‑peak scheduling and app features make it easy to align charging with cheap‑rate EV tariffs.

Technical Highlights

• Model: ZAPPI-2H22UW-G (zappi V2.1, white, Type 2 socket, multiphase).
• EAN‑13: 9503374629163.
• Rated power: 7kW (single phase) or 22kW (three phase).
• Supply voltage: 230V AC single phase or 400V AC three phase, 50Hz, up to 32A.
• Charging mode / type: Mode 3, Type 2 socket (untethered).
• Protection: 6mA DC residual current detection, PEN fault protection, overload and fault current protection when correctly installed.
• Enclosure rating: IP65; mechanical impact rating IK10.
• Mounting: wall or pedestal (optional); indoor or outdoor permanent installation.
• Dimensions (approx.): 439 mm (H) x 282 mm (W) x 122 mm (D); typical weight around 6 kg.

Important Installation Information

• Must be installed and commissioned by a suitably qualified electrician in accordance with the myenergi installation manual, BS 7671 and current UK EV charging regulations.
• Configure current limits, CTs and dynamic load settings correctly to protect the supply and enable eco‑modes and solar tracking.
• Ensure suitable location for Wi‑Fi/Ethernet connectivity and safe cable management, following all manufacturer wiring and earthing guidance.
