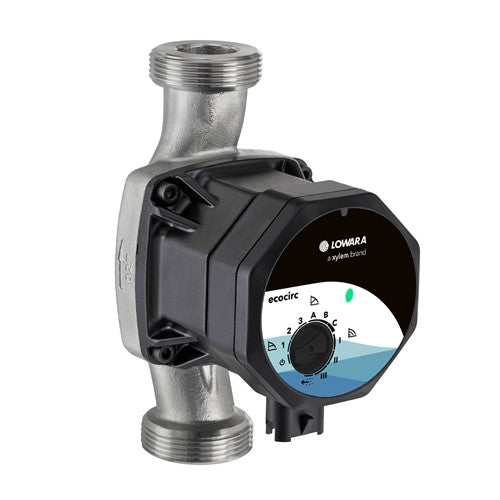

Lowara Ecocirc M 25-6/130 N - Variable Speed Circulator S/S

Lowara Ecocirc M 25-6/130 N – Variable Speed Circulator Pump S/S

The Lowara Ecocirc M 25-6/130 N is a high-efficiency, variable speed circulator pump with a robust stainless steel body, designed for domestic hot water and heating systems. Featuring ECM technology and a permanent magnet motor, this compact pump offers three control modes (proportional pressure, constant pressure, and fixed speed), automatic air-purge, and a multi-colour LED status indicator. The Ecocirc M 25-6/130 N is easy to install, energy efficient (EEI ≤ 0.18), and includes dry-run protection and an insulation shell as standard.

Key Features

• High-efficiency ECM motor with permanent magnet rotor
• Stainless steel pump housing for potable water and corrosion resistance
• Three control modes: proportional pressure, constant pressure, fixed speed
• Automatic air-purge and multi-colour LED status
• Compact 130mm port-to-port length
• 1½" BSP threaded connections (fits 25mm pipework)
• Max head: 6 metres
• Max flow: 3.06 m³/h
• Operating temperature: up to 110°C
• Max working pressure: 10 bar
• Energy Efficiency Index (EEI): ≤0.18
• Dry-run protection and warning/alarm visualization
• Insulation shell included
• 2-year manufacturer’s warranty

Technical Specifications
