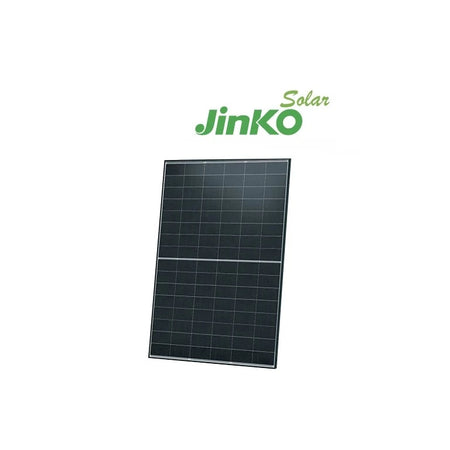

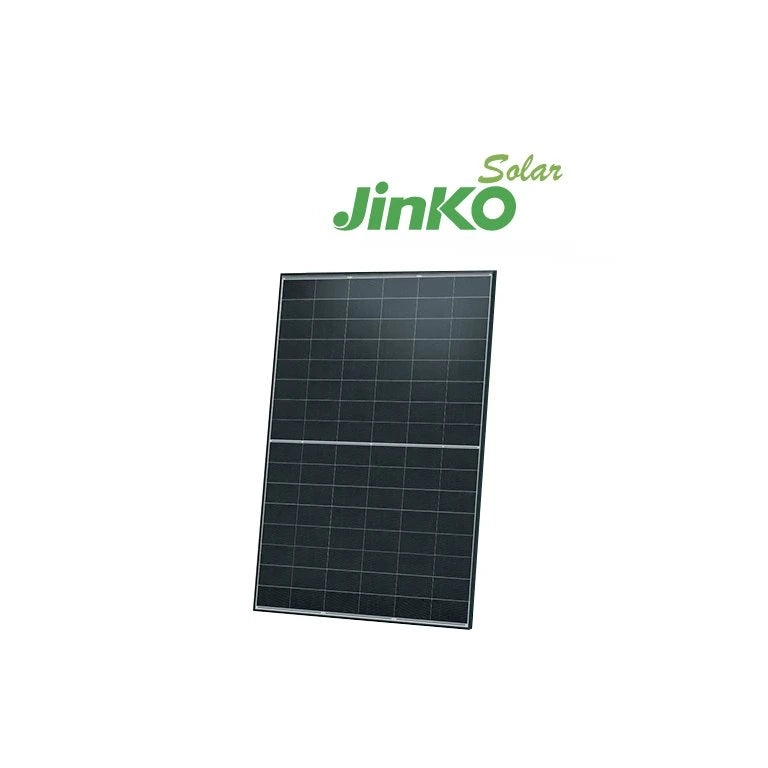

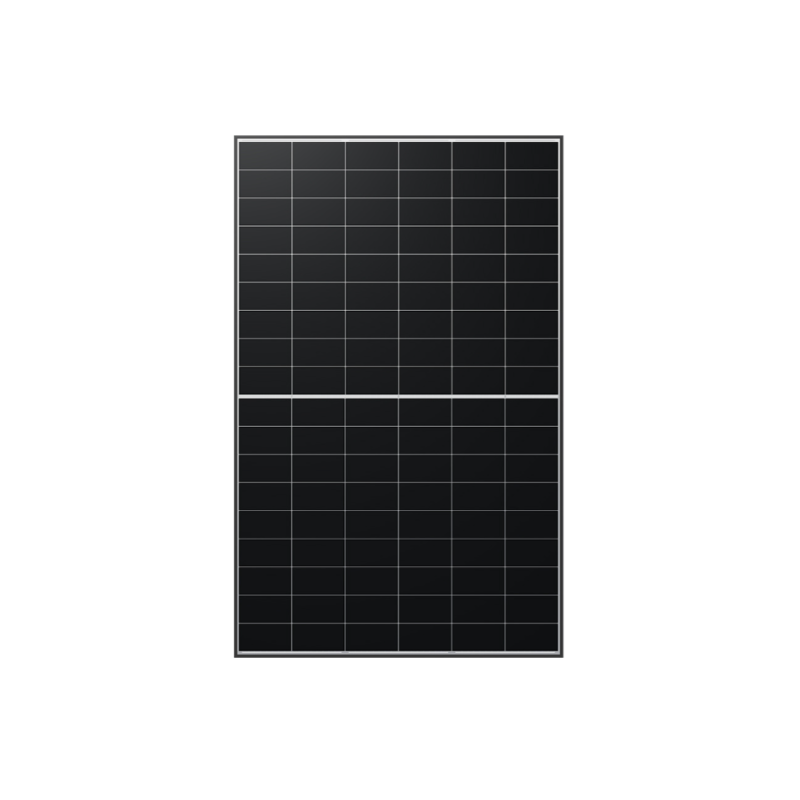

Jinko 460W Tiger Neo 2.0 TOPcon Monofacial Black Frame Dual Glass with HOT 3.0
Exc. VAT
Inc. VAT
Regular price
£85.00
(Inc. VAT)
inc. VAT
FREE Express Delivery (1-3 days) in UK Mainland on most orders
Excluding: Solar Panels (£59 delivery), Batteries (£49 delivery), Small Items (£4.95 delivery)
Next Working Day Delivery options if ordered before 12.00 pm — Contact Us
Same-day Delivery options — Contact Us
Click & Collect available — Contact Us
Custom quote available on request
*See checkout or shipping policy for full details
Payment options
JKM460N-48HL4M-DV | High-performance N-Type TOPCon residential module featuring Jinko HOT 3.0 technology and dual-glass construction.
Key Features
- 460W power output with 23.0% module efficiency
- N-Type TOPCon half-cells (48) with SMBB technology for superior low-light performance
- HOT 3.0 technology - reduced LID/LETID for long-term reliability
- Monofacial dual-glass with black frame for premium all-black aesthetics
- 12-year product warranty + 30-year linear performance warranty
- Excellent temperature coefficient: -0.29%/°C
- DC1500V system voltage with MC4-Evo2 connectors
- Enhanced wind (2400 Pa) & snow (5400 Pa) load resistance
Electrical Characteristics (STC)
| Nominal Power Pmax | 460 W |
| Module Efficiency | 23.0% |
| Voltage at Pmax (Vmpp) | 30.71 V |
| Current at Pmax (Impp) | 14.98 A |
| Open Circuit Voltage (Voc) | 37.10 V |
| Short Circuit Current (Isc) | 15.67 A |
| System Voltage | 1500 V DC |
| Pmax Temp. Coefficient | -0.29%/°C |
Mechanical Specifications
| Dimensions (L×W×T) | 1762 × 1134 × 30 mm |
| Weight | 24.0 kg |
| Cell Configuration | 96 N-Type TOPCon half-cells (48) |
| Front Glass | 2.0 mm tempered dual glass |
| Back Glass | 2.0 mm tempered dual glass |
| Frame | Black anodised aluminium |
| Cable Length | 1200 mm MC4-Evo2 (+400/-200 mm) |
Warranty & Performance
- First year degradation: ≤1%
- Annual degradation: ≤0.40%/year (years 2-30)
- Year 30 performance guarantee: ≥87.4%
- MCS certified for UK installations
- High PID, salt mist & ammonia resistance
- IP68 rated junction box with bypass diodes
MPN: JKM460N-48HL4M-DV
Model: Tiger Neo 2.0 48HL4M-DV
N-Type TOPCon module with Jinko HOT 3.0 technology. Superior bifaciality prevention and mechanical durability for residential rooftops.
- Type Solar
- Vendor Jinko Solar
- SKU JKM460N-48HL4M-DV
Downloads
