HVAC White Line Set Trunking 140mm | 2m, Bends & Wall Cover | Anti-UV

Description

This 140 mm white HVAC trunking protects and neatly covers insulated refrigerant pipework, condensate drains and control cable on air conditioning installations, and also suits air-to-water heat pump flow and return pipework. The 140 mm width takes insulated pipework and associated cabling together for a clean, professional finish.

It is made from stiff, shockproof anti-UVA PVC, so it shields the pipework from sunlight, weather, accidental damage and pests. The rounded cover closes with a central closure with accidental anti-release, and the base has pre-punched slots for wall mounting. Available as a 2 m straight length, 90° internal bend, 90° external bend and wall cover in white (RAL 9010).

140 mm

Trunking width

2 m

Straight bar length

Anti-UVA PVC

Stiff, shockproof

RAL 9010

White, paintable

−20 to +60 °C

Operating temperature

4 parts

Length, bends, wall cover

⚠ Check the fit before you order

Measure the combined outer diameter of the insulated pipes, any condensate drain and the cable you plan to run inside, and check they fit within the 140 mm trunking. Internal depth is not published, so allow generous clearance.

⚠ Cables sharing trunking with pipework

Where electrical cables run in the same trunking as pipework, follow BS 7671 and the unit manufacturer's installation instructions. Refrigerant pipework must be installed and tested by F-Gas certified engineers before it is covered.

ℹ Installation tip

Fix the base to the wall through the pre-punched slots using fixings suited to the wall type, lay the pipework in, then close the rounded cover. The PVC is paintable if you want to match the wall colour.

Key features

☀️

Anti-UVA PVC

Stiff, shockproof anti-UVA PVC protects insulated pipework from sunlight and weather.

🛡️

Impact and pest protection

Shields the pipework from accidental damage and pests as well as the elements.

🔒

Secure central closure

Central closure with accidental anti-release keeps the rounded cover shut.

🧱

Easy wall mounting

Pre-punched slots in the base for wall mounting, and a sharp-edged bottom for a neat fit to the wall.

🎨

Paintable

Finished in white RAL 9010 and paintable to match your wall.

♻️

Recyclable PVC

Made from recyclable PVC, with an operating temperature range of −20 °C to +60 °C.

Technical specification

Product

Product

HVAC trunking for pipework and cabling

Width

140 mm

Bar length

2 m

Colour

White (RAL 9010)

Applications

Insulated flow and return pipework and associated cabling, including air conditioning line sets

Material and construction

Material

Stiff, shockproof, anti-UVA PVC, recyclable

Cover

Rounded, with central closure and accidental anti-release

Base

Sharp-edged bottom, pre-punched slots for wall mounting

Finish

Paintable

Performance

Operating temperature

−20 °C to +60 °C

Available parts

Part

Description

Use

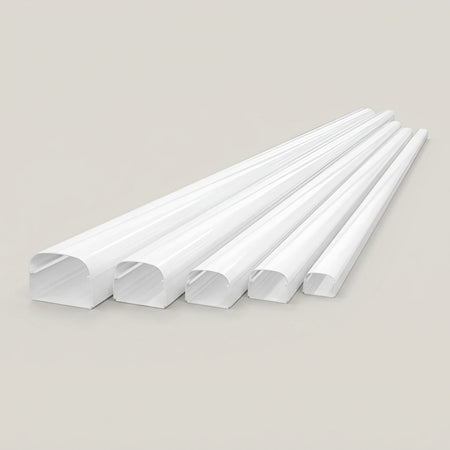

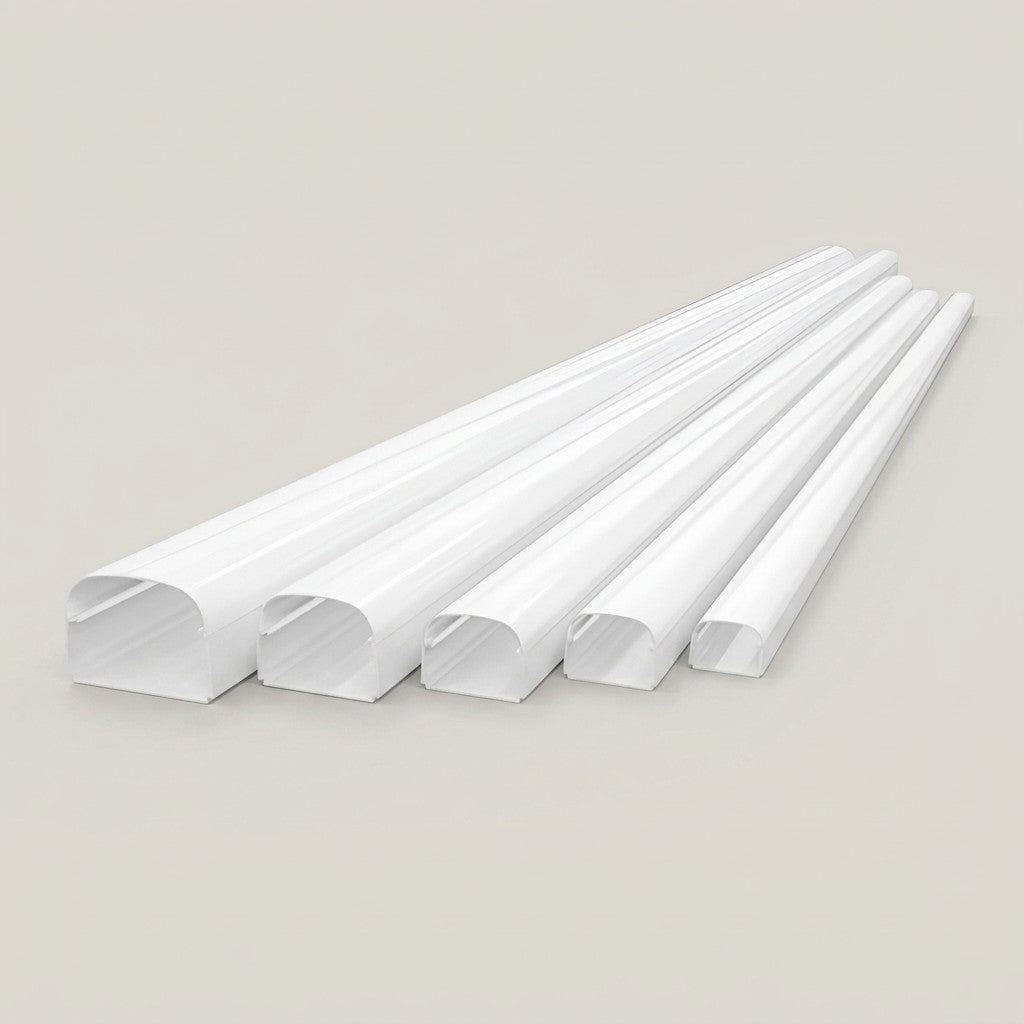

Straight length

2 m bar

Main run along walls, up and across

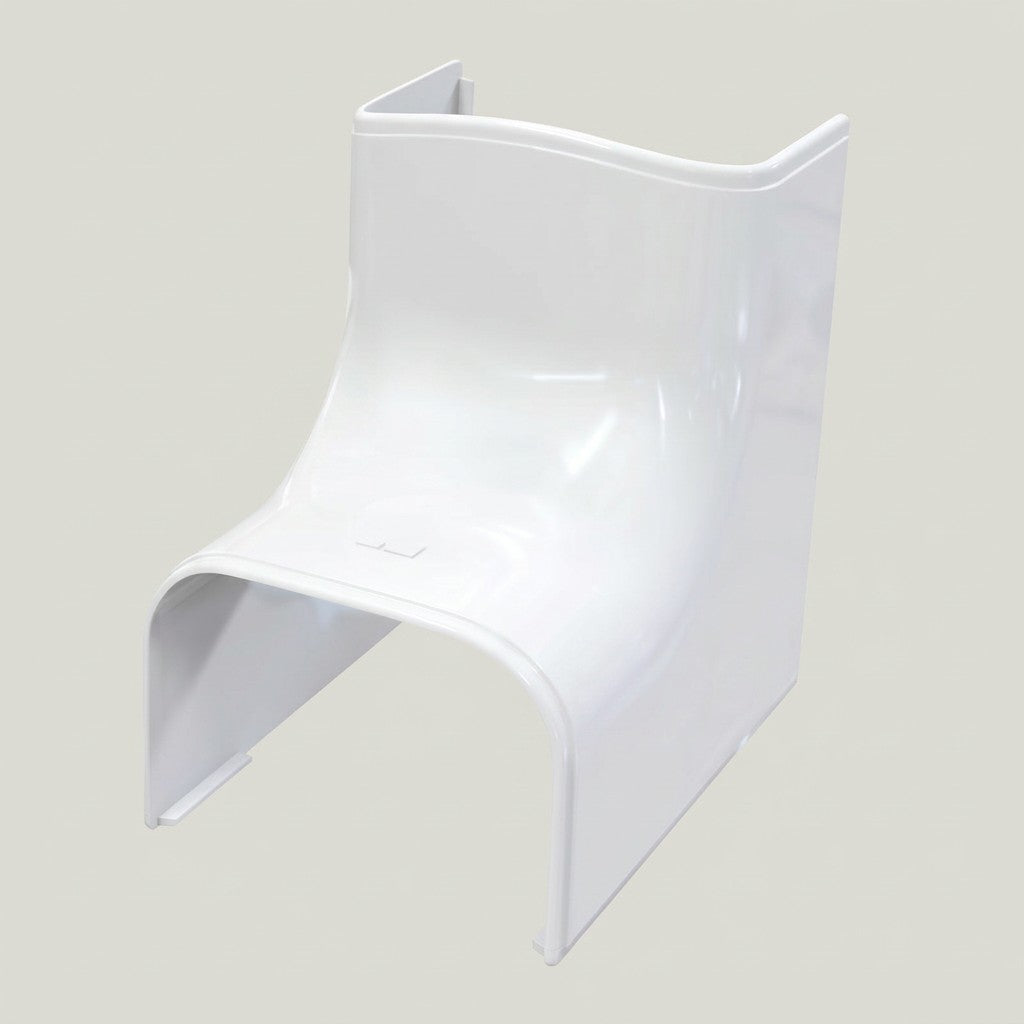

90° internal bend

Internal elbow

Turns the run around an internal corner

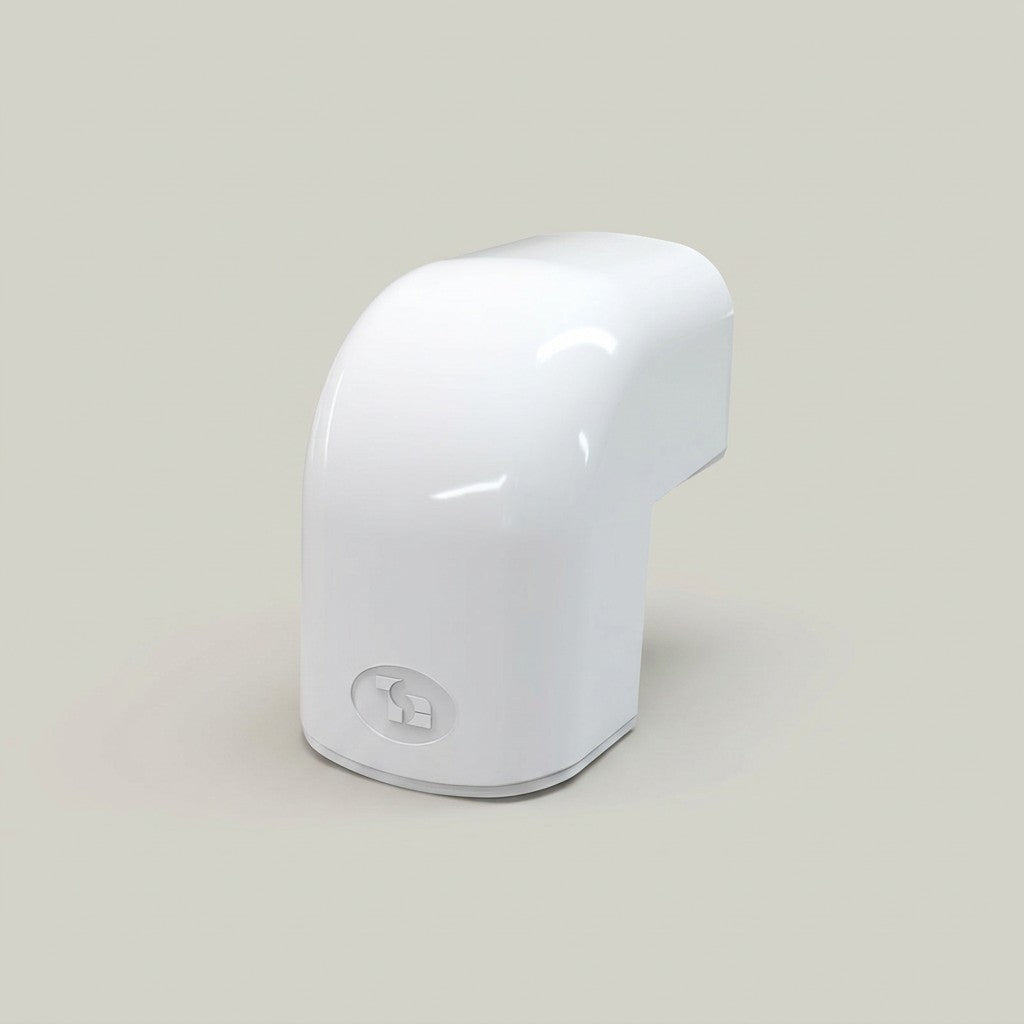

90° external bend

Outside corner elbow

Turns the run around an external corner

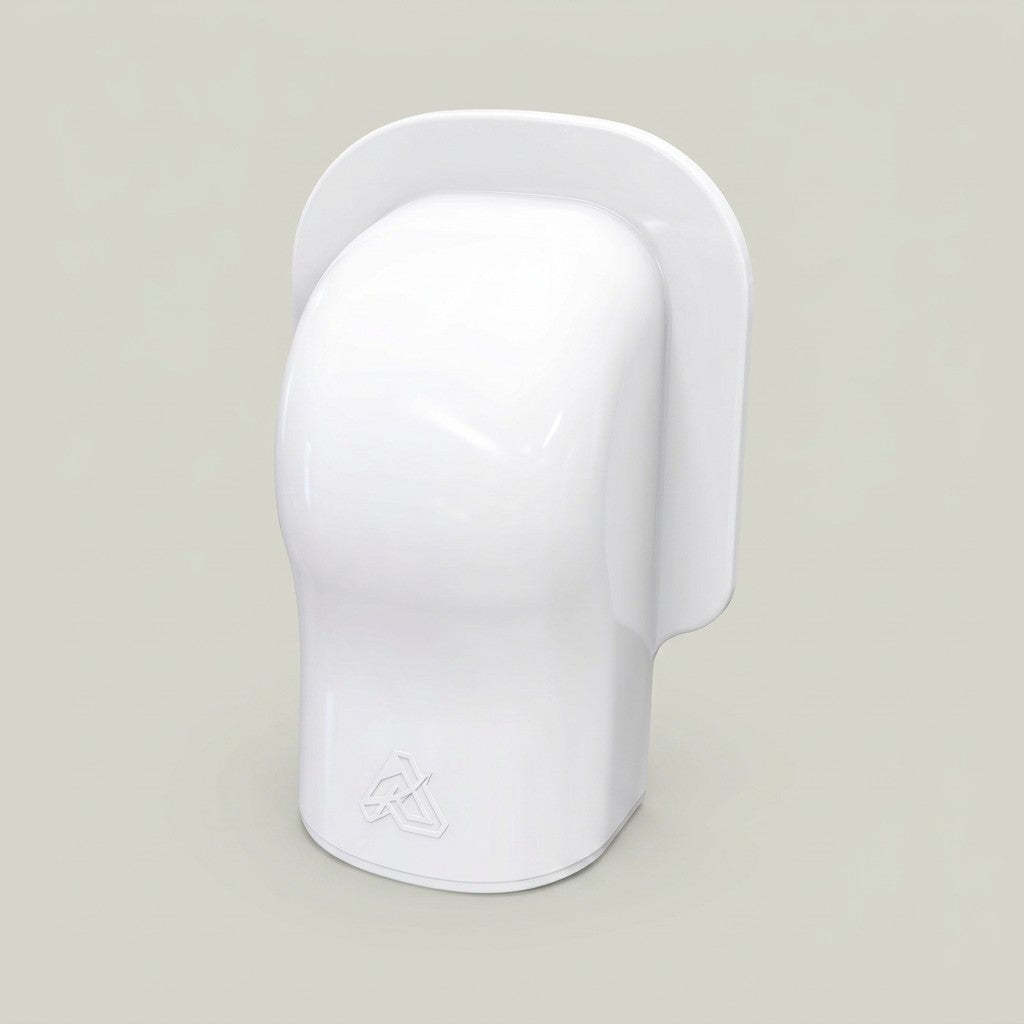

Wall cover

Duct outlet cover

Finishes the trunking where it meets the wall

Frequently asked questions

What fits inside the 140 mm trunking?

It is designed to take insulated flow and return pipework and associated cabling. For air conditioning that typically means an insulated refrigerant pair coil, a condensate drain and control cable, depending on pipe sizes. Measure the combined outer diameters and allow clearance.

Is the trunking UV resistant?

It is made from anti-UVA PVC, which is designed to resist degradation from sunlight on external runs.

Can I paint it?

Yes. The PVC is paintable, so you can match it to the wall colour.

What do the bends and wall cover do?

The 90° internal and external bends turn the run around internal and external corners. The wall cover finishes the trunking where it meets the wall.

How do I fix it to the wall?

The base has pre-punched slots for wall mounting. Use fixings suitable for your wall type, then close the rounded cover over the pipework.

What temperature range does it cover?

The operating temperature range is −20 °C to +60 °C.
