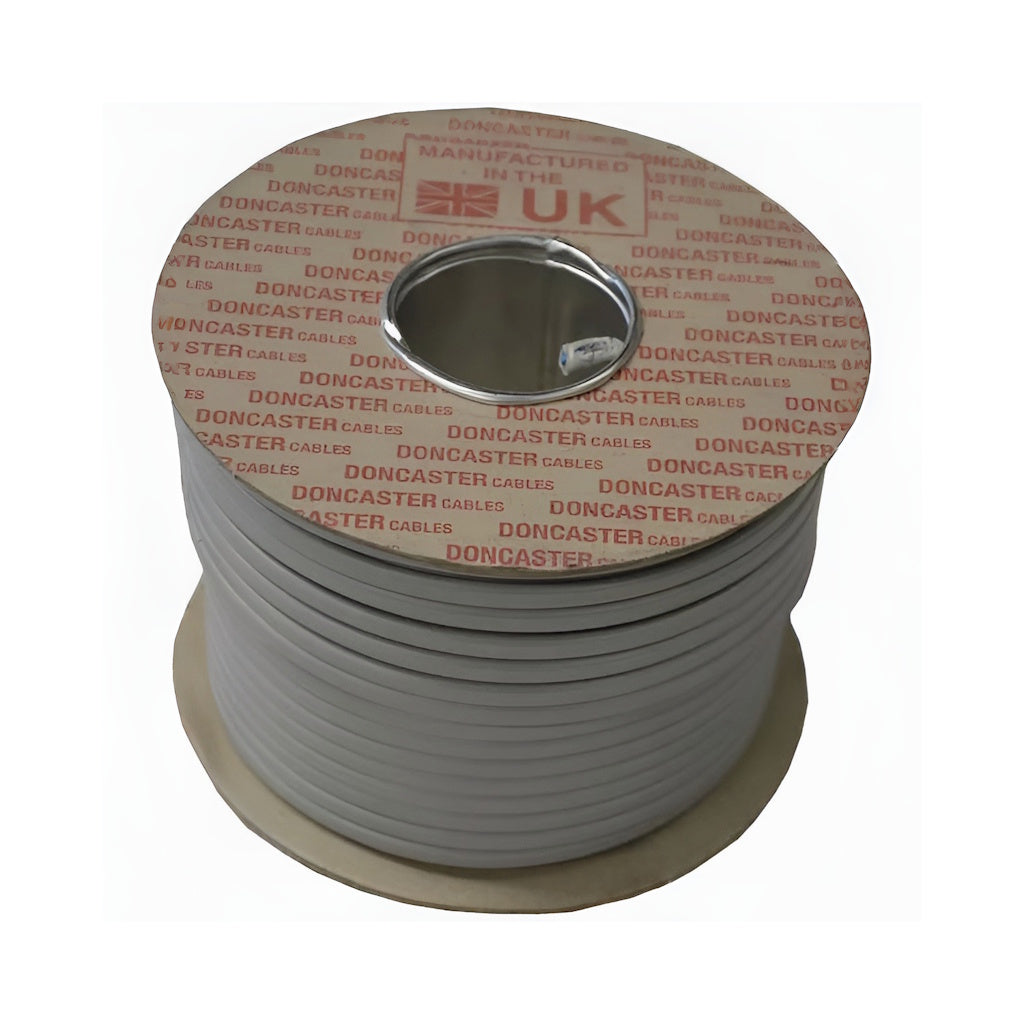

H6242Y Twin & Earth Cable 2.5mm 100m Grey

Description

Doncaster H6242Y is a 2.5 mm² twin and earth cable with a grey PVC sheath, made to BS 6004 and BASEC approved. It is a common fixed wiring cable for the mains supply to an air conditioning unit, such as a spur or final circuit to the isolator and indoor or outdoor unit, and for general domestic and light industrial wiring. Supplied on a 100 m reel.

It has plain annealed copper conductors, PVC insulation and sheath and a bare circuit protective conductor (earth), with brown and blue cores, rated 300/500 V. It can be installed in conduit, trunking or clipped direct in dry or damp premises, and is intended for fixed installation only.

2.5 mm²

Conductor size

2 core + earth

Twin and earth

100 m

Reel length

300/500 V

Voltage rating

BS 6004

Manufacturing standard

BASEC

Approved

⚠ Electrical work: competent person only

Fixed wiring must be designed and installed to BS 7671 by a competent person. In dwellings in England, new circuits are notifiable under Part P of the Building Regulations. Size the cable and its protective device for the unit's rated current, the cable length and the installation method.

⚠ Fixed wiring only, protect from sunlight and ground

Twin and earth is intended for fixed installation in dry or damp premises. It must not be laid underground, and the grey PVC sheath is not designed for direct sunlight. Run it in conduit or trunking, or choose a suitable outdoor-rated cable, for exposed external runs.

ℹ Earth sleeving and unit manual

The bare earth conductor must be sleeved green/yellow at terminations. Check the air conditioning unit's installation manual for the supply cable size, the protective device rating and any isolator requirements.

Key features

✅

BASEC approved

BASEC approved and manufactured to BS 6004:2012 for fixed wiring.

🔌

Plain annealed copper

Plain annealed copper conductors with brown and blue cores and a bare earth conductor.

🧱

PVC insulated and sheathed

PVC insulation and a grey PVC sheath for durable fixed installation.

🏠

Domestic and light industrial

Suited to domestic and light industrial wiring, including supply circuits to air conditioning units.

📦

100 m reel

A 100 m reel covers several installations from a single purchase.

🧰

Flexible installation

Install in conduit, trunking or clipped direct. Minimum bending radius of 6 x ∅.

Technical specification

Product

Brand

Doncaster Cables

Type

H6242Y twin and earth PVC insulated, PVC sheathed cable with circuit protective conductor

Manufacturer part number

H6242Y2.5G100

Conductor size

2.5 mm², 2 cores plus earth

Reel length

100 m

Sheath colour

Grey

Construction

Standard

BS 6004:2012 Table 4

Approval

BASEC approved

Conductor

Plain annealed copper

Insulation

PVC, brown and blue cores

Circuit protective conductor

Bare copper (requires green/yellow sleeving)

Sheath

PVC, grey

Electrical and thermal

Voltage rating

300/500 V

Maximum conductor temperature

70 °C

Minimum bending radius

6 x overall diameter

Current carrying capacity

Refer to Appendix 4 of BS 7671 for your installation method

Frequently asked questions

Is this the right cable for the power supply to an air conditioning unit?

Twin and earth is the usual fixed wiring cable for mains supply circuits. Check the air conditioning unit's manual for the supply cable size, the protective device and the isolator requirements, and have the circuit designed to BS 7671.

Can I use it outside or underground?

It is intended for fixed installation in dry or damp premises and must not be laid underground. The grey PVC sheath is not designed for direct sunlight, so use conduit or trunking, or an outdoor-rated cable, for exposed external runs.

Does the earth need sleeving?

Yes. The bare circuit protective conductor must be sleeved green/yellow at every termination.

What size cable do I need?

It depends on the unit's current, the protective device, the cable length and the installation method. Follow the manufacturer's guidance and BS 7671 current-carrying capacity and voltage-drop requirements.

Is it the same as Earthsure?

No. Earthsure is Doncaster's twin and earth with a pre-identified green/yellow earth. The H6242Y has a bare earth conductor that needs sleeving.
