The ENGO ETRV-M30+RA is a wireless smart electronic TRV head for radiators, supplied with a Danfoss RA adapter for maximum compatibility. Battery-powered and communicating via ZigBee 3.0 and 868 MHz, it replaces any standard manual TRV head and brings precise, app-controlled room-by-room temperature management to your existing radiators. Works in a set with the ENGO E25 thermostat — up to 6 heads per thermostat, per room. 5-year warranty.
ZigBee 3.0 + 868 MHz
M30×1.5 Thread

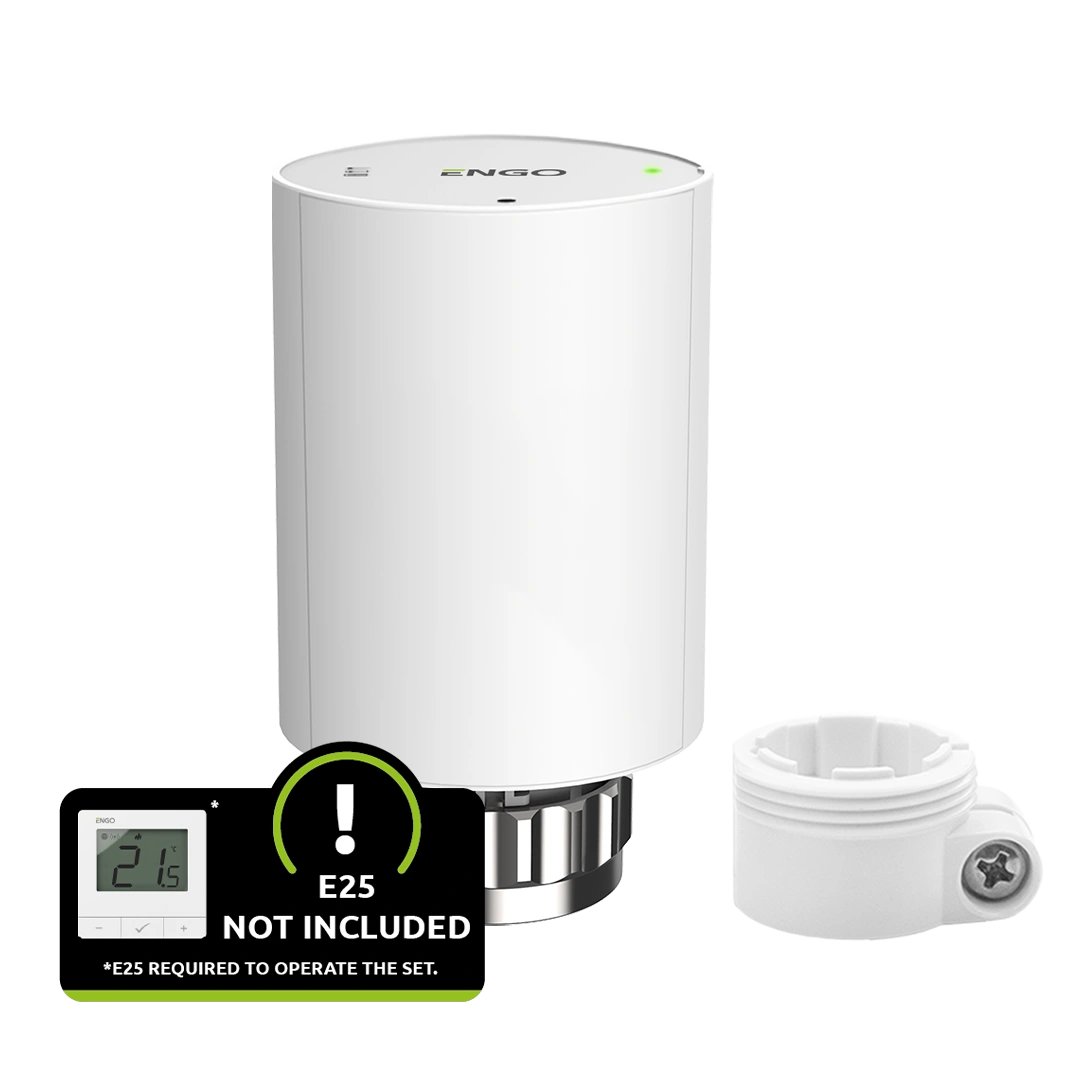

Danfoss RA Adapter Included
2×AA Battery Powered
Open Window Detection
5-Year Warranty
Why Choose the ENGO ETRV-M30+RA?
🔧
RA Adapter IncludedThe included Danfoss RA adapter means this head fits the most common UK TRV valve bodies — M30 standard and Danfoss RA valves in one pack.
📡
ZigBee 3.0 + 868 MHzDual wireless protocols — pairs with ENGO E25 controller over 868 MHz and integrates into the ENGO Smart ZigBee network for app control.
🌡️
Precise Room ControlPaired with the E25 thermostat (which measures true room temperature away from the radiator), it delivers precise, accurate zone heating.
🪟
Open Window DetectionAutomatically closes the radiator valve when a 1.5°C drop is detected (open window), then restores normal control after 15 minutes.
❄️
Frost ProtectionWhen the head is closed, frost protection is automatically active — no manual intervention needed to protect pipes in cold weather.
🔇
Very Quiet OperationNear-silent motorised valve actuation — ideal for bedrooms and living rooms where noise would be disruptive.
🔋
2×AA BatteriesLong battery life on standard AA cells — easy to replace without any tools.
👥
Up to 6 Heads Per RoomPair up to 6 ETRV heads with a single E25 thermostat — perfect for rooms with multiple radiators.
📱
App Control via GatewayConnect to the EGATE-PRO gateway for full app scheduling, remote control, and Alexa/Google voice commands.
🔄
Auto-CalibrationThe head automatically calibrates to the valve insert on installation — no manual adjustment needed.
⚡
Quick Plug & PlayScrew on, insert batteries, and the head pairs with your E25 controller in under a minute.
🛡️
5-Year WarrantyFull 5-year ENGO manufacturer's warranty included.
Suitable For
Standard M30×1.5 TRV Valves
Danfoss RA Valves
UK Radiator Systems
Multi-Radiator Rooms
Smart Heating Upgrades
Retrofit TRV Replacement
Rental Properties
New Builds
Holiday Homes
Room-by-Room Control
ENGO Smart System
About the ETRV-M30+RA
The ETRV-M30+RA is the wireless electronic TRV head that transforms standard manual radiator valves into smart, app-controlled heating zones. Rather than measuring temperature at the radiator itself, the ETRV works in a system with the ENGO E25 room thermostat, which measures true air temperature in the room from its wall-mounted position. The E25 thermostat sends commands to the ETRV heads to modulate the valve opening, achieving the setpoint temperature with a precision that a traditional manual TRV cannot match.

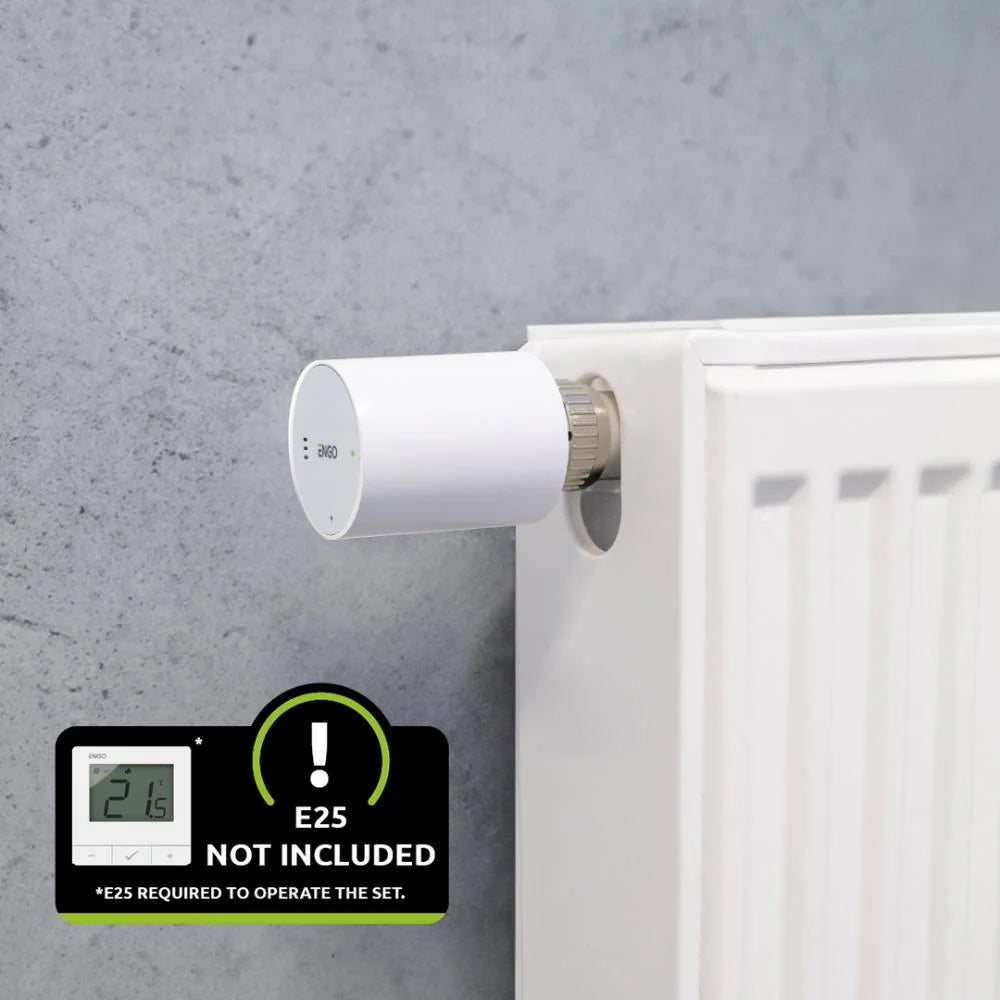

⚠️ E25 Thermostat Required
The ETRV-M30+RA does NOT operate as a standalone device. It must be paired with an ENGO E25 room thermostat (sold separately) to function. One E25 can control up to 6 ETRV heads within the same room. The E25 may be wall-mounted (230V) or battery-powered, and can be used standalone (offline) or connected to the EGATE-PRO gateway for full app and voice control.
The head ships with both an M30×1.5 direct-fit adaptor and a Danfoss RA adaptor, making it suitable for the two most common UK TRV valve configurations without any additional accessories. Installation is straightforward: remove the old manual TRV head, screw on the ETRV, insert batteries, and follow the E25 pairing procedure. The ETRV then automatically calibrates to the valve insert pin height.
🪟 Open Window Detection — How It Works
The ETRV head's thermistor continuously monitors the local temperature at the radiator. If a sudden drop of 1.5°C is detected — typically caused by a window being opened — the head automatically closes the valve to avoid wasteful heating. After 15 minutes, the system assumes the window is closed and returns to normal temperature control. No manual reset required.
Key Features
- M30×1.5 thread — fits most UK and EU radiator TRV valve bodies
- Danfoss RA adapter included — fits RA-type valve inserts
- ZigBee 3.0 and 868 MHz dual wireless communication
- Works with ENGO E25 thermostat controller (required — sold separately)
- Up to 6 ETRV heads per E25 thermostat in a single room
- Battery powered: 2×AA (not included)
- Auto-calibration on first installation
- Open window detection — closes valve on 1.5°C drop, reopens after 15 minutes
- Frost protection — activates automatically when valve is closed
- Very quiet motorised operation
- IP30 protection class
- App control and scheduling via ENGO Smart (requires EGATE-PRO gateway)
- Voice control via Alexa and Google Assistant (with gateway)
- Two-way communication with E25 every few minutes
- Dimensions: Φ50 × 81 mm
- 5-year manufacturer's warranty
Technical Specifications
| Specification |
Value |
| Model |
ETRV-M30+RA |
| Thread Size |
M30 × 1.5 mm |
| Included Adapter |
Danfoss RA adapter |
| Power Supply |
2×AA 1.5V batteries (not included) |
| Communication |
ZigBee 3.0 (2.4 GHz) + 868 MHz RF |
| Compatible Controller |
ENGO E25 (required) |
| Max Heads per E25 |
6 (per room) |
| Open Window Detection |
Yes — 1.5°C drop threshold, 15-min restore |
| Frost Protection |
Yes — automatic when valve closed |
| IP Class |
IP30 |
| Dimensions |
Φ50 × 81 mm |
| Colour |
White |
| Compliance |
2014/53/EU, 2011/65/EU |
| Warranty |
5 years |
Installation Notes
- Before fitting, check the valve type — use the M30 direct fit for standard M30×1.5 valves; use the included Danfoss RA adapter for RA-type valve inserts
- Measure the pin height of the existing valve insert — it should be between 10–15 mm in the open position for correct operation
- Remove the old manual TRV head, screw on the ETRV by hand — no tools needed
- Insert 2×AA batteries and reattach the cover — the LED will indicate the software version on startup
- Wait for the auto-calibration to complete (LED turns steady green) before pairing with E25
- Pair the ETRV with the E25 thermostat following the E25 pairing procedure (internet gateway not required for pairing)
- For app control, add the EGATE-PRO gateway to the ENGO Smart system and link the E25 to it
- Note: ETRV heads cannot be operated via a wiring centre or relay module directly — they must be controlled by an E25 thermostat
Frequently Asked Questions
Do I need the E25 thermostat to use this?
Yes — the ETRV-M30+RA must be paired with an ENGO E25 room thermostat to function. It cannot operate standalone or with other thermostat brands. The E25 is sold separately in both 230V wired and battery-powered versions.
Can I use this with my Danfoss RA valves?
Yes — the Danfoss RA adapter is included in the ETRV-M30+RA pack. Screw the adapter onto the valve insert, then attach the ETRV head to the adapter using the M30 thread.
Can I fit this myself?
Yes — fitting a TRV head is a straightforward DIY task that does not require Gas Safe registration or any specialist tools. Simply remove the old TRV head and screw on the new one. No soldering or pipe work is involved.
Do I need the EGATE-PRO gateway?
No — the ETRV + E25 combination works offline, maintaining the E25's programmed schedule and setpoints without the internet or a gateway. The EGATE-PRO is only needed if you want to control the system via the ENGO Smart app, or use voice commands via Alexa/Google Assistant.
What if I have more than one radiator in a room?
Use one ETRV head per radiator and pair all heads (up to 6) with a single E25 thermostat. The E25 measures the room air temperature and coordinates all heads in the room simultaneously.
What batteries does this use?
2×AA 1.5V alkaline batteries (not included). Rechargeable batteries are not recommended as the lower voltage can cause unreliable operation.
What's in the Box
- 1× ETRV-M30 wireless TRV head (white)
- 1× Danfoss RA valve adapter
- Wall fixing/mounting accessories
- Quick installation guide
Note: 2×AA batteries not included. ENGO E25 thermostat sold separately. EGATE-PRO gateway required for app and voice control.
ETRV heads must be used with ENGO E25 thermostat. Standalone operation not supported. Also available: ETRV-M28 for M28×1.5 valves.
