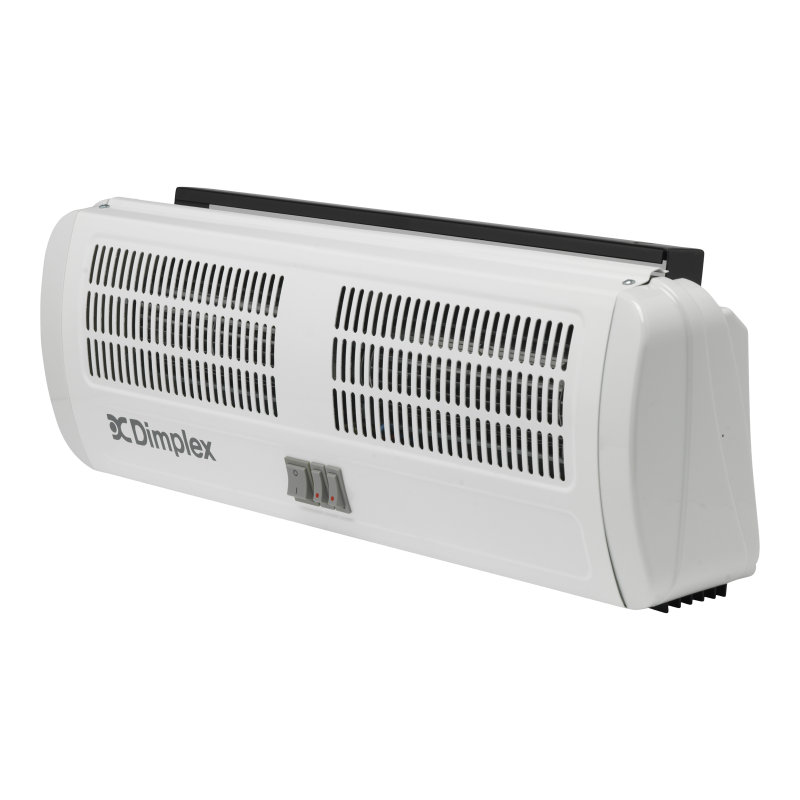

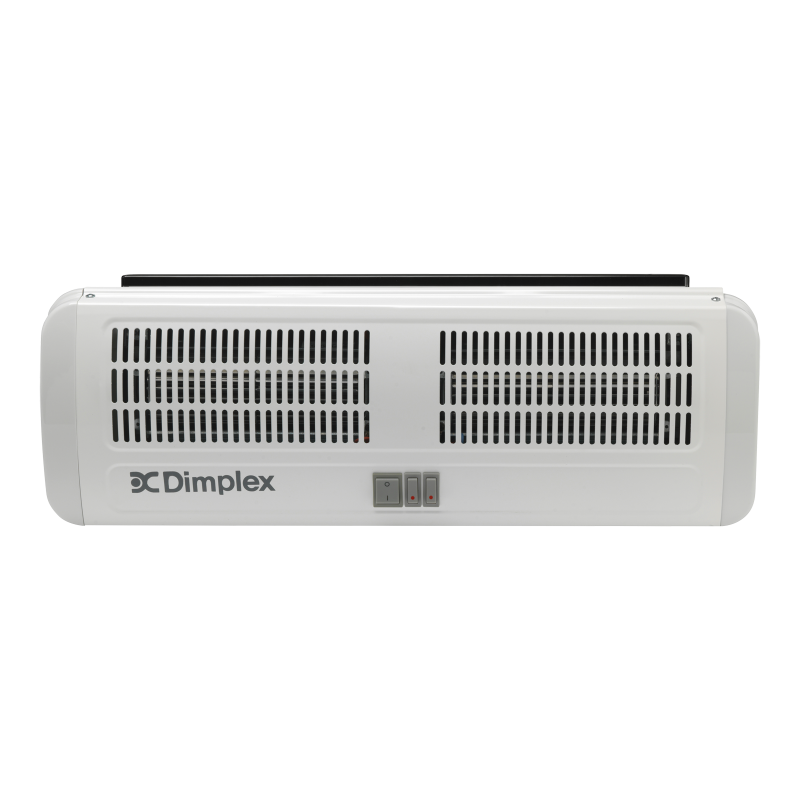

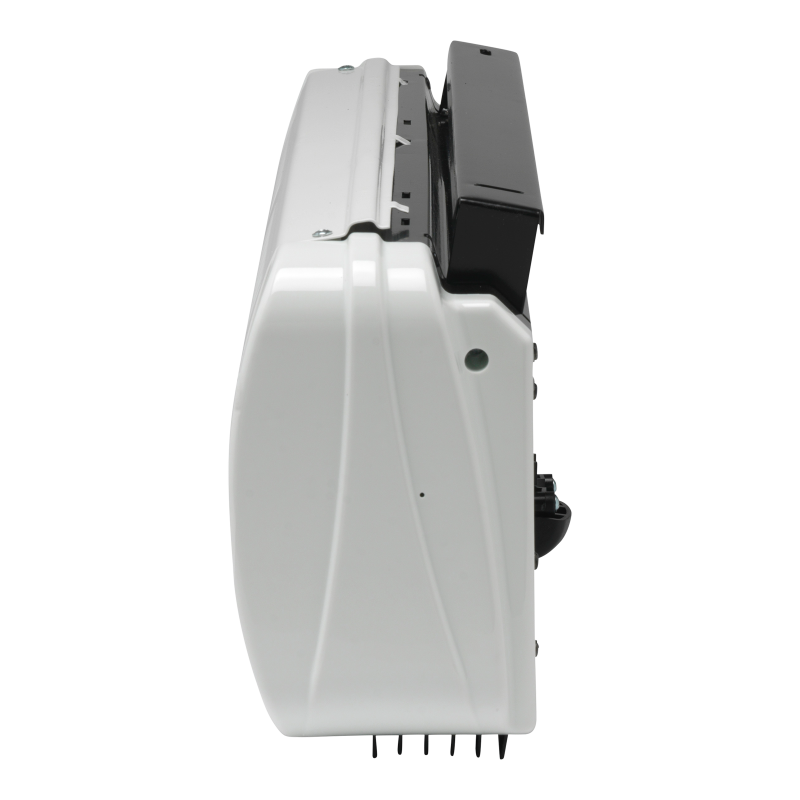

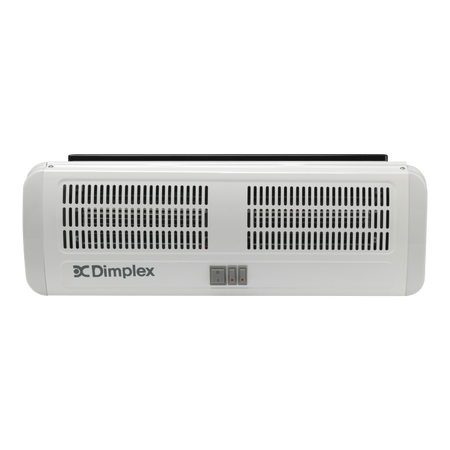

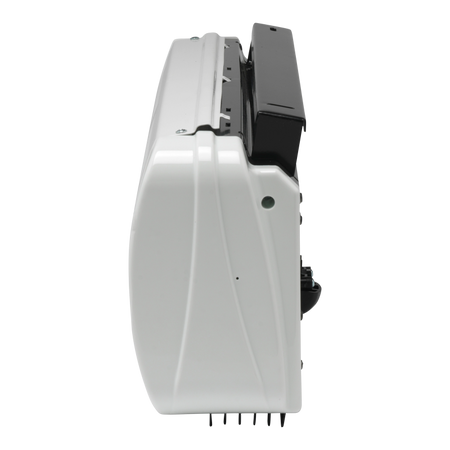

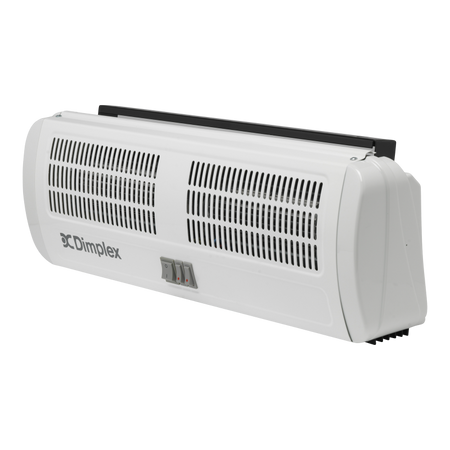

Dimplex Warm Air Curtain AC3N 3kW Over Door Heater

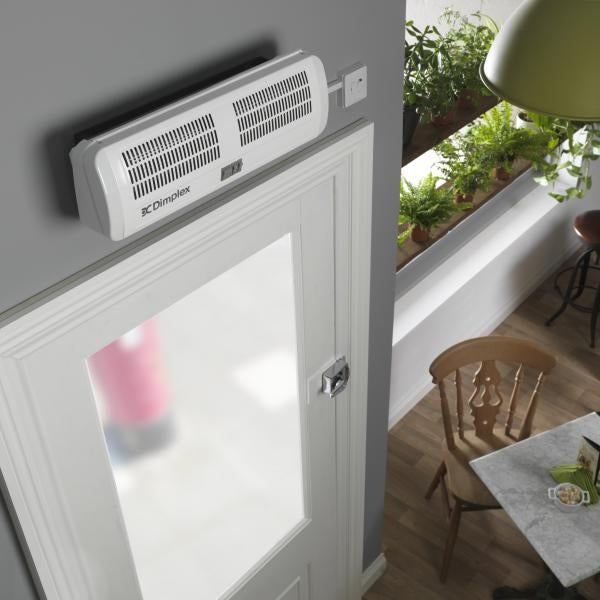

The Dimplex AC3N Warm Air Curtain is a powerful, efficient over-door heater designed to provide a warm welcome above entrances to shops, offices, and almost any small doorway. This model features new curved styling for modern interiors and delivers multi-directional, effective heating to encourage doors to remain open longer, promoting increased business while maintaining comfort.
The heater offers three settings: full heat, half heat, and fan-only mode, allowing you to adjust output based on heating demand and optimize energy use. It also features adjustable airflow direction for precise heat placement. Wall or ceiling mounting is straightforward with the included bracket, making it ideal for quick retrofitting into various commercial settings.
Key Features of Dimplex AC3N Warm Air Curtain
- 3kW maximum heat output with selectable heat levels (full, half, fan only)
- Adjustable airflow direction to suit doorway configuration
- Modern curved design with white powder coat finish for durability
- Designed for installation above single doorways (recommended for doorway widths up to 0.6 meters)
- Wall or ceiling mountable with included bracket
- Safety features include supply interrupt cut-outs for overheating protection
- IP21 rated for protection against dripping water, suitable for indoor use
- Recommended mounting height between 1.8 and 2.3 meters for optimal performance
- Sound power level: 50.5 dB(A)
- Power supply: 230V, 50Hz
Note: The Dimplex AC3N is intended for localized doorway heating and should not be used as a primary indoor space heater.
Technical Specifications - Dimplex Warm Air Curtain AC3N
| Specification | Details |
|---|---|
| Model | AC3N |
| Heat Output | 3 kW |
| Heat Settings | Full Heat / Half Heat / Fan Only |
| Dimensions (H x W x D) | 200 mm x 605 mm x 135 mm |
| Weight | 5.0 kg |
| IP Rating | IP21 |
| Voltage | 230V, 50Hz |
| Sound Power Level | 50.5 dB(A) |
| Air Volume | 212 m³/h |
| Max Air Speed | 5.0 m/s |
| Mounting | Wall or Ceiling |
| Recommended Mounting Height | 1.8 to 2.3 meters |
| Controls | On-board manual controls |
| Finish | White powder coat |
| Warranty | 1 Year |
| EAN | 5011139018250 |
- Type Fan Heaters
- Vendor Dimplex
- SKU AC3N
