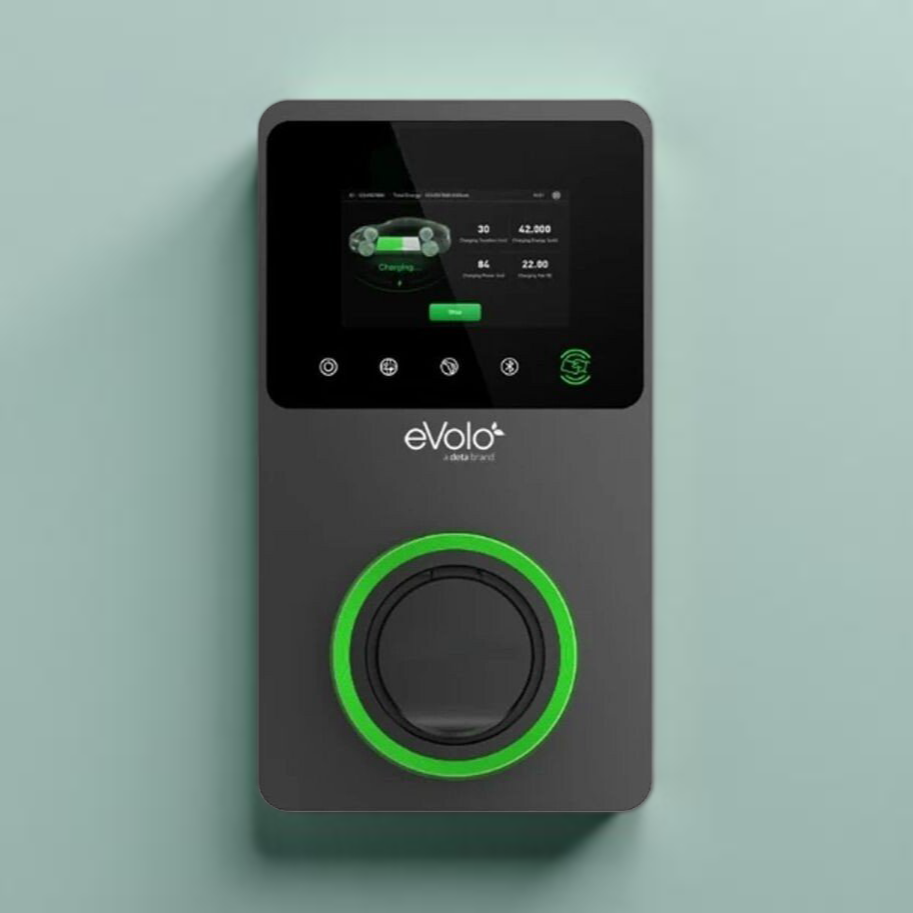

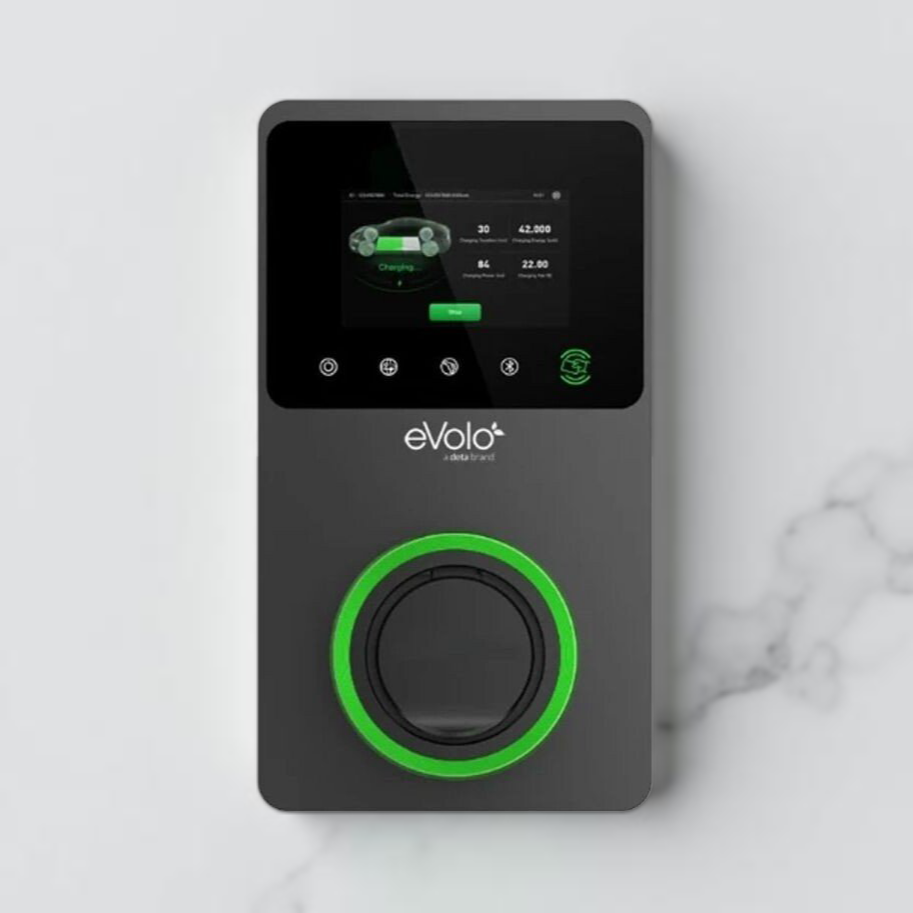

Deta eVolo eVoomXT 7.4kW Single Phase / 22kW Three Phase Communal EV Charge Point

Deta eVolo eVoomXT 7.4kW Single Phase / 22kW Three Phase Communal EV Charge Point (EVC7005)

The Deta eVolo eVoomXT is a versatile, untethered communal EV charge point designed for residential blocks, workplaces, and retail car parks. Supporting both 7.4kW single-phase and 22kW three-phase charging, it features a robust set of smart controls, advanced safety, and flexible connectivity options for efficient multi-user environments.

Key Features

• Selectable single-phase (7.4kW, 32A) or three-phase (up to 22kW, 32A) charging
• Untethered Type 2 socket for flexible cable use
• Designed for communal residential, workplace, and retail park car parks
• Built-in MID-approved energy meter for accurate billing
• Smartphone app and RFID card access for user management, scheduling, and monitoring
• 5" LCD touchscreen and multi-colour LED status indicators for clear, user-friendly operation
• Ethernet, WiFi, and 4G connectivity for remote management and real-time data
• RS485 communication for advanced load management and phase balancing
• Bluetooth commissioning for easy setup even without internet access
• Supports cloud-based management for Charge Point Operators (CPOs)
• Integrated 30mA AC & 6mA DC earth leakage protection
• Built-in open PEN fault detection and isolation—no earth rod required
• Surge protection and Isolation Class II for enhanced safety
• Easy wall or post mounting
• Complies with IEC 61851-1:2019, IEC 62955, EMC, ROHS, RED, and UK Smart Charge Point Regulations 2021
• Black fascia and robust construction
• Weight: 4.2 kg

Technical Specifications

• Charging Power: 7.4kW (single phase) / 22kW (three phase)
• Input Voltage: 230V AC (single phase) / 400V AC (three phase)
• Max Current: 32A
• Connector Type: Type 2 socket (untethered)
• Display: 5" LCD touchscreen + multi-colour LED indicators
• Energy Meter: MID approved, integrated
• Connectivity: Ethernet, WiFi, 4G, RS485, Bluetooth (for commissioning)
• Access Control: RFID cards and app
• Protection: 30mA AC & 6mA DC RCD, open PEN, surge, Class II isolation
• Mounting: Wall or post
• Weight: 4.2 kg

Applications

• Communal residential EV charging (apartments, shared parking)
• Workplace and retail car park charging
• Public and commercial EV charging with accurate billing
• Multi-user environments requiring smart access and load management
