DAB EVOSTA 3 - 60/130 Circulation Pump
Couldn't load pickup availability
Payment details
DAB EVOSTA 3 - 60/130 Circulation Pump

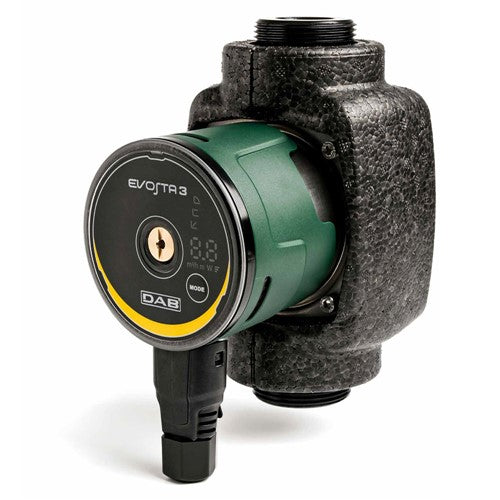

The DAB EVOSTA 3 - 60/130 Circulation Pump is a high-efficiency, electronic wet rotor circulator designed for water circulation in all types of domestic heating and cooling systems. Featuring a permanent magnet synchronous motor, advanced frequency converter, and a user-friendly interface with a digital display, it provides optimal performance, low energy consumption (EEI ≤ 0.19), and easy system monitoring. The EVOSTA 3 is an ideal replacement for old three-speed circulators, offering a compact design and innovative features like automatic degassing and direct access to the motor shaft for easy maintenance.
Key Features
- Permanent magnet synchronous motor with frequency converter
- Energy Efficiency Index (EEI) ≤ 0.19
- Digital display showing flow rate, head, and power consumption
- Automatic degassing function
- Single button for sequential setting and direct access to motor shaft
- IPX5 protection class, insulation class F
- 5-year manufacturer warranty
Technical Specifications
| MPN | 60193271 |
|---|---|
| Max Flow Rate | 3.3 m³/h (3,300 L/h) |
| Max Head | 6.9 metres |
| Operating Range | 0.4 – 3.3 m³/h |
| Pumped Liquid Temperature | -10°C to +110°C |
| Working Pressure | 10 bar (1000 kPa) |
| Protection Class | IPX5 |
| Insulation Class | F |
| Installation | Horizontal motor axis |
| Power Supply | Single-phase 1x230V, 50/60Hz |
| Connection Size | 1½" BSP (47 mm thread) |
| Port-to-Port Length | 130 mm |
| Body Material | Cast iron with cataphoresis coating |
| Impeller Material | Technopolymer |
| Max Glycol Content | 30% |
| Display | Instantaneous flow, head, and power |
| Warranty | 5 years |
| EAN | Not published |
- Type Recirculating pumps
- Vendor DAB
- SKU K27991
