25mm ThermRite™ Routed Dry Screed Overlay Board with Turns

25mm ThermRite Routed Dry Screed Overlay Board with Turns

Description

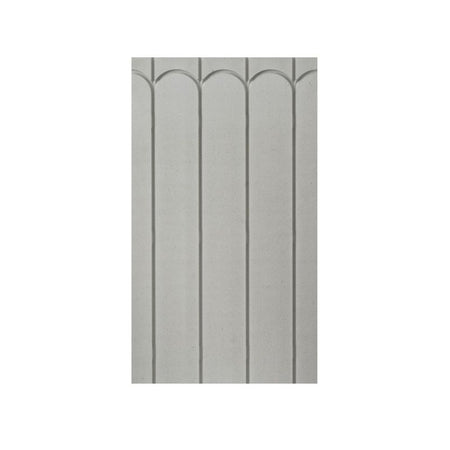

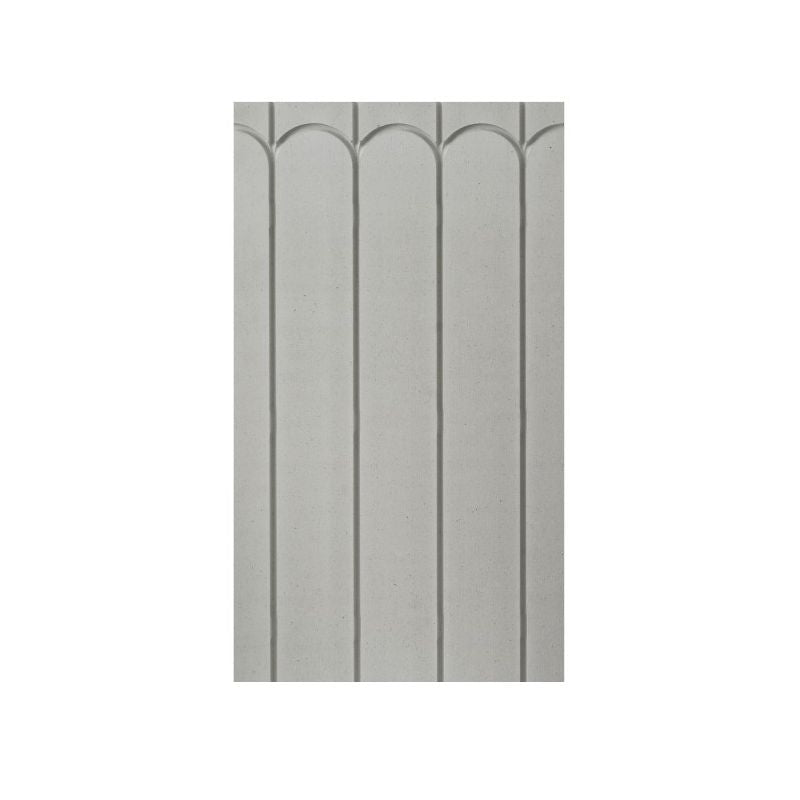

The 25mm ThermRite Routed Dry Screed Overlay Board with Turns is a premium quality, high strength cement board designed for use over underfloor heating systems. This robust 25mm thick board incorporates both straight runs and radius turns ("lightbulb" shaped) on the panel, eliminating the need for separate turning boards.

It features 3 grooves at 167mm centres designed to securely hold 16mm underfloor heating pipe. The low thermal resistance and high thermal conductivity optimize heat transfer efficiency, allowing the board to be tiled directly without the need for additional screed layers.

Constructed with a straight/flat edge profile, these panels require joint adhesive (sold separately) for installation, providing quick, easy fitting and a durable surface with high impact resistance. The board does not expand or contract like chipboard when exposed to moisture, ensuring dimensional stability and long-lasting performance.

What’s Included

• 25mm thick routed dry screed overlay boards with integrated turns
• Board size: 1000mm x 500mm
• Board coverage: 0.5 m² per board
• 3 grooves at 167mm centres for fitting 16mm pipe
• Straight/flat edge profile
• Installation instructions
• Joint adhesive (sold separately) recommended for all joints

Key Features

• High strength cement board ideal for tiling directly on top
• Integrated radius turns on the board remove the need for separate turning panels
• Low thermal resistance (0.045 m²·K/W) and high thermal conductivity (0.40 W/m·K) for efficient heat transfer
• 3 grooves spaced at 167mm centres for secure 16mm pipe placement
• 25mm thick for low floor build-up and structural durability
• Does not swell or contract like chipboard when wet
• High impact resistance to withstand site traffic and screed loads
• Straight/flat edge requiring the use of joint adhesive to seal edges
• Quick and easy installation with interlocking panel system
• Accepts ceramic tiles directly for seamless flooring

Benefits

• Speeds installation by combining routing and turns in one panel
• Improves heating efficiency with rapid heat transfer properties
• Reduces floor height increase compared to traditional screed build-ups
• Provides a durable and dimensionally stable surface for long life
• Eliminates the need for additional turning elements, simplifying stock and installation
• Offers a professional finish ready for direct tile application

Technical Specifications

The 25mm ThermRite Routed Dry Screed Overlay Board with Turns is a professional-grade solution for efficient underfloor heating installations, combining ease of use, thermal performance, durability, and the convenience of integrated turns for rapid and reliable floor heating setups.
