15m² 4kW Monobloc Heatpump and Multi-Zone Water Underfloor Heating Combined Pack

15m² 4kW Monobloc Heatpump and Multi-Zone Water Underfloor Heating Combined Pack

Description:

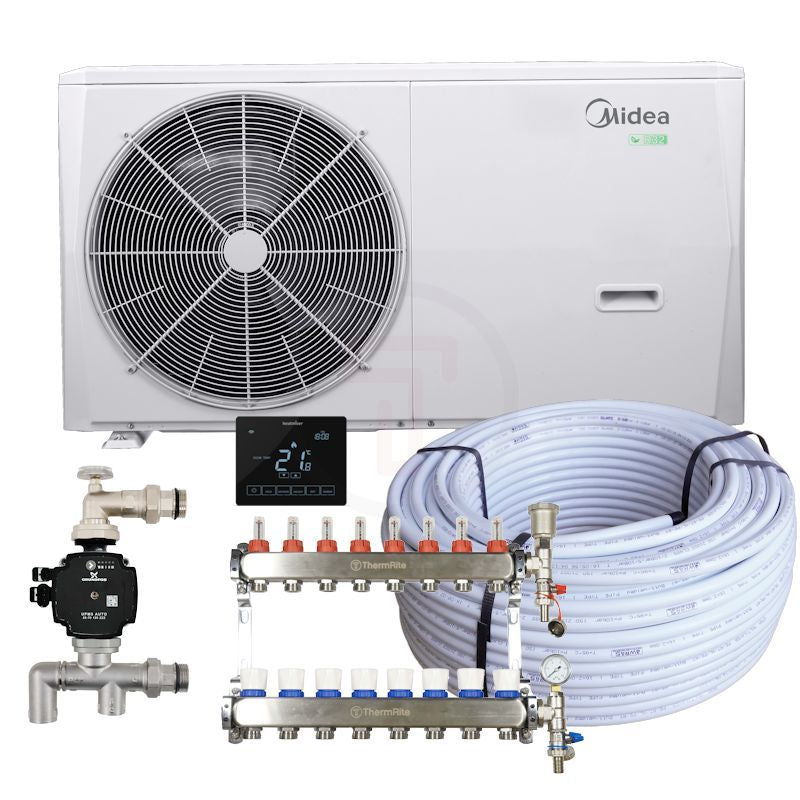

The ThermRite & Midea 15.0m² 4kW Monobloc Heatpump and Multi-Zone Water Underfloor Heating Combined Pack is a complete, energy-efficient solution for low-energy homes, new builds, or well-insulated renovations. This package includes a high-efficiency Midea R32 monobloc heat pump, professional multi-zone water underfloor heating system and all accessories required for a seamless installation. The system provides whisper-quiet heating and cooling, WiFi control, and consistently comfortable indoor temperatures all year round.

• Coverage: 15.0m² (pipe spacing: 150mm centre-to-centre)
• Application: New build properties or renovations with modern insulation meeting UK standards
• Design: Custom CAD pipe layout provided for your project
• Complete Kit: All main components and installation hardware included

Technical Information

• Monobloc Heat Pump:

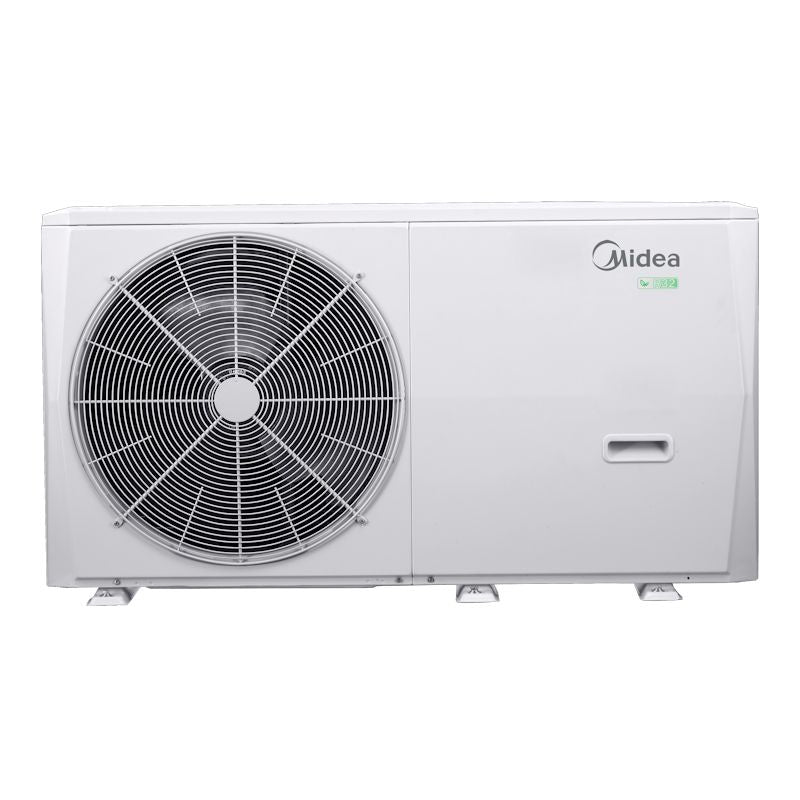

  • Midea R32 Monobloc, 4.0kW output
  • ErP rating: A+++ at 35°C flow temperature
  • Maximum sound power: ≤60dB(A) (silent chamber: 35dB(A) at 3m)
  • Maximum outlet water temperature: 65°C
  • Continuous hot water up to 60°C, operational down to -20°C outside
  • Efficient heating down to -7°C ambient
  • Fully variable DC inverter compressor, fan and pump
  • WiFi/App controls and USB upgrade-ready
• Hydraulic Components:
  • 50 litre insulated buffer tank (wall or floor mounted)
  • Grundfos circulation pump 25/7, including cable, valves, washers
  • Flow meter/setter, integrated flush and fill points, all necessary fittings
  • Additional installation parts: hoses, pump feet, glycol, valves

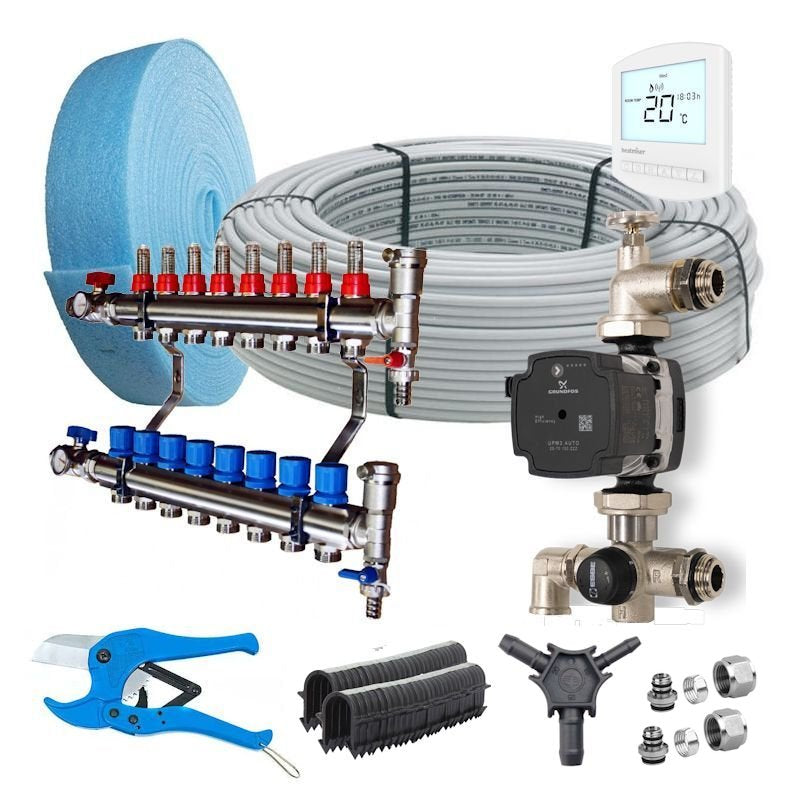

• Underfloor Heating System:
  • A-rated Grundfos 3-speed low-energy circulation pump
  • 2-port Dualmix manifold, comprising:
    • Manifold isolating valves, temperature gauges
    • Lockshields with flow meters per port
    • Drain/fill valves and blank caps
    • Automatic air vents
    • Metal fixing brackets
  • 16mm European standard 5-layer Pert-Al-Pert pipe – 100m
  • Pipe fixing clips x 100
  • Perimeter edge insulation roll x 50m
  • Pipe reaming tool and pipe cutter supplied
  • Pipe connector cores x 4
• Support & Documentation:
  • Full CAD pipe layout plan
  • Comprehensive installation manual

This system is tailored for highly insulated properties built to UK new build standards. Contact us for custom sizing or advice if your project has different requirements.
