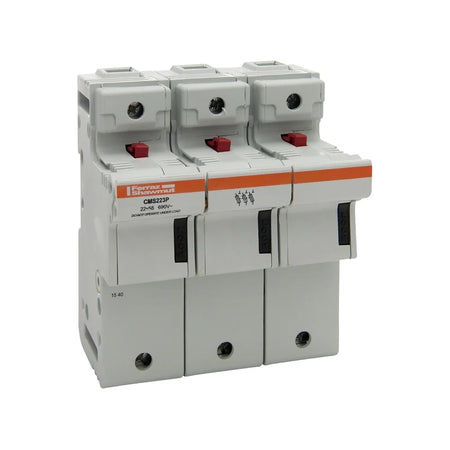

Mersen 125A CMS223P 690V 3P Fuse Holder
Regular price
£49.00
Inc. VAT
£40.83 Exc. VAT
£40.83 Exc. VAT
FREE Express Delivery (1-3 days) in UK Mainland on most orders
Excluding: Solar Panels (£59 delivery), Batteries (£49 delivery), Small Items (£4.95 delivery)
Contact Us to check for Next Working Day Delivery or Same-day Delivery options
Contact Us for Click & Collect options
Custom quote available on request
*See checkout or shipping policy for full details
Payment options

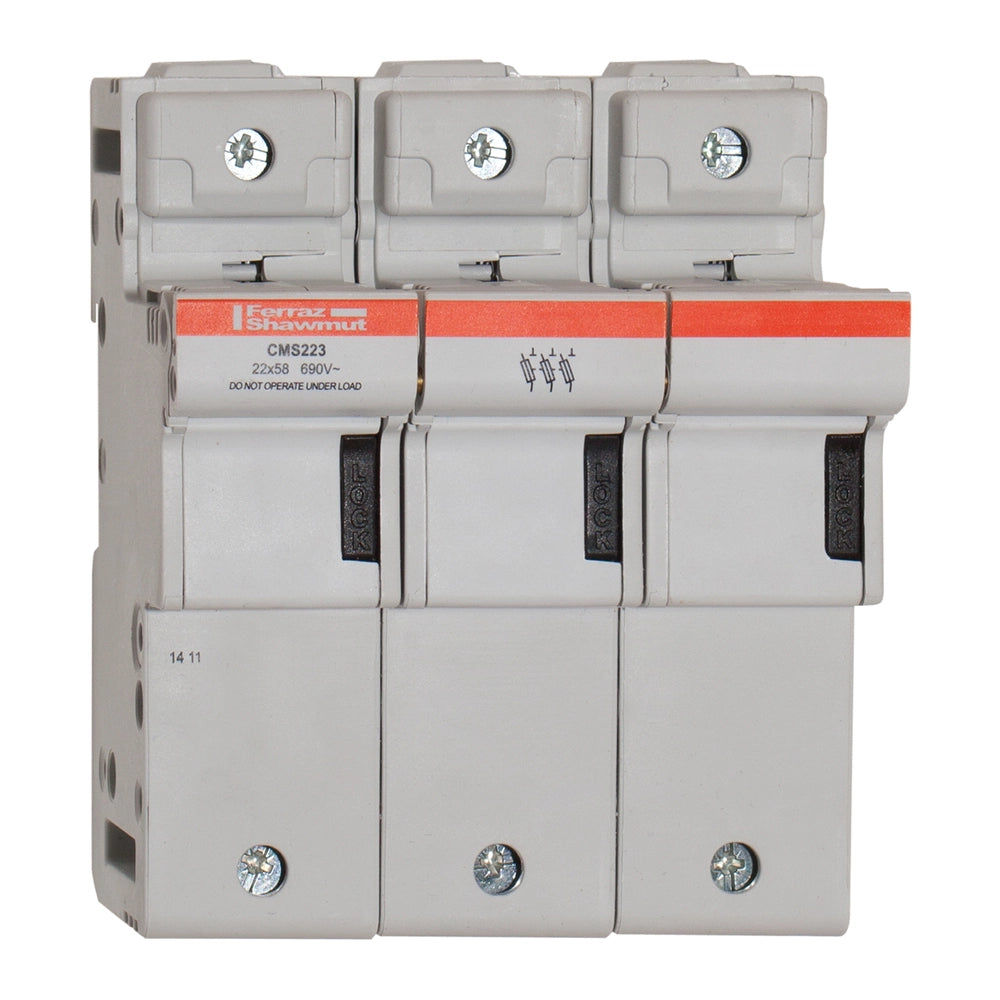

The Mersen 125A CMS223P 690V 3P Fuse Holder is a compact, modular three-pole fuse holder designed for 22 × 58 mm cylindrical fuses, providing finger-safe IP20 protection and DIN rail mounting for low-voltage electrical systems up to 690V.
Product Description
The Mersen Modulostar CMS223 is a finger-safe modular fuse holder compliant with IEC 60269-2 and IEC 60947-3, offering IP20 protection and optional visual blown fuse indicator. It supports 125A at 690V AC/DC and is suitable for gG and aM fuse links in size 22x58. The lockable, multi-pole assembly-capable design ensures safe fuse changing with a flick of a finger, making it ideal for distribution boards, motor control centers, and renewable energy systems.
Key Features
- Finger-safe IP20: Protects against accidental contact during fuse changes.
- Modular design: Lockable and multi-pole assembly kit available for flexibility.
- DIN rail mounting: Easy installation in panels or enclosures.
- Optional indicator: Visual blown fuse detection.
- High breaking capacity: Compatible with fuses up to 100 kA.
- Fuse size 22x58mm: Standard cylindrical fuse compatibility.
- 690V rating: Suitable for low-voltage AC/DC applications.
- IEC compliant: Meets IEC 60269-2 and IEC 60947-3 standards.
Technical Specifications
- Model: CMS223 – Three Pole Modular Fuse Holder.
- Rated current: 125 A.
- Rated voltage: 690 V AC/DC.
- Number of poles: 3.
- Fuse size: 22x58 mm (cylindrical).
- Rated impulse withstand voltage: 8 kV.
- Protection rating: IP20.
- Standards: IEC 60269-2, IEC 60947-3.
Dimensions & Weights
- Width: 105 mm.
- Depth: 76.5 mm.
- Height: 127.5 mm.
- Weight: ~0.6 kg.
System & Application Notes
- Ideal for low-voltage distribution, motor protection, and PV systems requiring fuse isolation.
- Compatible with gG and aM fuse links in 22x58 size.
- Suitable for DIN rail mounting in panels or enclosures.
- Installation by qualified electricians; ensure correct fuse rating and polarity.
- Enhances safety with finger-safe design and optional multi-pole kits.
- Warranty: Standard manufacturer warranty (confirm with supplier).
- Type Battery Isolators
- Vendor Mersen
- SKU V331126
