The Dyness DL5.0C Pro (DL5.0C-PRO) is a 5.12 kWh LiFePO₄ low-voltage residential battery module built for solar self-consumption, backup power and off-grid applications. Operating at 51.2 V nominal (48V class), it delivers 100 A continuous discharge (5.12 kW) and 120 A peak for 10 minutes (6.14 kW), with a 95 % depth of discharge and ≥6,000 guaranteed cycles. The Pro upgrades the standard DL5.0C with three significant additions: built-in WiFi for real-time monitoring and OTA firmware updates, automatic self-heating for cold-climate charging down to −20°C, and an optional intelligent aerosol fire suppression system that detects and extinguishes a fire within 5 seconds. Up to 50 units can be connected in parallel, scaling the system from 5.12 kWh to 256 kWh. Wall-mounted or floor-standing. 488 × 515 × 150 mm, 46 kg. Compatible with SMA, Victron, Solis, GoodWe, Growatt, Schneider, DEYE and others.
5.12 kWh
Stored energy
100A cont.
Discharge current
120A peak
Peak 10 min
95% DoD
Depth of discharge
6,000+
Cycle life
256 kWh
Max parallel (50 units)
⚠ Qualified electrician / technician installation required: This battery operates at up to 57.6 V DC with potential fault currents of 120 A. Installation, DIP switch configuration, wiring and commissioning must be performed by a qualified and authorised electrician or technician. Adhere to all local wiring regulations and standards.
DL5.0C Pro vs Standard DL5.0C — What’s Upgraded
DL5.0C Pro (this product)
DL5.0C Standard
WiFi monitoring
Built-in (no dongle needed)
Optional add-on dongle
Fire suppression
Optional aerosol system (5s response)
Not available
Depth of discharge (DoD)
95 %
90 %
Peak discharge
120 A / 10 min (1.2C)
110 A / 15 s
Weight
46 kg
54 kg
Dimensions (W×D×H)
488 × 515 × 150 mm
558 × 545 × 150 mm
Self-heating
Yes (optional module)
Yes (optional module)
Communication
CAN / RS485
CAN / RS485 / RS232
Certifications
UN38.3, CE-EMC, IEC62619, CEI-021, GOST-R
UN38.3, CE-EMC, IEC62619, CEI-021
Both models share the same 5.12 kWh energy, 51.2 V nominal voltage, LiFePO₄ chemistry, ≥6,000 cycle life and 50-unit parallel expansion capability.
System Capacity — 5.12 kWh to 256 kWh in Parallel
The DL5.0C Pro is designed to scale with your energy needs. Each unit adds 5.12 kWh of usable energy (at 95 % DoD). Common residential configurations:
Units
Total energy
Usable energy (95% DoD)
Typical application
1
5.12 kWh
4.86 kWh
Small flat or apartment; overnight essential loads
2
10.24 kWh
9.73 kWh
Average 3-bed home; covers evening and morning peak
3
15.36 kWh
14.59 kWh
Larger home or EV charging overnight
5
25.6 kWh
24.3 kWh
High-consumption home; 24-hour self-sufficiency
10
51.2 kWh
48.6 kWh
Small commercial; multi-day backup
50
256 kWh
243 kWh
Maximum configuration (commercial / industrial)
Usable energy calculated at 95 % DoD. Actual self-sufficiency depends on household consumption, solar array size, inverter efficiency and grid import behaviour. A qualified installer can size the system to your specific load profile.
What’s in the Box
DL5.0C Pro Battery Module

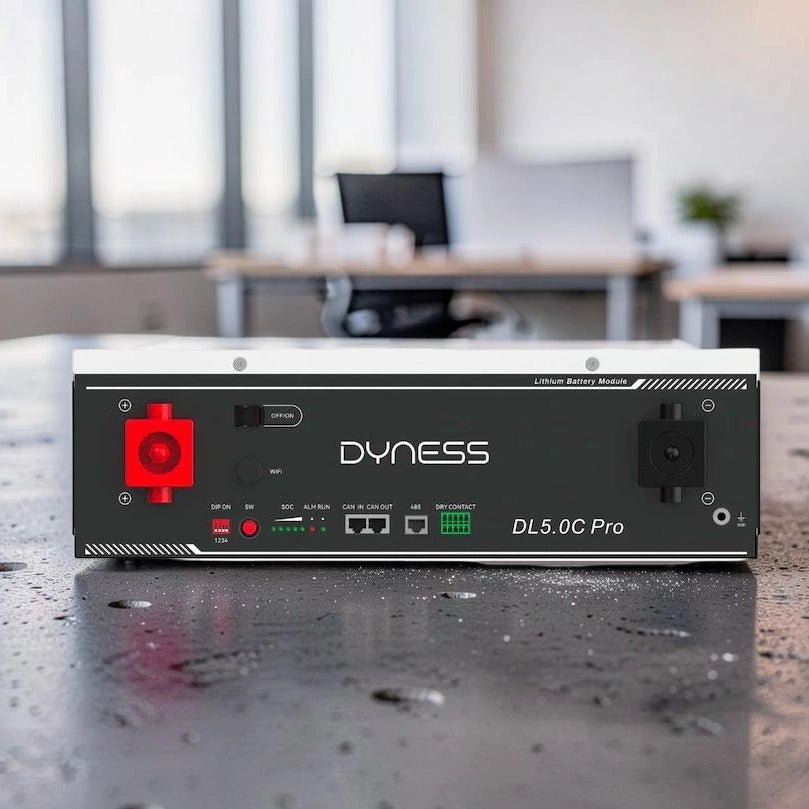

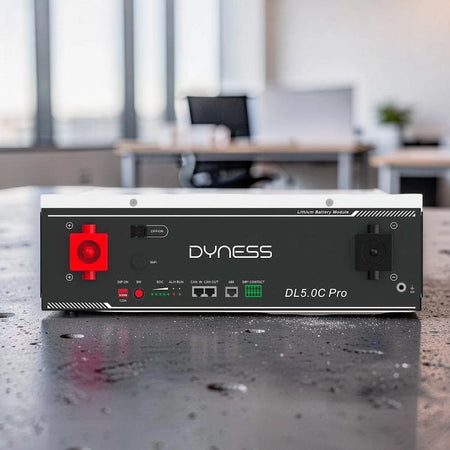

51.2 V / 100 Ah LiFePO₄ battery with integrated BMS, WiFi module, front-panel LED indicators and DIP switch for master/slave configuration.
Wall Bracket (SGCC T3.0)

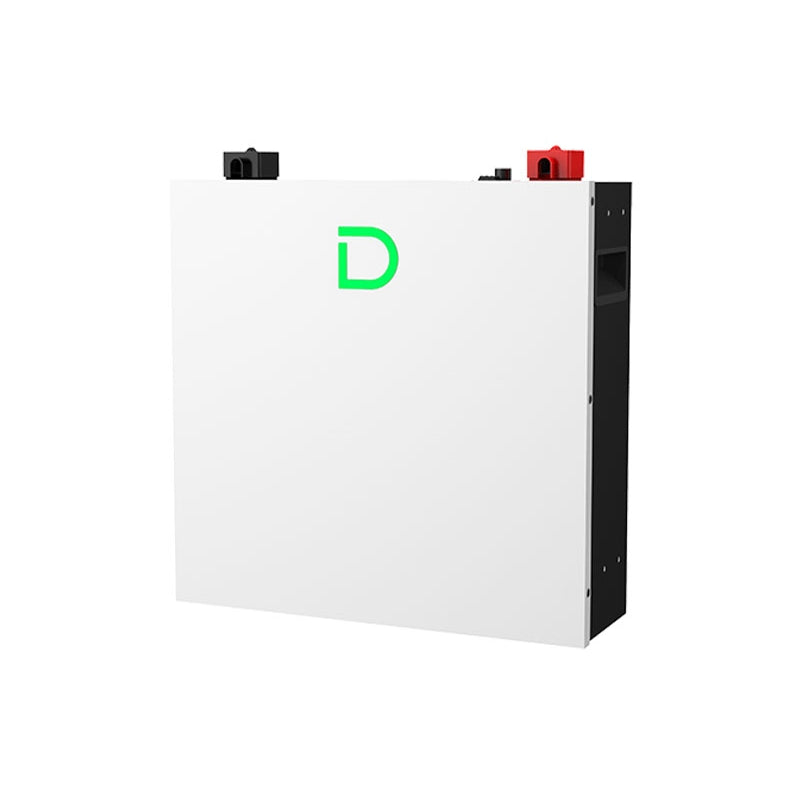

Steel wall mounting bracket. Confirm wall structure can support 46 kg before installation.
Power Cables (4AWG, 1,500 mm)
1 × red (positive) and 1 × black (negative) power cables, 1.5 m length, 4AWG cross-section.
Earth bonding cable for safe grounding before energising.
Fixings
4 × M8 screws with shoulder (bracket to battery) and 4 × M6 × 80 expansion bolts (bracket to wall).
Key Features
Built-in WiFi — No Dongle Required
The DL5.0C Pro includes integrated WiFi connectivity, making it the first Dyness DL5.0 series unit that does not require a separate monitoring dongle. Once connected to your home network, the battery is visible in the Dyness app on iOS and Android, showing: real-time state of charge (SoC), charge/discharge power, cell-level voltages and temperatures, alarm status, and historical energy data. Firmware updates can be pushed over-the-air (OTA) by Dyness, ensuring the BMS software stays current without requiring a service visit. Remote control functions allow charge and discharge limits to be adjusted from the app without physical access to the unit.
Built-in WiFiDyness app (iOS and Android)OTA firmware updatesRemote control
Intelligent Aerosol Fire Suppression — 5-Second Response (Optional)
The DL5.0C Pro is the only Dyness DL5.0 series battery that can be equipped with an integrated aerosol fire suppression system. Thermal sensors monitor the battery continuously for abnormal temperature rise. If a thermal event is detected, the system automatically activates a pressurised aerosol agent that extinguishes the fire within 5 seconds without human intervention. This is a meaningful safety upgrade for installations in garages, plant rooms, or any location where a fire in the battery cabinet could spread to adjacent structures. The aerosol agent is non-toxic and does not damage electrical equipment.
Aerosol fire suppression5-second auto-activationOptional module
Automatic Self-Heating — Charging to −20°C
LiFePO₄ cells cannot be safely charged below 0°C without risking lithium plating. The DL5.0C Pro’s optional automatic self-heating module activates below 0°C and warms the cells to a safe charging temperature before allowing charge current to flow. This extends the usable temperature range to −20°C for both charging and discharging. For installations in unheated garages, outbuildings, or cold-climate regions, this feature prevents the BMS from refusing to charge on cold winter mornings when solar generation is beginning — a common frustration with batteries without heating.
Auto self-heatingCharge from −20°COptional module
95 % Depth of Discharge — 4.86 kWh Usable from 5.12 kWh
The DL5.0C Pro’s BMS allows the cells to be discharged to 95 % of nominal capacity — giving 4.86 kWh of usable energy per module. The standard DL5.0C limits discharge to 90 % (4.61 kWh). This 5 % uplift is a direct result of the Pro’s more refined BMS with tighter cell-level voltage monitoring, which enables safer operation closer to the cell’s lower voltage limit without risking over-discharge damage. Across 50 units in a maximum parallel configuration, the Pro delivers 243 kWh usable vs 230 kWh for the standard model.
95% DoD4.86 kWh usable per moduleTighter cell-level BMS
100 A Continuous / 120 A Peak Discharge — 1C Continuous
The DL5.0C Pro discharges at its full 1C rate of 100 A continuously, delivering 5.12 kW of sustained DC output at 51.2 V. This is sufficient to run a 4 kW inverter at full load with headroom. The 120 A peak for 10 minutes (1.2C) handles inverter start surges, immersion heater switching, and motor inrush without triggering BMS protection or voltage sag. The peak rating is higher than the standard DL5.0C’s 110 A / 15 s.
Tested at 0.2C charge/discharge at 25°C with 95 % depth of discharge, the DL5.0C Pro maintains capacity for over 6,000 complete cycles. At one full cycle per day, this equates to approximately 16 – 17 years of service. LiFePO₄ (LFP) chemistry provides inherent thermal stability: LFP cells do not undergo thermal runaway at the same rate as NMC or NCA chemistries when overcharged or punctured, and they do not release oxygen during thermal events, significantly reducing fire risk compared to other lithium-ion chemistries.
≥6,000 cyclesLiFePO₄ (LFP)~16–17 years @ 1 cycle/day
50-Unit Parallel Expansion — 5.12 kWh to 256 kWh
Up to 50 DL5.0C Pro units can be connected in parallel, scaling the system to a maximum of 256 kWh. Each unit connects to the next via the supplied daisy-chain RJ45 communication cable, and the master/slave relationship is set via the front-panel DIP switch. The master battery manages the bank’s communication with the inverter; each slave reports its own cell data to the master. When adding units to an existing bank, ensure all units are at similar SoC before parallel connection.
Up to 50 units in parallel5.12 kWh – 256 kWhDIP switch master/slave
Wide Inverter Compatibility via CAN / RS485
The DL5.0C Pro communicates with the inverter via CAN bus or RS485. The communication port definition and protocol depend on the inverter brand and model. Verified compatible inverter brands include: SMA, Schneider, Victron, Solis, GoodWe, Growatt, Luxpower, Soplanet, Ingeteam, DEYE, SAJ and others. Before installation, always consult the Dyness inverter compatibility document for the exact DIP switch and parameter settings required for your specific inverter model. Incorrect parameter settings can cause communication errors or prevent the battery from charging/discharging correctly.
CAN / RS485SMA, Victron, Solis, GoodWe, Growatt, Schneider, DEYE...
Technical Specifications
Electrical
Model
DL5.0C-PRO
Battery type
LiFePO₄ (lithium iron phosphate)
Nominal energy
5.12 kWh
Nominal capacity
100 Ah
Nominal voltage
51.2 V DC
Operating voltage range
44.8 – 57.6 V DC
Recommended charge voltage
56.5 V DC
Charge and Discharge
Recommended charge/discharge current
50 A (0.5C)
Max continuous charge current
75 A
Max continuous discharge current
100 A (1C)
Peak discharge current
120 A / 10 min (1.2C)
Max continuous discharge power
5.12 kW @ 51.2 V
Peak discharge power
6.14 kW (10 min)
Depth of discharge (DoD)
95 %
Usable energy per module
4.86 kWh (at 95 % DoD)
Cycle Life
Cycle life
≥6,000 cycles @ 0.2C, 25°C, 95 % DoD
Physical
Dimensions (W × D × H)
488 × 515 × 150 mm
Weight
46 kg
Protection class
IP20 (indoor installation)
Mounting

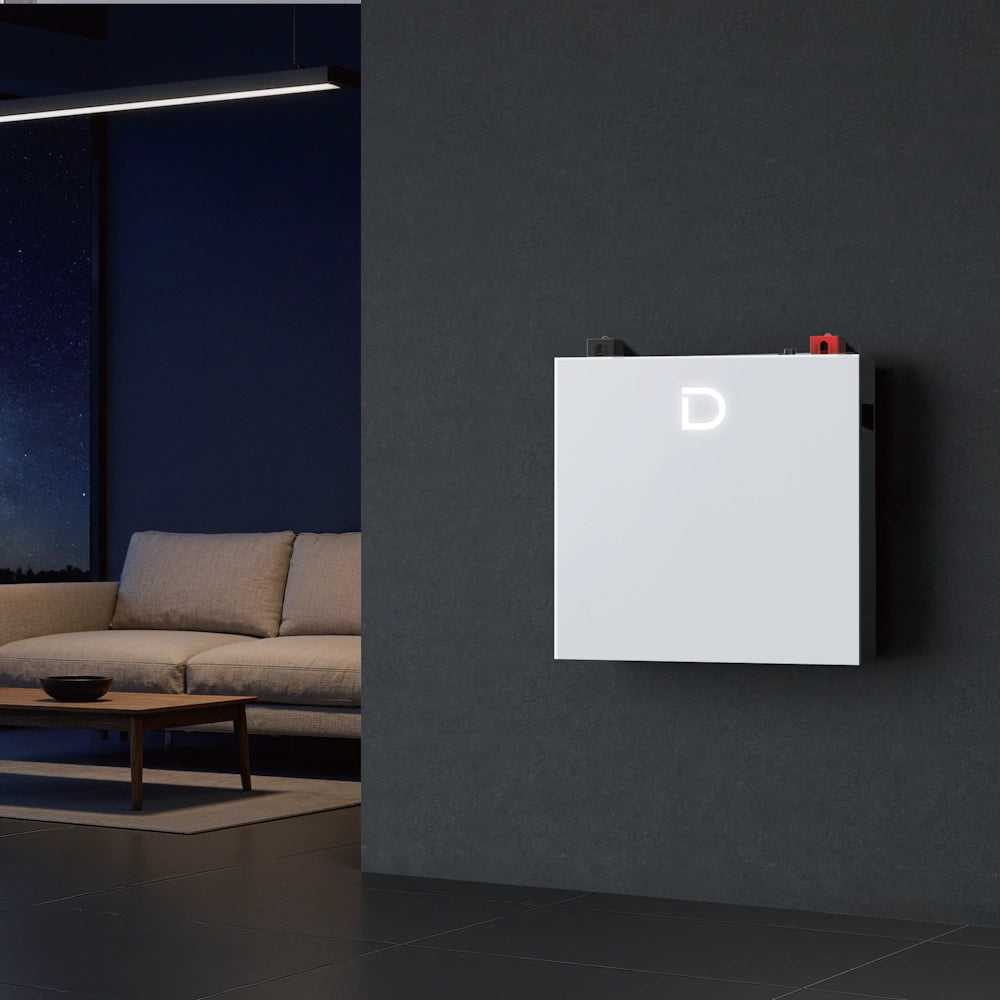

Wall-mounted or floor-standing
Operating Conditions
Charge temperature
0°C to +55°C / −20°C to +55°C (with heating module)
Discharge temperature
−20°C to +55°C
Pro Features
WiFi monitoring
Built-in (Dyness app, real-time monitoring, OTA updates)
Fire suppression
Optional aerosol module — detects and extinguishes fire in 5 s
Self-heating
Optional module — enables charging from −20°C
Communication and Expansion
Communication protocols
CAN / RS485
Inverter interface
RJ45 communication cable (supplied)
Parallel expansion
Up to 50 units in parallel (5.12 – 256 kWh)
Master/slave configuration
DIP switch on front panel
Certifications
Safety standards
UN38.3, CE-EMC, IEC 62619, CEI-021, GOST-R
Compatibility
Compatible inverters
SMA, Schneider, Victron, Solis, GoodWe, Growatt, Luxpower, DEYE, Ingeteam, SAJ, Soplanet and others
Box Contents
Included
Battery module, wall bracket (SGCC T3.0), positive cable (red, 4AWG, 1,500 mm), negative cable (black, 4AWG, 1,500 mm), parallel communication cable (black, 2,000 mm, dual RJ45), inverter communication cable (black, 2,000 mm, dual RJ45), ground wire (500 mm, 4 mm²), M8 screws ×4, M6 × 80 expansion bolts ×4
Frequently Asked Questions
How does the DL5.0C Pro differ from the standard DL5.0C?
The Pro adds three features not available on the standard DL5.0C: built-in WiFi (the standard requires an optional monitoring dongle); optional aerosol fire suppression (not available on the standard); and 95 % DoD (the standard is limited to 90 %). The Pro is also lighter (46 kg vs 54 kg) and more compact in its footprint. The self-heating function is optional on both models. If your installation does not require fire suppression, WiFi monitoring, or the additional usable capacity from 95 % DoD, the standard DL5.0C may offer better value per kWh.
What does IP20 mean for installation location?
IP20 means the battery is protected against solid objects larger than 12.5 mm (e.g. fingers) but has no water or dust protection. It is rated for indoor dry environments only. Suitable locations include: utility rooms, dedicated battery rooms, heated garages, and indoor plant rooms. Do not install in an outdoor enclosure, damp garage, or anywhere subject to condensation, flooding or water spray. The ambient temperature must remain within the operating range throughout the year.
How do I connect multiple DL5.0C Pro units in parallel?
Connect units in parallel using the supplied daisy-chain RJ45 parallel communication cable. One unit is designated the master using the DIP switch on the front panel; all others are configured as slaves. The master communicates with the inverter; each slave reports its data to the master. Power cables are connected in parallel directly (positive to positive, negative to negative) via a busbar or junction. All units should be at a similar state of charge before parallel connection. Refer to the Dyness DL5.0C Pro user manual for the exact DIP switch configuration for your parallel count.
Which inverters are compatible and what settings are required?
The DL5.0C Pro has verified compatibility with SMA, Schneider, Victron, Ingeteam, Solis, GoodWe, Growatt, Luxpower, Soplanet, DEYE and SAJ inverters. Compatibility requires both correct physical wiring (CAN or RS485 port, RJ45 cable) and the correct parameter settings in the inverter (battery type, charge voltage, discharge voltage, current limits). Dyness publishes an inverter compatibility document listing the exact settings for each brand. Always consult this document before commissioning — incorrect settings are the most common cause of communication errors.
Does the fire suppression system damage the battery or inverter when it activates?
The aerosol fire suppression agent used in the DL5.0C Pro is a solid aerosol compound (condensed aerosol technology), similar to that used in vehicle engine bays and electrical cabinets. When activated, it disperses a fine aerosol agent that suppresses the fire by interrupting the combustion chain reaction. The agent is non-toxic, non-corrosive to metals, and leaves minimal residue on electronic components. The battery and nearby inverter are not typically damaged by the agent itself, although the underlying thermal event that triggered activation may have already caused damage. After any fire suppression activation, the battery must be inspected by a qualified Dyness service engineer before any attempt to restart the system.
What happens if the battery is too cold to charge?
Below 0°C, the standard BMS will prevent charging to protect the LFP cells from lithium plating (a permanent form of capacity damage). With the optional self-heating module, the battery automatically activates a heating element when the cell temperature drops below the safe charging threshold. The cells are warmed to 0°C before charging begins. This happens automatically without user intervention. If your installation is in an unheated space that regularly drops below 0°C in winter, the self-heating module is strongly recommended to avoid losing solar charging hours on cold winter mornings.
