Drayton Smart Room Wiser Thermostat Kit 3

Drayton Smart Room Wiser Thermostat Kit 3

The Drayton Smart Room Wiser Thermostat Kit 3 is a smart, three-channel heating control system ideal for properties with two heating zones and a separate hot water cylinder. Compatible with conventional boilers, this kit allows you to easily control your heating and hot water remotely via the Wiser Heat app. It integrates seamlessly with smart home assistants such as Amazon Alexa, Google Assistant, and IFTTT for voice and automation control.

Thanks to its buildable multi-zoning capability, you can expand your system to manage up to 16 rooms with up to 32 Wiser smart devices, enabling personalised, room-by-room temperature control and maximising energy efficiency.

Key Features

• Three channels – controls two heating zones plus hot water
• Smart control via the Wiser Heat app with remote access and scheduling

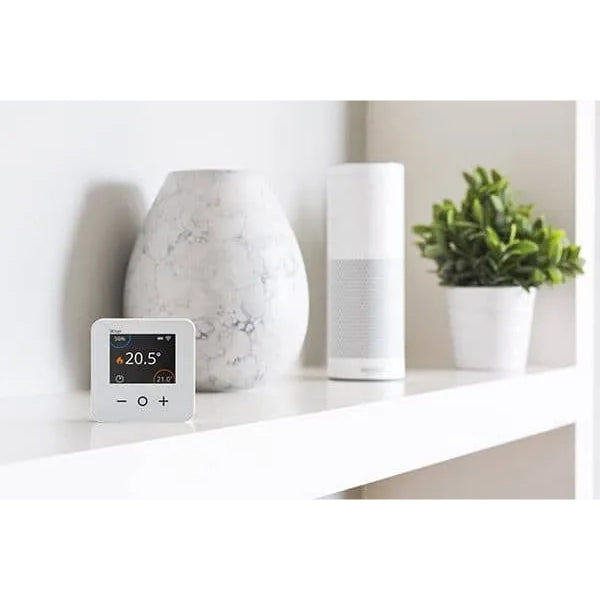

• Compatible with Amazon Alexa, Google Assistant, and IFTTT
• Easy installation using a standard UK backplate
• Eco Mode maximises energy savings by optimising heating schedules
• Monitor system performance and energy usage via the app

Technical Specifications

• Room Thermostat Dimensions: 76 mm (W) x 76 mm (H) x 25 mm (D)
• Heat HubR Dimensions: 148 mm (W) x 93 mm (H) x 31 mm (D)
• Operating Temperature: 0°C to 45°C
• Set-Point Temperature Range: 5°C to 30°C
• Temperature Resolution: 0.5°C
• Timing Resolution: 1 minute
• Power Supply: HubR – 230V a.c. ±10% 50Hz; Room Thermostat – 2x AA batteries
• Radio Frequency: 2.4GHz bi-directional mesh technology, with up to 30m range
• Ingress Protection: HubR – IP30; Room Thermostat – IP20
• Switch Rating: 2(1)A 230V a.c. per switch
• Wiring: HubR requires fixed wiring complying with BS7671; Room thermostat wireless
• ErP Efficiency Rating: 3.5%
• Warranty: 1 year manufacturer’s warranty

What’s Included

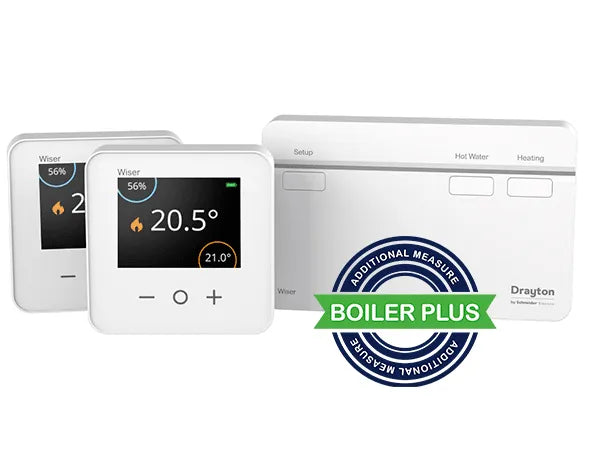

• 2 x Smart Room Thermostats
• 1 x 3 Channel Heat HubR
• 2 x Thermostat Wall Brackets
• 2 x Thermostat Stands
• 1 x OpenTherm Module
• 1 x Wall Plate
• 4 x AA Batteries
• Quick Start Guide and Installation Instructions

The Drayton Wiser Thermostat Kit 3 offers a future-proof heating solution with smart home compatibility, multi-zone control, and remote management tools that help you optimise comfort and reduce energy costs in your home.
