The Complete Guide to 150W Electric Underfloor Heating for UK Homes
Electric underfloor heating is one of the most straightforward home upgrades you can make — and right now, during the summer months, is the ideal time to install it. Whether you are renovating a bathroom, refreshing a kitchen floor, or fitting out an extension, this guide walks you through everything included in the 150W Electric Underfloor Heating Mat Bundle, how to install it step by step, and why 150W/m² is the sweet spot for British homes.
Why 150W/m² Is the Right Choice for the UK
When shopping for electric underfloor heating mats, you will find three common wattage ratings: 100W/m², 150W/m², and 200W/m². In the UK, 150W is widely considered the best all-round option, and here is why.
Balanced Heat Output
At 150W per square metre, these mats deliver comfortable warmth for UK rooms without overheating. A 200W mat can feel uncomfortably warm underfoot, particularly with well-insulated tile or stone floors, and there is no thermostat adjustment that changes the fact that the cable itself runs hotter.
Lower Running Costs
Higher wattage means higher electricity consumption every time the system cycles on. Over a heating season, the difference between 150W and 200W mats adds up to a noticeable amount on your energy bills — often 25–30% more per square metre for the higher-output option.
Future Legislation
As the UK tightens building energy-efficiency regulations, there is growing industry expectation that higher-wattage electric heating elements may face restrictions. Choosing 150W now keeps you well within likely future thresholds and aligns with the direction of Part L of the Building Regulations.
100W for New Builds
If your property is a new build or has been retrofitted with excellent insulation (cavity wall, underfloor, loft), a 100W/m² mat may be sufficient. The ThermoSphere 100W Mesh is designed exactly for these highly insulated environments, keeping energy use even lower.
What Is in the Bundle?

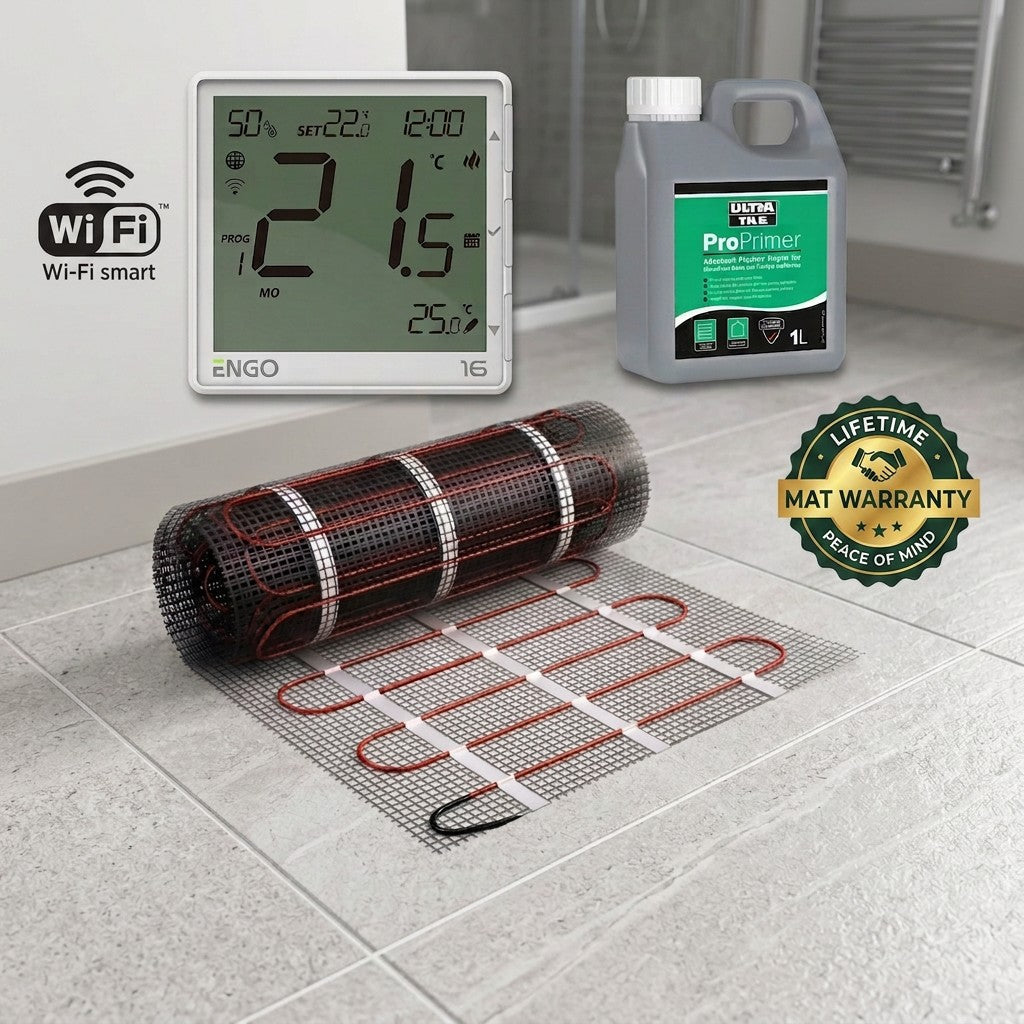

The 150W Electric UFH Mat Bundle brings together every core component you need to install electric underfloor heating under tile or stone floors. Here is exactly what you get and what each part does.
ThermRite™
150W/m² Peel & Stick Heating Mat
The main heating element. These self-adhesive mats roll out directly onto a primed or insulated subfloor. The peel-and-stick backing holds the mat flat while you tile over it — no tape or clips needed. Each mat has a 0.5m-wide roll width, and the heating cable is pre-spaced at optimal intervals to distribute heat evenly. Available in various sizes to suit your room.
From £40.00
ENGO
EONE-16W Wi-Fi Smart Thermostat
The brain of the system. This flush-mounted Wi-Fi thermostat has a built-in 16A relay, which means it can switch electric heating mats directly without needing an external contactor. You control it from the wall display or remotely via the ENGO app. Set weekly schedules, monitor floor temperature, and adjust from anywhere. Compatible with Amazon Alexa and Google Home.
£68.95
UltraTile
ProPrimer – 1 Litre Water-Based Acrylic Primer
Applied to the subfloor before laying the mats. The primer seals the surface, reduces dust, and dramatically improves the bond between the subfloor and the self-adhesive backing of the heating mat. Essential for concrete screed and cementitious surfaces — without it, adhesion is unreliable and the mats can lift during tiling.
£17.00
ENGO
EFS300 Floor Temperature Sensor – NTC 10kΩ
This passive NTC 10kΩ sensor on a 3-metre cable is embedded in the floor between the heating cables. It sends a real-time temperature reading back to the EONE thermostat so the system knows the actual floor temperature — not just the air temperature. This prevents overheating, protects your flooring, and makes the system far more energy-efficient.
£9.00
Step-by-Step Installation Guide
Electric underfloor heating mats are a popular DIY project because laying the mats, primer, and sensor is entirely within a competent homeowner’s skillset. The only part that must be carried out by a qualified electrician is the final wiring connection to the thermostat and consumer unit. Here is the full process.
Plan Your Layout
Measure the room and sketch a layout. Mats should cover the open floor area only — avoid placing them under permanently fixed items such as kitchen units, toilet pedestals, bath panels, or built-in wardrobes. Leave a 50mm gap from walls and around fixtures. Calculate the total area in square metres to select the correct mat size.
Prepare the Subfloor
The floor must be clean, dry, flat, and free of loose debris. Sweep or vacuum thoroughly. Fill any cracks or dips with a suitable patching compound. If using insulation boards (recommended — see below), fit them now and allow any adhesive to cure before proceeding.
Apply the Primer
Using a roller or brush, apply a coat of UltraTile ProPrimer to the entire subfloor area where the mats will sit. Allow it to dry fully — typically 30 to 60 minutes depending on temperature and humidity. The surface should feel tacky-dry, not wet.
Test the Heating Mat
Before unrolling, use a multimeter to measure the resistance of each mat. Compare the reading to the value on the label (it should be within ±10%). Record the reading. This pre-installation test confirms the cable is undamaged — it is far easier to replace a mat now than after tiling.
Roll Out the Heating Mats
Starting from the thermostat location, peel the protective backing and press the mat firmly onto the primed surface. When you reach a wall, cut the mesh backing only (never cut the heating cable), turn the mat 180°, and continue in the opposite direction. Repeat until the floor is covered. Keep cables at least 50mm apart and never allow them to overlap or cross.
Position the Floor Sensor
Place the ENGO EFS300 sensor in a conduit or directly between two heating cables, centred in the room and roughly 300–500mm from the wall where the thermostat will be mounted. The sensor tip should sit at the same level as the heating cable — not above or below. Run the sensor cable back to the thermostat location through the wall or conduit.
Test Again
Measure resistance again with the multimeter and compare to your Step 4 reading. If the resistance has changed significantly, inspect the mat for damage before proceeding. Also test insulation resistance between the cable cores and the earth braid — this should read open circuit (infinity) on a standard multimeter.
Tile or Apply Levelling Compound
For tile or stone: apply UltraTile ProFlex S2 flexible tile adhesive directly over the mats using a notched trowel, then lay your tiles. For other flooring types (vinyl, LVT, carpet, engineered wood), see the self-levelling compound section below.
Final Electrical Connection
A qualified electrician must connect the heating mat cold tails and the floor sensor cable to the ENGO EONE thermostat. The circuit should be protected by a 30mA RCD and an appropriately rated MCB in the consumer unit. Do not power on the system until the adhesive or levelling compound has fully cured — typically 7–14 days for tile adhesive.
Optional Insulation – Strongly Recommended
While the heating mats will work without insulation boards underneath, adding a layer of thermal insulation makes the system significantly more efficient. Insulation prevents heat from being lost downward into the subfloor and directs it upwards into the room, which means faster warm-up times and lower electricity use.
AIZO
6mm Tile Backer Board – UFH Insulation
A rigid XPS-core board with a cement-coated surface that tiles can be fixed directly onto. Acts as both insulation and a tile substrate. Ideal for bathrooms and wet rooms where moisture resistance matters as much as thermal performance.
From £9.00 per board
Warmup
Ultralight 6mm UFH Insulation Boards
A 4-in-1 composite board providing insulation, heat spreading, acoustic damping, and decoupling in a single 6mm layer. The aluminium heat-spreading layer distributes warmth evenly across the surface, and the decoupling membrane protects tiles from substrate movement and cracking over time.
£23.95
Using UFH with Vinyl, LVT, Carpet, or Engineered Wood
The 150W heating mats are designed for use directly under tile adhesive, but they work brilliantly with other flooring types too. The key difference is that non-tile floor coverings cannot be fixed directly over the cables — you need a smooth, solid, level surface on top of the mats first. There are two ways to achieve this.
Option 1: Self-Levelling Compound
A self-levelling compound is poured over the heating mats to encapsulate the cables in a smooth, flat screed layer. Once cured, you lay your chosen flooring (vinyl, LVT, click laminate, engineered wood, or carpet) directly on top. This is the most common approach for non-tile finishes.
Recommended thickness: A safe general-purpose depth is 10mm above the top of the cable. Some click-flooring manufacturers specify a minimum of 6–8mm, but 10mm gives a more stable thermal mass and works reliably across all flooring types. Always check the flooring manufacturer’s guidelines for their specific requirements.
We recommend the Python LR Self-Levelling Compound (£38.00 per 25kg bag). It is fibre-reinforced, fast-setting, and suitable for depths from 2mm to 50mm — making it ideal for encapsulating UFH cables. It is compatible with concrete, plywood, and existing tile substrates when used with the correct primer.
Option 2: Overlay Boards (No Levelling Compound Needed)
If you want to avoid the mess and waiting time of mixing and pouring self-levelling compound, overlay boards are a clean, dry alternative. The Dual Board Overlay System (£77.00) uses two layers of 3.5mm MDF that are self-adhesive and cross-laminated. They lay directly over the heating mats to create a solid, smooth subfloor for vinyl, carpet, LVT, or engineered wood — with a total added height of just 7mm.
This is a particularly good option for retrofitting UFH into rooms where floor height is limited, or where you simply prefer a faster, drier installation process.
Choosing the Right Tile Adhesive
If you are tiling directly over the mats, you must use a flexible, S2-rated adhesive. Standard rigid adhesive will crack as the heating cables expand and contract with temperature cycles. The UltraTile ProFlex S2 (£32.00 per 20kg bag) is fibre-reinforced and specifically designed for underfloor heating installations. Apply it with a notched trowel to fully encapsulate the heating cables beneath each tile.
Wattage Comparison: 100W vs 150W vs 200W
| Feature | 100W/m² | 150W/m² | 200W/m² |
|---|---|---|---|
| Best for | New builds, well-insulated homes | Most UK homes – renovations and extensions | High heat-loss rooms only (conservatories, poorly insulated spaces) |
| Warm-up time | 30–45 minutes | 20–30 minutes | 15–20 minutes |
| Running cost | Lowest | Moderate | Highest – 25–30% more than 150W |
| Floor comfort | Gentle warmth | Comfortable, even heat | Can feel too warm underfoot |
| Legislation risk | None | Low risk | Higher risk of future restrictions |
| Recommended product | ThermoSphere 100W Mesh | 150W UFH Bundle | Generally not recommended |
Why Now Is the Best Time to Install Electric UFH
If you are thinking about underfloor heating, the window between June and October is the smartest time to act. Here is why.
Faster curing and drying. Tile adhesive, self-levelling compound, and primer all cure more reliably in warmer ambient temperatures. In winter, low temperatures can slow curing times dramatically or cause products to fail to set properly.
Trades availability. Electricians and tilers tend to be quieter during summer months. You are more likely to get a booking at short notice and at a competitive rate than during the autumn rush.
Ready for winter. Most systems need 7–14 days after tiling before you can switch on the heating. Install in summer or early autumn and your system will be fully commissioned and tested well before the heating season begins in November.
Home disruption. A bathroom or kitchen renovation is easier to live with when you can open windows, work in natural light, and do not depend on that room’s heating. Summer gives you breathing room.
Pair Your UFH with Solar Panels and Battery Storage
Electric underfloor heating and solar power are a natural combination. A typical bathroom or ensuite UFH system draws between 300W and 900W when running — well within the output of a modest solar array. If you have solar panels on your roof, much of your UFH running cost during daylight hours is effectively free.
The real advantage comes when you add battery storage. A home battery system stores surplus solar generation during the day and releases it in the evening and early morning — exactly when you want your underfloor heating to be warming up the bathroom floor before you step out of the shower. With a smart thermostat like the ENGO EONE, you can schedule heating cycles to align with your battery’s charge curve, keeping running costs as close to zero as possible.
Even without solar panels, pairing UFH with an economy tariff (such as Octopus Intelligent Go or Economy 7) lets you heat the floor slab during off-peak hours and benefit from the thermal mass releasing warmth throughout the morning. The EONE thermostat’s Wi-Fi scheduling makes this easy to configure and adjust.
Frequently Asked Questions
Can I install electric UFH mats myself?
Yes — laying the mats, applying primer, and positioning the sensor are all DIY-friendly tasks. The final electrical connection to the thermostat and consumer unit must be carried out by a qualified electrician and certified under Part P of the Building Regulations (or equivalent Scottish/Welsh standards).
Do I need insulation boards underneath?
Insulation is not strictly required, but it is strongly recommended. Without it, a significant proportion of the heat generated goes downward into the subfloor rather than upward into the room. Insulation boards such as the 6mm Tile Backer Board or Warmup Ultralight Boards can improve efficiency by up to 50% and reduce warm-up time significantly.
Can I use these mats under vinyl or LVT flooring?
Absolutely. You will need to apply a layer of self-levelling compound over the mats first, at a recommended depth of 10mm (or as specified by your flooring manufacturer — some click systems accept 6–8mm). The Python LR Self-Levelling Compound is ideal for this. Alternatively, use the Dual Board Overlay System to avoid levelling compound entirely.
How long does the system take to warm up?
A 150W/m² mat under tiles typically reaches comfortable floor temperature within 20–30 minutes from cold. Using insulation boards underneath reduces this further. With the ENGO EONE thermostat’s scheduling feature, you can set the system to start warming before you wake up or arrive home.
What is the running cost of electric underfloor heating?
A 4m² bathroom at 150W/m² draws 600W. Running for 4 hours per day at a typical UK electricity rate of around 24p/kWh costs roughly 58p per day during the heating season. Pairing with solar panels and battery storage can reduce this to near zero. Using an economy tariff can cut costs further by heating during off-peak hours.
Is 150W/m² enough for a conservatory or sunroom?
For conservatories with older glazing and poor insulation, 150W/m² may struggle to reach comfortable temperatures in deep winter. In those cases, improving the insulation of the space (particularly the glazing and roof) is a better investment than stepping up to 200W mats. Modern conservatories with double or triple glazing will perform well with 150W.
Accessories & Essentials
UltraTile
ProFlex S2 Flexible Tile Adhesive – 20kg
Fibre-reinforced S2-rated flexible adhesive formulated for underfloor heating installations. Absorbs thermal expansion and contraction without cracking. Essential for tiling directly over heating mats.
£32.00
Python
LR Self-Levelling Compound – 25kg
Fast-setting fibre-reinforced levelling compound for encapsulating heating mats before non-tile flooring. 2–50mm depth range, suitable for concrete and plywood substrates. The go-to product when installing UFH under vinyl, LVT, carpet, or engineered wood.
£38.00
EcoMax
Dual Board Overlay System – Low Profile
Self-adhesive double-layer MDF overlay that sits directly over heating mats. Creates a smooth, stable subfloor for vinyl, carpet, LVT, or click flooring at just 7mm total thickness. No levelling compound required.
£77.00
ThermoSphere
100W/m² Electric UFH Mesh
Lower-output heating mesh designed specifically for new builds and well-insulated homes where 150W is more heat than you need. Self-adhesive mesh with a lifetime guarantee. Ideal for properties built to current Part L standards.
From £53.00
Ready to Get Started?
Order your 150W Electric UFH Mat Bundle today and have everything you need delivered to your door. Need help choosing the right mat size or accessories? Our team is here to help.
