⬛ Black 7.4kW Smart Charger 5m Tethered Type 2 MPN: PLP2-0-2-2-F-002

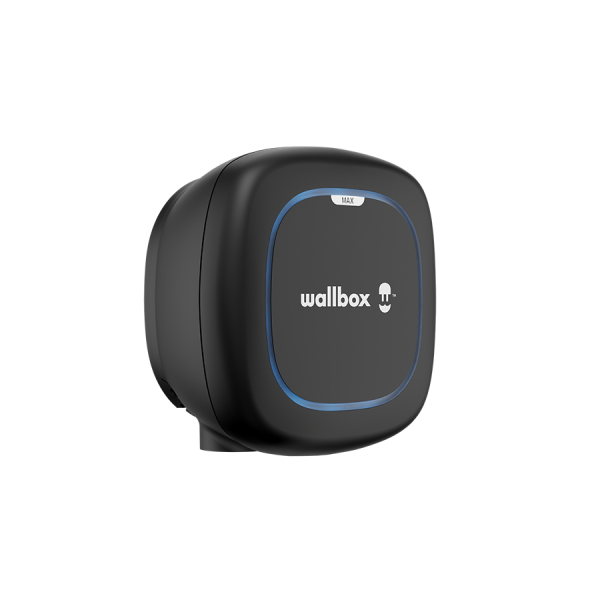

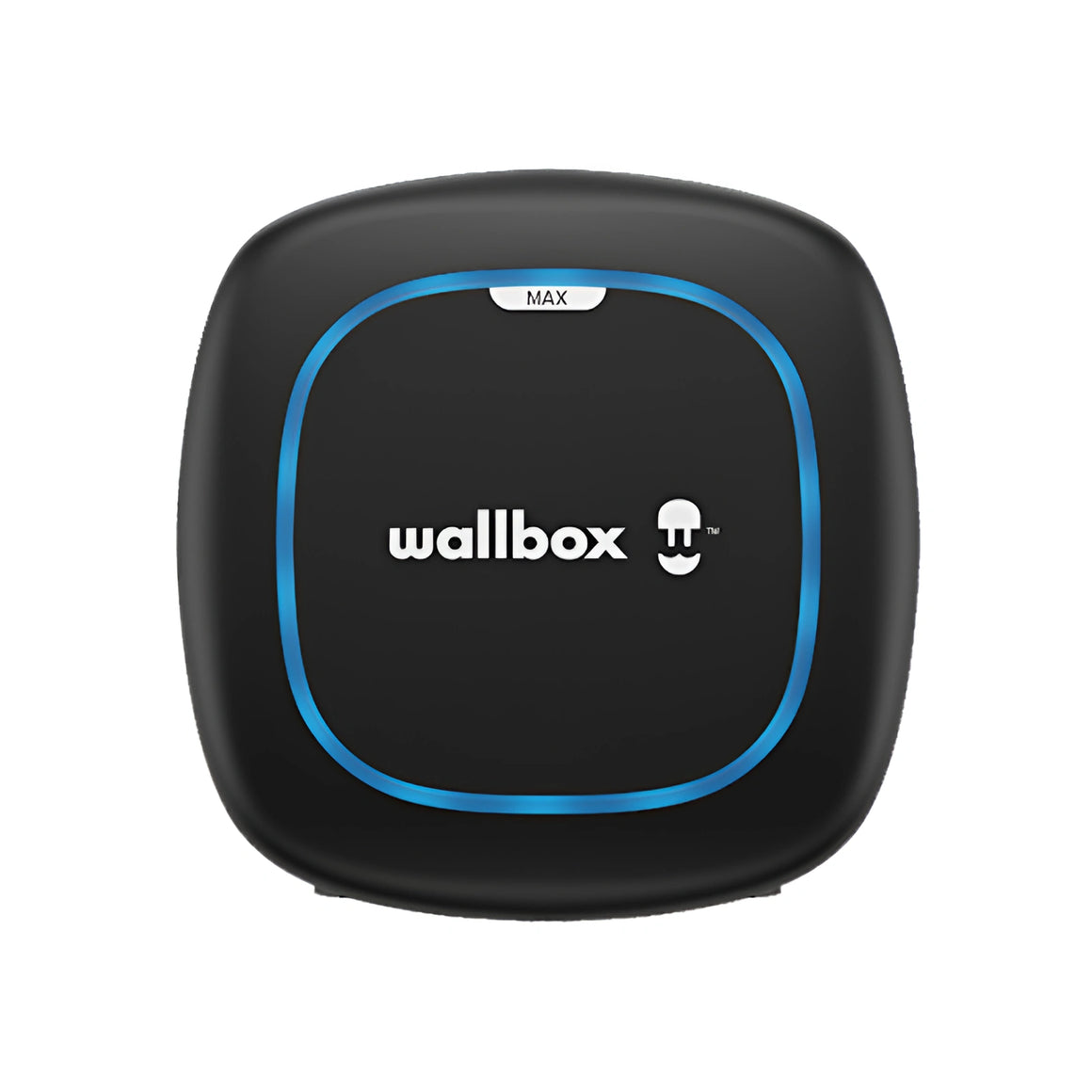

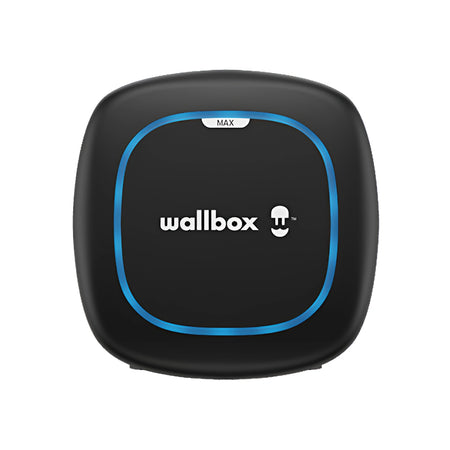

The Wallbox Pulsar Max (Black) is one of the world's most compact and feature-rich smart home EV chargers, delivering up to 7.4kW of single-phase AC charging power through a permanently attached 5-metre Type 2 tethered cable — ready to charge any modern electric vehicle or plug-in hybrid the moment you pull up. Upgraded from the original Pulsar Plus with a reinforced IK10 impact-rated enclosure, integrated DC leakage protection (no external RCD adapter required), built-in UK O-PEN protection, and full myWallbox app connectivity via Wi-Fi and Bluetooth, the Pulsar Max is designed to be the last home charger you'll ever need. Solar-ready, schedule-capable, and compliant with the UK Smart Charge Points Regulations 2021, it covers every requirement for a modern, intelligent home charging installation.
Why Choose the Wallbox Pulsar Max?
At 7.4kW on a single-phase supply, the Pulsar Max charges at the maximum speed available from a standard UK domestic connection. A typical EV with a 60kWh battery will recover roughly 30–35 miles of range per hour of charging — meaning most drivers add a full night's range (100+ miles) in 6–8 hours of overnight charging. Compared to a 3-pin plug (2.3kW, slow and legally not recommended as a permanent solution), the Pulsar Max charges approximately three times faster while doing so safely through a purpose-designed weatherproof unit with built-in safety protections.
What sets the Pulsar Max apart from basic home chargers is its intelligence. The myWallbox app allows you to schedule charging to off-peak tariff periods (Octopus Go, Intelligent Octopus, Economy 7), track energy use and cost per session, set maximum current to manage household load, and — with the optional N1 CT clamp — divert surplus solar generation into your car instead of exporting it to the grid. The charger operates as a standalone unit with no internet connection required, but its full potential is unlocked through the app.
Key Features
⚡ 7.4kW / 32A Single-Phase ChargingThe maximum charging speed available on a standard UK single-phase domestic supply. Fully charges most EVs overnight — significantly faster than a 3-pin plug or a 3.7kW slow charger. Configurable from 6A to 32A via the app to match your household circuit capacity.
🔌 5m Tethered Type 2 CablePermanently attached 5-metre Type 2 cable means no hunting for a cable each time you charge. Type 2 is the universal standard for all modern European and UK EVs and plug-in hybrids — compatible with every current EV on the UK market. The cable stows neatly against the wall unit when not in use.
📱 myWallbox App — Full Smart ControlConnect via Wi-Fi or Bluetooth to the free myWallbox app (iOS and Android). Schedule charging sessions to start and stop at specified times, set maximum charge current, monitor live charging status, view session history and energy statistics, and lock the charger remotely. Voice control via Amazon Alexa and Google Assistant also supported.
☀️ Solar Charging ReadyCompatible with Wallbox solar charging functionality when paired with the Wallbox N1 CT clamp (sold separately). Automatically adjusts the charge rate in real time to use surplus solar generation — charge your car on your own roof's output, not the grid. Maximises self-consumption and reduces running costs for homes with solar PV.
🛡️ Integrated DC Leakage ProtectionThe Pulsar Max includes 6mA DC leakage (RDC-DD) protection built into the unit — meeting IEC 62955 requirements without needing an external Type B RCD or DC detection adapter. This simplifies installation and reduces component count. No separate DC fault adaptor required for most installations.
🇬🇧 UK O-PEN Protection Built InThe PLP2-0-2-2-F-002 model includes integrated UK O-PEN (Open Protective Earth Neutral) fault protection — a requirement for installations on TN-C-S (PME) earthing systems, which covers the majority of UK domestic properties. No external PEN fault protection device required, further simplifying the installation.
🏋️ IK10 Impact RatingThe upgraded polycarbonate enclosure achieves IK10 — the highest standard for mechanical impact resistance (rated to withstand 20 joules of impact). Far more robust than entry-level chargers rated IK07 or below; suitable for garage and driveway installation where the unit may be exposed to accidental impact from vehicles, tools, or debris.
⚖️ Ultra Compact & LightweightAt just 198 × 201 × 99mm and 1.3kg (without cable), the Pulsar Max is one of the smallest and lightest 7.4kW home chargers available — genuinely unobtrusive on any wall. Quick to install thanks to the simplified wiring design; typical professional installation takes under two hours.
📊 Power Boost — Dynamic Load ManagementThe built-in static load management prevents the charger from overloading the household circuit by capping total consumption at a set limit. With an optional CT clamp, the Pulsar Max dynamically adjusts charge current in real time based on how much of the household's available capacity is being used by other appliances — always charging as fast as possible without tripping the main fuse.
🔆 Halo LED Status IndicatorAn integrated RGB LED halo ring on the front of the unit provides at-a-glance status: 6 colours and 2 flash modes communicate charging active, paused, error, locked, connecting, and ready states without needing to open the app. Simple and intuitive for any household member to interpret.
What's in the Box
- Wallbox Pulsar Max charger unit — Black (PLP2-0-2-2-F-002)
- 5-metre Type 2 tethered charging cable (attached)
- Mounting bracket and wall fixings
- Quick start guide
Not included: Wallbox N1 CT clamp (required for solar charging and dynamic load management — sold separately). Installation by an 18th Edition qualified electrician is required and not included with the unit.
Smart Charging & App Features
The myWallbox app is the control centre for the Pulsar Max. Once paired via Bluetooth during setup and connected to your home Wi-Fi, the charger is remotely accessible from anywhere. Key app features include:
-
Scheduled charging — set start and stop times to charge during cheap off-peak electricity tariff windows (ideal for Octopus Go, Intelligent Octopus, E.ON Drive, and Economy 7 customers)
-
Smart charging — the charger automatically identifies the lowest-cost charging periods based on your tariff and schedules sessions accordingly
-
Energy tracking — view kWh delivered, estimated cost, and CO₂ saved per session and over time
-
Remote lock/unlock — prevent unauthorised use when the charger is not in use
-
Adjustable current — reduce the charge rate from 32A down to 6A via the app to reduce the load on the household circuit during peak usage periods
-
Solar charging (with N1 CT clamp) — automatically match charge rate to available solar surplus
-
Ocpp compatibility — supports OCPP 1.6 for integration with third-party charge management platforms
-
Voice control — compatible with Amazon Alexa and Google Assistant for hands-free session control
🇬🇧 UK Smart Charge Points Regulations 2021 — Compliant
The Wallbox Pulsar Max (software version 5.8.25 or above) is fully compliant with the UK Electrical Vehicles (Smart Charge Points) Regulations 2021. This means it meets the government's mandatory requirements for new home EV charger installations in England, Scotland, and Wales — including randomised delay on charging start, off-peak default charging, and demand-side response capability. All Pulsar Max units are supplied with firmware meeting this requirement.
Charging Speed Guide
| Vehicle Battery Size |
At 7.4kW (Pulsar Max) |
At 3.6kW |
At 2.3kW (3-pin) |
| 40 kWh (e.g. Nissan Leaf 40) |
~5.5 hrs (0–100%) |
~11 hrs |
~18 hrs |
| 60 kWh (e.g. VW ID.4, Kia EV6) |
~8 hrs (0–100%) |
~17 hrs |
~27 hrs |
| 75 kWh (e.g. Tesla Model 3 LR) |
~10 hrs (0–100%) |
~21 hrs |
~33 hrs |
| 100 kWh (e.g. Mercedes EQS) |
~14 hrs (0–100%) |
~28 hrs |
~44 hrs |
Actual charging times depend on the vehicle's on-board charger limit (many EVs accept a maximum of 7.2kW or 7.4kW single-phase), battery state, and ambient temperature. All figures are approximate.
Compatible Vehicles
The Pulsar Max's Type 2 connector is the universal standard across all current European and UK EVs and plug-in hybrids. The following (and all others with a Type 2 inlet) are compatible: Tesla Model 3, Model Y, Model S, Model X (with Type 2 home charging) · BMW i3, i4, iX, i5, iX1 · Mercedes EQA, EQB, EQC, EQE, EQS · Volkswagen ID.3, ID.4, ID.5, ID.7 · Audi e-tron, Q4 e-tron, A6 e-tron · Nissan Leaf, Ariya · Kia EV6, EV9, Niro EV · Hyundai IONIQ 5, IONIQ 6 · Renault Zoe, Megane E-Tech · Peugeot e-208, e-2008 · MINI Electric, Cooper SE · Volvo XC40, C40 Recharge · Polestar 2, 3 · MG ZS EV, MG4 · Vauxhall Corsa-e, Mokka-e · Ford Mustang Mach-E, Puma Gen-E · and all other EVs and PHEVs with a standard Type 2 charging inlet.
Technical Specifications
| Specification |
Detail |
| MPN |
PLP2-0-2-2-F-002 |
| Brand |
Wallbox |
| Model |
Pulsar Max |
| Colour |
Black |
| Charging power |
7.4kW (single-phase) |
| Rated voltage |
230V AC ± 10% |
| Rated current |
32A (1-phase) |
| Configurable current |
6A to 32A (via app) |
| Rated frequency |
50Hz / 60Hz |
| Charging mode |
Mode 3 (IEC 61851-1) |
| Connector type |
Type 2 tethered (IEC 62196-2) |
| Cable length |
5 metres |
| Input cable width |
Up to 13mm² |
| Dimensions |
198 × 201 × 99mm (without cable) |
| Weight |
1.3kg (without cable) |
| Protection rating |
IP55 (dust and water resistant) / IK10 (impact resistant) |
| Operating temperature |
-30°C to 50°C (full output to 40°C; derating may apply above 40°C) |
| Storage temperature |
-40°C to 70°C |
| Connectivity |
Wi-Fi, Bluetooth |
| Residual current protection |
6mA DC leakage protection (IEC 62955 RDC-DD) |
| Earth fault protection |
UK O-PEN (PEN fault) protection — built in |
| Energy management (included) |
Static load management |
| Energy management (optional) |
Dynamic load management, solar charging (requires external CT clamp — N1) |
| Communication protocols |
OCPP 1.6, partner API and SDK |
| Voice control |
Amazon Alexa, Google Assistant |
| LED indicator |
Halo RGB LED (6 colours, 2 flash modes) |
| Standards |
IEC 61851-1, IEC 62196-2, RED Directive 2014/53/EU, ROHS Directive 2011/65, UK Smart Charge Points Regulations 2021 |
| Warranty |
5 years (for purchases from 1 October 2025 onwards) |
Installation Requirements
The Wallbox Pulsar Max must be installed by an 18th Edition qualified electrician — this is a legal requirement under UK electrical regulations, and is also a condition of the product warranty. Installation should also meet the requirements of BS 7671:2018 and any local Distribution Network Operator (DNO) requirements for EV charger installations. Key installation notes:
-
Earthing: The Pulsar Max includes integrated UK O-PEN protection and 6mA DC RDC-DD — no external PEN fault device or Type B RCD adapter is required for most standard UK domestic PME/TN-C-S installations
-
Dedicated circuit: A dedicated 32A radial circuit from the consumer unit is required — this should not be shared with other high-load appliances
-
Cable: 6mm² (typical) twin and earth or armoured cable rated to carry 32A continuously; exact cable sizing depends on cable run length and installation method
-
MCB: A 32A Type B or Type C MCB in the consumer unit protects the charger circuit
-

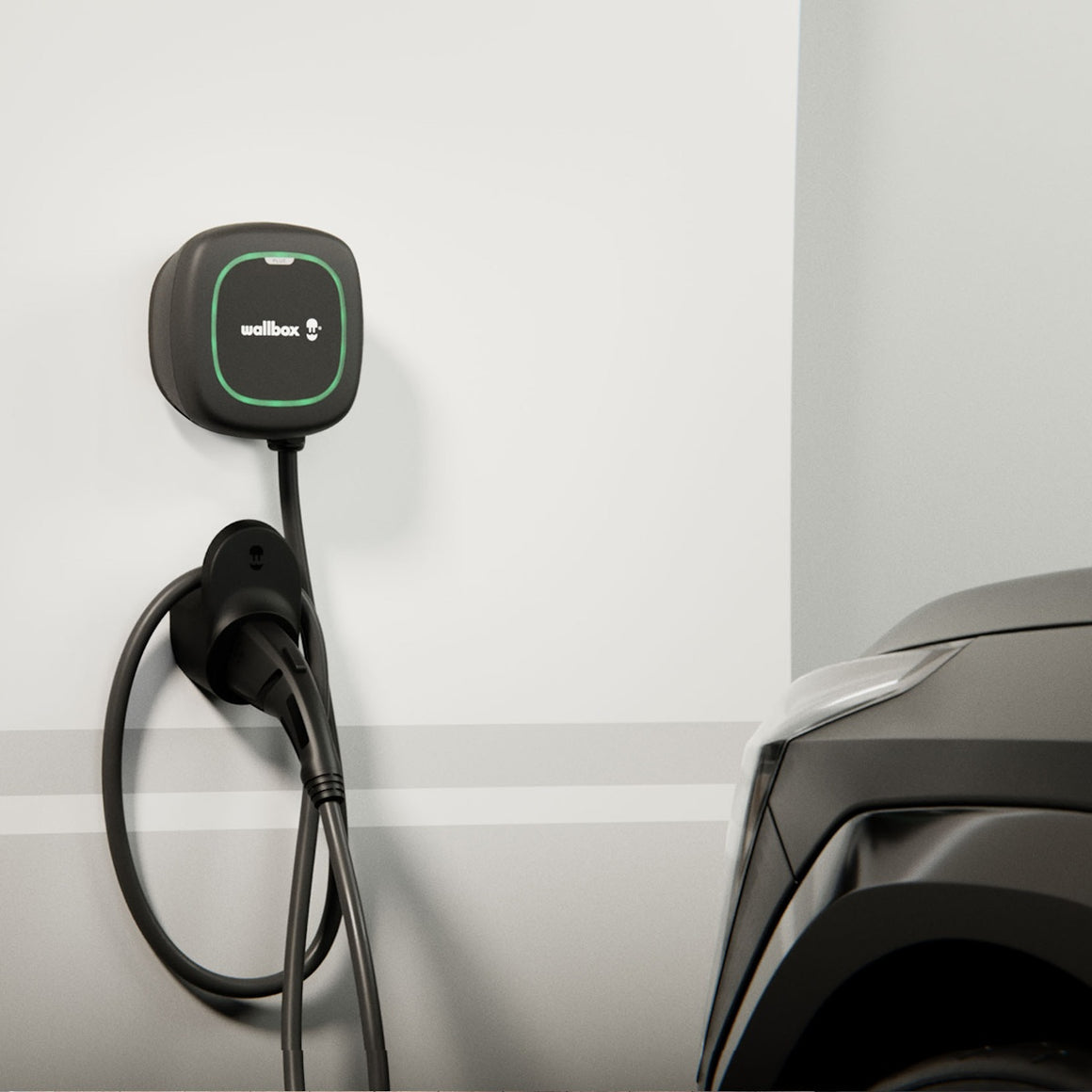

Location: IP55-rated for outdoor installation; can be wall-mounted in a garage, car port, or on an external wall
-
DNO notification: For chargers above 3.68kW on a single-phase supply, the DNO should be notified under G99/G100 (Engineering Recommendation). Your installer will manage this
💡 Solar Charging — How to Activate
To enable solar charging, order the Wallbox N1 CT clamp alongside the Pulsar Max. The CT clamp clamps around the household grid import cable and sends real-time consumption data to the Pulsar Max. The charger then adjusts its charge rate in real time — increasing when solar generation is high and the household is exporting surplus energy, and reducing when the household is drawing heavily from the grid. This maximises use of your own solar-generated electricity and minimises grid import during charging.
Frequently Asked Questions
Does this model need a separate PEN fault protection device?
No. The PLP2-0-2-2-F-002 includes integrated UK O-PEN protection — this is built into the unit and covers the PEN fault protection requirement for PME/TN-C-S earthed installations (the most common earthing arrangement in UK homes). A separate external PEN fault device is not required. Your installer should always confirm the earthing arrangement and verify suitability before installation.
Do I need a Type B RCD?
No. The Pulsar Max includes 6mA DC leakage detection (RDC-DD) compliant with IEC 62955. This satisfies the requirement for DC fault protection that would otherwise require a Type B RCD (or a Type A RCD with a DC fault adapter). A standard 30mA Type A RCD or RCBO on the supply circuit is still required to protect against AC earth faults — your installer will incorporate this in the consumer unit or distribution board.
Can I charge a Tesla with this charger?
Yes. Tesla vehicles sold in the UK and Europe use a Type 2 inlet as standard for AC home charging, and are fully compatible with the Pulsar Max's Type 2 tethered cable. Tesla Model 3, Model Y, Model S, and Model X all support up to 11kW AC charging, meaning the Pulsar Max's full 7.4kW output will be accepted and used efficiently.
Is the Pulsar Max eligible for government grants?
The OZEV homeowner grant ended for single-unit homeowners in March 2022. However, the EV Chargepoint Grant (up to £350) remains available for renters and flat/apartment owners in England, Scotland, and Wales. The Pulsar Max is an approved product for this scheme. Scottish residents may also be eligible for funding via the Energy Saving Trust. Your electrician can advise on current eligibility and will handle the application process as part of an approved installation.
What is the difference between this model (black) and PLP2-0-2-2-F-001 (white)?
The two models are identical in every technical specification — same power output, cable length, connector type, safety features, smart functions, and app compatibility. The only difference is the colour of the enclosure: PLP2-0-2-2-F-002 is Black; PLP2-0-2-2-F-001 is White. Choose based on your installation location's aesthetic preference.
My EV only accepts 7.2kW — will I lose any speed?
No meaningful difference. The Pulsar Max outputs up to 7.4kW; if your vehicle's on-board charger is rated to 7.2kW or 7.4kW, it will charge at close to the maximum rate. Some vehicles (e.g. Renault Zoe, earlier Nissan Leaf) have lower on-board charger limits — in those cases the vehicle itself limits the charge rate regardless of the charger's capability, and the Pulsar Max adapts automatically.
