The Solis 6kW Hybrid 5G Inverter (S5-EH1P6K-L / RHI-6K-48ES-5G, part no. SOL-6K-RHI-48ES-5G-DC) is the highest-output single-phase model in the Solis RHI-5G series, rated at 6,000W AC grid output — the maximum permitted for a single-phase inverter on a UK domestic supply. It is designed for properties with large south-facing roofs, high electricity consumption (EV chargers, heat pumps, immersion heaters), or those seeking maximum generation to export on SEG tariffs. The 6kW is uniquely supplied with a 25mm² battery cable (pre-terminated with M8 lugs) to match its full 100A charge/discharge capability — where the 3.6kW and 5kW come with a lighter 6AWG cable. Like all RHI-5G models: fanless, IP65, 7-inch colour LCD, integrated DC switch, 2 MPPT, 600V DC PV input, SolisCloud monitoring. G99 DNO approval required before grid connection. CE, UKCA, TÜV SÜD certified.
6 kW
Rated output
100A batt.
Charge/discharge
2 MPPT
600V DC
97.5%
Peak efficiency
G99
Prior DNO approval
25mm²
Battery cable incl.
⚠ G99 DNO approval required before grid connection: The 6kW output exceeds the G98 threshold. Submit a G99 application to your DNO and receive approval before connection. Allow 6 – 12 weeks for DNO review. Some DNOs may require a site survey or additional protection relays at 6kW. Confirm with your DNO before ordering.
ℹ 25mm² battery cable supplied with the 6kW: Unlike the 3.6kW and 5kW models (which come with 6AWG / 13.3mm² cable), the 6kW inverter is supplied with a 25mm² battery cable pre-terminated with M8 lugs. This cable is suitable for direct connection to Pylontech and similar batteries without the need for a separate Pylontech DC cable pack. The inverter can charge and discharge at 100A, which at 51.2V corresponds to approximately 5.12kW of battery throughput.
⚠ Not suitable for lead-acid or lead-carbon batteries: The Solis RHI-5G / S5-EH1P series is designed for lithium-ion (48V LFP) batteries only. Lead-acid and lead-carbon batteries are not supported and will not be covered under warranty. Confirmed compatible batteries include Pylontech US2000C/US3000C/US5000/UP5000, Dyness DL5.0C / DL5.0C Pro, BYD B-BOX Premium LVL, and others — see Solis compatibility list.
ℹ Eastron SDM630 meter included: Solis supply a 3-phase Eastron SDM630 energy meter in the box with all EH1P single-phase inverters. Despite showing three-phase wiring in the manual, this meter can be used in single-phase installations. Use the separate single-phase wiring guide supplement — not the main manual schematic.
How the 6kW Sits in the Solis RHI-5G Range
Model
Rated output
Backup port
Battery cable
DNO route
Best for
3.6kW
3,600W
3,000W
6AWG (13.3mm²)
G98
Domestic; G98 simplicity
5kW
5,000W
5,000W
6AWG (13.3mm²)
G99
Larger homes; max backup
★ 6kW (this product)
6,000W
5,000W
25mm² (M8 lugs) included
G99
Largest PV arrays; max generation; high-consumption homes
All three models share 100A battery charge/discharge current, 2 MPPT, 600V DC, fanless IP65 build, 7-inch LCD and SolisCloud monitoring.
Key Features
97.5% Peak Efficiency — Non-Isolated Topology

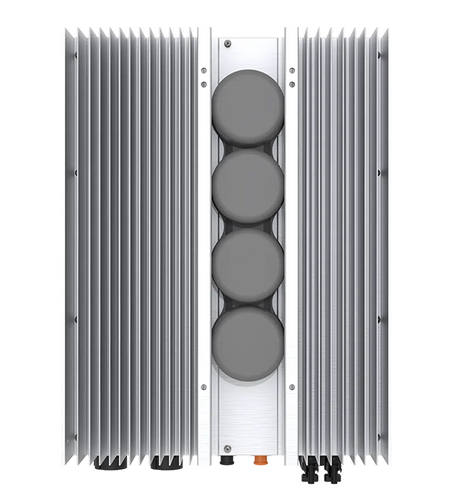

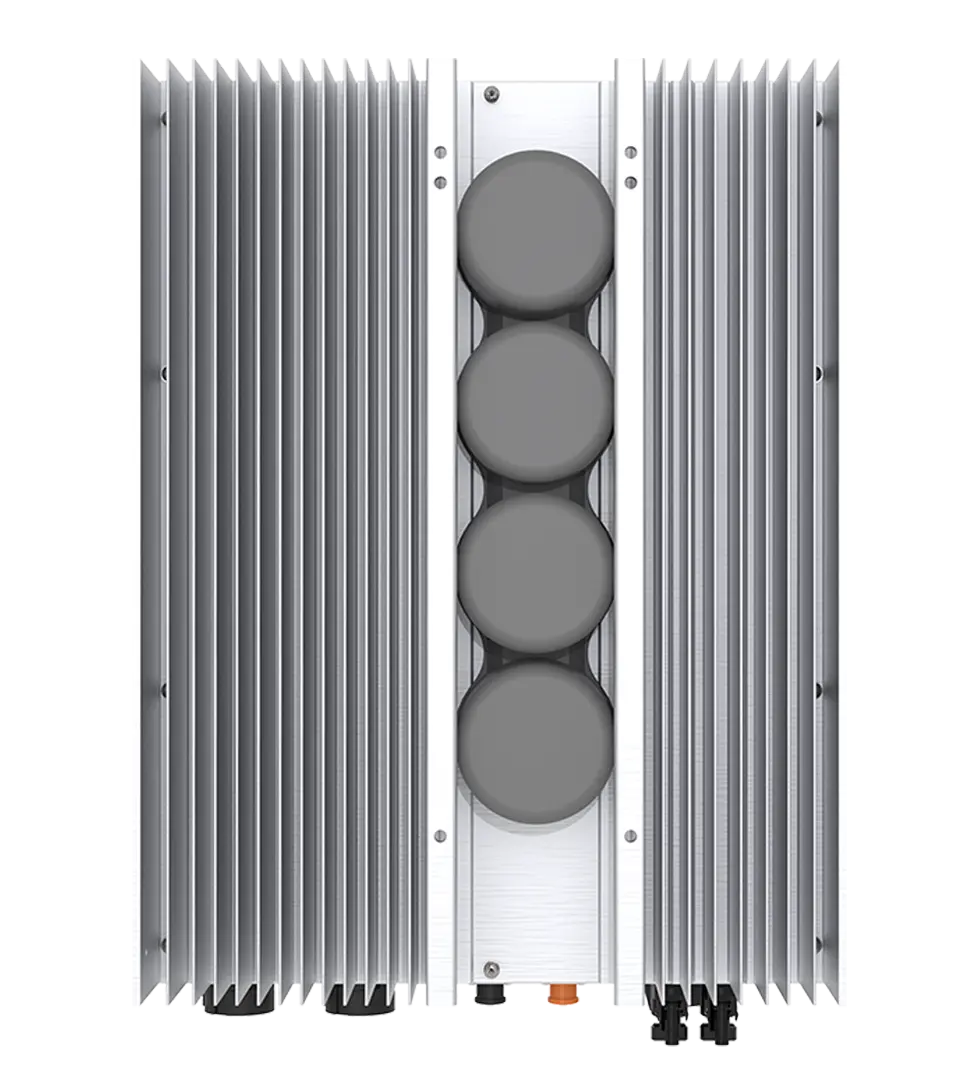

The RHI-5G achieves 97.5% peak conversion efficiency. Non-isolated (transformerless) topology eliminates the transformer losses of older inverter designs, contributing to higher efficiency and lower heat output. Fanless passive cooling means no moving parts, no fan noise, and no fan failure mode — the entire front face acts as a heatsink.

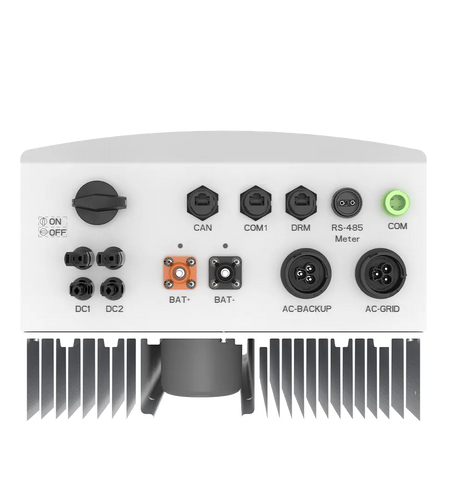

All three models include an integrated DC isolator switch on the unit. This satisfies MCS and BS 7671 requirements for a means of isolation between the PV array and the inverter, eliminating the need for a separate external DC isolator on the PV side. The switch is accessible from the front of the unit without removing any covers.
Integrated DC switchMCS-compliant isolation
Three Operating Modes — Self-consumption, Timed and Backup
Self-consumption mode (default): PV powers the loads directly; surplus charges the battery; battery discharges to loads when PV is insufficient; grid supplies any remaining demand. Timed charge/discharge mode: set specific time windows for the battery to charge from the grid (e.g. overnight on Octopus Go or Agile tariff) and discharge during peak-rate periods. Backup mode: the battery is reserved for power cuts; the backup port supplies critical loads within 20 ms of grid loss.
The inverter has a dedicated AC backup port that switches in under 20 ms when grid power is lost — fast enough that most modern electronics (routers, NAS drives, computers) do not detect the interruption. The backup port is entirely separate from the grid output: the backup port must not be connected to the grid. It should feed a sub-consumer unit with only the critical loads (fridge, lighting, router, EV charger, heat pump controller) that must remain live during a power cut.
Backup port <20msSeparate from grid portDo NOT connect to grid
7-Inch Colour LCD — On-Unit Monitoring Without App

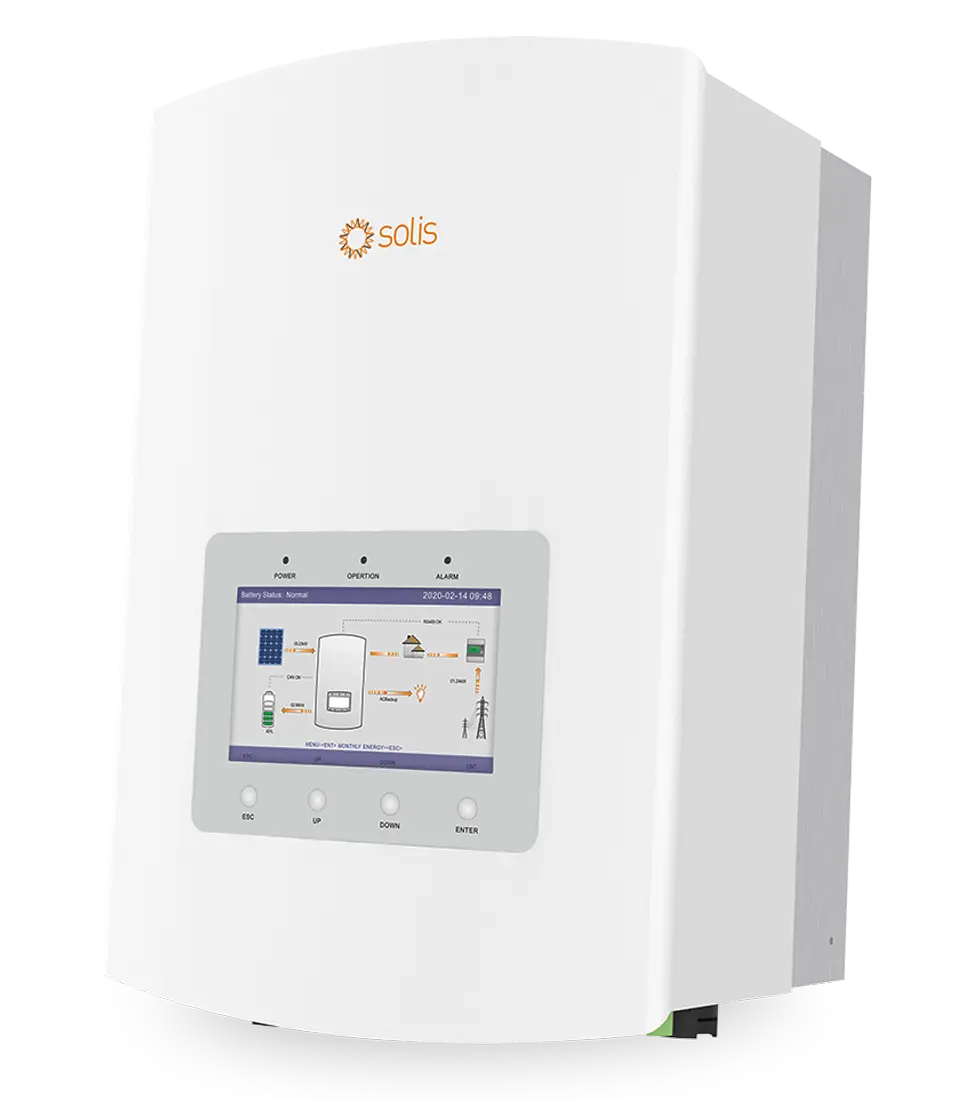

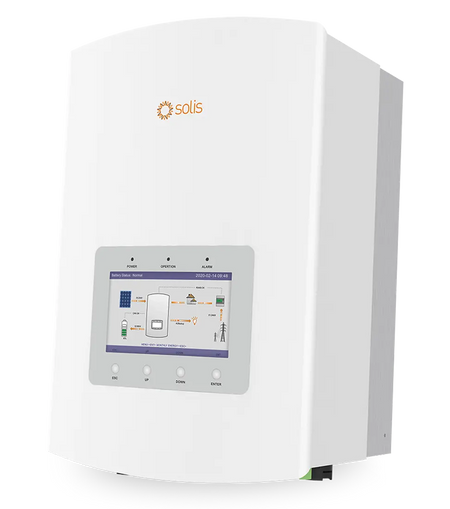

The front panel features a 7-inch full-colour TFT display showing real-time PV input power, battery state of charge, grid import/export, load demand, and system status. All operating mode settings and parameters are configured via the four-key pad (ESC, UP, DOWN, ENTER) directly on the inverter — no app, phone or internet connection required for commissioning or adjustment. Particularly useful during installation when WiFi is not yet connected.
SolisCloud WiFi Monitoring — Remote Control and OTA Updates
Connect the inverter to the home WiFi network (via optional WiFi dongle or built-in, depending on variant) to access SolisCloud: Solis’ monitoring platform available via browser and app. SolisCloud provides real-time and historical energy data, operating mode changes remotely, and over-the-air (OTA) firmware updates pushed by Solis. Installers can access customer systems remotely for diagnosis and parameter adjustment.
SolisCloud monitoringRemote controlOTA firmware
2 MPPT Trackers — 600 V DC, 90 – 520 V MPPT Range
Two independent MPPT trackers allow panels on two separate strings at different orientations or inclinations to be optimised independently. A south-facing string and an east/west-facing string can be connected without one string dragging down the other. The 90 – 520 V MPPT operating range and 600 V maximum input voltage accommodate long strings from modern high-voltage panels. MC4 connectors; PV wire 2.5 – 4 mm².
2 independent MPPT600V DC max90–520V MPPT rangeMC4 connectors
48V Low-Voltage Battery — Compatible with Pylontech, Dyness, BYD and More
The 42 – 58 V DC battery input is the industry-standard low-voltage (48V class) connection, compatible with the widest range of residential lithium battery modules. Communication is via CAN bus or RS485 to the battery BMS. The inverter reads cell voltages, temperatures and SoC directly from the BMS for accurate charge management. Confirmed compatible brands include Pylontech US2000C/US3000C/US5000/UP5000, Dyness DL5.0C/DL5.0C Pro, BYD B-BOX Premium LVL and many others — consult the Solis compatibility list for the full register.
Separate sub-consumer unit (must NOT connect to grid)
Battery
Battery type
Li-ion (lithium) — not suitable for lead-acid
Battery voltage range
42 – 58 V DC (48V class)
Max charge / discharge current
100 A DC each
BMS communication
CAN / RS485
DC breaker required
>125 A between inverter and battery (not included)
Additional — 6kW Specific
Battery cable supplied
25mm², pre-terminated with M8 lugs
Max output current (grid)
29A (S5-EH1P6K-L) / 26.1A (RHI-6K-48ES-5G)
General
Phase
Single-phase
AC rated voltage (input)
230 V AC, 50 Hz
Efficiency
97.5 % peak
Inverter topology
Non-isolated (transformerless)
Cooling
Fanless passive (heatsink)
Ingress protection
IP65
Operating temperature
−25°C to +60°C
Protective class
Class I
Weight
20.5 kg (approx.)
Display
7-inch colour LCD
Controls
ESC / UP / DOWN / ENTER keypad
Operating modes
Self-consumption, Timed charge/discharge, Backup
Monitoring
SolisCloud (WiFi) — OTA firmware updates
Integrated DC switch
Yes
Standards and Certifications
Safety
IEC/EN 62109-1 & -2, BS EN 62109-1 & -2 (UK)
Grid
EN 50549-1, IEC 61727, IEC 62116
EMC
EN IEC 61000 series, EN 55011
Approvals
CE, UKCA, TÜV SÜD
In the Box
Included
Solis hybrid inverter with integrated DC switch, Eastron SDM630 energy meter, battery power cable (6AWG/13.3mm²), MC4 PV connectors, AC connector, documentation
Frequently Asked Questions
What is the difference between the RHI-5G and the S5-EH1P model numbers?
They are the same inverter. The RHI-3.6K-48ES-5G / RHI-5K-48ES-5G / RHI-6K-48ES-5G are the original Solis model numbers. The S5-EH1P3.6K-L / S5-EH1P5K-L / S5-EH1P6K-L are the updated designations used on the current production hardware (5th generation, ‘EH1P’ = single-phase energy hybrid). Both model strings appear on the TÜV SÜD certification and the Solis manual. The S5 variant has slightly higher PV input current ratings (2 × 15A vs 2 × 11A) and higher Isc tolerance, but is otherwise electrically equivalent. Solis supply the current S5 hardware against both part numbers.
Can I use this inverter with Pylontech batteries?
Yes. Pylontech US2000C, US3000C, US5000 and UP5000 are all on the Solis compatibility list for the RHI-5G / S5-EH1P series. Communication is via the RS485/CAN port using the Pylontech BMS cable. Important: the standard 6AWG battery cable supplied with the 3.6kW and 5kW inverters is not suitable for connecting Pylontech batteries directly — Pylontech recommend 25mm² cable to their terminal specification. Use the Pylontech DC cable pack (sold separately) when pairing with Pylontech batteries. The 6kW inverter comes supplied with 25mm² cable.
Does this inverter need G98 or G99 DNO notification?
For a single inverter rated up to 3.68kW AC output, G98 notification applies: the installer submits notification to the DNO within 28 days after commissioning. For inverters with AC output exceeding 3.68kW (i.e. the 5kW and 6kW models), G99 approval is required before connecting to the grid. G99 involves submitting an application to the DNO and receiving approval, which can take 6 – 12 weeks. Always confirm with your DNO before ordering and installing a 5kW or 6kW inverter. The 3.6kW model falls under G98 for most domestic single-phase installations.
Can the backup port supply my entire house during a power cut?
Only if your house load is within the backup port’s rated output power (3kW for the 3.6kW model; 5kW for the 5kW and 6kW models). In practice, the backup port is intended for critical loads only: fridge, lighting, router, phone charging, a heat pump controller, and similar low-draw circuits. High-power appliances (electric shower, oven, kettle, immersion heater) will overload the port. The backup port must be wired to a separate sub-consumer unit that is electrically isolated from the main grid consumer unit. This is a dedicated installation task — not plug-and-play.
What is the Eastron SDM630 meter included in the box for?
The SDM630 is a generation/import/export energy meter that measures the power flowing between the inverter system and the grid. The inverter uses this data to calculate how much energy is being imported from or exported to the grid, and to make decisions about when to charge or discharge the battery. It is also used for SolisCloud monitoring to display grid import/export data. Although the SDM630 is a three-phase meter, Solis have confirmed it can be used in single-phase installations using the single-phase wiring supplement — do not follow the meter wiring diagram in the main manual.
Can I add more battery modules later?
Yes, within the limits of the inverter’s maximum charge/discharge current (100A DC). At 51.2V nominal, 100A corresponds to approximately 5.12kW of battery power. Add battery modules in parallel according to the battery manufacturer’s guidance (same SoC, same chemistry, same generation). The inverter communicates with the battery bank via a single BMS master connection; the battery’s internal BMS handles multi-unit balancing. There is no inverter firmware change required when adding batteries — but always re-verify SoC calibration after expanding the bank.
