Solis Energy Storage 5kW Hybrid 5G Inverter with DC Switch
Couldn't load pickup availability
Payment details
Solis Energy Storage 5kW Hybrid 5G Inverter with DC Switch
Product Description

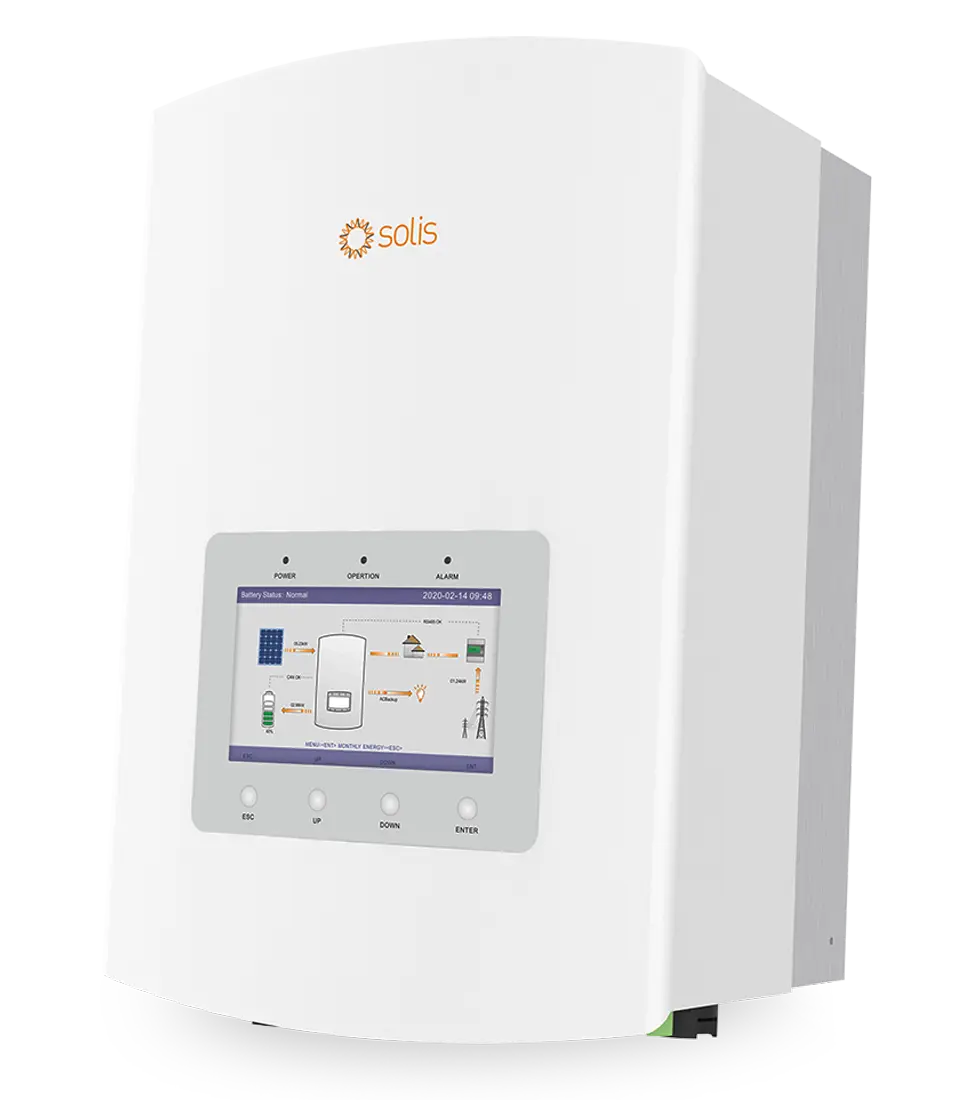

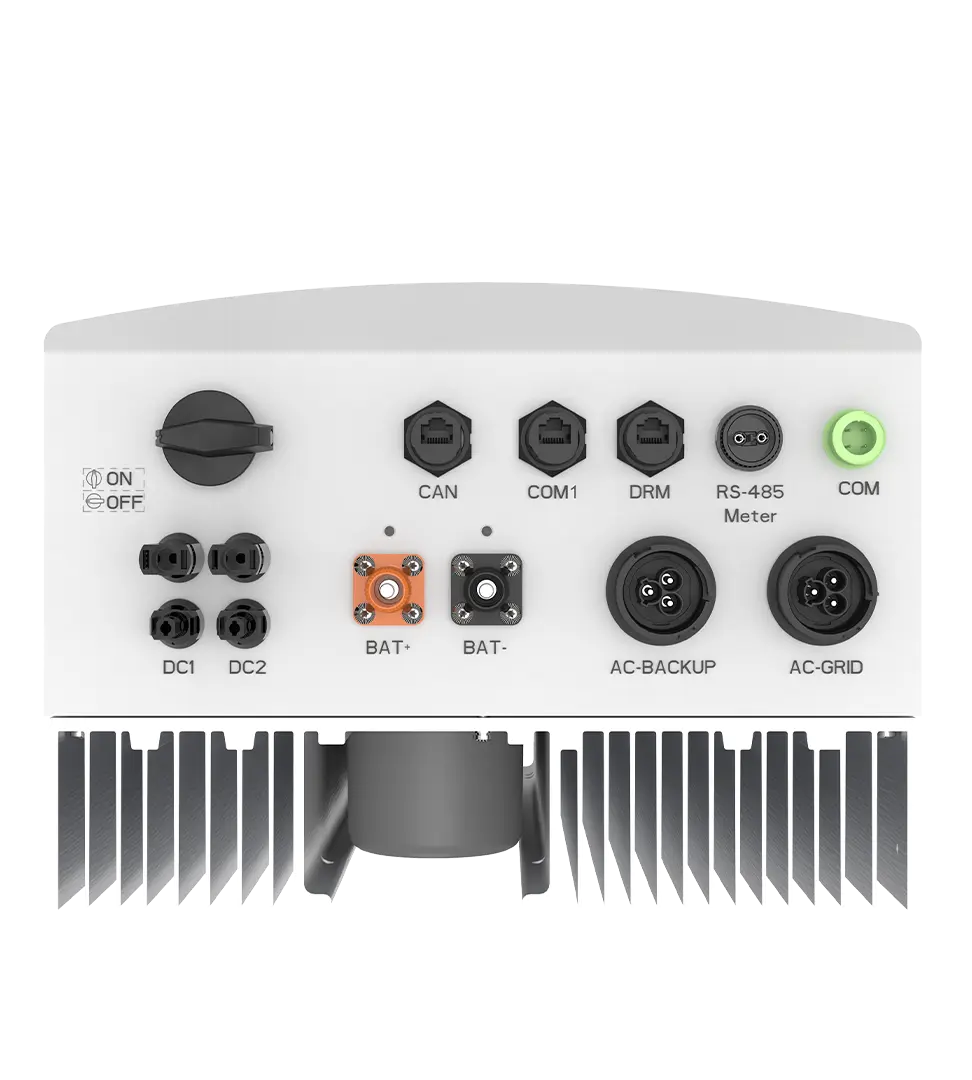

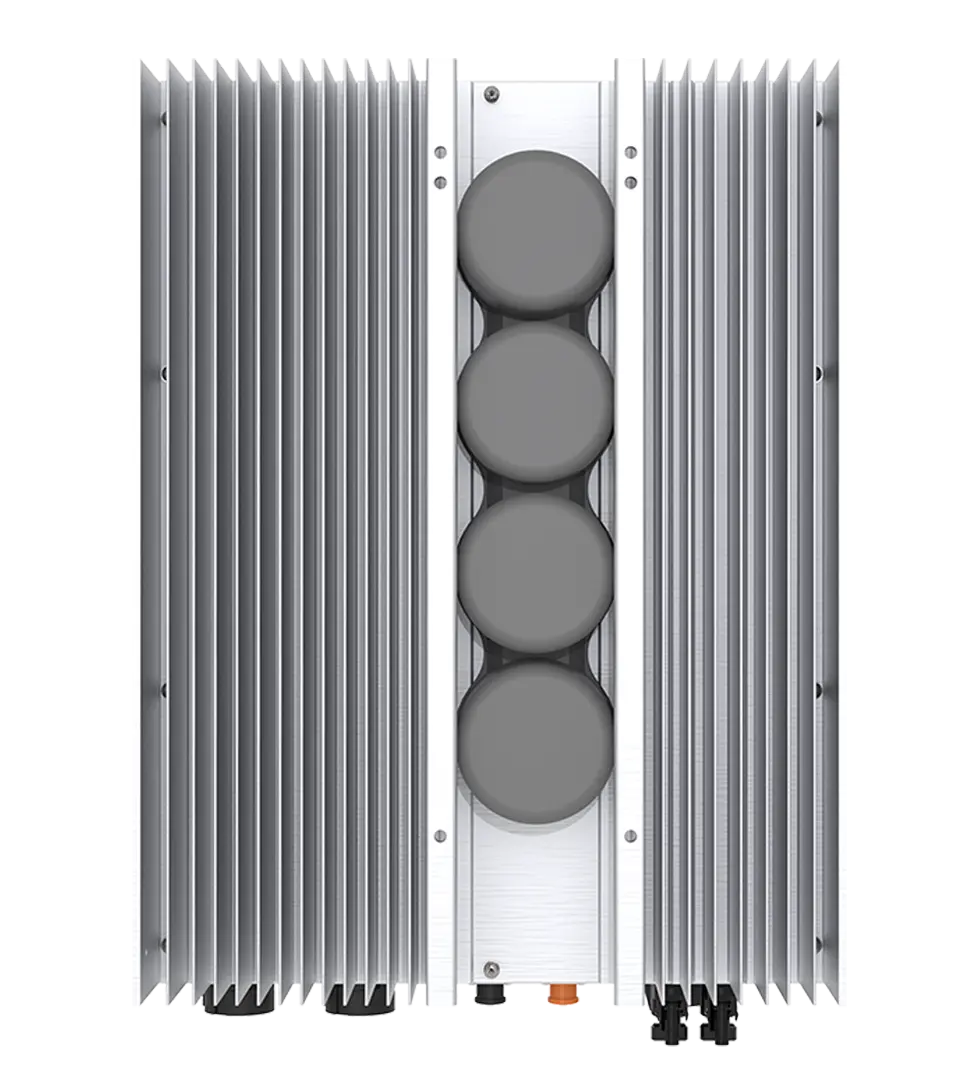

The Solis Energy Storage 5kW Hybrid 5G Inverter with DC Switch is a high-performance hybrid inverter designed for modern solar and battery storage systems. It integrates solar generation, battery storage, and grid connectivity for smooth and efficient energy management in residential or small business settings.
- Hybrid Inverter: Seamlessly combines solar, battery, and grid power for maximum self-consumption and backup capability.
- Dual MPPT: Optimizes solar energy harvest from arrays with different orientations.
- High Charge/Discharge Efficiency: Minimizes energy losses and maximizes usable solar power.
- Intelligent BMS: Monitors and protects your battery for longer lifespan and safety.
- Multiple Operating Modes: Enables flexible management of generation and storage for self-consumption, time-of-use optimization, backup, or export.
- Fanless, IP65 Design: Silent operation, weatherproof, and suitable for both indoor and outdoor installations.
- Fast Switching: Delivers backup power to essential loads in less than 20ms during grid outages.
- Remote Monitoring & Updates: Supports WiFi-based remote control and firmware upgrades.
Key Technical Specifications
| Rated Power Output | 5kW |
| Max PV Input Power | 8,000W |
| Max PV Input Voltage | 600V |
| Battery Voltage Range | 48V |
| MPPT Efficiency | 99.9% |
| Number of MPPT | 2 |
| AC Output Voltage | 230V (Single Phase) |
| Max Charge/Discharge Current | Up to 100A |
| Switch-Over Time (Backup) | < 20ms |
| Operating Temperature | -25°C – 60°C |
| Protection Rating | IP65 |
| Dimensions (H x W x D) | 505 x 333 x 249 mm |
| Weight | 21.5 kg |
| Connector Type | MC4 |
Applications
- Residential homes requiring smart solar and battery integration
- Small businesses looking for backup power and energy independence
- Single-phase, grid-tied, or hybrid off-grid solar systems
What's Included?
- 1 x Solis 5kW Hybrid 5G Inverter
- 1 x Integrated DC Switch
- 1 x WiFi Monitoring Device
- User Manual
- Mounting Bracket Kit and Cable Set
Why Choose Solis 5kW Hybrid 5G?
- Maximizes solar self-consumption and reduces reliance
- Type Solar
- Vendor Solis
- SKU S5-EH1P5K-L
