Haier 10.5kW Round Flow Cassette Air Conditioner Kit – 360° Ceiling Cassette, 10.5kW Outdoor Condensing Unit & Wall Controller

Haier 10.5kW Round Flow Cassette Air Conditioner Kit – 360° Ceiling Cassette, 10.5kW Outdoor Condensing Unit & Wall Controller (R32) is a powerful, inverter-driven commercial air-to-air heat pump solution for larger offices, retail areas, restaurants, hotels and open-plan workspaces. The kit combines a Haier Round Flow Cassette with 360° discharge, a matching 10.5kW R32 outdoor unit and a Haier HW‑SA201ABK wall‑mounted touch controller to deliver quiet, even and efficient cooling and heating across the whole room.

This Haier round flow cassette system uses R32 refrigerant and must be installed, commissioned and serviced by a qualified F-Gas certified air conditioning or refrigeration engineer in accordance with current UK F-Gas regulations.

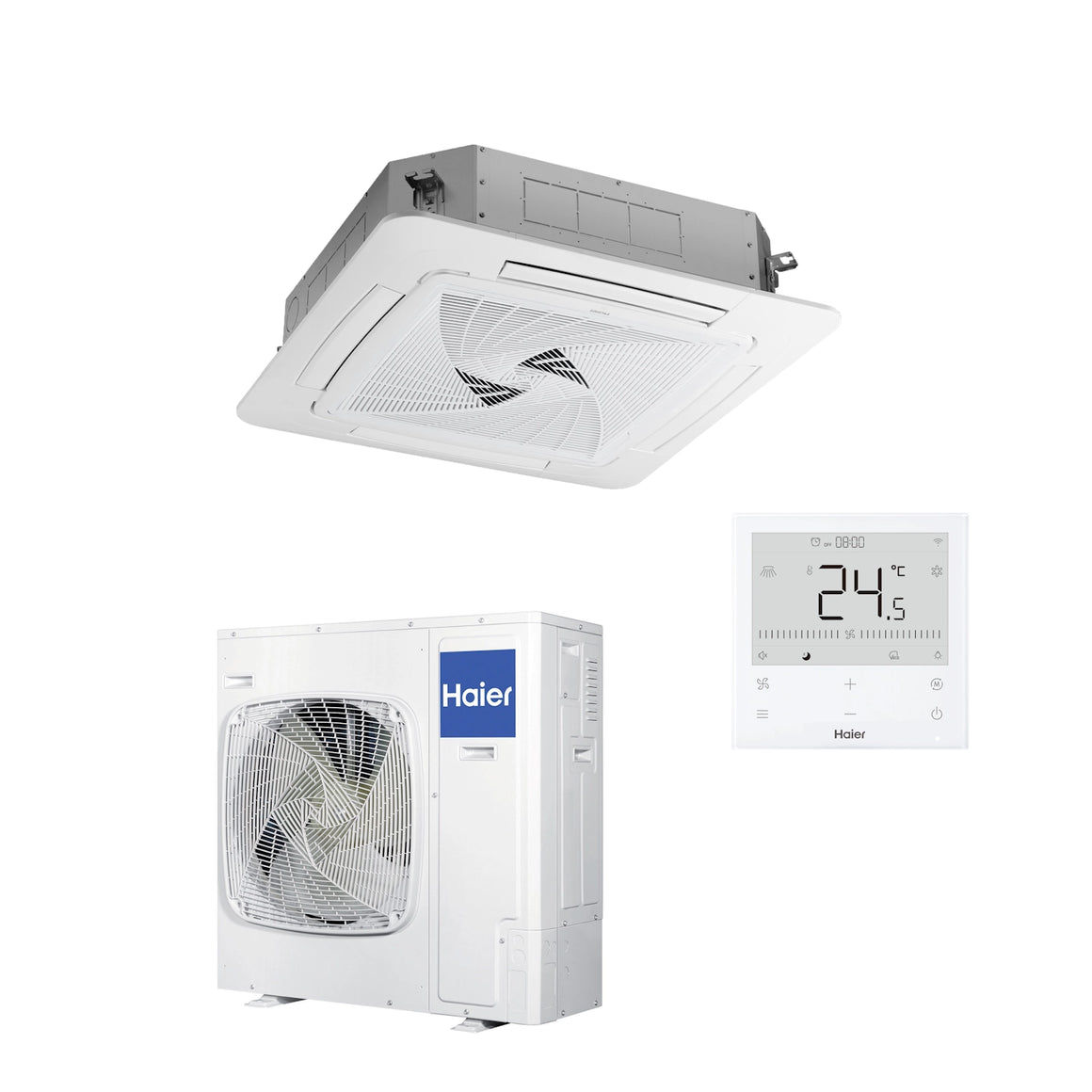

Kit Components

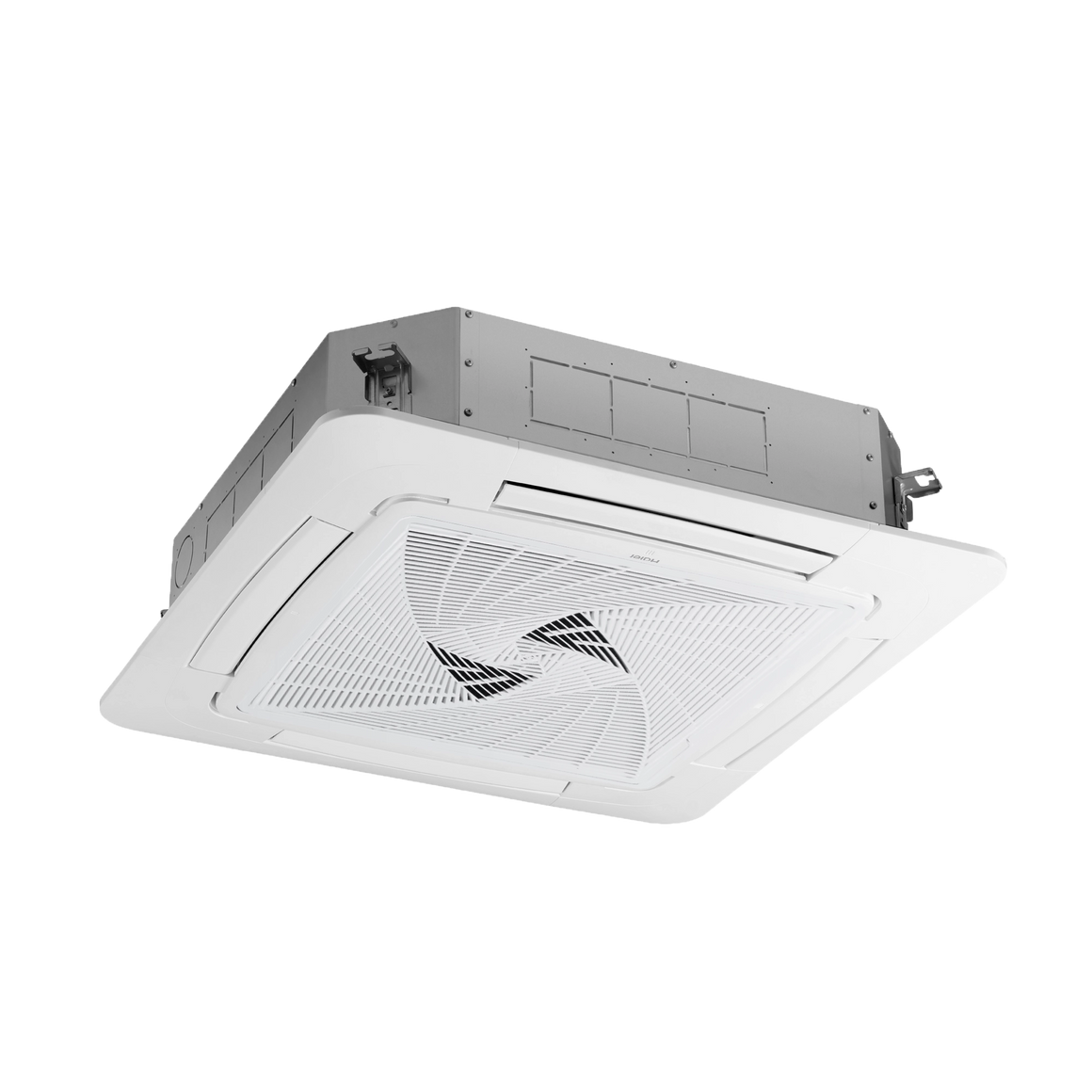

• Indoor cassette unit: Haier Round Flow Cassette indoor unit in the 10.5kW class (AB105S2SR1FA(H) series) with PB‑950QB(H) round flow panel.

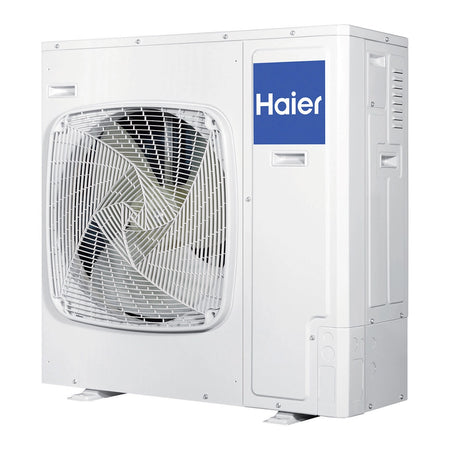

• Outdoor condensing unit: Matching 10.5kW R32 inverter outdoor unit from the Round Flow Cassette Monosplit range (1U105S2SS2FA / 1U105S2SQ1FA or equivalent 10.5kW model, depending on configuration).
• Controller: Haier HW‑SA201ABK ultra‑slim wall‑mounted touch screen controller for local and group control.

Key Features – 10.5kW Round Flow Cassette & Outdoor Unit

• Approx. 10.5kW cooling and 10–10.5kW heating output class – suited to larger commercial rooms, open-plan offices, restaurants and retail sales floors.
• 360° round flow, 8‑way airflow design with four independent directions, providing a +23% increase in air distribution area compared with traditional 4‑way cassettes and reducing hot/cold spots.
• Fresh Air function with factory knock‑out in the chassis to introduce up to around 20% fresh air without significantly compromising cooling capacity.
• Very low noise levels for its class thanks to optimised fan design; suitable for customer‑facing areas and open‑plan offices where comfort and noise are critical.
• High seasonal efficiency with SEER values up to A++ and SCOP up to A+ across the Round Flow Cassette range, helping to cut electricity consumption and running costs.
• Wide operating range with cooling operation typically from -20°C to +46°C outdoor and heating down to around -20°C, allowing reliable UK year‑round performance.
• R32 refrigerant and twin rotary inverter compressor for stable modulation, fast pull‑down and efficient part‑load operation.
• Integrated condensate pump and compact chassis (840 x 840 mm body with 950 x 950 mm panel) to fit within standard ceiling grids and shallow voids.

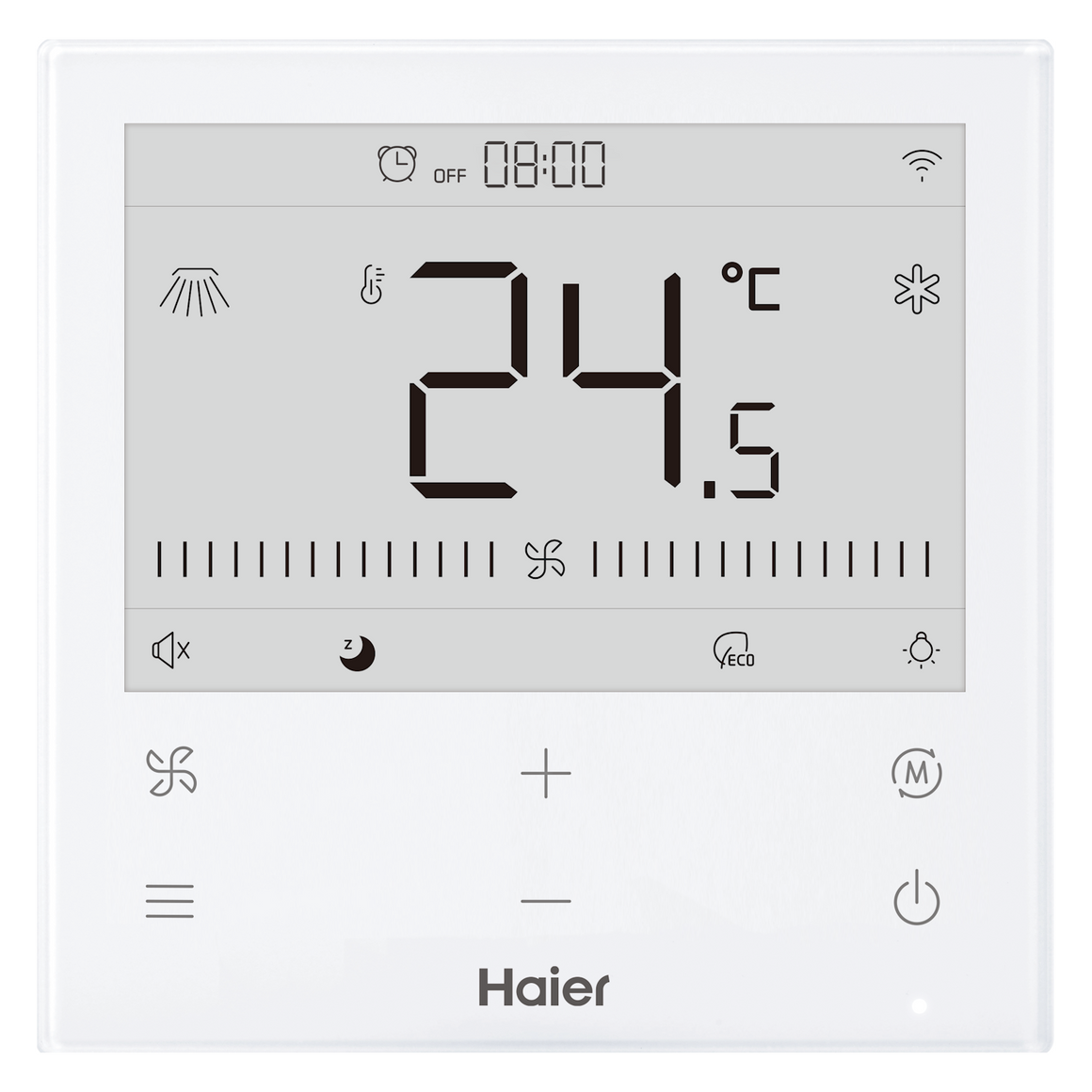

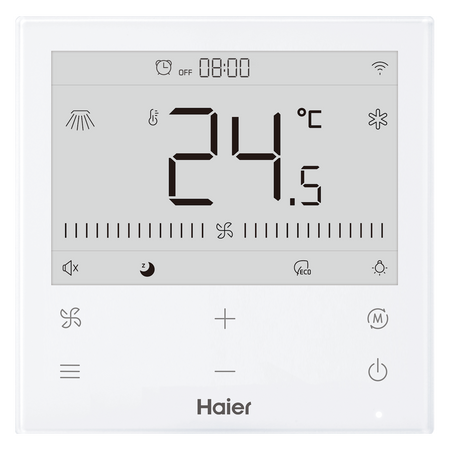

HW‑SA201ABK Wall Controller Features

• Ultra‑slim, modern touch screen design that complements UK commercial interiors and front‑of‑house spaces.
• Centralised control for up to 16 compatible indoor units (Supermatch and MRV ranges), making it ideal for multi‑room or multi‑zone commercial systems.
• Comprehensive function set including on/off, operating mode (cooling, heating, fan, auto), temperature setpoint, fan speed, louvre options and time/weekly scheduling.
• User‑friendly interface with clear icons and simple navigation for facilities managers and everyday users.

Why Choose This Haier 10.5kW Round Flow Cassette Kit?

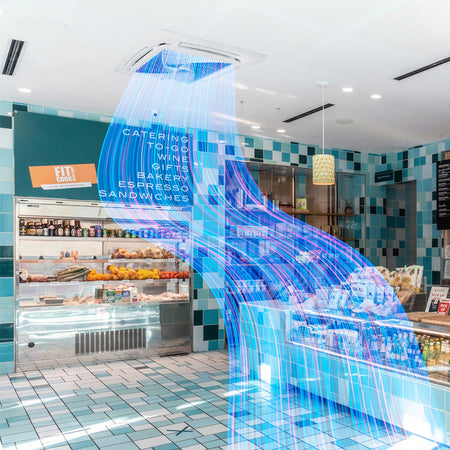

• Full coverage 360° airflow – ideal for UK offices, shops and hospitality where even temperature and comfort across the whole room are essential.
• Energy‑efficient commercial cooling and heating – inverter R32 heat pump technology and strong seasonal efficiency ratings help reduce carbon footprint and energy bills.
• Discreet ceiling installation – round flow cassette sits flush in a suspended ceiling, freeing wall space and giving a clean, modern look.
• Flexible control – HW‑SA201ABK provides local room control and group control options, aiding zoning and time‑of‑use optimisation around UK business hours.
• Suitable for a wide range of UK commercial applications – from offices and meeting rooms to restaurants, showrooms, salons, classrooms and reception areas.

Important Installation Information

• Supplied as separate indoor round flow cassette with panel, outdoor condensing unit and wired wall controller; requires fixed refrigerant pipework and interconnecting power and control wiring.
• Typical 10.5kW Round Flow Cassette configurations use 3/8" liquid and 5/8" gas refrigerant pipes, with standard charged pipe length around 10–30 m and up to 50 m maximum run (check Haier design limits for the specific model).
• Installation, commissioning and servicing must be carried out by an F-Gas certified engineer in accordance with Haier installation instructions and all relevant UK building, electrical and F‑Gas regulations.
