Current Transformer for Solis 4G, 5G and S6 range 100A 10m

The Current Transformer for Solis 4G, 5G and S6 range 100A 10m is a split-core AC current sensor designed for precise monitoring in solar PV systems, compatible with Solis 4G, 5G, and S6 inverters for accurate current measurement and grid compliance.

Product Description

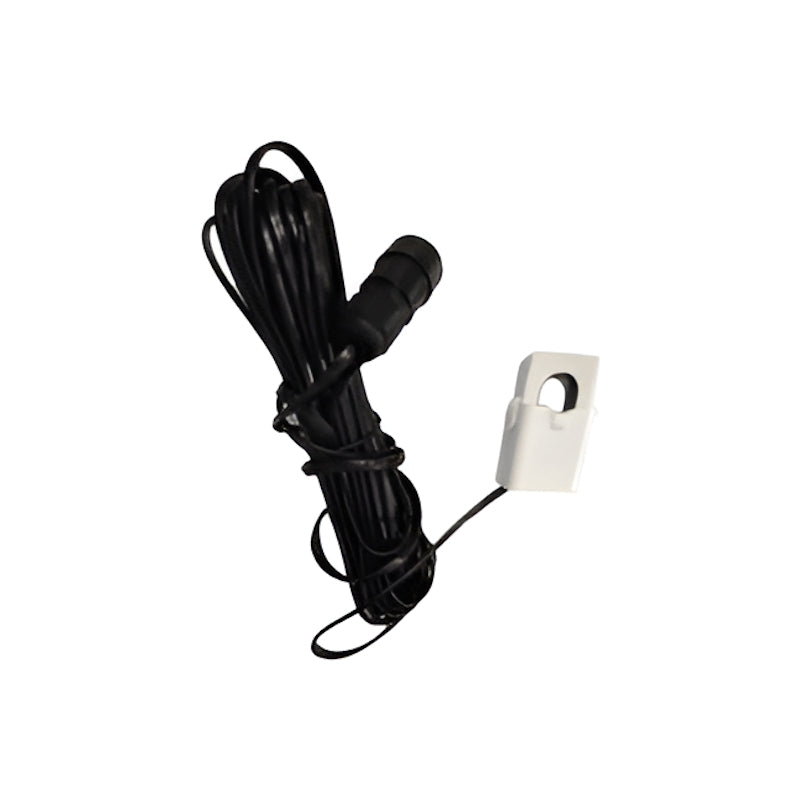

This 100A split-core current transformer (CT) features a 10m fly lead for extended reach, allowing non-invasive installation without disconnecting cables. It is specifically engineered for use with Solis inverters to enable export power management, energy metering, and system optimization. With high accuracy and durable construction, it supports zero-export or limited-export configurations in residential and small commercial PV setups.

Key Features

• Split-core design: Easy clip-on installation without wiring disruption.
• 10m fly lead: Extended cable for flexible placement and connection.
• High accuracy: ±1% typical, suitable for metering and control.
• Solis compatible: Optimized for Solis 4G, 5G, and S6 series inverters and EPM devices.
• Robust and reliable: Frequency 50-60Hz, durable for long-term use.

Technical Specifications

• Model: SOL-CT-100A-10M – Current Transformer 100A with 10m Fly Lead.
• Rated current: 100A primary / 5A secondary.
• Accuracy class: ±1% (20%-120% rated current).
• Frequency: 50-60 Hz.
• Inner diameter: 16 mm or similar (model specific).
• Cable length: 10 m.

Dimensions & Weights

• Inner hole diameter: 16 mm.
• Fly lead length: 10 m.
• Weight: ~0.2 kg.

System & Application Notes

• Ideal for Solis inverters in export limitation and monitoring applications.
• Clip around live conductor for non-intrusive current sensing.
• Compatible with energy management systems and grid compliance setups.
• Installation by qualified electricians; ensure correct polarity and secure mounting.
• Suitable for indoor/outdoor use depending on enclosure.
