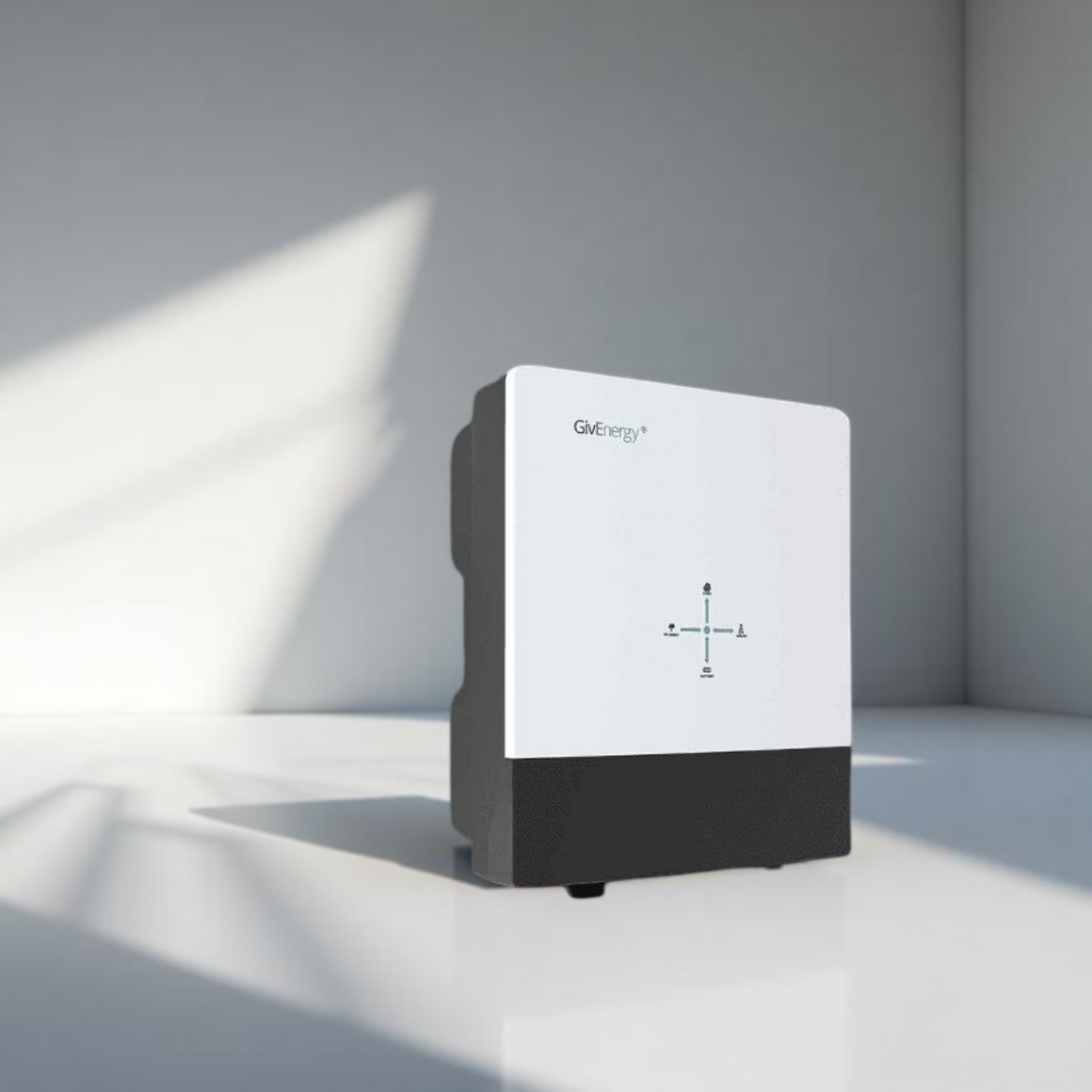

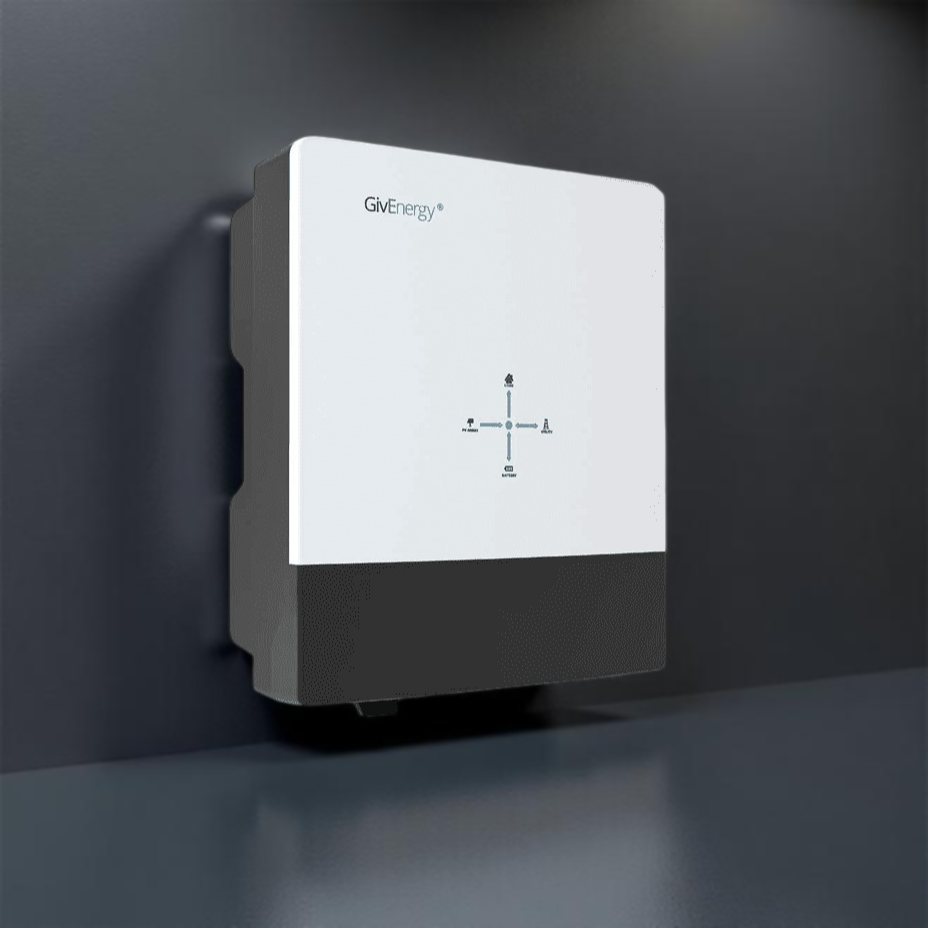

GivEnergy 1PH Hybrid Inverter 5.0kW 3rd Generation – With Bonding Kit

GivEnergy 1PH Hybrid Inverter 5.0kW 3rd Generation – With Bonding Kit

The GivEnergy 1PH Hybrid Inverter 5.0kW Gen 3 is a versatile all-in-one inverter designed for seamless integration with both solar PV arrays and battery storage. This third-generation hybrid model offers installer-friendly design, built-in WiFi and LAN connectivity, and advanced energy management to maximise self-consumption and savings. This Hybrid Inverter intelligently stores excess solar energy in batteries and supplies backup power during outages, all while supporting flexible tariff management.

Key Features

• Nominal AC Output Power: 5000W
• Max. PV Input Power: 7,500W
• Max. Output Current: 21.7A
• Max. Input Current (per string): 15A
• Max. Short Circuit Current (per string): 20A
• No. of MPPTs: 2
• MPPT Voltage Range: 120–550V
• Max. PV Voltage: 580V
• Start-up Voltage: 150V
• Battery Compatibility: LiFePO4 (45–58V)
• Max. Charge/Discharge Power: 3,300W / 3,600W
• Charge/Discharge Current: 65A / 81A
• Backup Output (EPS): 5kW (solar + battery), 3.6kW (battery only)
• Automatic Switch Time (EPS): 10ms
• Nominal Voltage: 230V AC
• Frequency: 50Hz
• Power Factor: >0.99 (full load)
• THDv (Linear Load): <3%
• Max. Efficiency: 97.6%
• Charge/Discharge Efficiency: 94% / 94%
• IP Rating: IP65 (indoor/outdoor use)
• Weight: 32 kg
• Dimensions (HxWxD): 588 × 480 × 214 mm
• WiFi & LAN: Built-in
• Warranty: 12 years (extendable)

Technical Specifications

• Phases: Single phase
• Max. Apparent Power Output to Grid: 5,000VA
• Operating Temperature Range: -25°C to +60°C
• Relative Humidity: 0–100%
• Altitude: up to 4000m (derating above 2000m)
• Display: LED indicators & online monitoring
• Communications: RS485, WiFi, LAN
• SPD: Not inbuilt – must be offered by installer
• Certifications: G98, G100, EN50549, IEC 62109-1/2, UKCA, CE

Note: The GivEnergy Gen 3 Hybrid Inverter is suitable for both new installations and retrofits, and is compatible with GivEnergy batteries and most modern PV panels. Professional installation is recommended.
