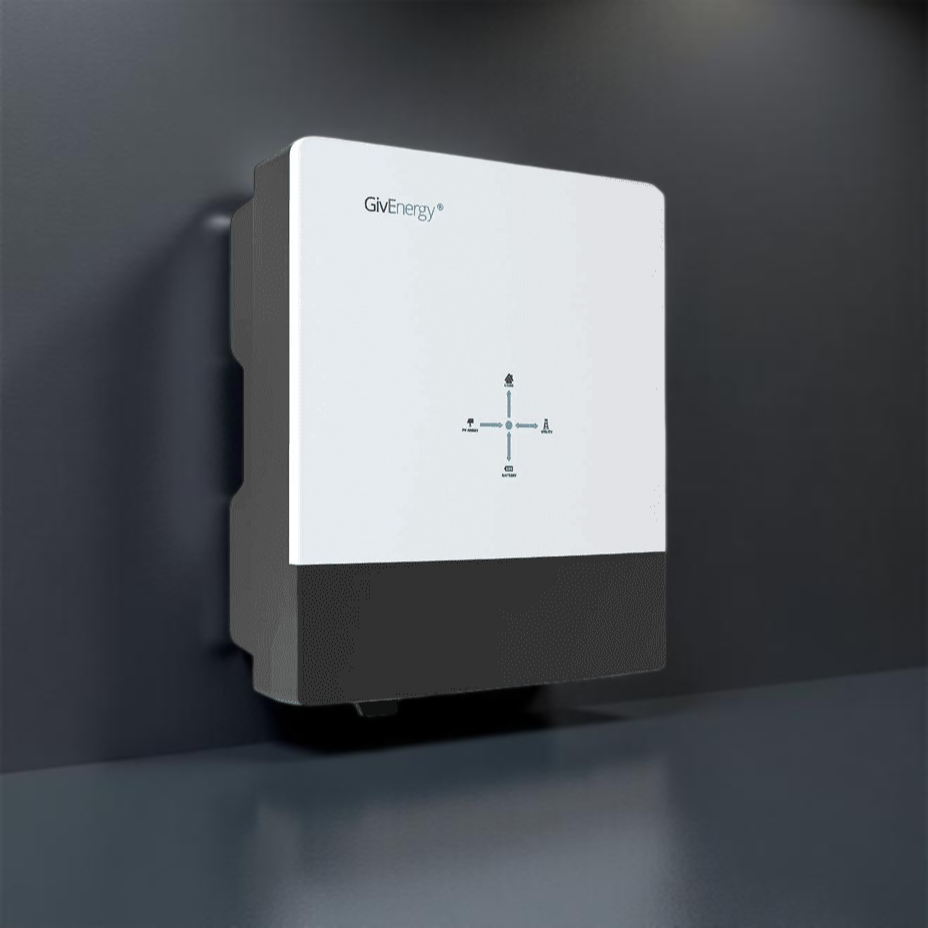

GivEnergy 1-Phase Hybrid Inverter 10.0kW HV 3rd Generation

The GivEnergy 1PH Hybrid Inverter 10.0kW HV 3rd Generation is a powerful single-phase hybrid inverter, purpose-built for large residential and light commercial solar-plus-storage systems. It supports high-voltage battery storage, advanced energy management, and seamless integration with solar PV arrays. With in-built WiFi and LAN, flexible tariff support, and a 12-year warranty, this inverter delivers high efficiency and future-proof scalability.

Key Features

• Nominal AC Output Power: 10,000W
• Max. Apparent Power Output to Grid: 10,000VA
• Max. PV Input Power: 15,000W
• MPPT Voltage Range: 90V – 550V
• Max. PV Voltage: 600V
• Start-up Voltage: 80V
• No. of MPPTs / Strings per MPPT: 2 / 2
• Max. Input Current (per string): 25A
• Max. Short Circuit Current (per string): 30A
• Battery Voltage Range: 120V – 510V
• Max. Charge/Discharge Power: 10,000W / 10,500W
• Charge/Discharge Current: 25A / 25A
• Battery Type: High Voltage LiFePO4 (GivEnergy HV Storage)
• AC Output: 230V, 50Hz, single phase
• Max. Output Current: 45A
• Pass-through Current: 50A
• Automatic Switch Time (EPS): 10ms
• THDv (Linear Load): <3%
• Max. Efficiency: 97.6%
• European Efficiency: 97%
• IP Rating: IP65 (indoor/outdoor)
• Weight: 36 kg
• Dimensions (HxDxW): 558 × 214 × 480 mm
• Communications: WiFi, LAN, CAN
• Warranty: 12 years

Note: Compatible only with GivEnergy high-voltage batteries (not LV range). Earth bonding kit included. Professional installation and GivEnergy installer training are required for warranty and commissioning. GivEnergy portal login is required for full system setup.
