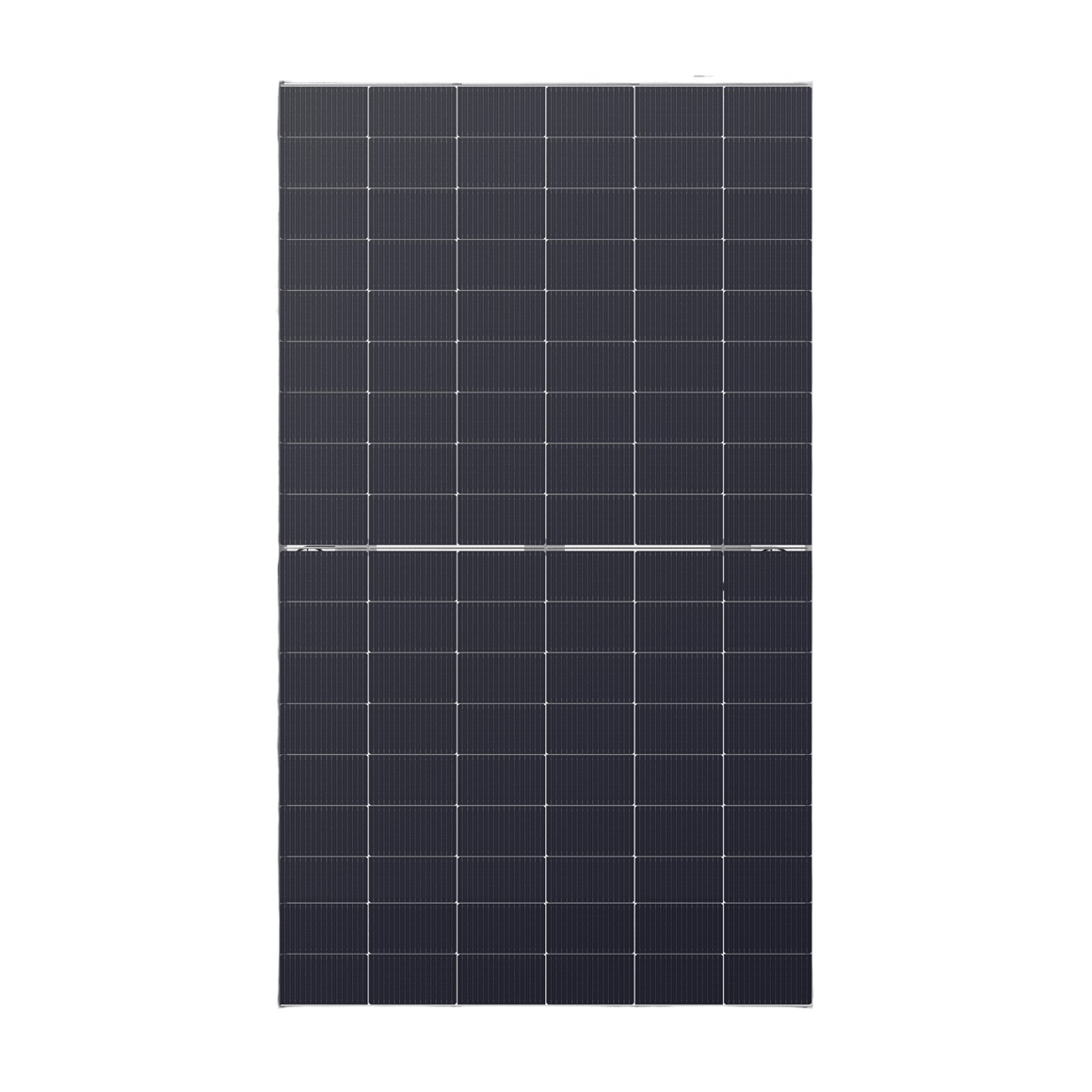

Jinko Tiger Neo Bold 440W N-Type Bifacial Dual Glass

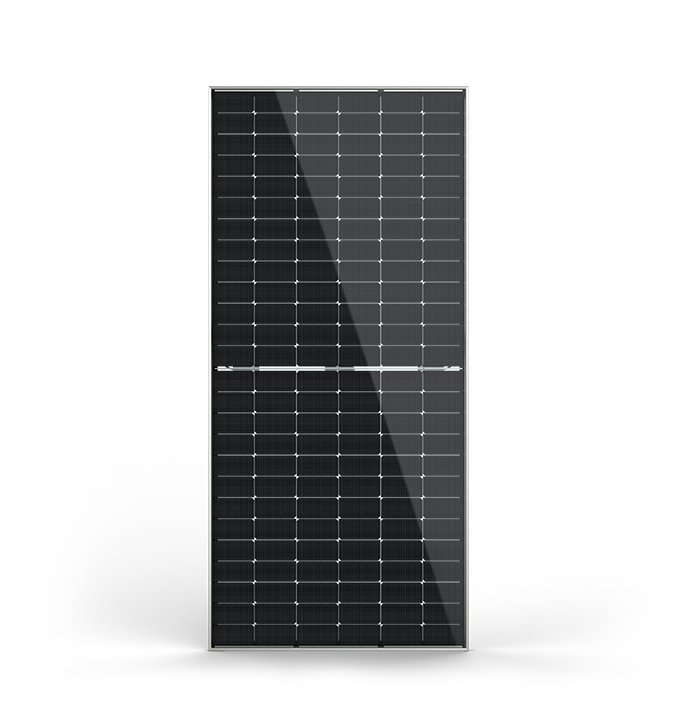

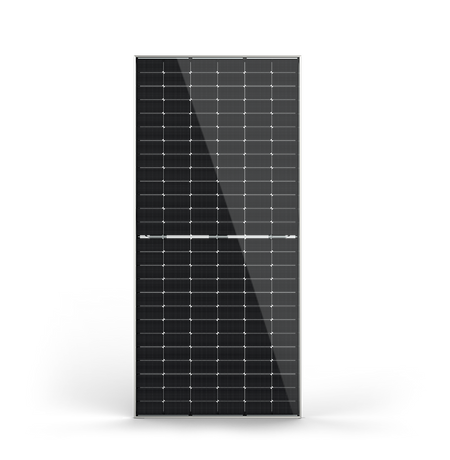

Jinko Tiger Neo 445W N-Type 54 Cell All Black Monocrystalline Solar Panel

The Jinko Tiger Neo 445W N-Type 54 Cell All Black Monocrystalline solar panel is engineered for maximum efficiency, durability, and sleek aesthetics. With advanced N-Type TOPCon cell technology, this panel achieves up to 22.27% efficiency and delivers outstanding performance, even in low-light conditions. Its all-black design ensures a modern, uniform look for any residential or commercial installation.

Built for reliability, this panel features Hot 2.0 Technology for improved longevity and resistance to PID and LID, as well as robust mechanical strength to withstand up to 4000 Pa wind load and 6000 Pa snow load. Backed by a 25-year product warranty and a 30-year linear performance warranty (guaranteeing 87% output after 30 years), it’s a smart, long-term investment in clean energy.

Key Features

• Rated Power (Pmax): 445W
• Module Efficiency: 22.27%
• Cell Type: N-Type TOPCon, 54 cells
• All-Black Design: Sleek and modern appearance
• Wind Load: 4000 Pa
• Snow Load: 6000 Pa
• Product Warranty: 25 years
• Performance Warranty: 30 years (87% output)
• Connector Type: MC4 / JK03M
• MCS Reference: BABT8801-204-445W
• Product Code: JKM445N-54HL4R-B

Electrical Data (STC)

• Open Circuit Voltage (Voc): 39.77 V
• Short Circuit Current (Isc): 13.87 A
• Voltage at Maximum Power (Vmpp): 33.19 V
• Current at Maximum Power (Impp): 13.41 A
• Maximum System Voltage: 1500 V DC
• Temperature Coefficient (Pmax): -0.40%/°C

Dimensions & Weight

• Length: 1762 mm
• Width: 1134 mm
• Depth: 30 mm
• Weight: 22 kg

Certifications

• CE, MCS, ISO 9001, ISO 14001, ISO 45001

EAN Code

• JKM445N-54HL4R-B: 6970070475589

Note: Professional installation is recommended. This panel is compatible with all leading inverter brands and mounting systems.
