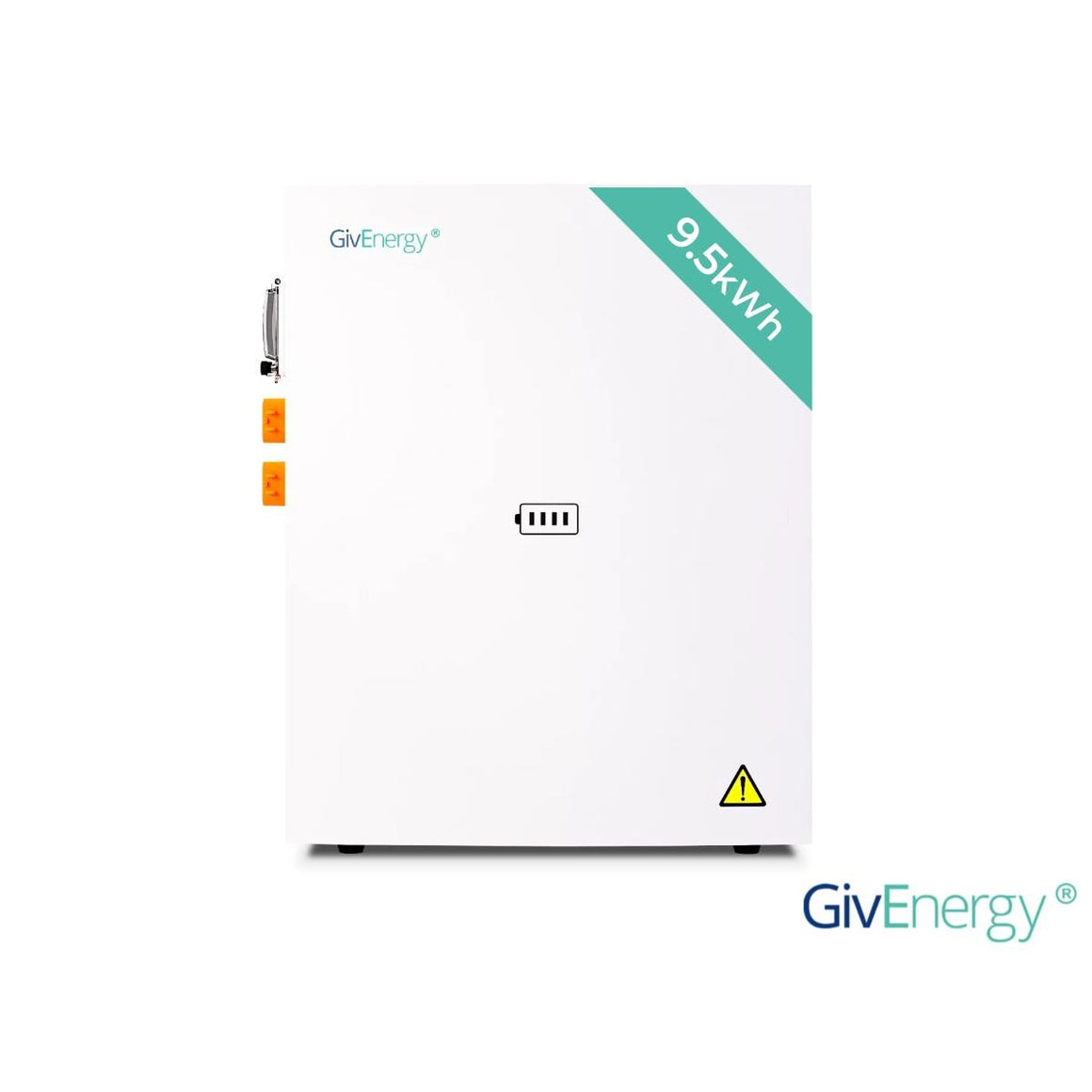

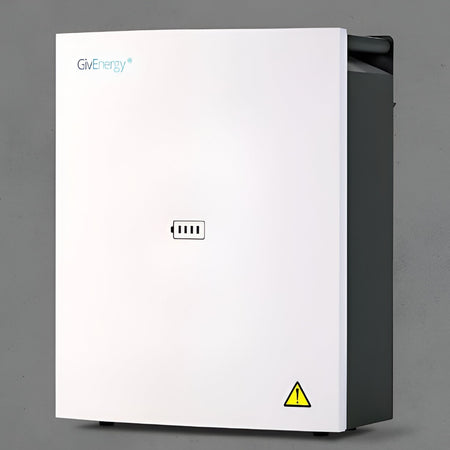

GivEnergy 9.5 kWh Li-Ion Battery Gen 3

The GivEnergy 9.5 kWh Li-Ion Battery Gen 3 GIV-BAT-9.5-G3 is a high-capacity, scalable lithium iron phosphate battery designed for residential and commercial energy storage, offering 100% depth of discharge and unlimited cycles warranty for reliable performance.

Product Description

The GivEnergy GIV-BAT-9.5-G3 is the third generation of the 9.5 kWh LiFePO4 battery, featuring a compact and lighter design compared to previous models while maintaining high performance. It integrates seamlessly with GivEnergy inverters for solar PV systems, allowing energy storage from the grid or excess generation. The battery is cobalt-free, non-flammable, and 99% recyclable, with IP65 protection for indoor or outdoor installation. It supports up to 5 units in parallel for expanded capacity.

Key Features

• High capacity: 9.5 kWh usable energy with 100% depth of discharge.
• LiFePO4 chemistry: Safe, cobalt-free, non-flammable, and 99% recyclable.
• Unlimited cycles warranty: 12-year warranty with unlimited throughput.
• Scalable: Up to 5 batteries in parallel for larger systems.
• IP65 rated: Suitable for indoor or outdoor installation.
• Integrated DC breaker: Enhances safety and ease of installation.
• Remote firmware updates: Ensures ongoing optimization.

Technical Specifications

• Model: GIV-BAT-9.5-G3 – LiFePO4 Battery.
• Nominal capacity: 9.5 kWh / 186 Ah.
• Usable capacity: 9.5 kWh (100% DoD).
• Nominal voltage: 51.2 V DC.
• Operating voltage range: 45 V - 58 V DC.
• Maximum charge/discharge current: 120 A.
• Recommended charge/discharge current: 80 A.
• Charging temperature: 0°C to 55°C.
• Discharging temperature: -10°C to 55°C.
• IP rating: IP65.
• Warranty: 12 years, unlimited cycles.
• Certifications: CE, UKCA, G99, G100.

Dimensions & Weights

• Width: 480 mm.
• Depth: 225 mm.
• Height: 576 mm.
• Weight: 85 kg.

System & Application Notes

• Ideal for medium to large properties aiming for energy independence, compatible with GivEnergy AC Coupled or Hybrid Inverters.
• Supports parallel connection of up to 5 units for expanded storage.
• Installation: Wall-mounted with bracket; ensure proper ventilation and access; professional setup recommended.
• Integrates with GivEnergy monitoring platform for remote management and firmware updates.
• Eligible for incentives in supported regions; complies with safety standards for LiFePO4 batteries.
