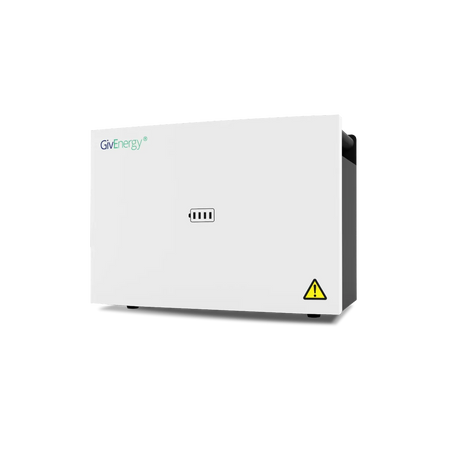

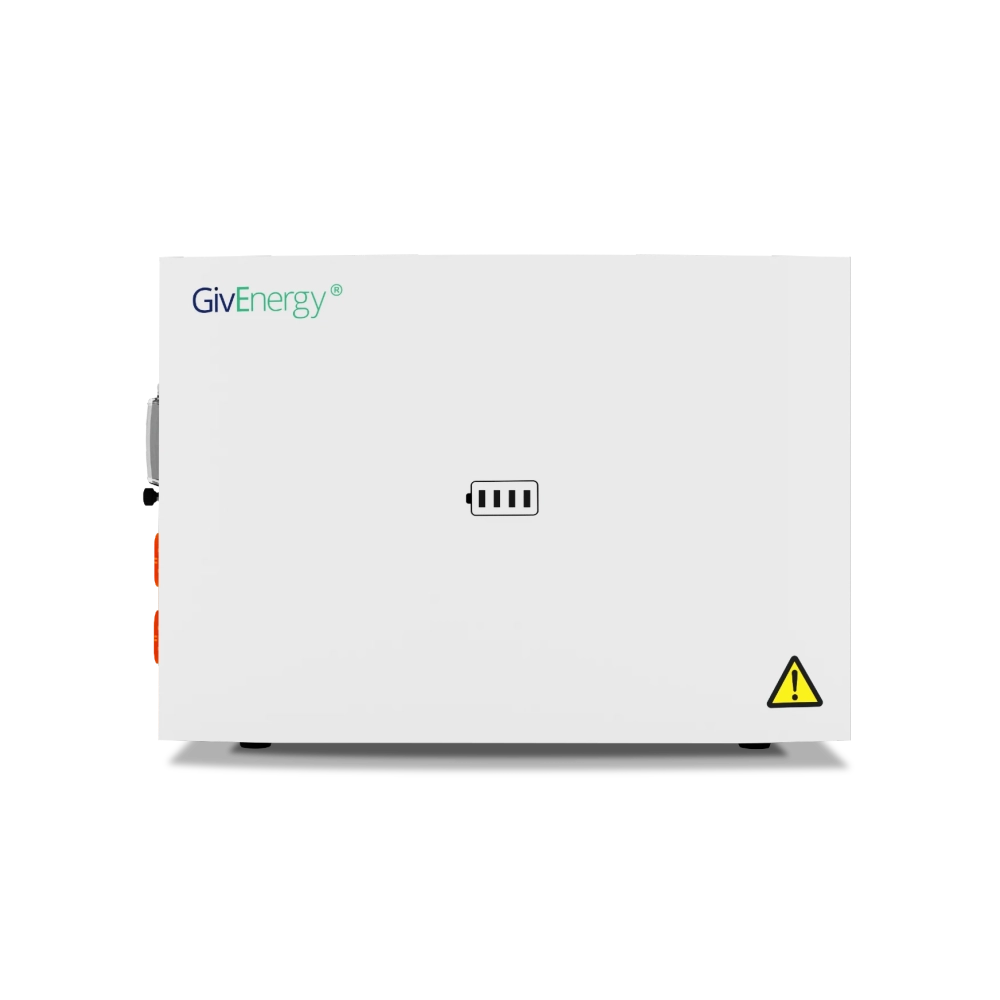

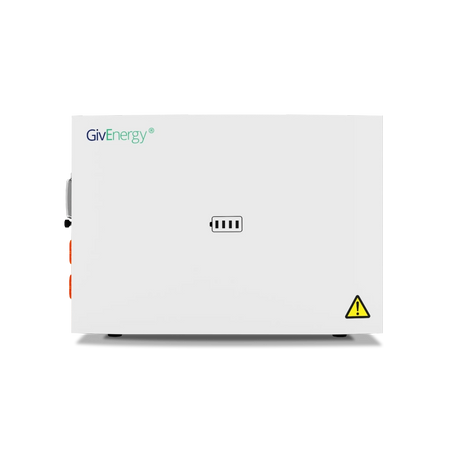

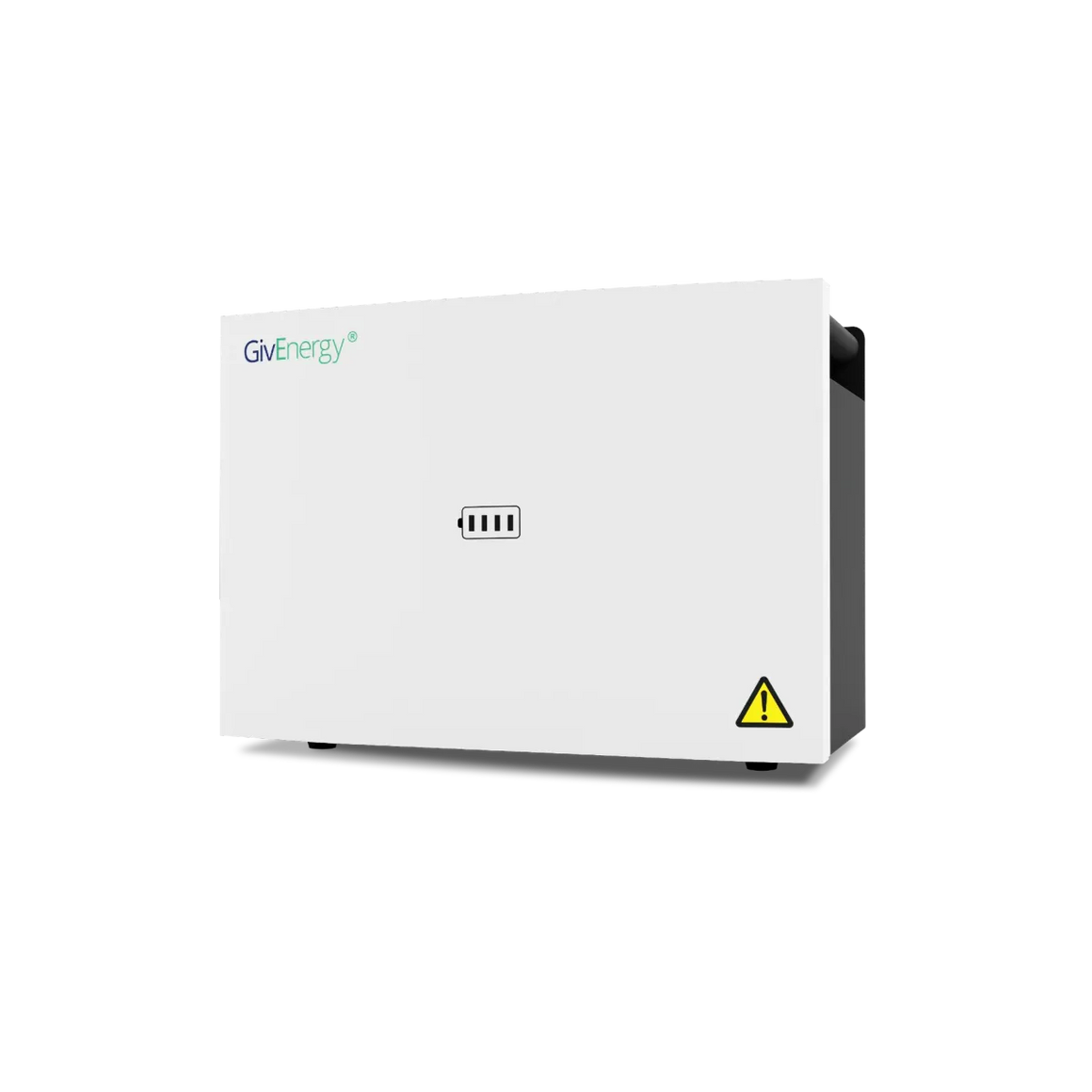

GivEnergy 5.12kWh Lithium-Ion Battery Gen 3
Regular price
£1,730.00
Inc. VAT
£1,441.67 Exc. VAT
£1,441.67 Exc. VAT
FREE Express Delivery (1-3 days) in UK Mainland on most orders
Excluding: Solar Panels (£59 delivery), Batteries (£49 delivery), Small Items (£4.95 delivery)
Contact Us to check for Next Working Day Delivery or Same-day Delivery options
Contact Us for Click & Collect options
Custom quote available on request
*See checkout or shipping policy for full details
Payment options
The GivEnergy 5.12kWh Li-Ion Battery Gen 3 is an advanced energy storage solution designed for modular scalability, compact installation, and high performance. This third-generation battery offers a smaller footprint, higher usable capacity with 100% depth of discharge, and enhanced safety features thanks to lithium iron phosphate (LiFePO4) chemistry.
Key Features
- Usable Capacity: 5.12 kWh with full 100% depth of discharge, providing maximum energy storage without degradation.
- Advanced Battery Technology: Utilises LiFePO4 prismatic cells, non-flammable, cobalt-free, and 99% recyclable for improved safety and sustainability.
- Flexible Installation: Compact design (338 x 242 x 480 mm) allows for wall mounting or floor standing in various indoor or outdoor environments (IP65 rated).
- Robust Management System: Equipped with multipoint battery management system (BMS) for individual cell monitoring and balancing, ensuring longevity and optimum performance.
- High Power Ratings: Continuous charge and discharge current up to 60A, peak currents up to 120A (15 seconds), and nominal voltage of 51.2V.
- Long Warranty: Industry-leading 12-year warranty offering reliability and confidence in long-term use.
Technical Specifications
| Feature | Specification |
|---|---|
| Model | GIV-BAT-5.1-G3 |
| Battery Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Usable Energy Capacity | 5.12 kWh (5120 Wh) |
| Nominal Voltage | 51.2 V |
| Depth of Discharge (DoD) | 100% |
| Continuous Charge/Discharge Current | 60 A |
| Peak Discharge Current (15 s) | 120 A |
| Dimensions (H x D x W) | 338 x 242 x 480 mm |
| Weight | 48 ± 2 kg |
| Operating Temperature Range | -10°C to 55°C |
| IP Rating | IP65 |
| Communication | CAN/RS485 Protocol |
| Warranty | 12 years or 52 MWh throughput |
The GivEnergy 5.12kWh Li-Ion Battery Gen 3 is ideal for home or small commercial energy storage applications requiring flexible installation, high safety standards, and long service life. Its superior energy density combined with modular scalability allows it to adapt to expanding system needs, making it a future-proof investment in renewable energy storage.
- Type Solar Batteries
- Vendor GivEnergy
- SKU GIV-BAT-5.1-G3
