Home » GivEnergy 3.0kW AC Coupled with 9.5kWh Battery Bundle
SKU: GIVAC/9.5BUND
(0)

GivEnergy 3.0kW AC Coupled with 9.5kWh Battery Bundle

GivEnergy
£4,350.00 inc. VAT

Payment details

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

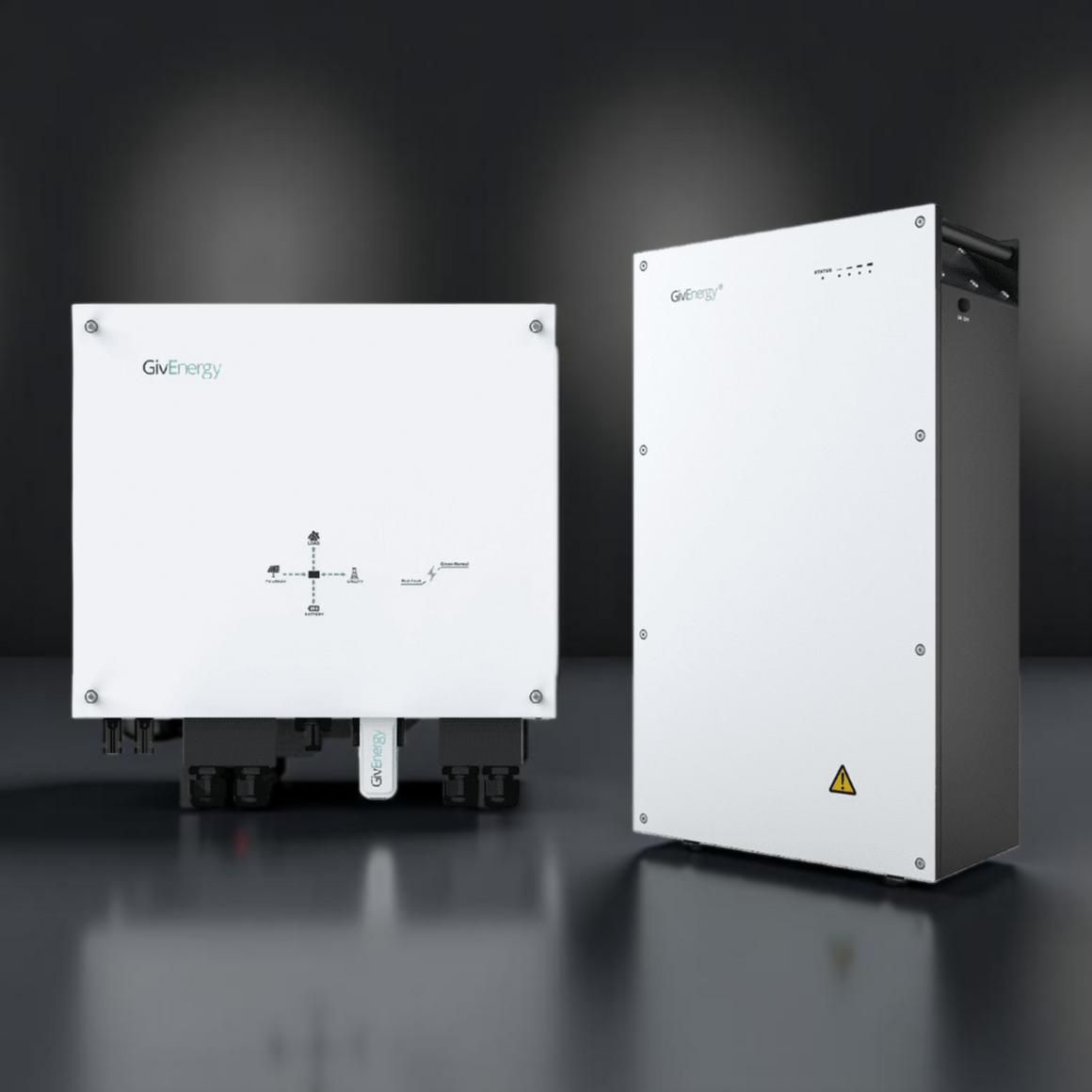

GivEnergy 3.0kW AC Coupled + 9.5kWh Battery Bundle

The GivEnergy 3.0kW AC Coupled + 9.5kWh Battery Bundle is a complete energy storage package designed for both retrofit and new solar installations. It combines the GivEnergy 3.0kW AC Coupled Battery Inverter with a 9.5kWh LiFePO4 battery, enabling you to store excess solar energy or charge from the grid during off-peak periods for maximum savings and self-consumption. The system is compatible with the GivEnergy monitoring app and portal for remote management and performance tracking.

Bundle Includes

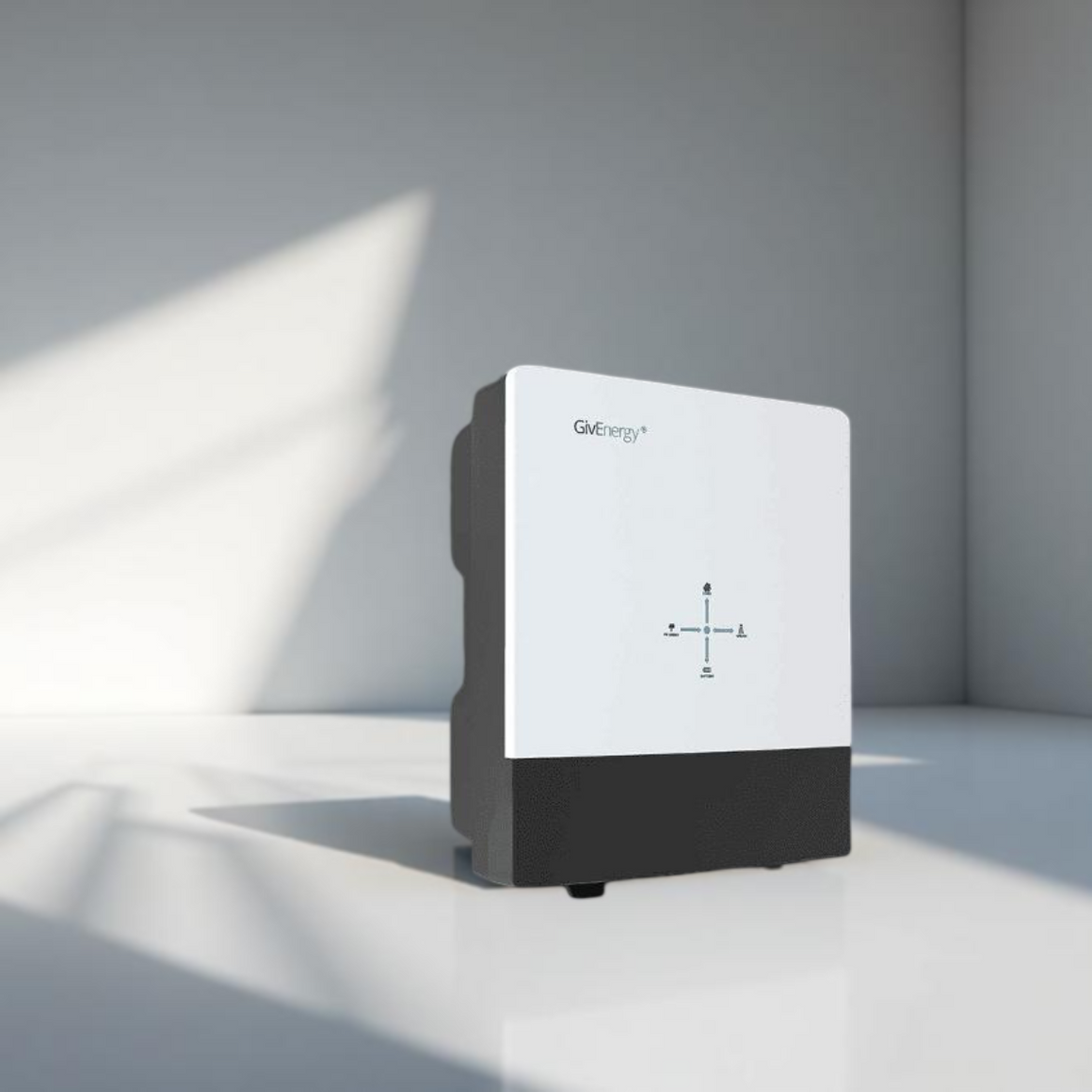

  • GivEnergy AC Coupled 3.0kW Battery Inverter
  • GivEnergy 9.5kWh LiFePO4 Battery (Gen 2)
  • GivEnergy Lug to Plug + Grommet for battery connection

Key Features

  • Inverter Nominal AC Output Power: 3,000W
  • Maximum AC Apparent Power: 3,200VA
  • Maximum Output Current: 13A
  • Max. Charge/Discharge Rate: 3,000W / 3,000W
  • Battery Capacity: 9.5kWh usable (LiFePO4), 100% depth of discharge
  • Battery Voltage Range: 45V – 58V
  • Max. Charging/Discharging Current: 60A / 60A
  • Inverter IP Rating: IP65 (indoor/outdoor)
  • Battery IP Rating: IP65
  • Operating Temperature Range: -25°C to +60°C (derating above 45°C)
  • Noise Emission: <30dB
  • Dimensions (Inverter): 223 × 260 × 480 mm
  • Weight (Inverter): 22.4 kg
  • Warranty: 12 years
  • Connectivity: WiFi, USB, RS485, GPRS, 4G (optional)
  • Compatible with: Existing solar PV systems for retrofit or new installs
  • Backup Output: Up to 2.5kW to dedicated circuits (requires appropriate isolator)

Technical Specifications (Inverter)

  • AC Nominal Voltage: 230V (202V – 262V range)
  • AC Grid Frequency: 50Hz ±5Hz
  • Power Factor: 1 (adjustable 0.9 leading/lagging)
  • Total Harmonic Distortion (THDI): <3%
  • Inverter Topology: Transformerless
  • Relative Humidity: 0–100%
  • Altitude: up to 4000m (derating above 2000m)
  • Display: LED
  • Certifications: G98, G100, EN50549, IEC 62109-1/2, VDE-AR-N4105, VDE0126, AS4777, IEC62040, EN61000-6-2/3, UKCA, CE

Note: Professional installation and setup via the GivEnergy portal are required for full warranty and optimal performance. The system is suitable for both new and retrofit installations and can be monitored and controlled remotely using the GivEnergy app and web portal.
  • Type Solar
  • Vendor GivEnergy
  • SKU GIVAC/9.5BUND
