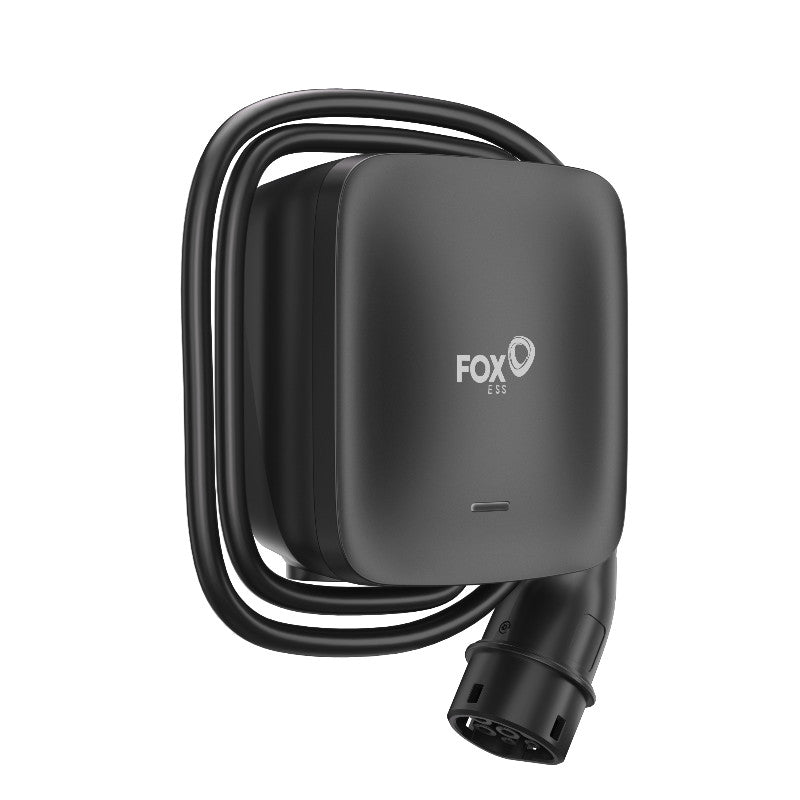

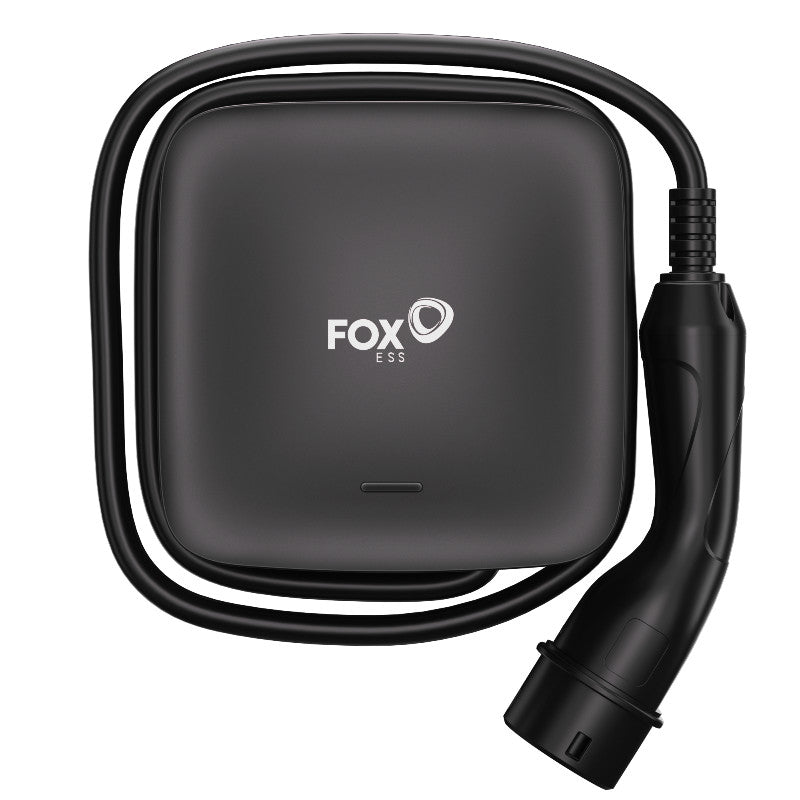

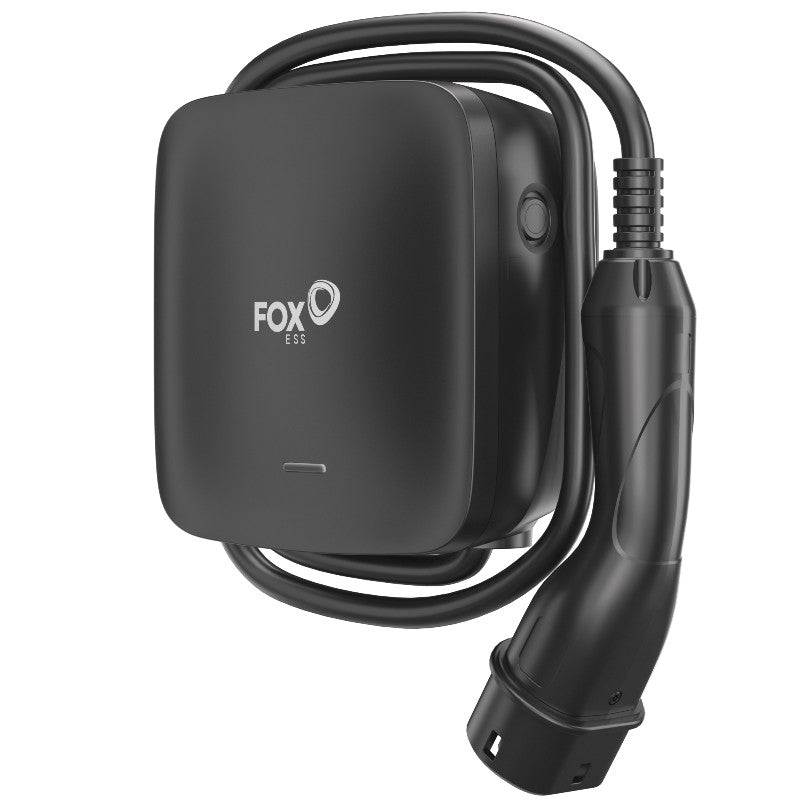

Fox 7kW L Series EV Charger 1PH with 6m Type 2 Cable
Exc. VAT
Inc. VAT
Regular price
£375.00
(Inc. VAT)
inc. VAT
Couldn't load pickup availability
Payment options
FE-EV-L07P | Smart single-phase 7.3kW tethered EV charger with solar integration, dynamic load balancing and OCPP 1.6/2.0.1 protocol support.
Key Features
- 7.3kW single-phase charging (32A max) with 6m fixed Type 2 tethered cable.
- Solar linkage - utilises excess PV power directly for EV charging.
- Dynamic load balancing adjusts power based on household consumption.
- Scheduled charging via app for off-peak tariffs and solar optimisation.
- Plug & Charge / RFID / App control modes with Bluetooth/WiFi connectivity.
- IP55 weatherproof + IK08 impact resistance for outdoor durability.
- OCPP 1.6 JSON / 2.0.1 compliant for commercial fleet management.
Technical Specifications
| Rated Power | 7.3 kW |
| Input Voltage | 230 V AC ±20% |
| Max Input Current | 32 A |
| Frequency | 50/60 Hz |
| Output Current | 32 A |
| Cable Length | 6 m Type 2 tethered |
| Protection Rating | IP55 / IK08 |
Mechanical Specifications
| Dimensions (W×H×D) | 197 × 196 × 105 mm |
| Weight | 3.9 kg |
| Installation | Wall or floor column mount |
| Operating Temperature | -25°C ~ +50°C |
| Connectivity | WiFi (2.4GHz), Bluetooth, LAN, OCPP |
| Certifications | CE/UKCA, IEC 61851, IEC 62955 |
Installation & Safety
- Bottom/back cable entry for flexible wiring (6-10mm² cable recommended).
- Integrated 6mA DC leakage protection (RCD-DD) + external RCCB required.
- Overcurrent, surge, over/under voltage and temperature protections.
- Compatible with Fox ESS ecosystem for integrated solar + storage + EV charging.
MPN: FE-EV-L07P
Model: Fox L Series L07P 7.3kW 1PH Tethered
Future-proof smart EV charger designed for seamless integration with solar PV and battery storage, maximising self-consumption while providing fast, reliable home charging.
- Type EV Charger
- Vendor Fox ESS
- SKU FE-EV-L07P
