EHC 12kW SlimJim Electric Flow Boiler & 180L Direct Cylinder Package

The EHC 12kW SlimJim combines a highly efficient electric flow boiler with a 180-litre stainless steel direct unvented cylinder in a compact, pre-plumbed package. Designed for both heating and hot water, this system is ideal for homes requiring a reliable, space-saving electric heating solution with advanced controls and robust safety features.

Key Benefits & Features

• Complete ready-to-install package: Includes 12kW SlimJim electric flow boiler, 180L stainless steel direct cylinder with two 3kW immersion heaters, twin channel programmer, room thermostat, 2×2 port zone valves, dual cylinder thermostat, wiring centre, temperature & pressure relief valve, auto air vent, 8L expansion vessel, and high quality circulating pump.

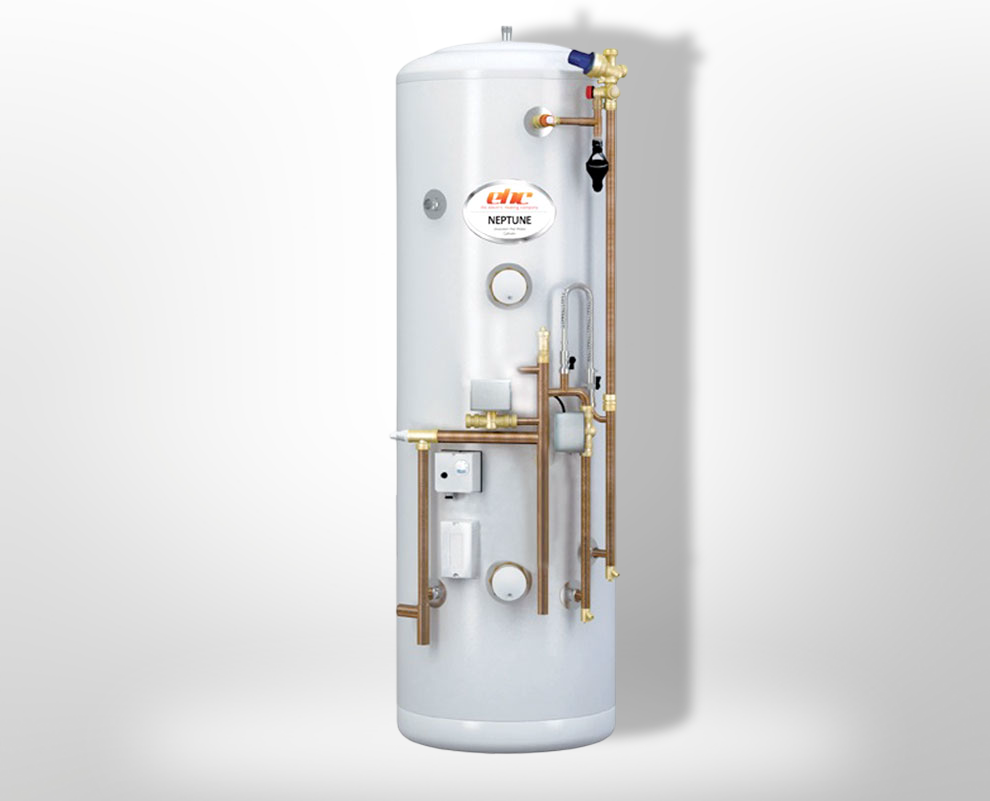

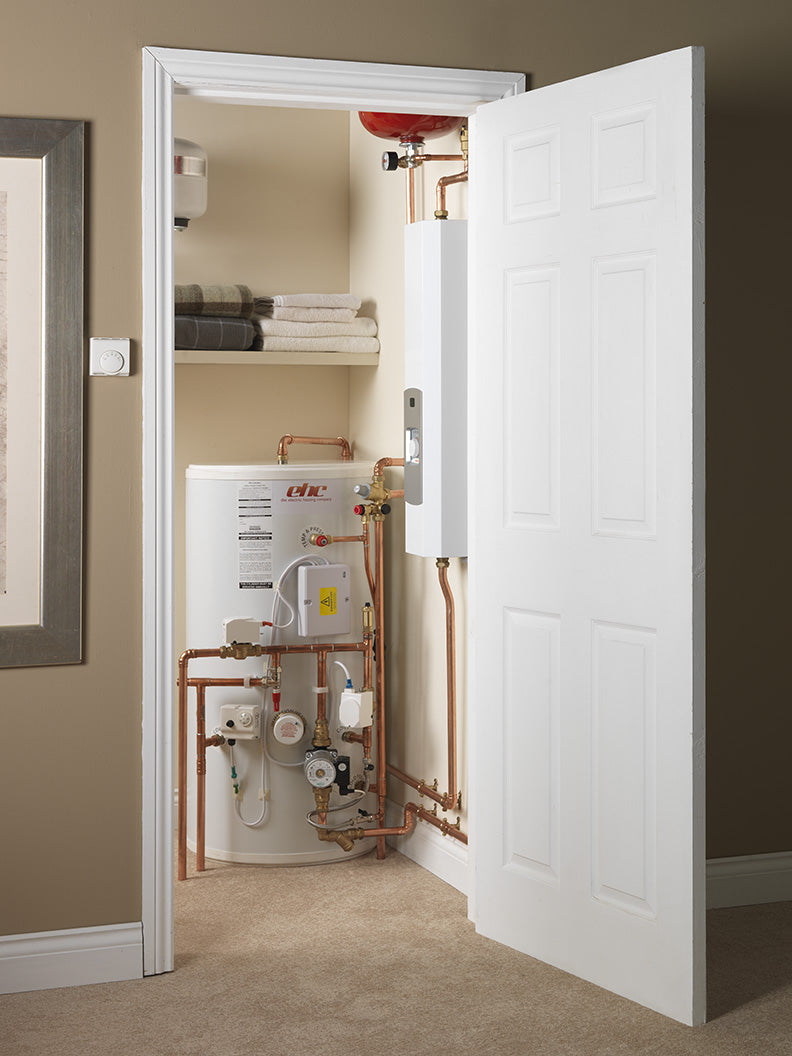

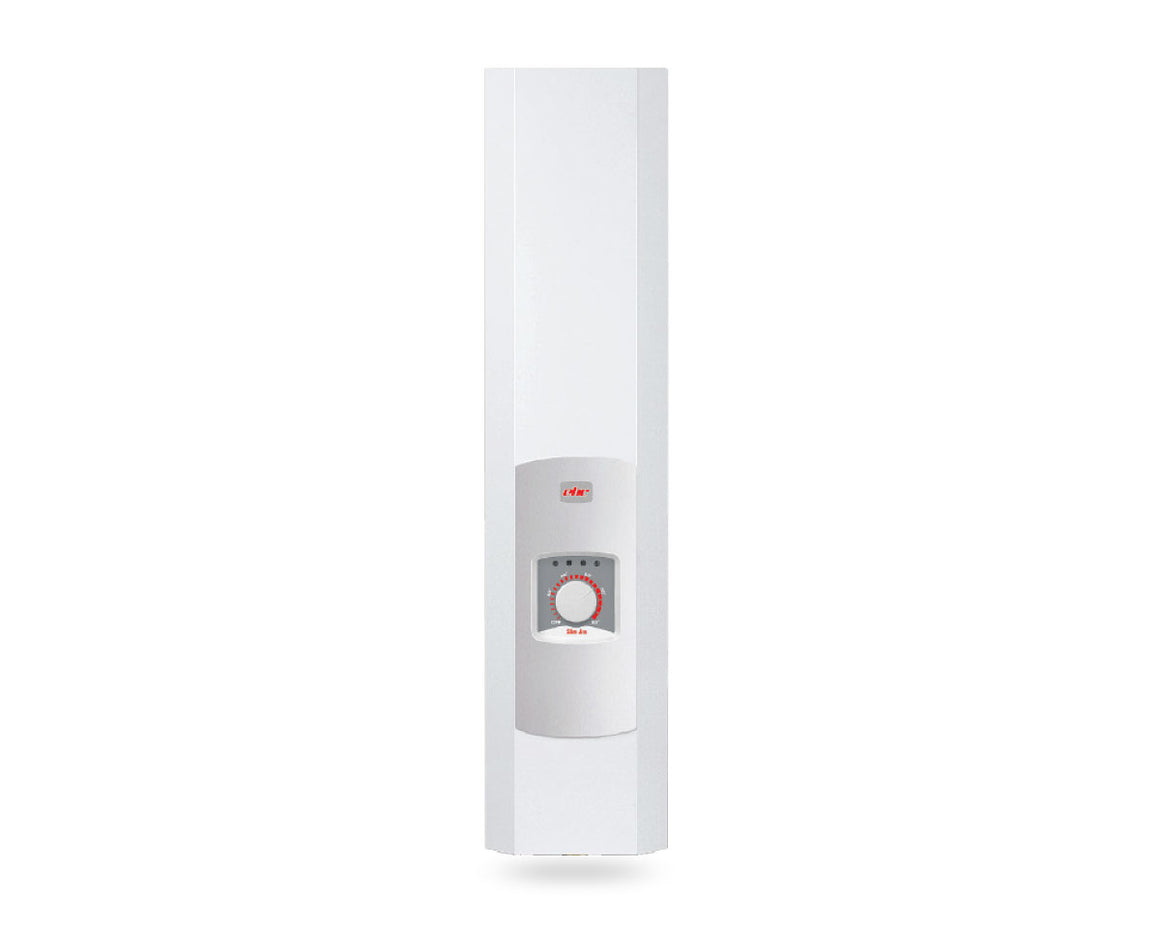

• Space-efficient design: Wall-mounted boiler with compact dimensions (approx. 803 mm height, 203 mm width) paired with floor-standing narrow cylinder (912 mm height, 203 mm width, 172 mm depth).
• Highly efficient and reliable: Boiler is 100% efficient energy-wise, minimising running costs and environmental impact.

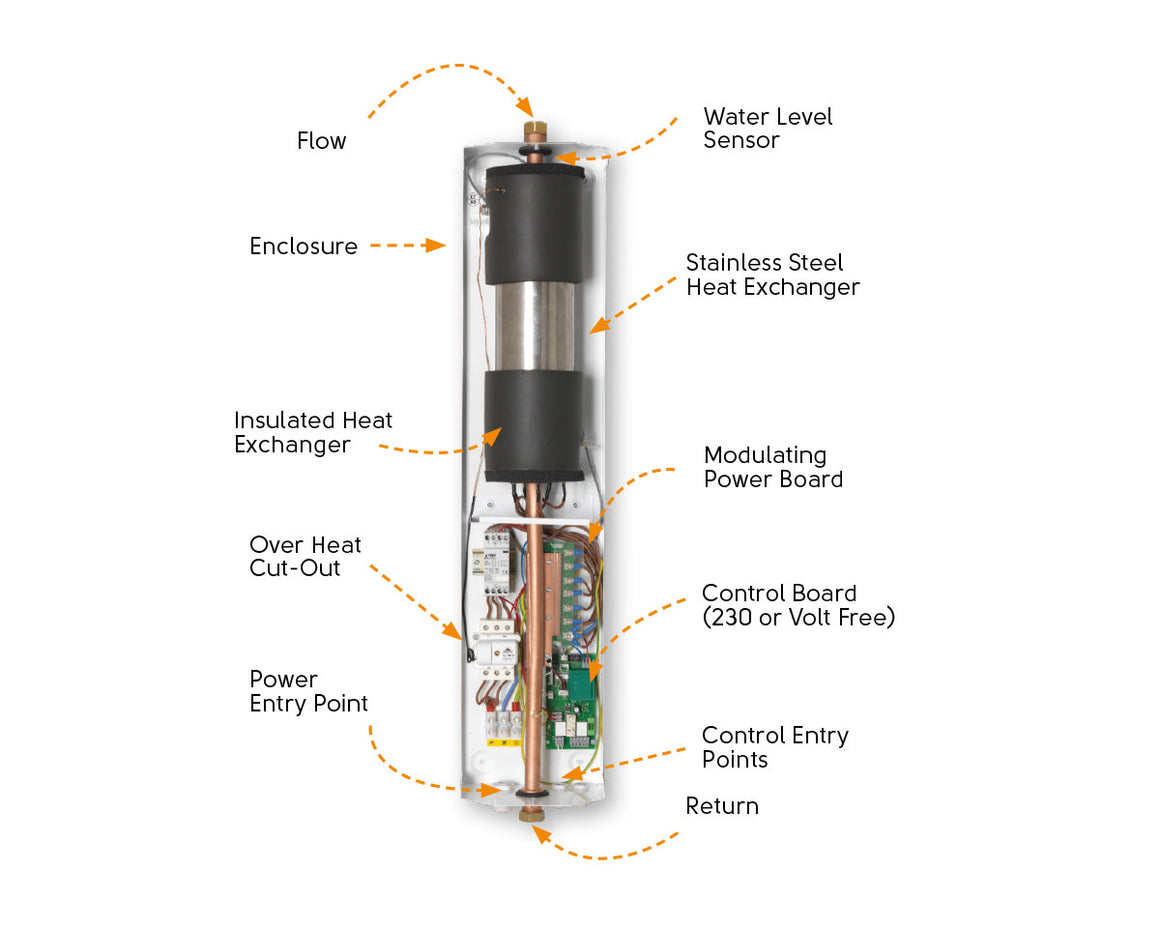

• Advanced safety features: Includes run-dry water level sensor, high current safety cut-out, overheat protection, electronic diagnostics, and thermal cut-outs.
• Simple operation and control: Front control panel with temperature dial, fault diagnostics, and user-friendly programmer make heating management straightforward.
• Low maintenance: No mandatory annual servicing; robust construction ensures long operational life.
• Silent running: Virtually noise-free operation for enhanced comfort.
• Warranty: 5 years parts and labour on boiler; 25 years on stainless steel cylinder; 2 years on controls and accessories for peace of mind.

Technical Specifications

The EHC 12kW SlimJim Electric Flow Boiler & 180L Cylinder Package offers a highly efficient, space-saving heating solution, combining cutting-edge technology with robust build quality and extensive safety features. It is perfectly suited for modern homes seeking an eco-friendly and low maintenance central heating and hot water system.
