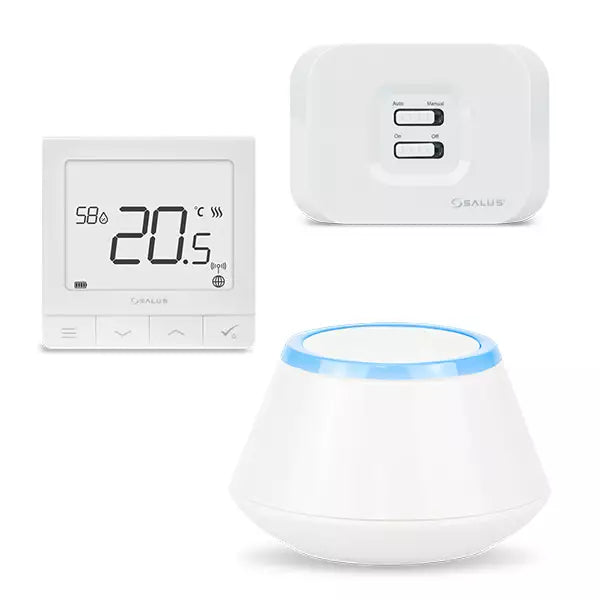

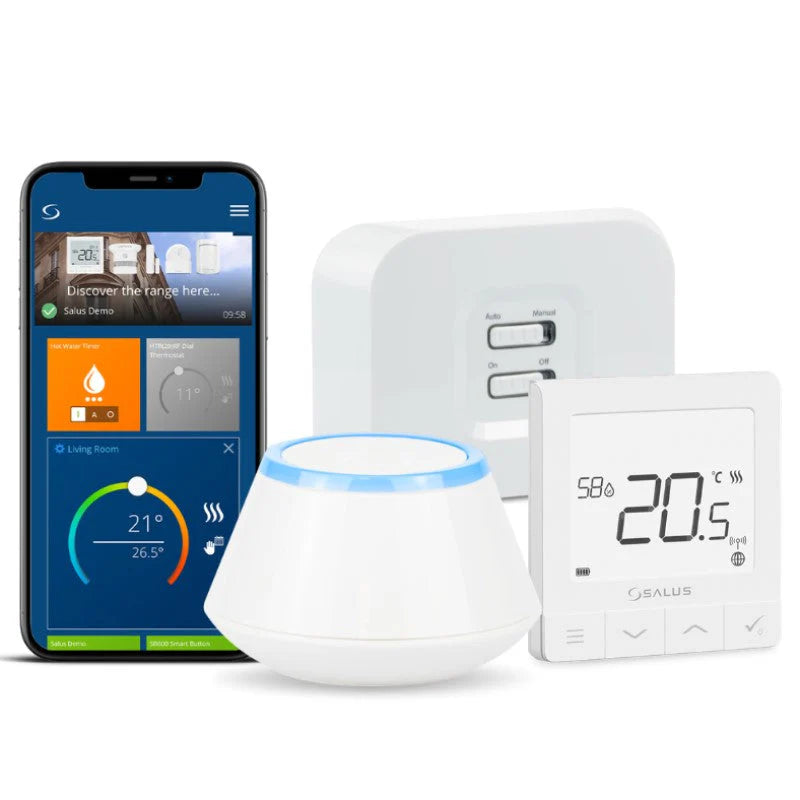

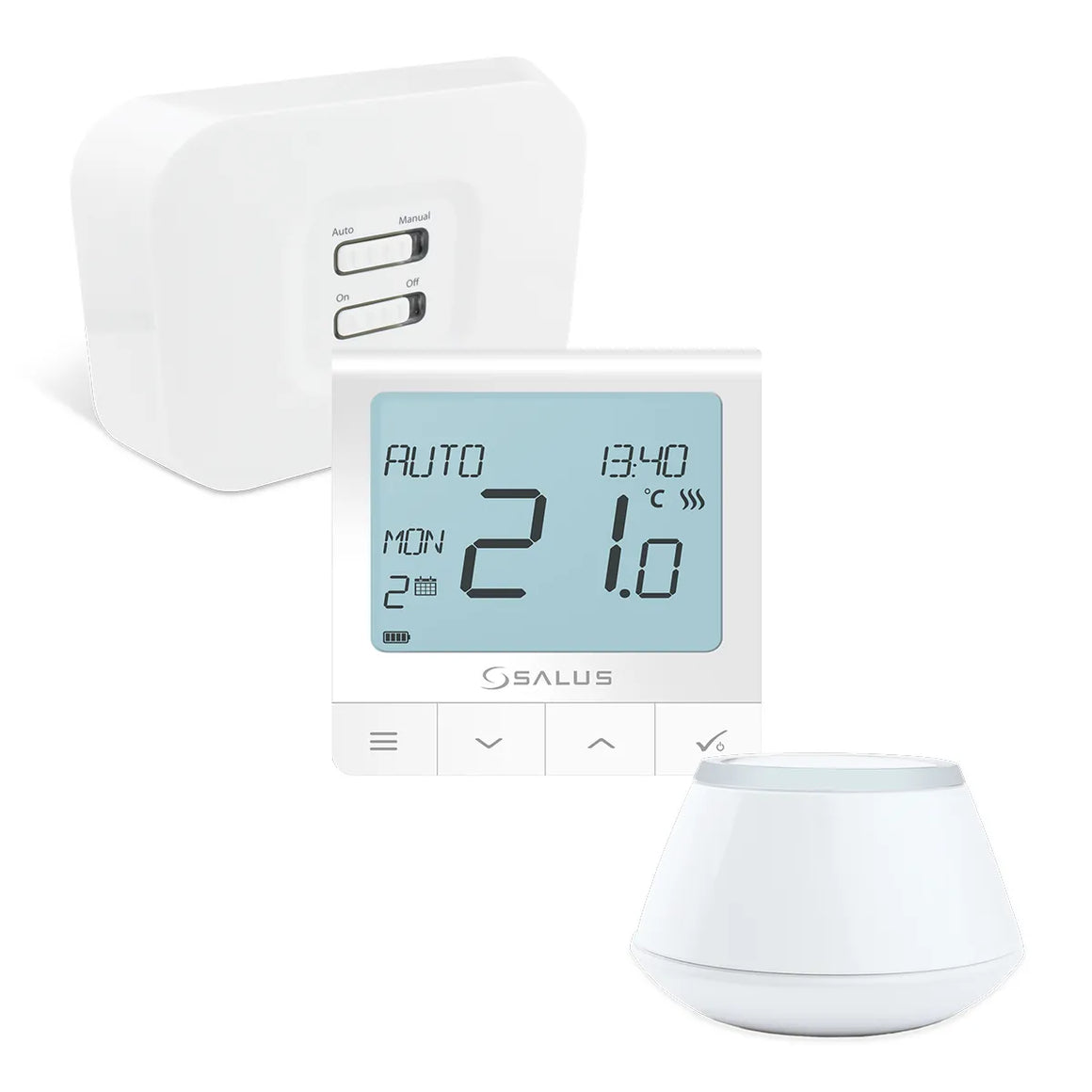

Salus Smart Home Base Pack of UG600, SQ610RF and RX10RF

Salus Smart Home Base Pack c/w UG600, SQ610RF & RX10RF

The Salus Smart Home Base Pack is the essential starter kit for implementing a single-zone smart heating system, with expansion potential for full multi-zone or underfloor heating management via additional SALUS components. This pack includes:

• UG600 Universal Gateway: Serves as the ZigBee 2.4 GHz central hub, connecting all SALUS Smart Home devices (thermostats, actuators, relays, TRVs, sensors, etc.) to your home network. Only the gateway requires a fixed Internet connection (WiFi/Ethernet), with all other devices wirelessly paired to it. Supports remote control, scheduling, and automation from the Salus Smart Home App (iOS/Android/web).
  Main roles: Device management, rule-based automation, seamless expansion with sensors, TRVs, and relays.
  Dimensions: Approx. 100 x 100 x 25 mm
  Power Supply: 5V micro-USB adapter
  Wireless Standard: ZigBee 2.4 GHz / WiFi connection to router
• SQ610RF Wireless Thermostat (White): Ultra-slim, rechargeable thermostat for controlling a heating zone. Offers advanced scheduling (7-day, etc.), load compensation, open window detection, and both heating/cooling functions. Wall or desktop installation, integration with voice assistants (Alexa, Google Home) via gateway.
  Battery: Built-in Li-Ion (recharge by micro USB, no replacement needed)
  Display: Large 3.5" LCD with touch controls
  Temperature Range: 5°C–35°C
  Control Algorithms: ITLC (Intelligent Load Compensation), Optimum Start/Stop
  Extra features: Landlord/child PIN, frost/valve protection, holiday setting, humidity indicator
  Dimensions: 86 x 86 x 11 mm
• RX10RF Boiler Receiver: Wireless relay that links the thermostat and gateway to your heating source (boiler or zone valve). Controls heating based on app/thermostat commands.
  Power Supply: 230V AC
  Switching: Volt-free and 230V relay contact (max 16A/5A SPST)
  Manual override option and LED status indicators
  Mounting: Wall, 145 x 100 x 35 mm

Suitable For

• Single-zone heating (expandable to multi-zone with TRVs or more thermostats)
• Underfloor heating system integration (when combined with Salus wiring centres/actuators)
• Remote control of home heating via smartphone/tablet/PC from anywhere
• London/UK market with full British compliance and 5-year warranty
• Expansion: add smart plugs, sensor modules, window/door sensors, and radiator controllers as needed

Key Features

• Easy setup and pairing of devices through Salus App and web portal
• Remote and local scheduling, frost protection, and energy saving modes
• Open window detection and intelligent load algorithms for greater efficiency
• Boiler Plus compliant
• Expandable to suit underfloor and multi-zone radiator setups
• Integrates with ZigBee-based Salus actuators, TRVs, centres, and sensors

Package Contents

• 1 x UG600 Universal Gateway (hub)
• 1 x SQ610RF Wireless Thermostat (White)
• 1 x RX10RF Wireless Boiler Receiver
• Power adapters, mounting screws, and user manuals for each component

Warranty: 5 years
EAN: (Verify with supplier)
MPN: Typically referenced as SH-BASE or by component SKUs
