Matt:e Single Phase Monitoring and Protection Device with Terminals

Matt:e Single Phase Monitoring and Protection Device with Terminals

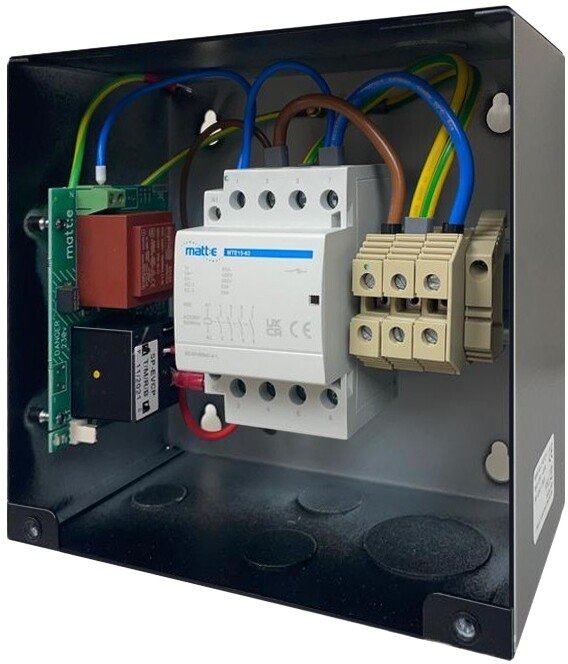

The Matt:e Single Phase Monitoring and Protection Device with Terminals (SP-EVCP-T) is a dedicated EV connection centre designed for residential installations. It provides built-in PEN fault protection, allowing safe connection of EV charge points (including Tesla Wall Connector) to PME earthing systems without the need for earth rods.

Key Features

• Suitable for single-phase PME power supplies (not for three-phase)
• Integrated PEN fault detection and isolation for compliance and safety
• Allows connection of EV charge points to PME earthing without earth electrodes
• Simple wire-in, wire-out installation
• Rated for 32A maximum load
• Robust mild steel IPX2 enclosure
• Complies with BS 7671 18th Edition wiring regulations
• 3-year parts warranty
• Compatible with all major EV chargers, including Tesla Wall Connector Gen 3

Technical Specifications

• Model/MPN: MATT-SP-EVCP-T
• EAN: Not widely published; typically not required for installation or trade ordering
• Current Rating: 32A
• Voltage: 230V AC, 50Hz

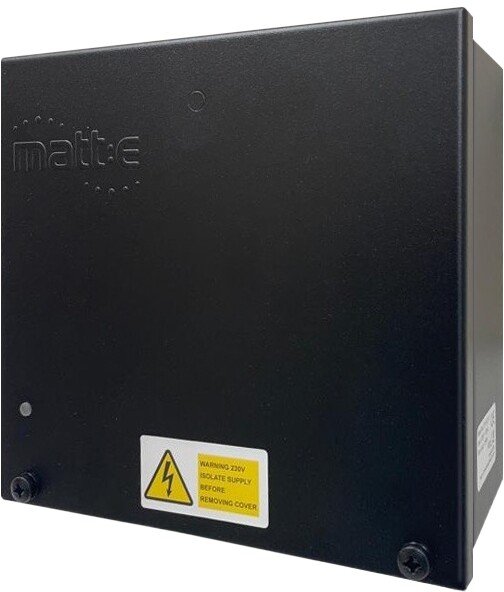

• Enclosure: Mild steel, IPX2
• Dimensions: 169 × 182 × 111 mm
• Weight: 3 kg
• Warranty: 3 years

Compatibility

• Can be combined with the Tesla Wall Connector Gen 3 (and other single-phase EV chargers) to ensure full compliance with UK earthing regulations and eliminate the need for an earth rod.
